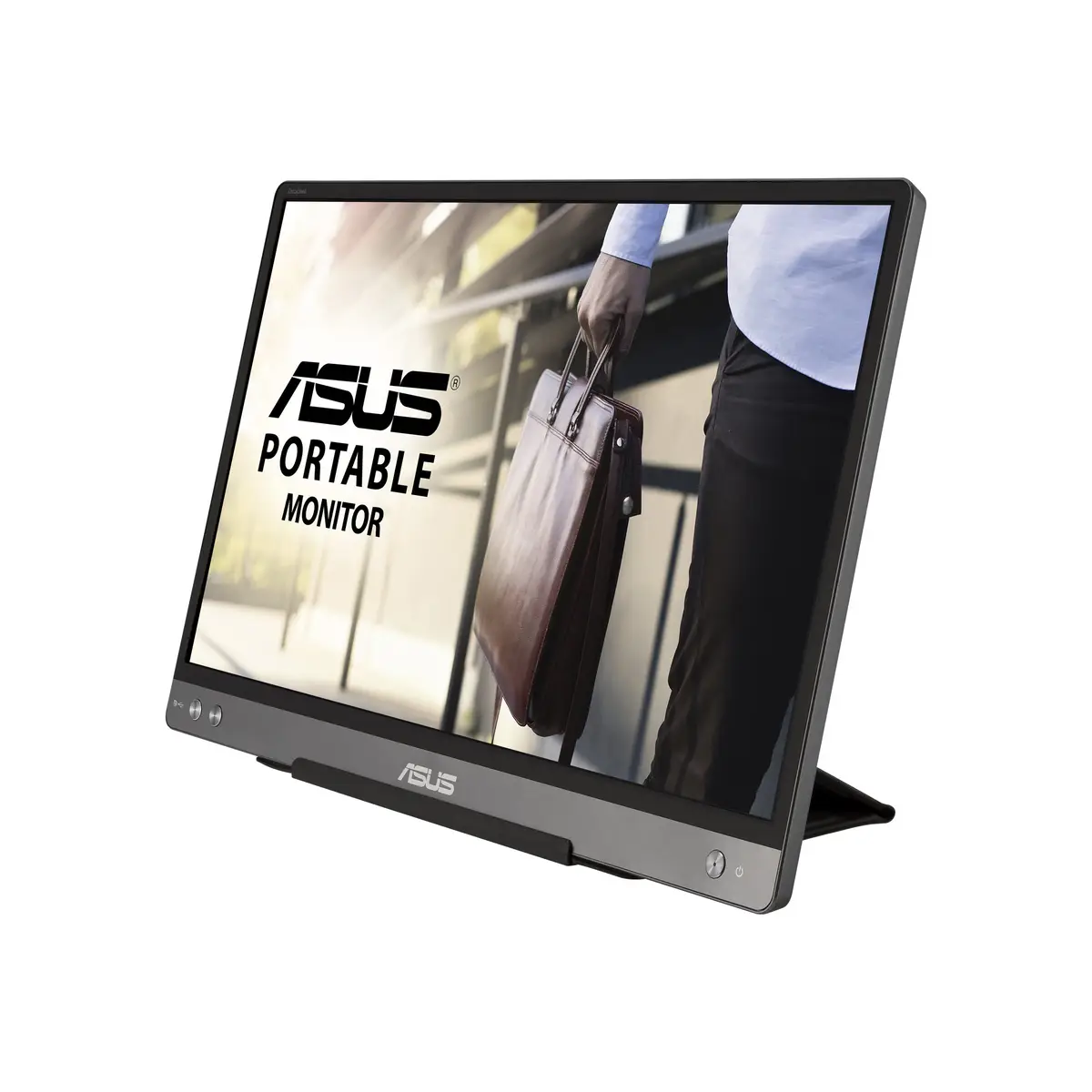

- MB14AC Computerbildschirm 35,6 cm (14") 1920 x 1080 Pixel Full HD Grau



ASUS ZenScreen™ MB14AC is designed to keep you productive, wherever you are. It‘s the portable monitor with a hybrid USB-C signal solution(DP Alt mode+ USB 3.0), which means that it only needs a single USB-C cable for both power and video transmission. With a slim 9mm profile, and weighing just 0.59kg, ZenScreen MB14AC is also a compact 14-inch companion monitor to meet different needs for laptop users.
Hybrid-signal solution: USB Type-A and Type-C support
ZenScreen™ MB14AC only requires a single USB connection for both power and video transmission from your host device. It features an innovative hybrid-signal solution with native support for USB Type-C™ (USB-C™) connections, and uses an installed driver* to support USB Type-A connectors for full compatibility. The reversible, any-way-up USB-C design enables quick, hassle-free connection to any device.
*DisplayLink driver required for hybrid-signal connections via USB Type-A. Please visit the Support site to get the download information.
Slim and stylish ultraportable design
ZenScreen™ MB14AC is ideal for use as a secondary monitor for dual-monitor presentations, and its versatility helps you get things done more efficiently when you're on the go. It barely tips the scales at a lightweight 590g, and with its ultra-slim 9mm profile it fits easily in any travel bag.
Wide viewing angles
ZenScreen™ MB14AC features a Full HD panel that delivers stunning 1920 x 1080 resolution visuals with outstanding color reproduction. It uses IPS technology to give you more flexibility when extending your screen, so you still get superb color and contrast - even from extreme viewing positions.
Designed with versatility
The new foldable smart case protects ZenScreen™ MB14AC from dust and scratches with lighter weight. The case can be folded into a stand to prop the monitor up in either portrait or landscape orientation. Besides, the exclusively designed mounting hole on the rear cover, which supports standard 1/4 “ screw thread, lets you assemble a conventional tripod or tabletop mounting system with ease.
Protect your eyes with ASUS Eye Care technology
ASUS blue light filter
Exclusive ASUS Ultra-Low Blue Light technology protects you from harmful blue light. It offers four blue-light filter settings that are easily accessed through the onscreen display menu via the hotkey.
ASUS Flicker-free technology
It's time to say goodbye to those tired, strained eyes. ZenScreen MB14AC features TÜV Rheinland-certified ASUS Flicker-free technology to reduce flicker for a comfortable viewing experience. This technology helps minimize instances of eyestrain and other damaging ailments, especially when you spend long, countless hours in front of a display watching favorite videos.
Warentarifnummer (HS) | 85285210 |
TV Tuner integriert | N |
AMD FreeSync-Typ | FreeSync Premium Pro |
Flimmerfreie Technologie | Y |
VESA Adaptive Sync unterstützt | Y |
Low-Blue-Light-Technologie | Y |
Gerätehöhe (inkl. Standfuß) | 208,03 mm |
Gerätetiefe (inkl. Standfuß) | 11,2 mm |
Gerätebreite (inkl. Standfuß) | 324,94 mm |
Gewicht (inklusive Standfuß) | 590 g |
Gewicht (ohne Standfuß) | 9.700 g |
Breite (ohne Standfuß) | 1.193,33 mm |
Höhe (ohne Standfuß) | 369,7 mm |
Tiefe (ohne Standfuß) | 178,43 mm |
Energieeffizienzskala | A to G |
Energieeffizienzklasse (SDR) | B |
Energieeffizienzklasse (HDR) | G |
Stromverbrauch (Standardbetrieb) | 7 W |
Stromverbrauch (aus) | 0 W |
Stromverbrauch (Standby) | 0,3 W |
AC Eingangsspannung | 100 - 240 |
AC Eingangsfrequenz | 50 - 60 |
Stromverbrauch (PowerSave) | 0 W |
Energieverbrauch (HDR) pro 1.000 Stunden | 109 kW.h |
Energieverbrauch (SDR) pro 1.000 Stunden | 5 kW.h |
Mitgelieferte Kabel | USB Type-C to USB Type-C |
Marktpositionierung | Business |
AC-Netzadapter | Y |
Schnellstartübersicht | Y |
Paketgewicht | 1.300 g |
Verpackungstiefe | 77 mm |
Verpackungsbreite | 392 mm |
Verpackungshöhe | 257 mm |
Bild für Bild (PbP) | Y |
Digital horizontale Frequenz | 30 - 167 |
Digital vertikale Frequenz | 48 - 144 |
Betriebstemperatur | 0 - 40 |
Slot-Typ Kabelsperre | Kensington |
Kabelsperre-Slot | N |
VESA-Halterung | N |
LED-Anzeigen | Y |
Höhenverstellung | N |
On-Screen-Display (OSD) | Y |
Schwenkbar | Y |
Ein-/Ausschalter | Y |
Neigungswinkelbereich | -5 - 20 |
Panel-Montage-Schnittstelle | 100 x 100 mm |
Höheneinstellung | 120 mm |
Anzahl der Lautsprecher | 2 |
Integrierte Kamera | N |
Eingebaute Lautsprecher | N |
RMS-Leistung | 10 W |
NVIDIA G-SYNC | Y |
AMD FreeSync | Y |
Zertifizierung | BSMI, CB, CCC, CU, FCC, J-MOSS, KCC, UkrSEPRO, UL/cUL, VCCI, WEEE, WHQL (Windows 10, Windows 8.1, Windows 7), TUV Flicker-free, TUV Low Blue Light, RCM |
Unterstützte Grafik-Auflösungen | 640 x 480 (VGA),800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 960,1440 x 900 (WXGA+),1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080) |
HD-Typ | Full HD |
3D | N |
High Dynamic Range Video (HDR) Unterstützung | Y |
WLAN | N |
Natives Seitenverhältnis | 16:9 |
Kontrastverhältnis | 700:1 |
DisplayPorts-Version | 1.2 |
Anzahl HDMI-Anschlüsse | 2 |
HDMI-Version | 2.0 |
Kopfhörer-Anschluss | 3.5 mm |
Anzahl DisplayPort Anschlüsse | 1 |
Kopfhörerausgänge | 1 |
DVI Anschluss | N |
HDCP | Y |
HDMI | N |
Audioanschlüsse | N |
Kopfhörerausgang | N |
USB-Hub-Version | 3.2 Gen 1 (3.1 Gen 1) |
USB-Upstream-Porttyp | USB Type-B |
Anzahl der vorgeschalteten Steckplätze | 1 |
Anzahl der nachgeschalteten Steckplätze vom Typ USB-A | 2 |
Integrierter USB-Hub | Y |
Panel-Typ | IPS |
Display-Oberfläche | Anti-glare |
Bildschirmform | Flat screen |
Anzahl der Farben des Displays | 16.78 million colours |
Technologie mit hohem Dynamikbereich (HDR) | High Dynamic Range (HDR) 400 |
Touchscreen | N |
Seitenverhältnis | 16:9 |
Bewertung der Bildschirmkrümmung | 1800R |
Pixel Abstand | 0.16 x 0.16 |
Sichtbare Größe (horizontal) | 309,31 mm |
Sichtbare Größe (vertikal) | 173,99 mm |
Sichtbare Größe (diagonal) | 356 mm |
Reaktionszeit | 5 ms |
Bildschirmdiagonale | 14 " |
Display-Auflösung | 1920 x 1080 pixels |
Bildwinkel, horizontal | 178 ° |
Bildwinkel, vertikal | 178 ° |
Maximale Bildwiederholrate | 60 Hz |
Bildschirmkrümmung | 1.800 mm |
sRGB Abdeckung (klassisch) | 125 % |
Helligkeit (typisch) | 250 cd/m² |
Produktfarbe | Grey |
Fußfarbe | Black |

Reaktionszeit 5 ms
Display-Auflösung 1920 x 1080 pixels
Kontrastverhältnis 700:1
Helligkeit (typisch) 250 cd/m²
Bildschirmdiagonale 14 "
Produktfarbe Grey
Höhenverstellung N
Eingebaute Lautsprecher N
