- 4K HDMI Extender HDMI KVM Extender über LAN 4K 30Hz












+1 Images
6 Images












Product description

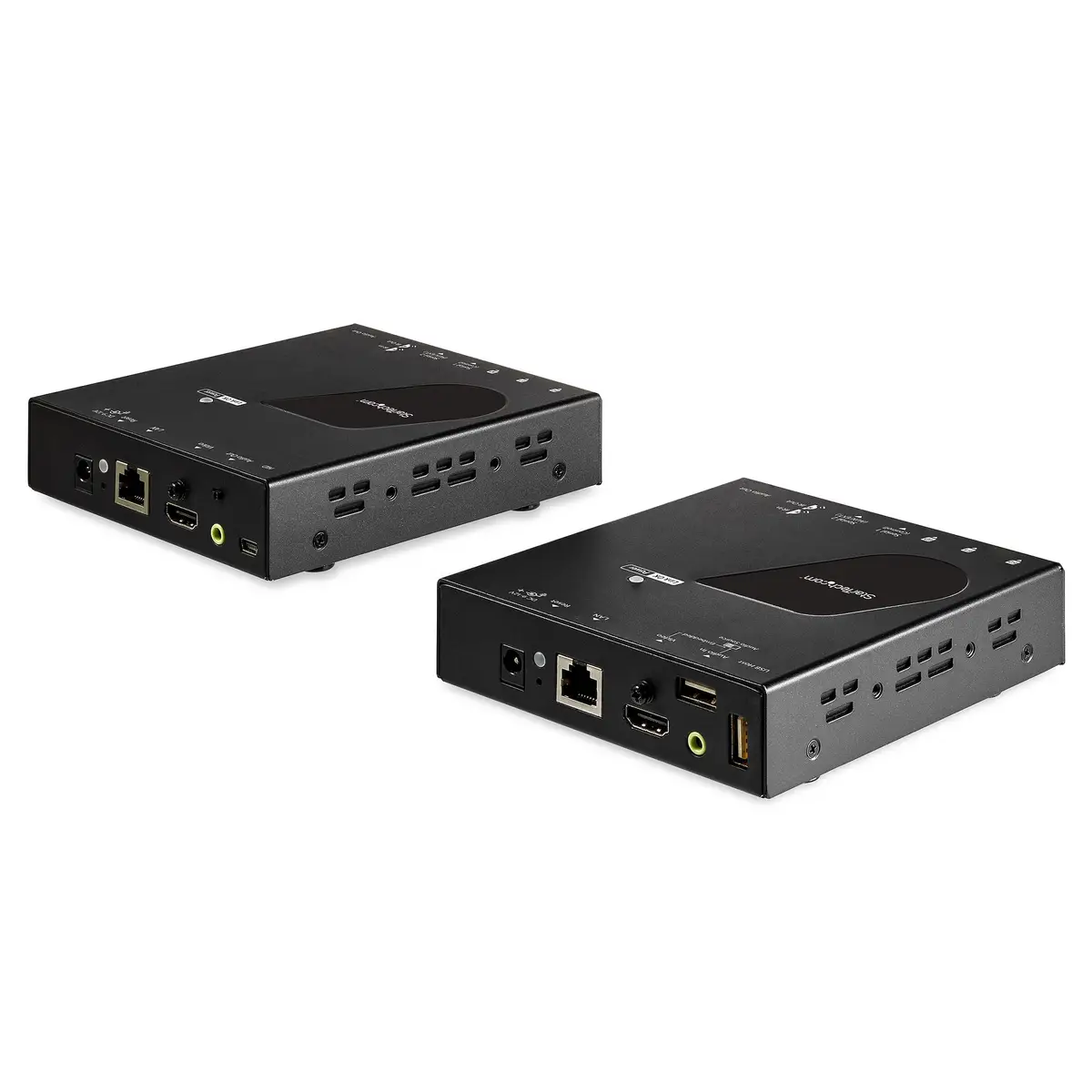

KVM Console Extender Over IP | HDMI® | 4K @ 30Hz | 4x USB Ports | EDID Pass-ThroughThis HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over your IP-enabled local area network (LAN). Combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features four USB ports that enable you to connect other USB devices, in addition to your keyboard and mouse.Supports UHD 4K 30HzThe HDMI KVM extender delivers astonishing 4K UHD picture quality to your remote display with support for resolutions up to 3840 x 2160p at 30Hz.Hassle-Free InstallationWith a transmitter and a receiver, the KVM extender provides a complete end-to-end solution that supports mounting for tidy installation. Plus, it uses standard CAT5e or CAT6 Ethernet cable, eliminating the expense and hassle of specialized cables and enabling you to use existing network infrastructure.The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display over your LAN.Versatile Configuration OptionsThe extender uses your local intranet to connect your computers to your remote workstation. You can connect additional receivers (sold separately) to distribute your HDMI signal to multiple displays in your remote location, or combine the source to create a video wall that expands your single video source across multiple displays.For smaller-scale applications, you can connect the transmitter and receiver units directly over CAT5 or CAT6 cabling up to 330 feet (100 meters).SV565HDIP is backed by a 2-year warranty and free lifetime technical support.The StarTech.com Advantage
Technical specifications
Design
Product colour | Black |
Built-in display | N |
Logistics data
Harmonized System (HS) code | 85176200 |
Master (outer) case height | 265 mm |
Master (outer) case width | 385 mm |
Master (outer) case length | 495 mm |
Products per master (outer) case | 6 ST |
Leistungen
Housing material | Steel |
Daisy chain | N |
Mean time between failures (MTBF) | 60,000 std |
Audio channels | 7.1 |
Video bandwidth | 30 Hz |
Kopfhörer
Chipset | ASPEED - AST1520 |
Stromversorgung
Power consumption (typical) | 18 W |
Power
AC input voltage | 100 - 240 |
Output current | 1.5 A |
Compatible power plug types | AU,EU,JP,UK |
Lieferumfang
Cables included | HDMI,LAN (RJ-45),Phone(RJ-11),USB |
Verpackungsdaten
AC adapter included | Y |
Quick installation guide | Y |
Package depth | 195 mm |
Package width | 365 mm |
Package height | 235 mm |
Rubber feet | Y |
Sonstige Funktionen
Power plug type | Type M |
External power adapter | Y |
Audio connections | Y |
Maximum resolution | 3840 x 2160 |
Output voltage | 12 |
Input current | 0.6 |
Maximum operating distance | 100 m |
IP control | N |
Sustainability
Sustainability certificates | RoHS |
Operational conditions
Operating relative humidity (H-H) | 0 - 80 |
Storage temperature (T-T) | -10 - 60 |
Operating temperature (T-T) | 0 - 40 |
Gewicht und Abmessungen
Weight | 610 g |
Height | 28 mm |
Width | 117 mm |
Depth | 130 mm |
Ergonomics
LED indicators | Y |
On Screen Display (OSD) | Y |
Mouse
Certification | CE, FCC, TAA, REACH |
Keyboard
Hot keys | N |
USB hub | Y |
Ports & interfaces
Ethernet LAN (RJ-45) ports | 2 |
HDMI ports quantity | 2 |
Headphone outputs | 8 |
DC-in jack | Y |
Number of microphone inputs | 2 |
Video port type | HDMI |
Keyboard port type | USB |
Mouse port type | USB |
USB 2.0 Type-A hub ports quantity | 2 |
Downloads
188808_document_DE_001
PDF Download
188808_document_EN_001
PDF Download
ID: 188808
StarTech.com ID: SV565HDIP
4K HDMI Extender HDMI KVM Extender über LAN 4K 30Hz
Detailed product title
Detailed product title
StarTech.com 4K HDMI Extender HDMI KVM Extender über LAN 4K 30Hz
