For adaptation of different cabling within a LAN FO converters can be used to obtain a functional network. Whether to implement fiber optic on a classic twisted pair network with a mini-GBIC or for the implementation of fiber optic to another fiber optic network with two mini-GBICs.
The ROLINE Gigabit converter offers both possibilities.

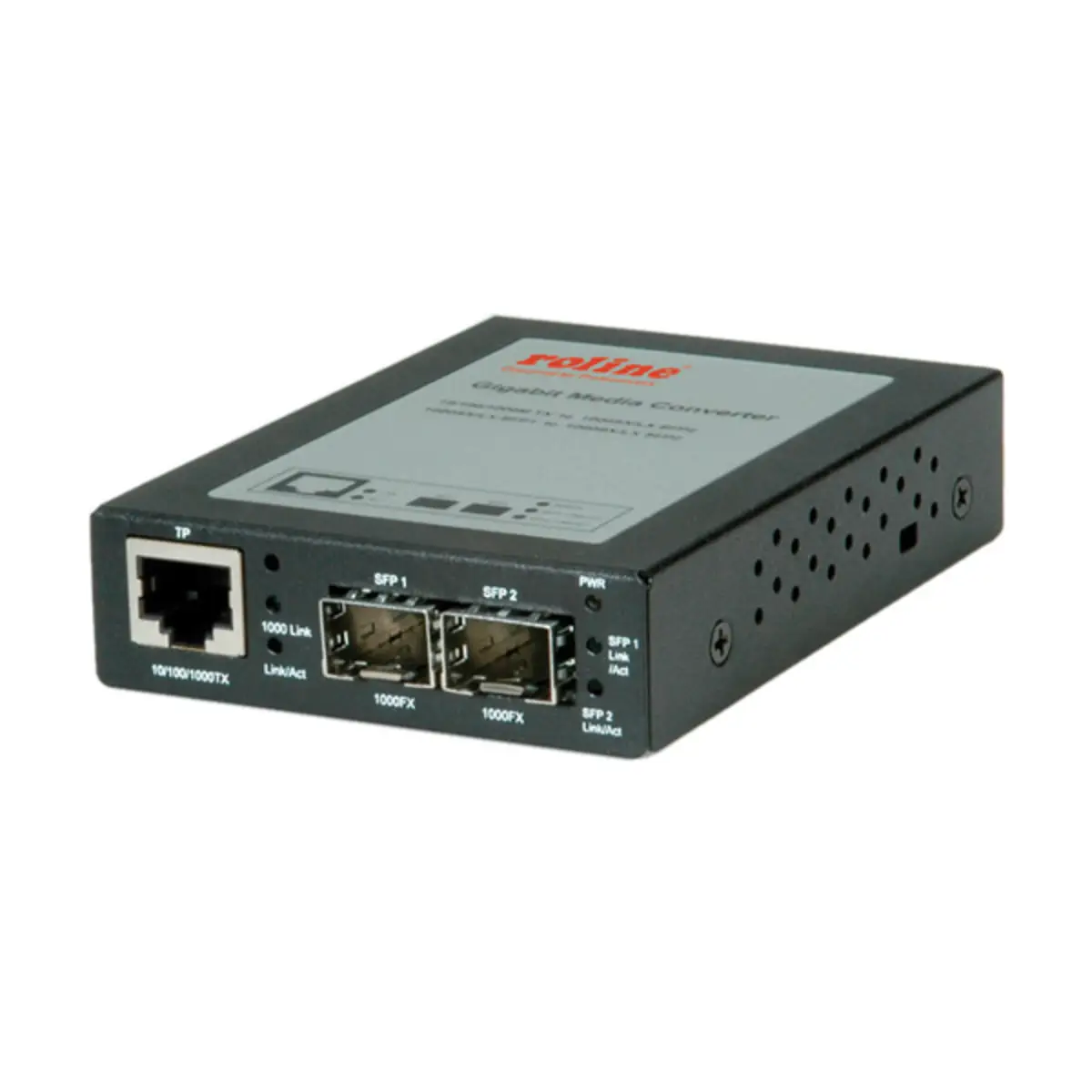

The ROLINE Gigabit converter is a Gigabit Ethernet TP port to fiber or a fiber port to a second fiber port. The fiber optic connectors can be freely selected by means of mini-GBIC Module

• Compliant with IEEE 802.3ab 1000BaseT and IEEE 802.3z 1000BaseSX/LX Gigabit Ethernet Standards
• Connectors: 1x 10/100/1000BaseT Gigabit Ethernet TP port, 2x Mini-GBIC slots on the fiber optic side

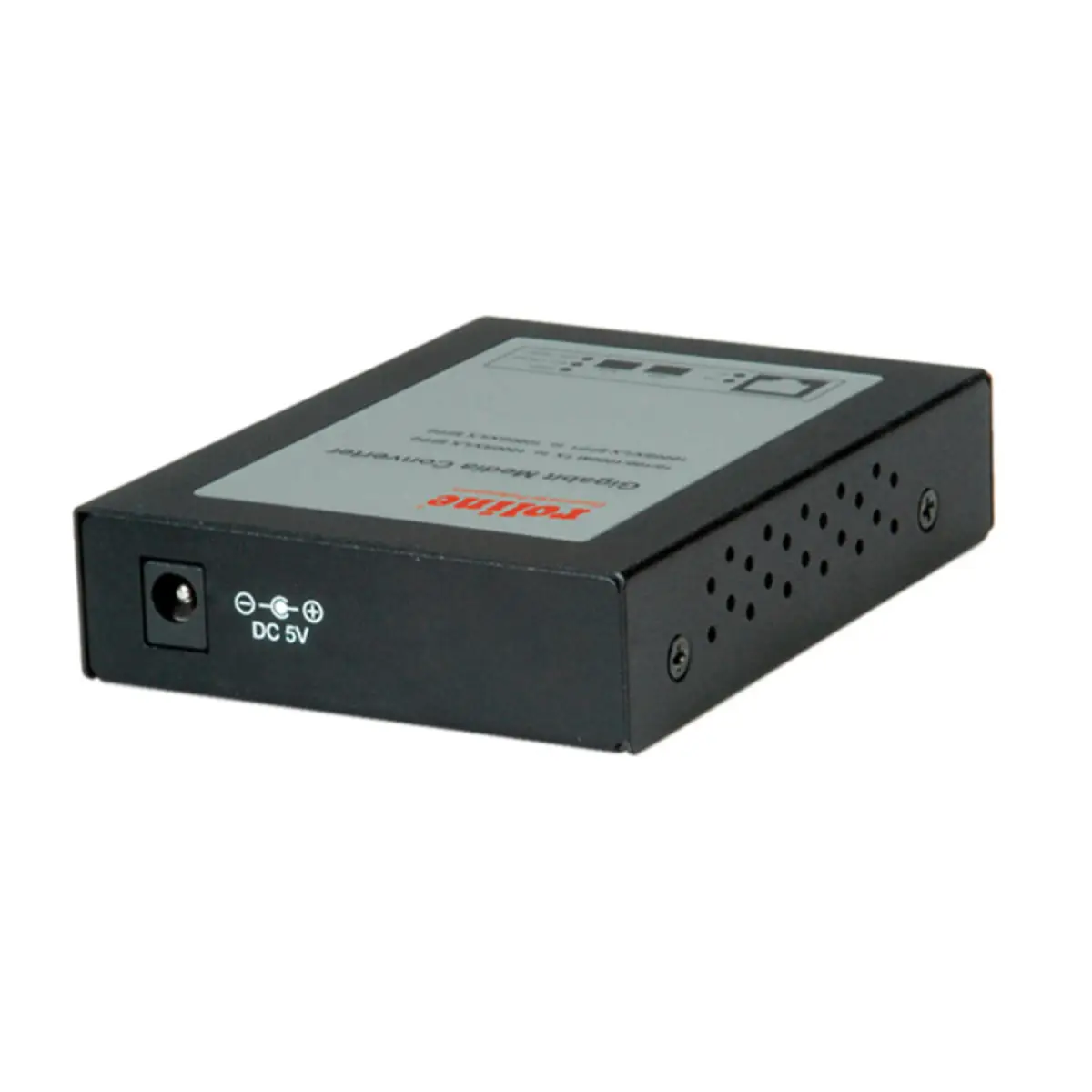

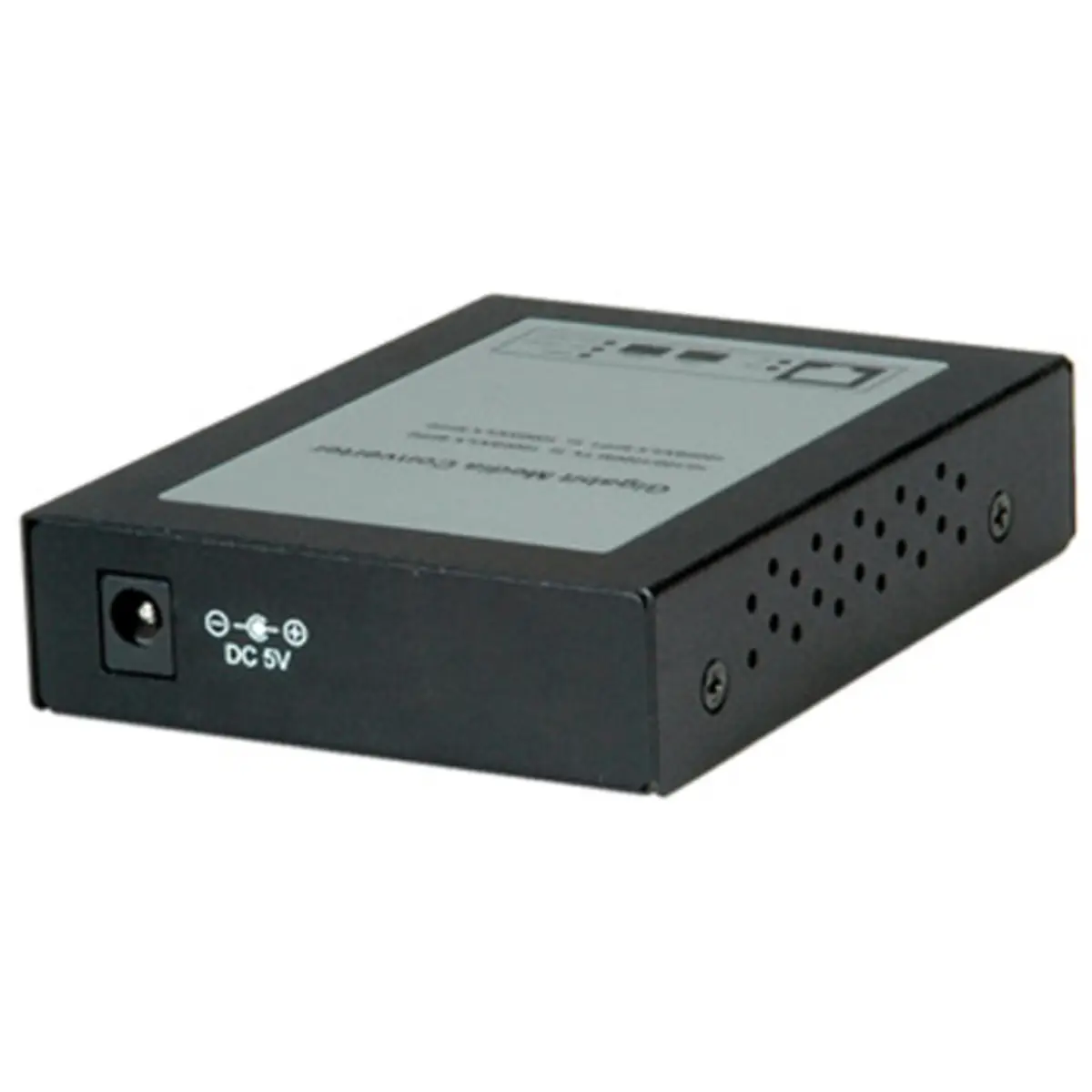

• Power is supplied via an external power supply (included)
• TP port supports Full-Duplex, Auto-MDI/MDI-X, Auto-Negotiation
• Each SFP slot supports both singlemode and multimode or mixed
• Link Loss Forwarding (LLF) / Link Fault Pass Through (LFP)
• Dimensions: 102 × 75 × 23 mm
• Contents: Converter, power supply, short manual

Optional GBIC-modules:
- ROLINE Mini-GBIC Module SX/LC, Multi-Mode (21.14.3500)
- ROLINE Mini-GBIC Module LX/LC, Single-Mode, 10 km (21.14.3501)
- ROLINE Mini-GBIC Module LX/LC, Single-Mode, 20 km (21.14.3502).
