- USB 2.0 Cat.5 Extender 50m 4 Port
5 Images
Product description

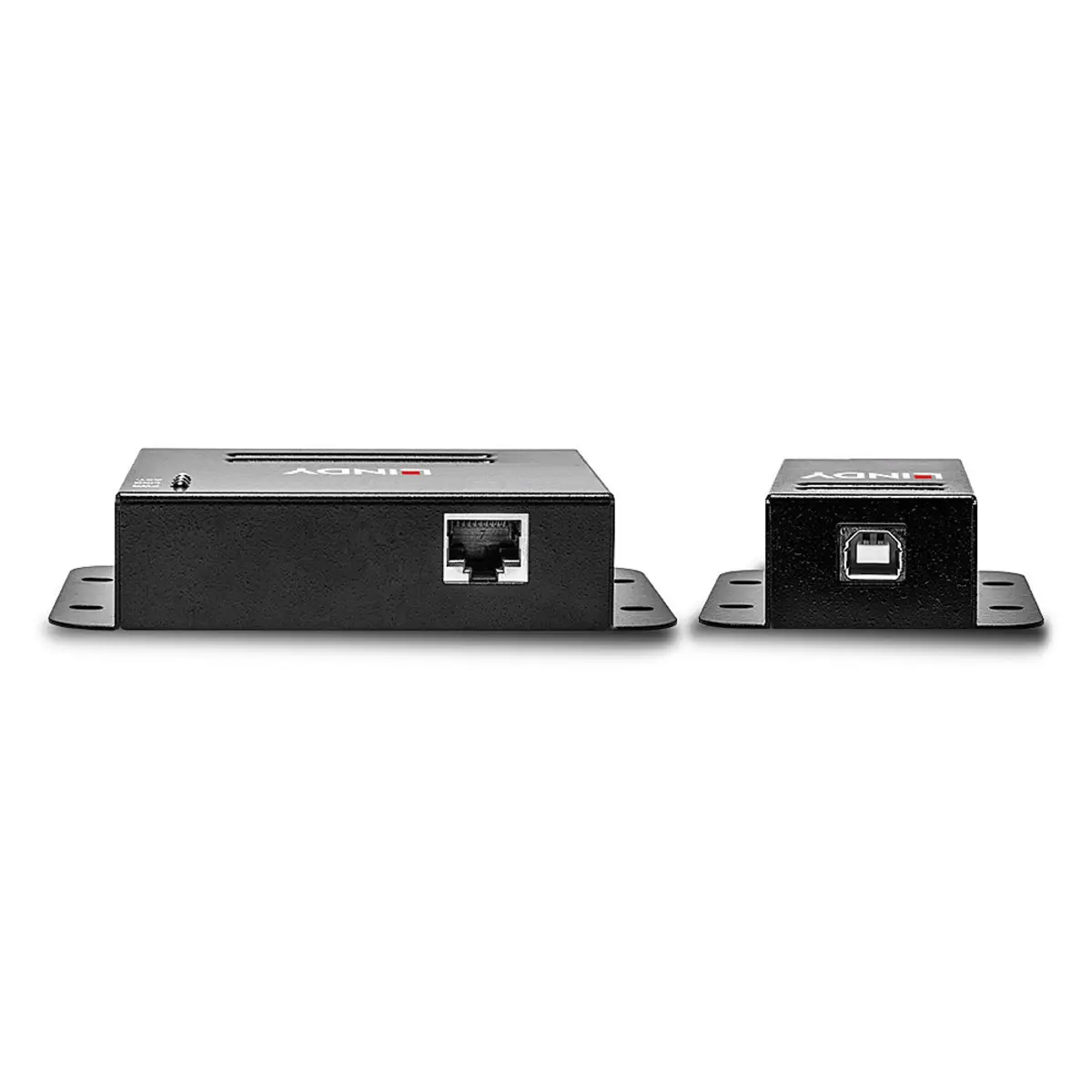

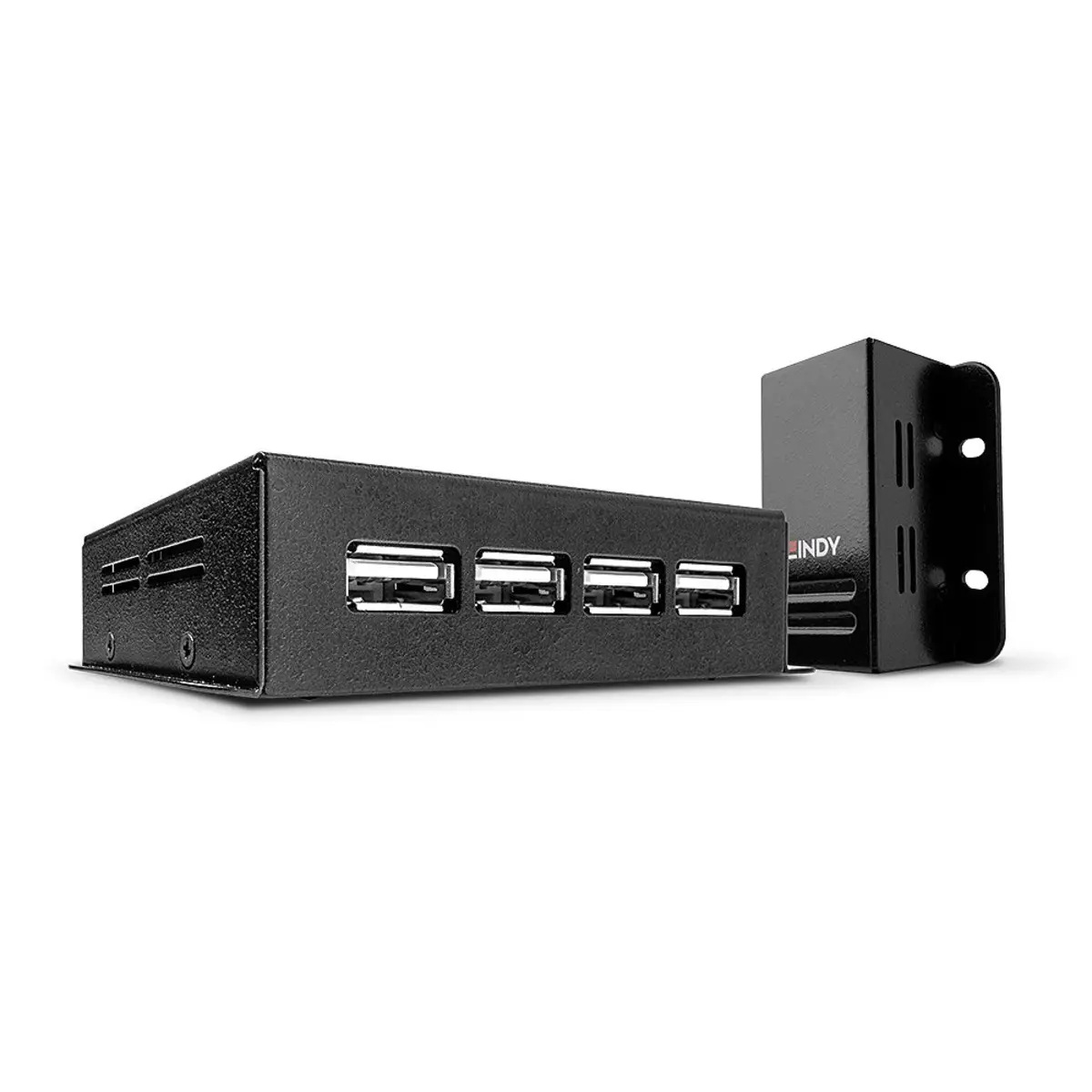

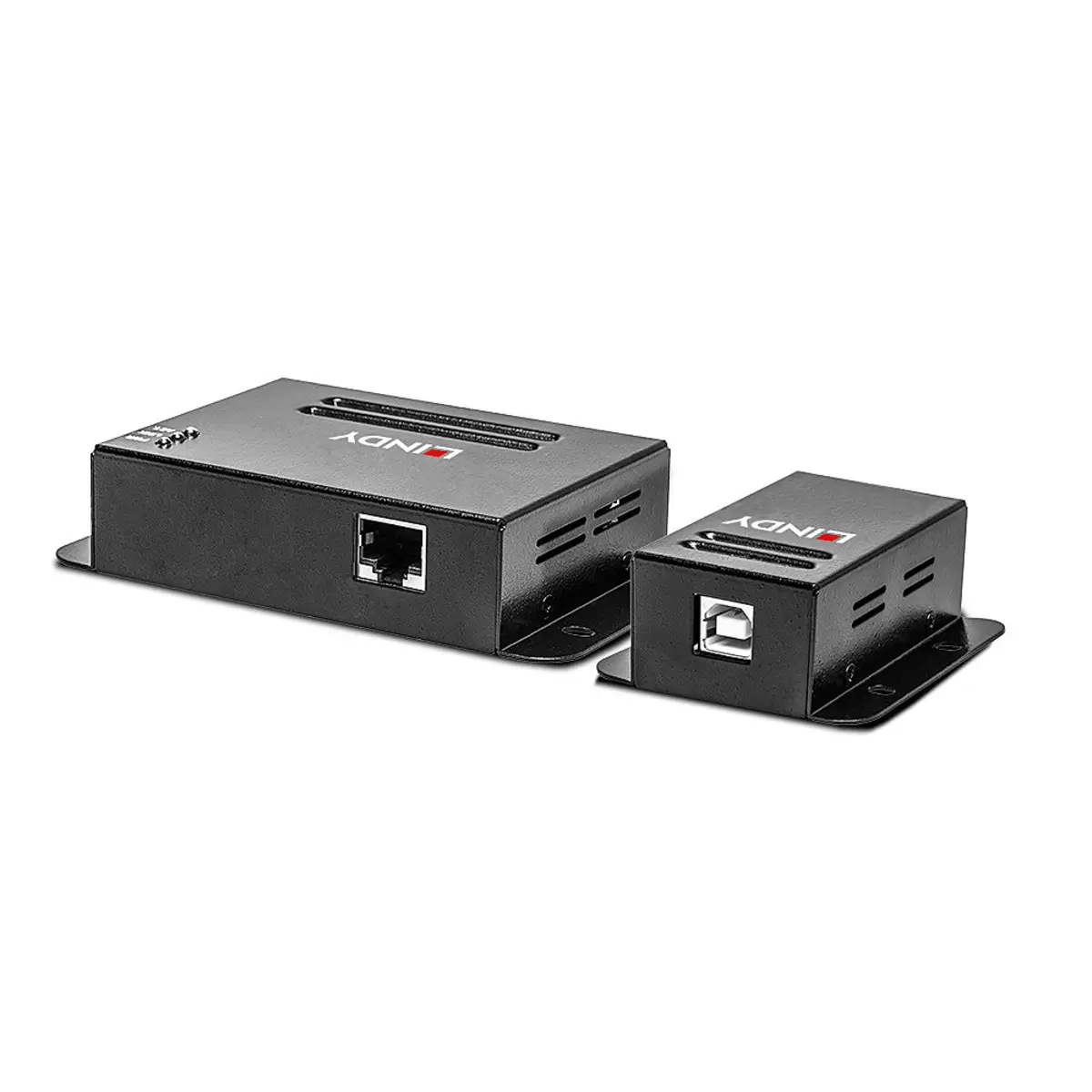

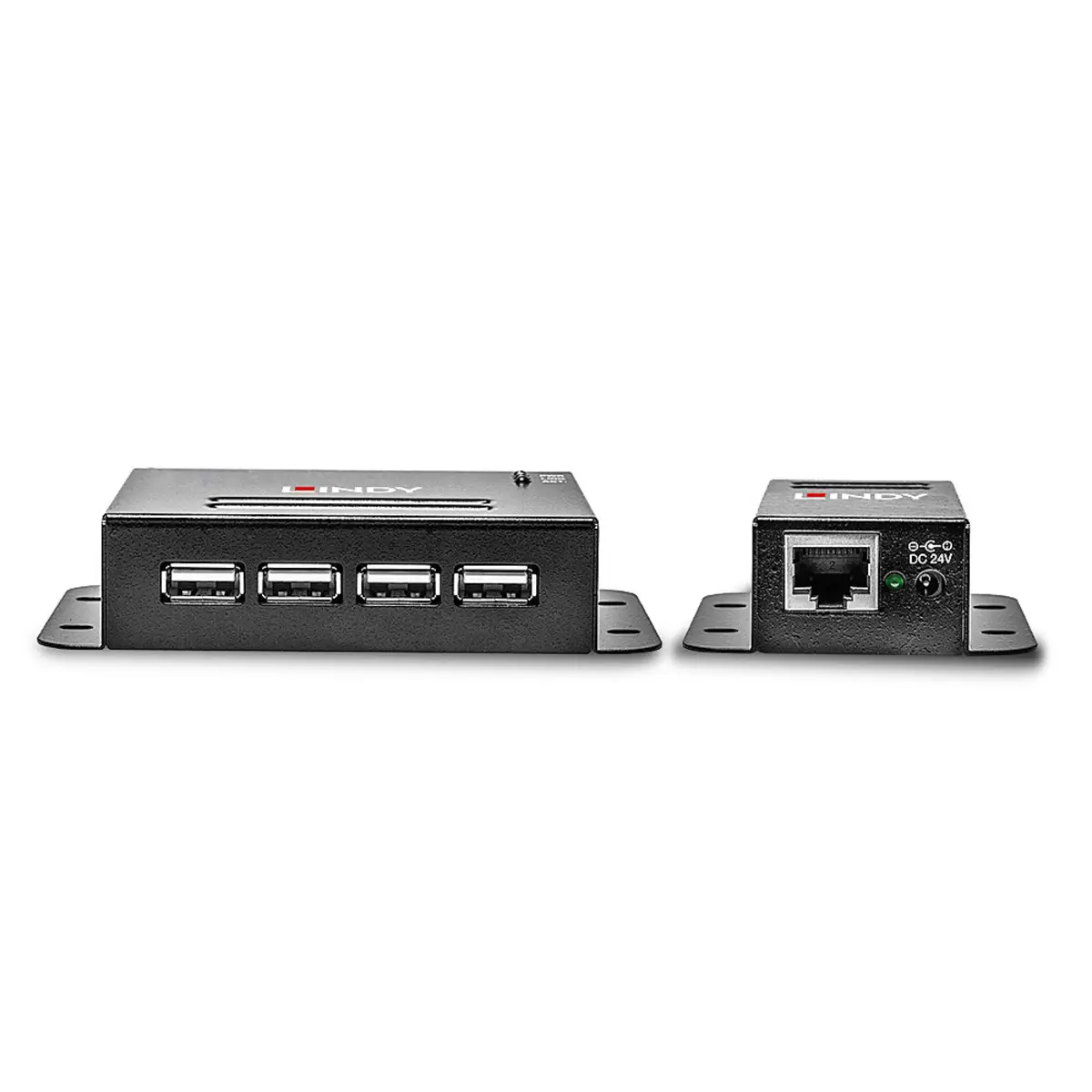

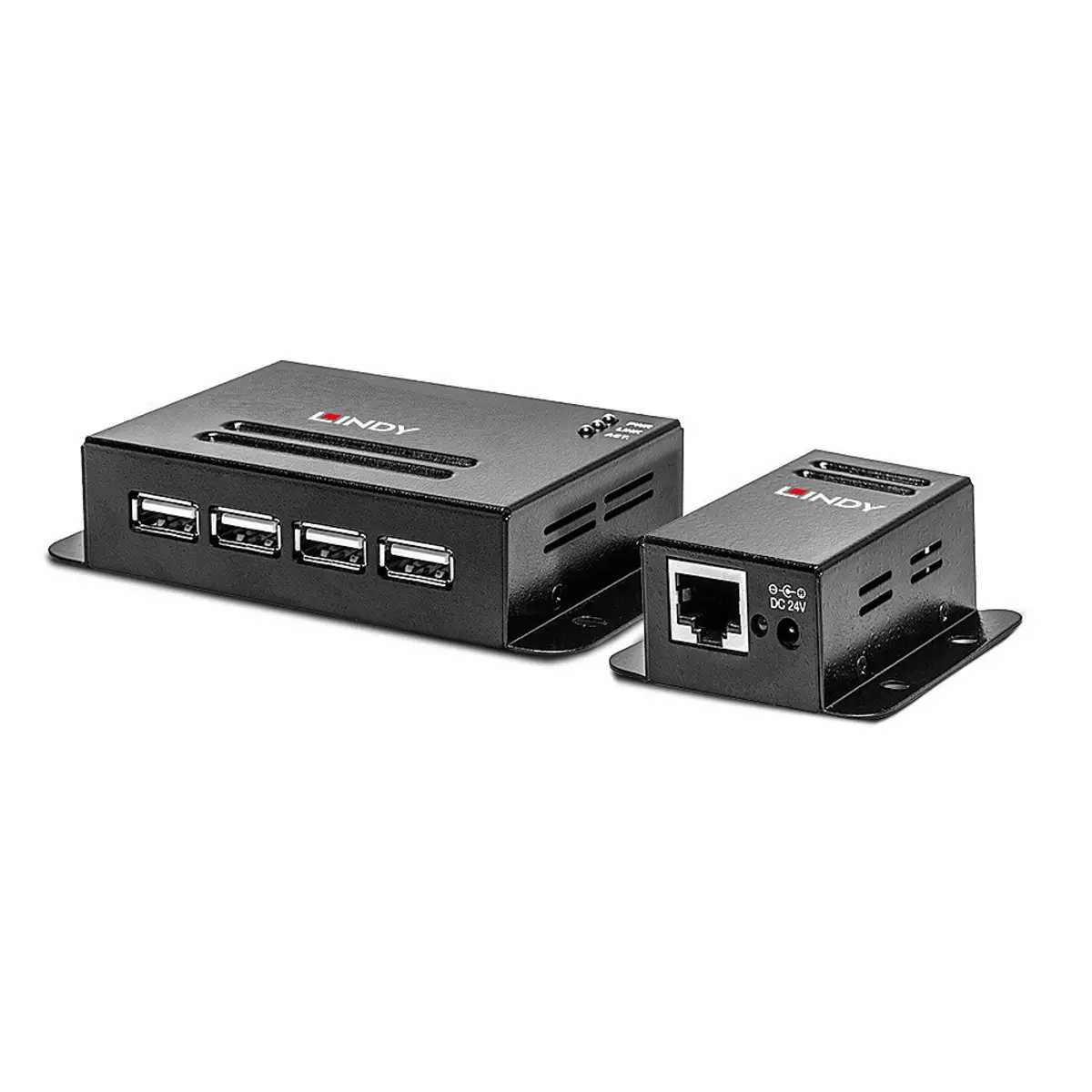

This Lindy USB 2.0 Cat.6 Extender can be used to extend the distance between four USB peripheral devices and the host computer by up to 50m.
A standard, low cost Cat.5e/6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.
The Extender features Power over Cable, which requires a single power supply only to be connected to the transmitter unit. This handy feature allows the receiver unit and connected devices to be located more freely as no power supply is required. With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.
A standard, low cost Cat.5e/6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.
The Extender features Power over Cable, which requires a single power supply only to be connected to the transmitter unit. This handy feature allows the receiver unit and connected devices to be located more freely as no power supply is required. With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.
Technical specifications
Eingabegerät
| Connector contacts plating | Gold |
Power
| Power note | 3.5/1.35mm DC |
Verpackungsdaten
| Package type | Box |
| Package volume | 600 cm3 |
| Package depth | 155 mm |
| Package width | 215 mm |
| Package height | 50 mm |
Sonstige Funktionen
| Manual | Y |
| Output voltage | 24 |
Operational conditions
| Storage temperature (T-T) | -20 - 80 |
| Operating temperature (T-T) | 0 - 70 |
Gewicht und Abmessungen
| Weight | 415 g |
Ergonomics
| Plug and Play | Y |
| LED indicators | Y |
Features
| Connector material | Gold |
| Contact material | Phosphor bronze |
Mouse
| Certification | CE, UKCA, FCC, RoHS, REACH |
Ports & interfaces
| DC-in jack | Y |
ID: 149916
Lindy ID: 42681
USB 2.0 Cat.5 Extender 50m 4 Port
Detailed product title
Detailed product title
Lindy 50m 4 Port USB 2.0 Cat.6 Extender. Type: Network transmitter & receiver, Maximum transfer distance: 50 m, Data transfer rate: 480 Mbit/s. Contact material: Phosphor bronze, Connector contacts plating: Gold, Connector material: Gold. Product colour: Black, Housing material: Metal, Certification: CE, UKCA, FCC, RoHS, REACH. Output voltage: 24 V, Output current: 0.5 A, Power note: 3.5/1.35mm DC. Weight: 415 g, Transmitter width: 6 cm, Transmitter depth: 6.7 cm
