- 5,25" auf 3,25" Festplatten Wechselrahmen für 3,5" SATA/SAS Laufwerke Trägerlos




















+5 Images
10 Images




















Product description

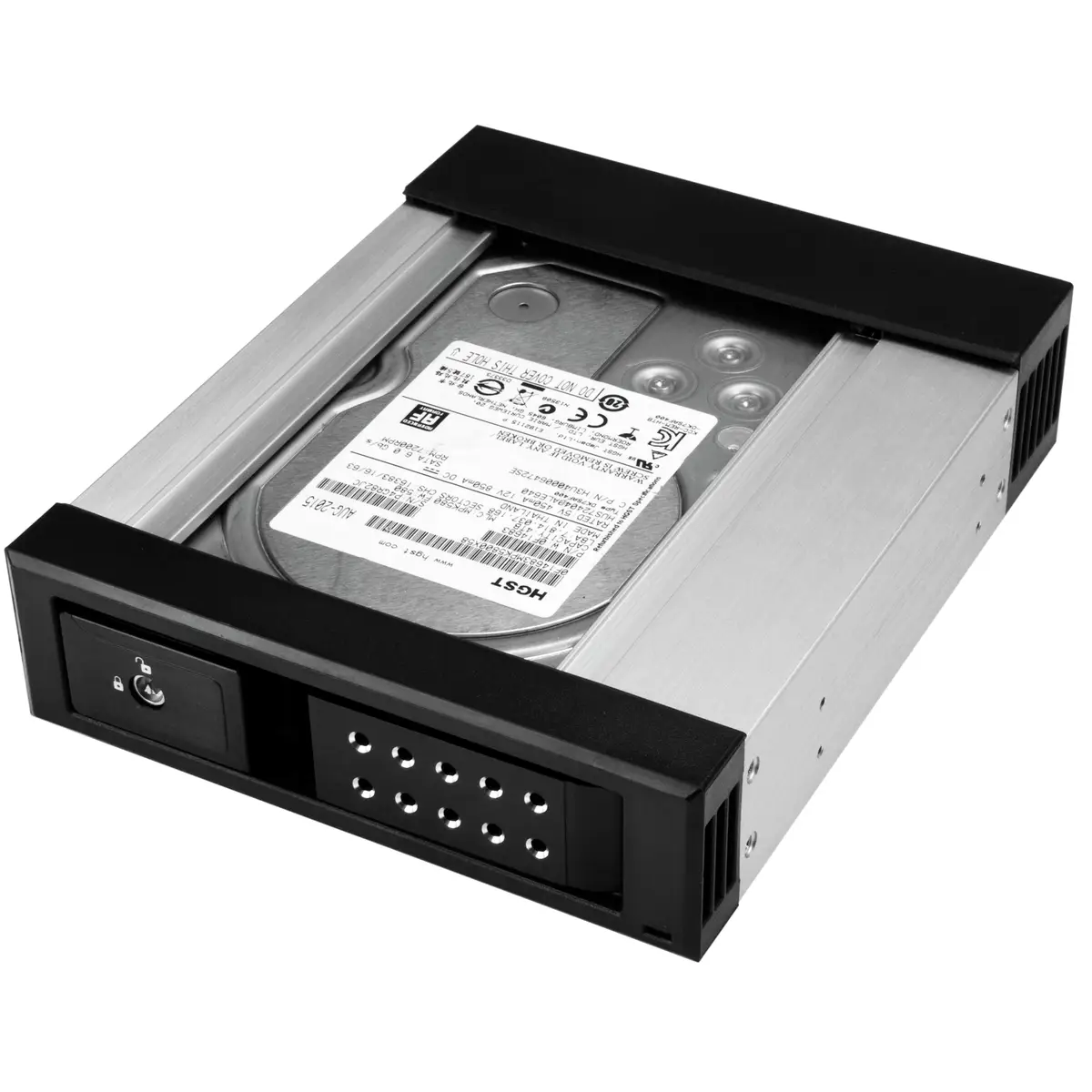

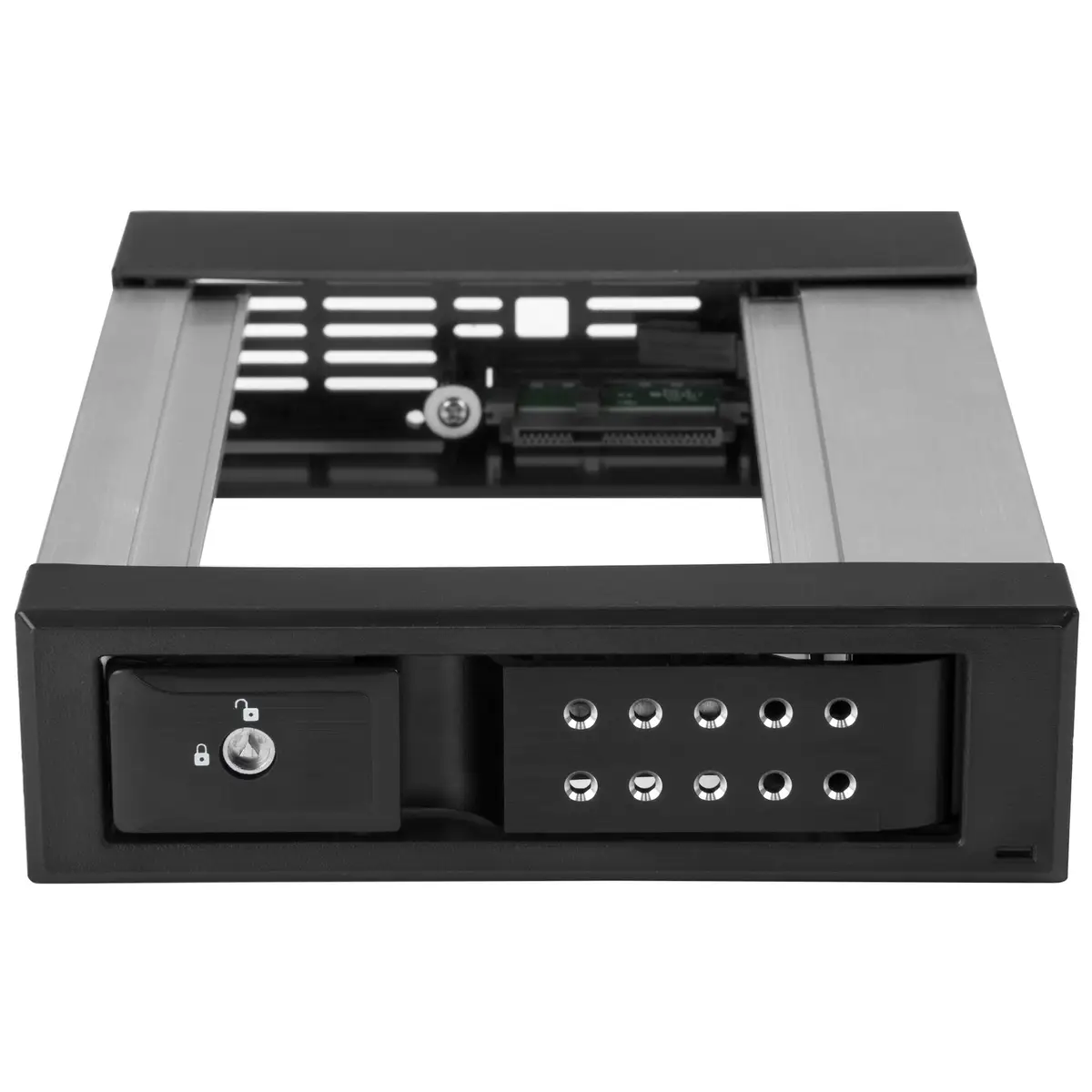

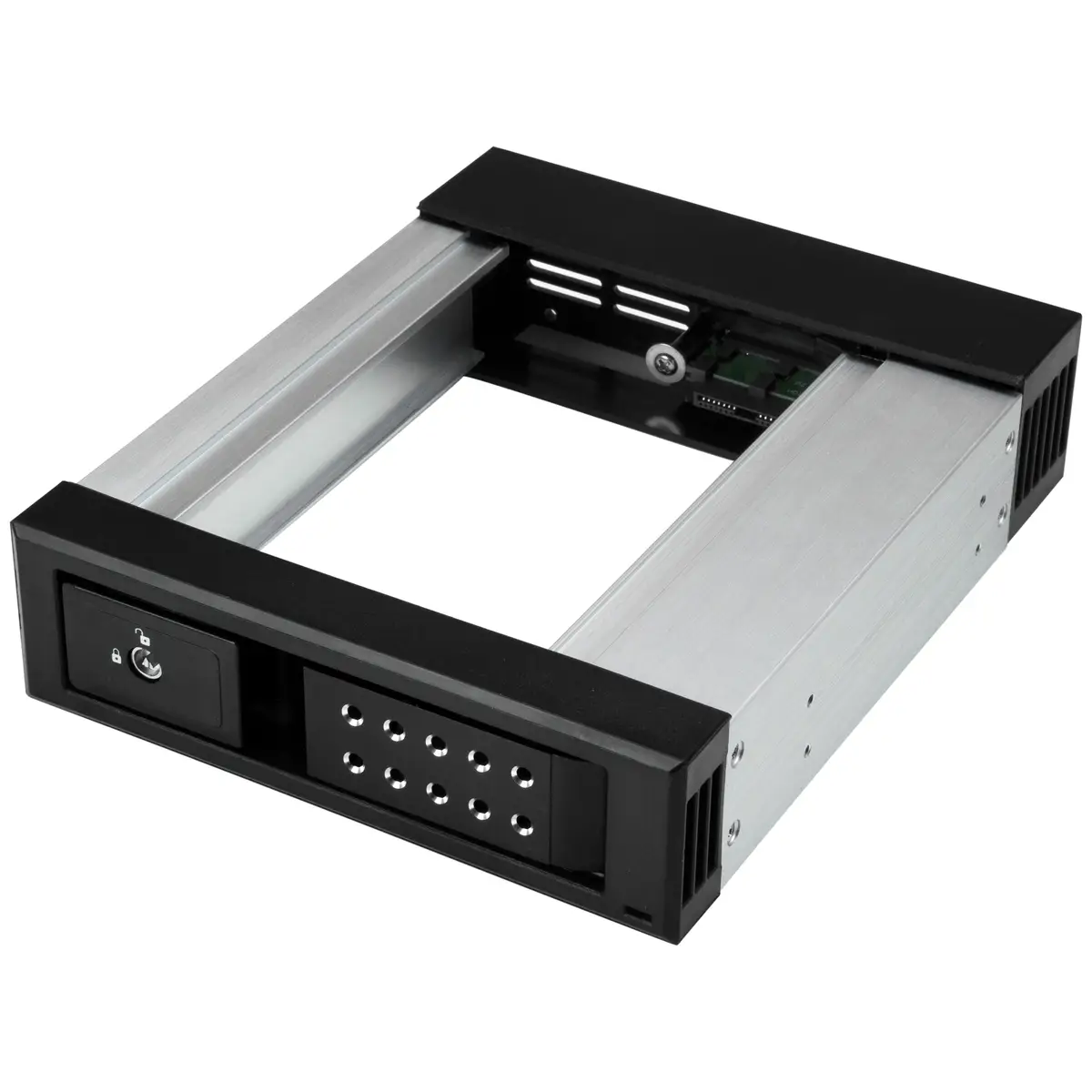

Hot-swap drives with ease, using this trayless mobile backplane for desktop PCs or serversThis removable hard drive hot-swap bay makes it easy to swap 3.5” SATA or SAS drives in and out of your server or desktop computer, using an available 5.25” front drive bay. It features a trayless design that saves you installation time and enables you to insert or remove drives as needed, creating a convenient solution for drive maintenance and interchangeability of data between multiple systems.Hot-swap drives easilyThis hot-swap bay/mobile rack is ideal for IT professionals, such as system administrators or computer operators, for quickly swapping, replacing, or transporting drives between various systems and locations. With support for both SATA and SAS 3.5” drives, it saves valuable time in environments where storage drives need to be replaced or removed regularly, such as in server rooms and data centers.Valuable drive protectionThe hot-swap bay provides a protective backplane with a durable aluminum housing that offers ventilation to ensure proper air flow and heat dissipation. To safeguard your data, you can lock the drive bay door to prevent unauthorized access to your drive.Fast data transfersTo maximize the speed and performance of your drives, the mobile rack supports SAS I and II and SATA I, II and III, providing data transfer speeds up to 6Gbps when paired with a compatible controller.The HSB1SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage
Technical specifications
Design
Product colour | Black |
Material | Aluminium |
Logistics data
Master (outer) case height | 275 mm |
Master (outer) case width | 330 mm |
Master (outer) case length | 420 mm |
Products per master (outer) case | 20 ST |
Leistungen
Hot-swap | Y |
Lieferumfang
Cables included | SATA |
Verpackungsdaten
Quick start guide | Y |
Package weight | 412 g |
Package depth | 197 mm |
Package width | 150 mm |
Package height | 45 mm |
Sonstige Funktionen
Size (imperial) | 5.25 " |
Data transfer rate | 6 Gbit/s |
Sustainability
Sustainability certificates | CE,RoHS |
Sustainability compliance | Y |
Operational conditions
Operating relative humidity (H-H) | 5 - 85 |
Operating temperature (T-T) | 0 - 50 |
Storage relative humidity (H-H) | 5 - 95 |
Gewicht und Abmessungen
Weight | 336 g |
Height | 39 mm |
Width | 146 mm |
Depth | 179 mm |
Ergonomics
LED indicators | Activity,Power |
Features
Type | Carrier panel |
Downloads
162829_document_DE_001
PDF Download
162829_document_EN_001
PDF Download
ID: 162829
StarTech.com ID: HSB1SATSASBA
