- 5PX G2 USV (in Rack montierbar/extern)
3 Images
Product description
- Energy consumption measurement per output group
- Intuitive LCD display shows all the information you need at a glance
- The 5PX can operate with up to 99% efficiency, reducing cooling and electricity costs
- Power factor 0.9 - protect more servers with one UPS
Technical specifications
Weight & dimensions
| Weight | 22,400 g |
Power
| Power protection features | Overdischarge |
Verpackungsdaten
| Management card included | N |
Certificates
| Safety | IEC/EN 62040-1, UL1778, CSA22.2 |
Sonstige Funktionen
| USB port | Y |
| Input frequency | 47/70 |
| Output power | 1,500 W |
| Noise level | 40 dB |
| Nominal output voltage | 230 |
Sustainability
| Sustainability certificates | ENERGY STAR |
| Sustainability compliance | Y |
| Compliance certificates | CE |
Operational conditions
| Operating temperature (T-T) | 0 - 40 |
Battery
| Hot-swap battery | Y |
| Waveform | Pure sine |
| Automatic battery test | Y |
Ergonomics
| LED indicators | Y |
Features
| Height | 85.5 mm |
| Width | 438 mm |
| Depth | 448 mm |
| UPS topology | Line-Interactive |
| Output power capacity | 1.5 kVA |
| Input operation voltage (max) | 294 V |
| Input operation voltage (min) | 160 V |
Mouse
| Form factor | Rackmount/Tower |
| Certification | IEC/EN 62040-2, FCC B, CISPR22 B CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm |
Ports & interfaces
| Serial ports quantity | 1 |
| Serial interface type | RS-232 |
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| Serial interface | Y |
| AC outlets quantity | 8 AC out |
Design
| Product colour | Black |
| Rack capacity | 2U |
ID: 343299
Eaton ID: 5PX1500IRT2UG2

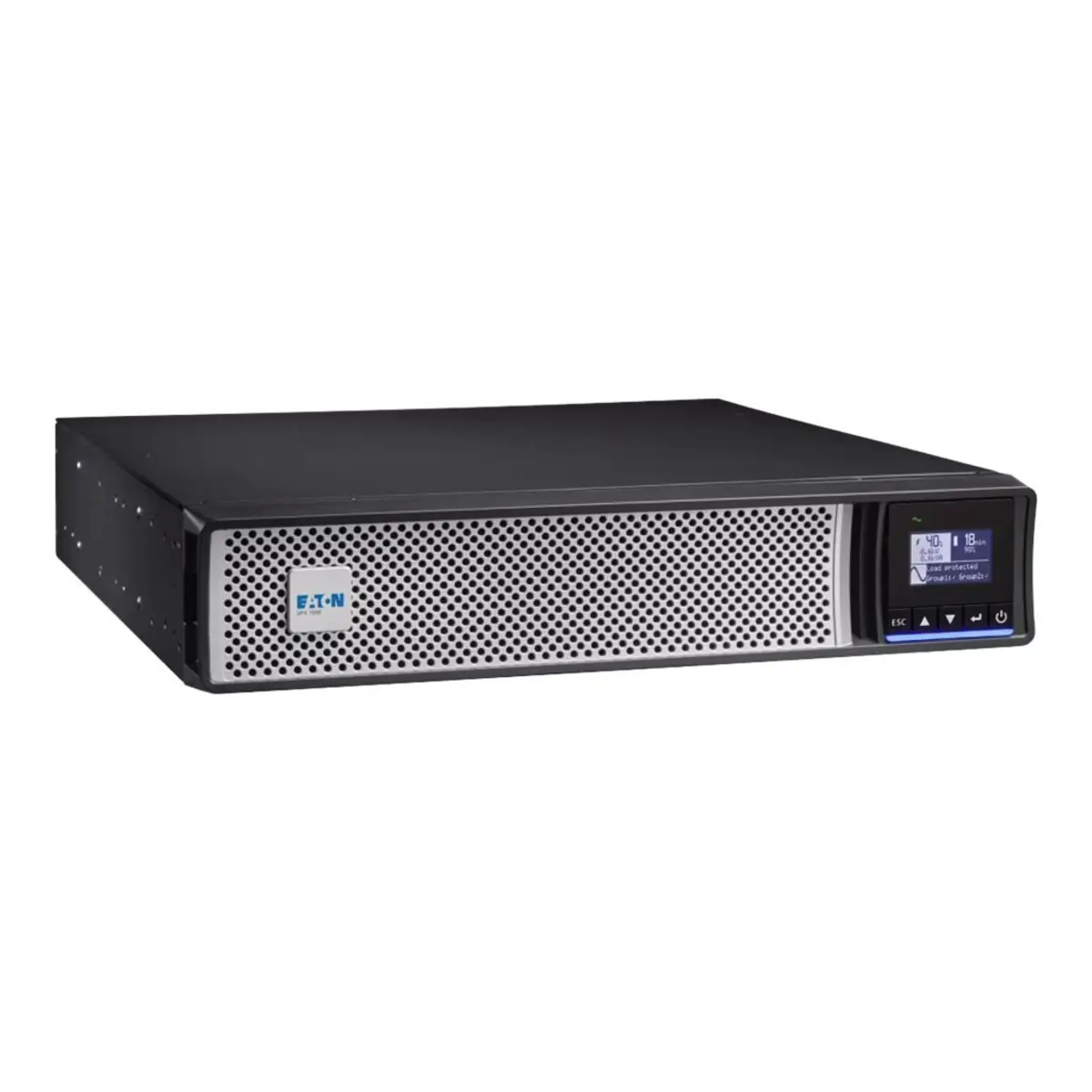

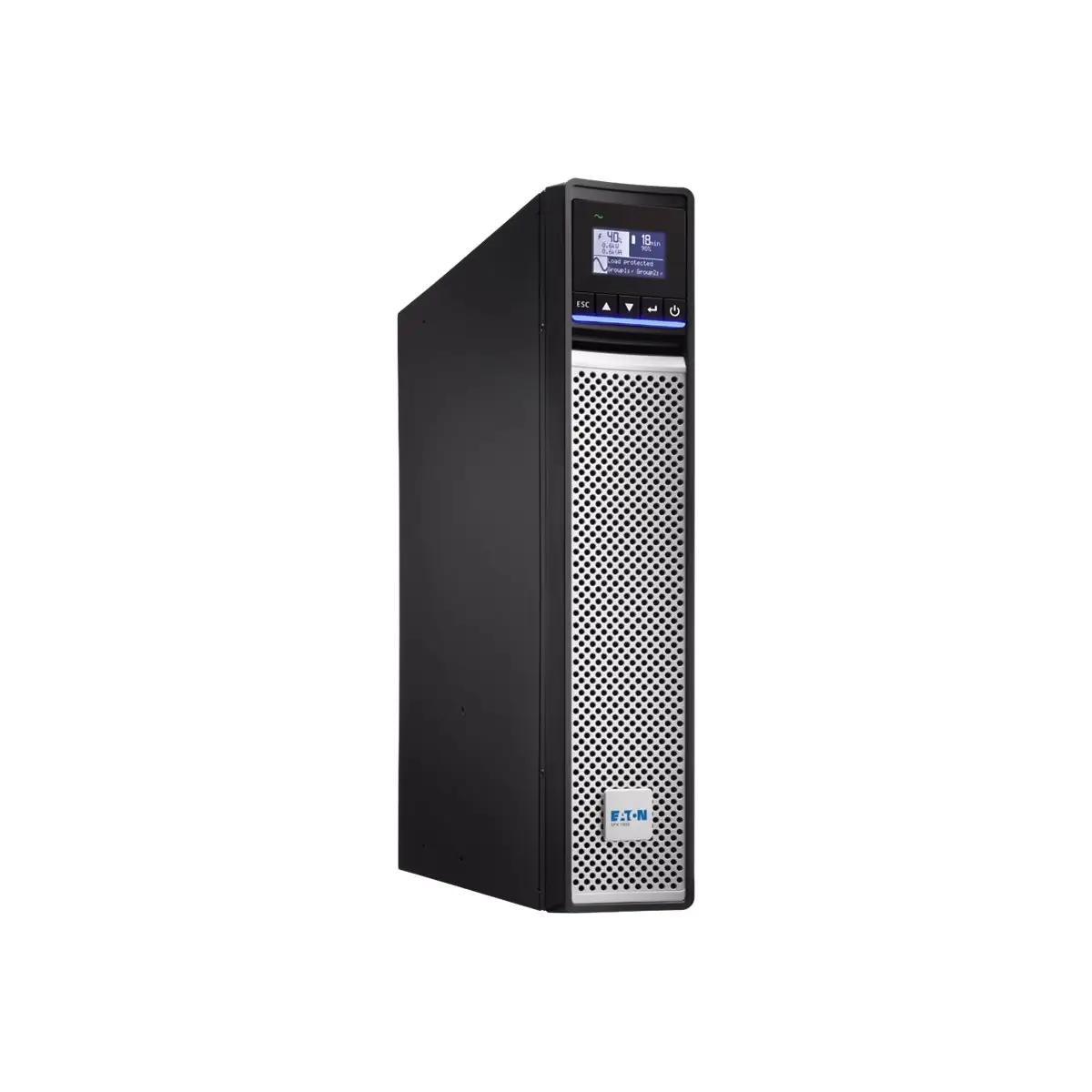

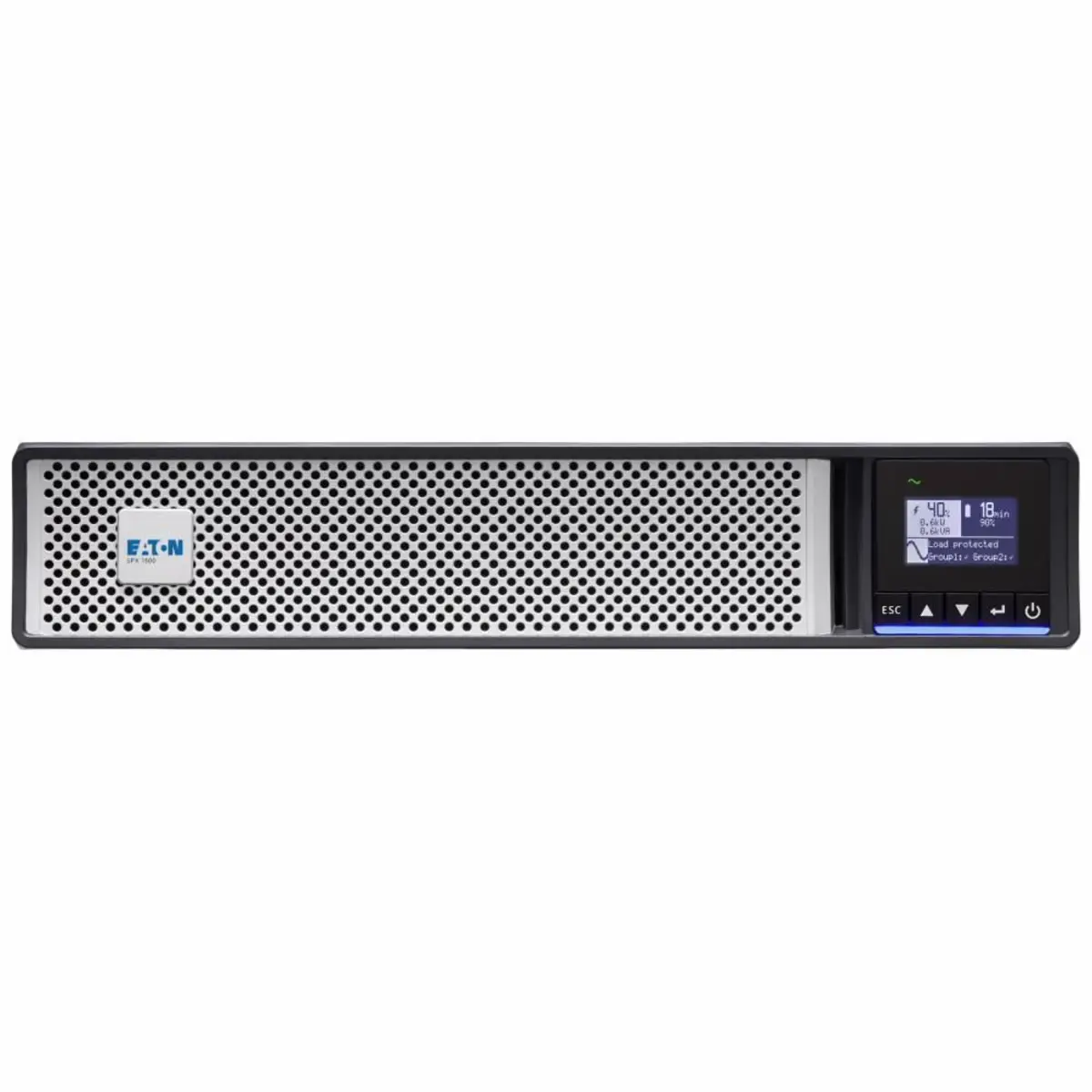

5PX G2 USV (in Rack montierbar/extern)
Detailed product title
Detailed product title
Eaton 5PX G2 USV (in Rack montierbar/extern)* 1500 Watt 1500 VA RS-232 USB Ausgangsanschlüsse: 8 2U
3 Images
Product colour Black
Gross:
incl.
vat.
ship in 4-7 days
Added to cart
Gross:
incl.
vat.
ship in 4-7 days
Product description
- Energy consumption measurement per output group
- Intuitive LCD display shows all the information you need at a glance
- The 5PX can operate with up to 99% efficiency, reducing cooling and electricity costs
- Power factor 0.9 - protect more servers with one UPS
Technical specifications
Weight & dimensions
| Weight | 22,400 g |
Power
| Power protection features | Overdischarge |
Verpackungsdaten
| Management card included | N |
Certificates
| Safety | IEC/EN 62040-1, UL1778, CSA22.2 |
Sonstige Funktionen
| USB port | Y |
| Input frequency | 47/70 |
| Output power | 1,500 W |
| Noise level | 40 dB |
| Nominal output voltage | 230 |
Sustainability
| Sustainability certificates | ENERGY STAR |
| Sustainability compliance | Y |
| Compliance certificates | CE |
Operational conditions
| Operating temperature (T-T) | 0 - 40 |
Battery
| Hot-swap battery | Y |
| Waveform | Pure sine |
| Automatic battery test | Y |
Ergonomics
| LED indicators | Y |
Features
| Height | 85.5 mm |
| Width | 438 mm |
| Depth | 448 mm |
| UPS topology | Line-Interactive |
| Output power capacity | 1.5 kVA |
| Input operation voltage (max) | 294 V |
| Input operation voltage (min) | 160 V |
Mouse
| Form factor | Rackmount/Tower |
| Certification | IEC/EN 62040-2, FCC B, CISPR22 B CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm |
Ports & interfaces
| Serial ports quantity | 1 |
| Serial interface type | RS-232 |
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| Serial interface | Y |
| AC outlets quantity | 8 AC out |
Design
| Product colour | Black |
| Rack capacity | 2U |
