- Back UPS Pro BR 900VA 6 Outlets AVR LCD Interface
2 Images
ID: 188992
APC ID: BR900MI

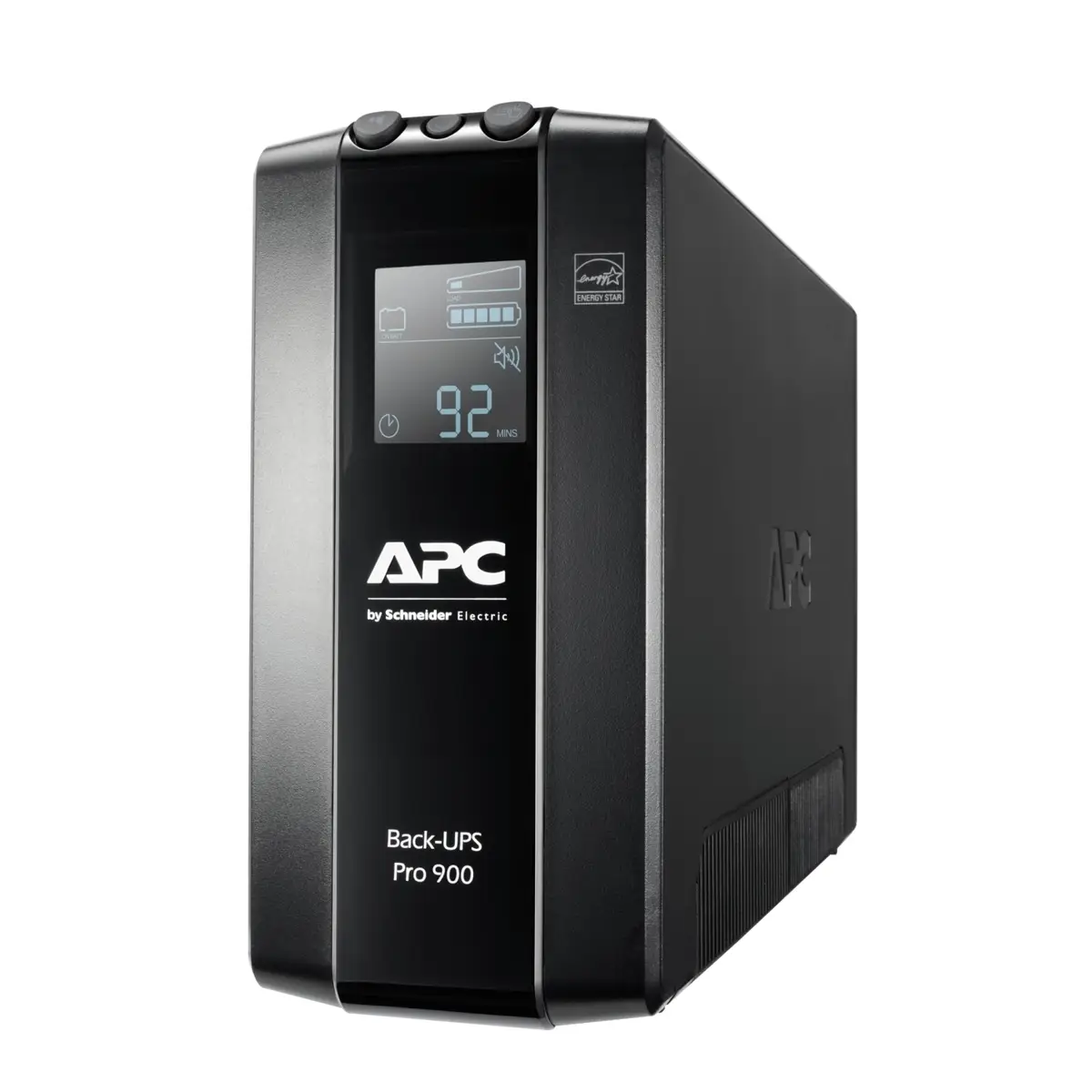

Back UPS Pro BR 900VA 6 Outlets AVR LCD Interface
Detailed product title
Detailed product title
APC Back UPS Pro BR 900VA 6 Outlets AVR LCD Interface
2 Images
Cable length 1.83m
Product colour Black
Gross:
incl.
vat.
immediately
Added to cart
Gross:
incl.
vat.
immediately
Product description
Powerful UPS with premium protection features for computers and electronic systems.
- Warning sounds
- Notifies users when the status of the power supply or UPS system changes.
- Automatic self-test
- Periodic battery self-tests for timely replacement of used batteries.
- Notification of battery failure
- Analysis for early detection of battery faults enables timely preventive maintenance.
- Battery replacement without tools
- Enables quick and easy replacement of batteries.
- Battery-backed outputs and outputs with surge protection only
- Reserves capacity and backup time for connected devices that need to be switched to UPS battery operation in an emergency; Less important devices are only protected against surges.
- Automatic voltage regulation (AVR) with boost and trim function
- Increases UPS availability by correcting over and under voltages without using the battery.
- Supports cold start
- Allows temporary battery operation if mains power fails.
- Surge protection devices
- Protects connected devices from overvoltages on data lines.
- Disconnected battery notification
- Produces a warning when a battery is not available for power.
- Hot-swappable batteries
- Ensures uninterrupted power supply to protect systems during battery replacement.
- LCD graphic screen
- Display of operating modes, system parameters and alarms in the form of texts and overview circuit diagrams.
- Approval by testing institutions
- The UPS conforms to UL1778 specifications.
- USB interface
- Allows you to manage the UPS via the USB port.
- User replaceable batteries
- Increases uptime and reduces mean time to repair by using trained users to perform upgrades and replace batteries.
Technical specifications
Leistungen
| ECO mode | Y |
Design
| Product colour | Black |
Power
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 12 std |
| Maximum current | 10 A |
| Surge protection | Y |
Lieferumfang
| Cables included | USB cable |
Verpackungsdaten
| Package weight | 8,000 g |
| Package depth | 143 mm |
| Package width | 440 mm |
| Package height | 255 mm |
Sonstige Funktionen
| Manual | Y |
| USB port | Y |
| Input frequency | 50/60 |
| Output power | 540 W |
| Noise level | 45 dB |
| Nominal input voltage | 230 |
| Nominal output voltage | 230 |
Sustainability
| Sustainability certificates | Green Premium |
Operational conditions
| Operating relative humidity (H-H) | 0 - 95 |
| Storage temperature (T-T) | -15 - 45 |
| Operating temperature (T-T) | 0 - 40 |
| Operating altitude | 0 - 3000 |
| Storage relative humidity (H-H) | 0 - 95 |
| Non-operating altitude | 0 - 15000 |
Battery
| Hot-swap battery | Y |
| Waveform | Sine |
| Cold start | Y |
| Automatic battery test | Y |
| Battery life (max) | 5 |
Ergonomics
| LED indicators | Y |
Features
| Cable length | 1.83 m |
| Audible alarm(s) | Y |
| Cooling type | Passive |
| Surge protection features | Network |
| UPS topology | Line-Interactive |
| Audible alarm modes | Alarm when on battery,Low battery alarm,Overload alarm |
| Automatic Voltage Regulation (AVR) | Y |
| Output power capacity | 0.9 kVA |
| Input operation voltage (max) | 294 V |
| Input operation voltage (min) | 176 V |
| Output frequency | 50/60 |
Display
| Response time | 12 ms |
Mouse
| Form factor | Tower |
| Certification | A-tick, C-tick, CE, EAC, GS Mark, RCM, TISI |
Network
| Cabling technology | 10/100/1000Base-T(X) |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 2 |
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| AC outlets quantity | 6 AC out |
Weight & dimensions
| Weight | 7,100 g |
| Height | 190 mm |
| Width | 91 mm |
| Depth | 310 mm |
