- Smart-UPS SMT750IC USV 500 W 750 VA RS-232 USB
2 Images
ID: 174861
APC ID: SMT750IC
Smart-UPS SMT750IC USV 500 W 750 VA RS-232 USB
Detailed product title
Detailed product title
APC Smart-UPS SMT750IC USV 500 W 750 VA RS-232 USB
2 Images
Cable length 1.83m
Product colour Black
Gross:
incl.
vat.
immediately
Added to cart
Gross:
incl.
vat.
immediately
Product description
- Supports cold start
- Allows temporary battery operation if mains power fails.
- Energy consumption meter
- Indication of usage in kilowatt hours for energy-conscious users.
- Green operating mode
- Patent-pending operating mode in which unused electrical components are switched off when power conditions are good, allowing very high operating efficiency to be achieved without compromising safety.
- High online efficiency
- Reduces electricity costs, generates less waste heat.
- Intuitive LCD user interface
- Easy-to-read interface with accurate information in multiple languages and support for on-site UPS configuration with user-friendly navigation buttons.
- Display of the date for battery replacement
- The dynamic display of the recommended battery replacement date in month and year makes long-term maintenance planning easier.
- Purely sinusoidal output signal in battery operation
- Simulates mains power for the highest possible compatibility with servers and sensitive electronic systems with active power factor correction.
- SmartConnect
- Automatic notifications, firmware updates and advanced support services are made available with the innovative, easy-to-use remote monitoring feature.
- SmartSlot
- Equip your UPS with individual functions using management cards.
- Charging the battery with temperature compensation
- Extends the life of the battery by regulating the charging voltage according to the actual battery temperature.
! Not intended for consumer use. Intelligent and efficient network power protection with scalable runtime. Ideal for servers, POS systems, medical and network devices.
Technical specifications
Logistics data
| Products per pallet | 24 ST |
Design
| Product colour | Black |
Power
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 std |
Lieferumfang
| Cables included | USB cable |
Verpackungsdaten
| Bundled software | Powershute Serial Edition |
| Quick installation guide | Y |
| Package weight | 14,230 g |
| Package depth | 499 mm |
| Package width | 278 mm |
| Package height | 301 mm |
Sonstige Funktionen
| Manual | Y |
| USB port | Y |
| Input frequency | 50/60 |
| Output power | 500 W |
| Noise level | 40 dB |
Sustainability
| Sustainability certificates | Green Premium |
| Compliance certificates | RoHS |
Operational conditions
| Operating relative humidity (H-H) | 5 - 95 |
| Storage temperature (T-T) | -15 - 45 |
| Operating temperature (T-T) | 0 - 40 |
| Operating altitude | 0 - 3000 |
| Storage relative humidity (H-H) | 0 - 95 |
| Non-operating altitude | 0 - 15000 |
Battery
| Hot-swap battery | Y |
| Waveform | Sine |
| Cold start | Y |
| Automatic battery test | Y |
| Typical backup time at half load | 15.8 min |
| Typical backup time at full load | 4.6 min |
| Battery life (max) | 5 |
Ergonomics
| LED indicators | Status |
Features
| Cable length | 1.83 m |
| Audible alarm(s) | Y |
| UPS topology | Line-Interactive |
| Automatic Voltage Regulation (AVR) | Y |
| Auto-restart | Y |
| Efficiency | 98 % |
| Surge energy rating | 540 J |
| Output power capacity | 0.75 kVA |
| Input operation voltage (max) | 302 V |
| Input operation voltage (min) | 151 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
Mouse
| Form factor | Tower |
| Certification | CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH, PEP, EOLI |

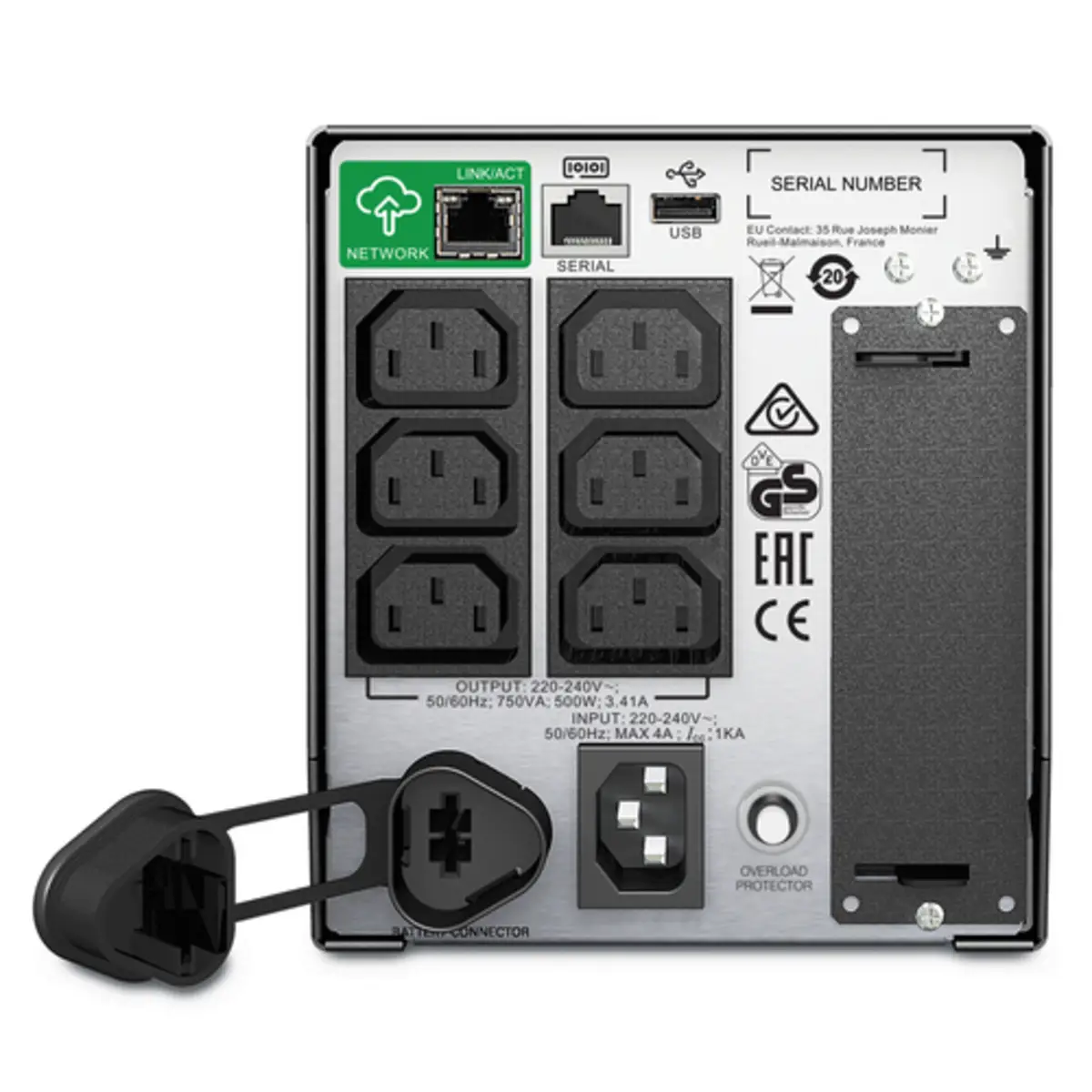

Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| Number of output IEC jumpers | 2 |
| SmartSlot | Y |
| AC outlets quantity | 6 AC out |
Weight & dimensions
| Weight | 13,180 g |
| Height | 157 mm |
| Width | 138 mm |
| Depth | 358 mm |
