- SmartConnect UPS SMC 1500VA Rack 2HE
2 Images
ID: 168260
APC ID: SMC1500I-2UC

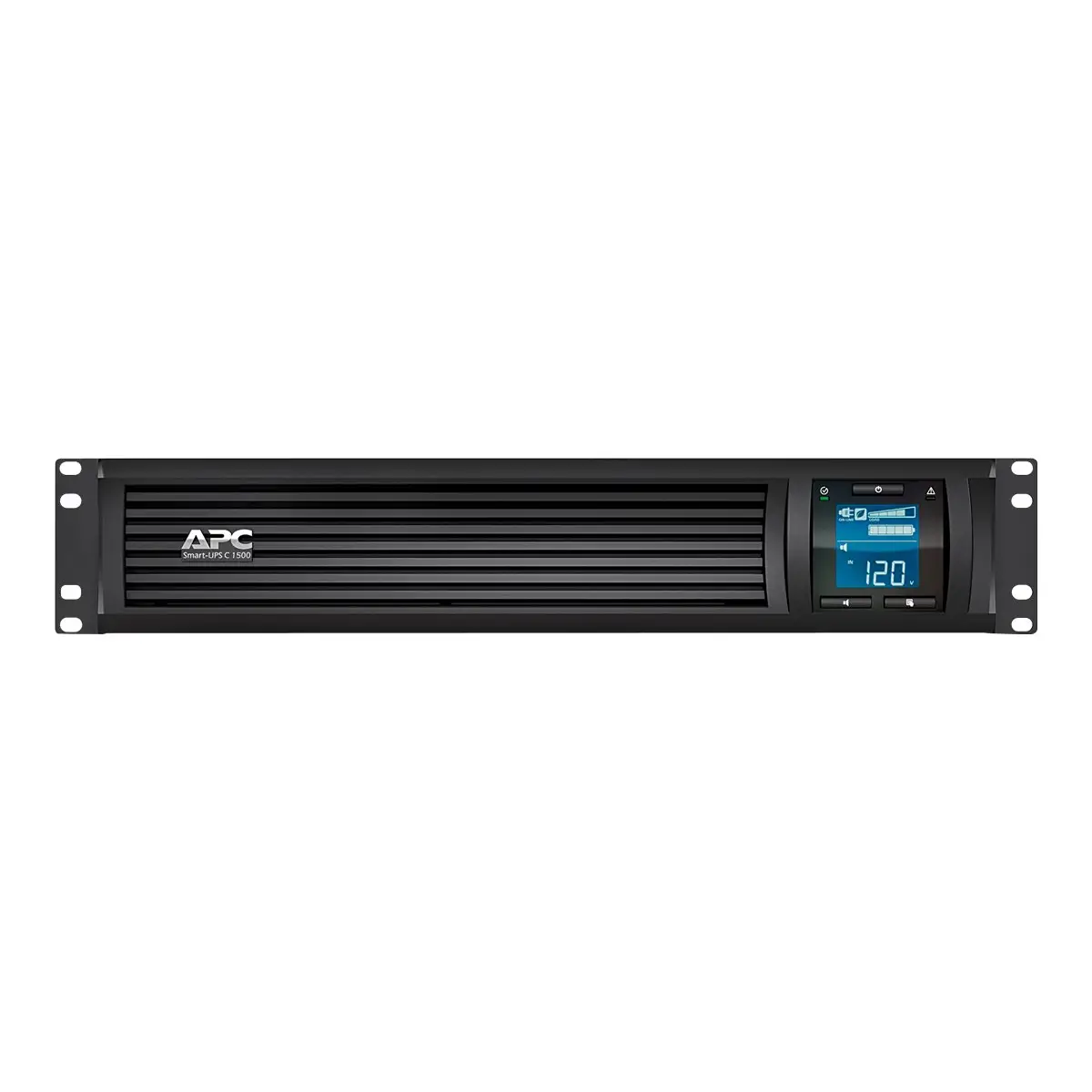

SmartConnect UPS SMC 1500VA Rack 2HE
Detailed product title
Detailed product title
APC SmartConnect UPS SMC 1500VA Rack 2HE
2 Images
Product colour Black
Gross:
incl.
vat.
ship in 4-7 days
Added to cart
Gross:
incl.
vat.
ship in 4-7 days
Product description
- Supports cold start
- Allows temporary battery operation if mains power fails.
- Green operating mode
- Patent-pending operating mode in which unused electrical components are switched off when power conditions are good, allowing very high operating efficiency to be achieved without compromising safety.
- High online efficiency
- Reduces electricity costs, generates less waste heat.
- LCD status display
- Important UPS status parameters at a glance: Multiple status displays with bar charts on load and battery status.
- Purely sinusoidal output signal in battery operation
- Simulates mains power for the highest possible compatibility with servers and sensitive electronic systems with active power factor correction.
- SmartConnect
- Automatic notifications, firmware updates and advanced support services are made available with the innovative, easy-to-use remote monitoring feature.
- Charging the battery with temperature compensation
- Extends the life of the battery by regulating the charging voltage according to the actual battery temperature.
! Not intended for consumer use. Intelligent and efficient network power protection with scalable runtime. Ideal for servers, POS systems, medical and network devices.
Technical specifications
Logistics data
| Products per pallet | 16 |
Design
| Product colour | Black |
| Rack capacity | 2U |
Power
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 |
Lieferumfang
| Cables included | USB cable |
| Resource CD | Yes |
| Rack mount kit | Yes |
Verpackungsdaten
| Software CD | Yes |
| Quick installation guide | Yes |
| Package weight | 31,910 |
| Package depth | 603 |
| Package width | 594 |
| Package height | 251 |
Sonstige Funktionen
| USB port | Yes |
| Input frequency | 50/60 |
| Output power | 900 |
| Noise level | 46 |
Sustainability
| Sustainability certificates | Green Premium |
Operational conditions
| Operating relative humidity (H-H) | 0 - 95 |
| Storage temperature (T-T) | -15 - 45 |
| Operating temperature (T-T) | 0 - 40 |
| Operating altitude | 0 - 3000 |
| Storage relative humidity (H-H) | 0 - 95 |
| Non-operating altitude | 0 - 15000 |
Battery
| Hot-swap battery | Yes |
| Waveform | Sine |
| Cold start | Yes |
| Automatic battery test | Yes |
| Battery life (max) | 6 |
Ergonomics
| LED indicators | Yes |
Features
| Audible alarm(s) | Yes |
| UPS topology | Line-Interactive |
| Audible alarm modes | Alarm when on battery,Low battery alarm,Overload alarm |
| Automatic Voltage Regulation (AVR) | Yes |
| Temperature voltage compensation | Yes |
| Auto-restart | Yes |
| Surge energy rating | 459 |
| Output power capacity | 1.5 |
| Output voltage Total Harmonic Distortion (THD) | 5 |
| Input operation voltage (max) | 300 |
| Input operation voltage (min) | 170 |
| Output operation voltage (min) | 220 |
| Output operation voltage (max) | 240 |
| Output frequency | 50/60 |
Mouse
| Form factor | Rackmount |
| Certification | C-tick, CE, CSA, GOST, UL 1778, VDE |

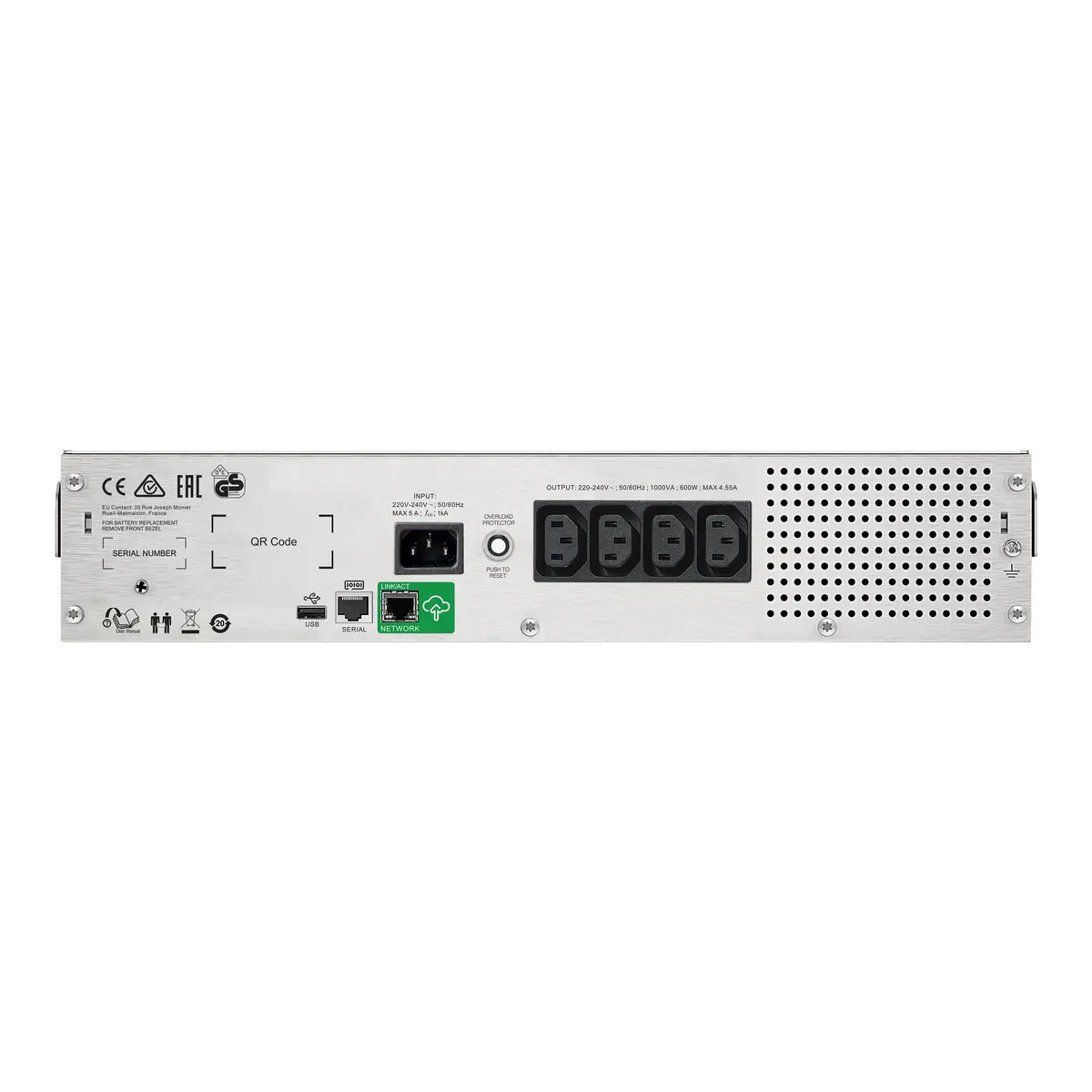

Ports & interfaces
| USB 2.0 ports quantity | 1 |
| Serial interface type | RJ-45 |
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| Serial interface | Yes |
| AC outlets quantity | 4 |
Weight & dimensions
| Weight | 28,640 |
| Height | 86 |
| Width | 432 |
| Depth | 477 |
Management features
| Web-based management | Yes |
