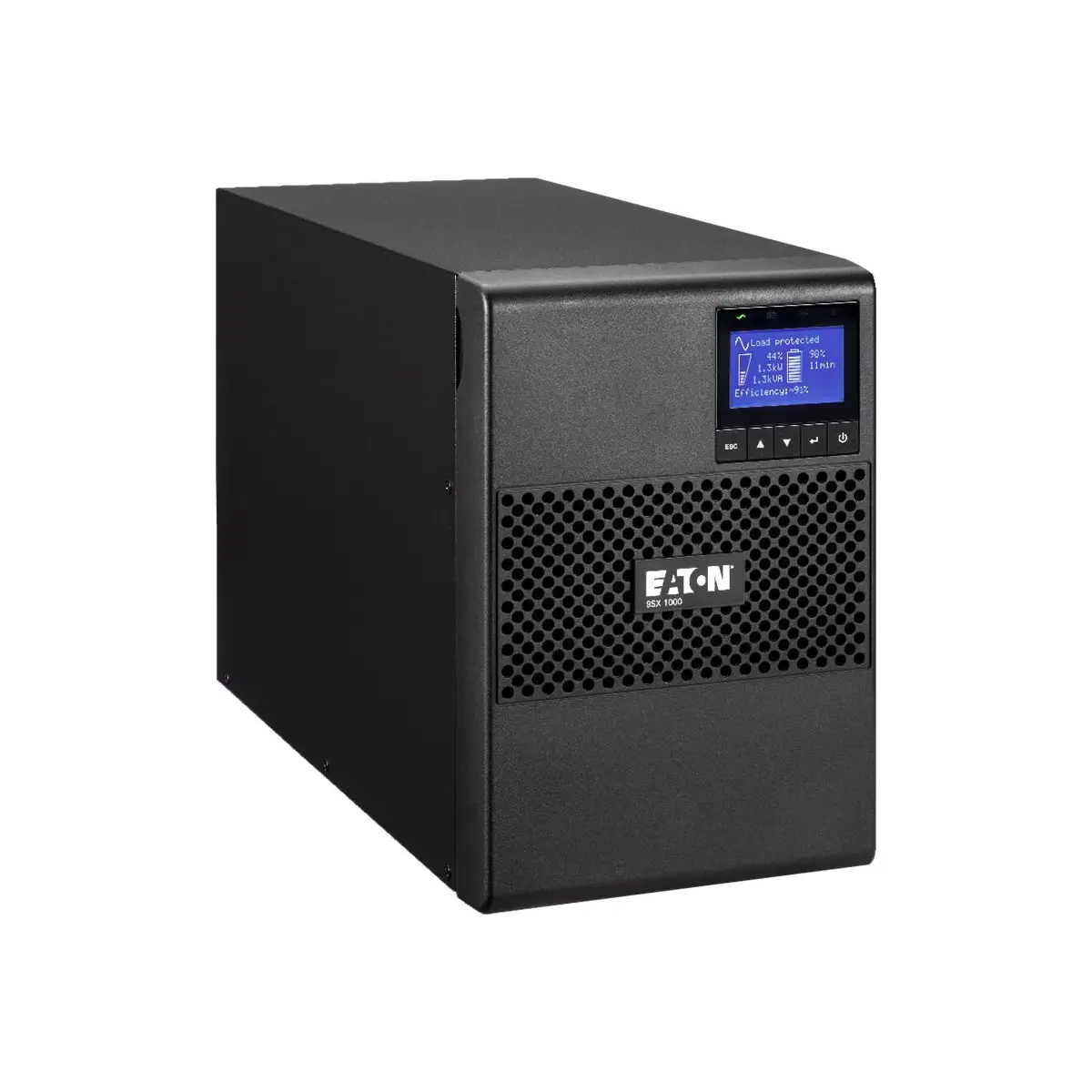

- Unterbrechungsfreie Stromversorgung (USV) Eaton 9SX Doppelwandler (Online) 1 kVA 900 W 6 AC- Ausgänge
1 Images
ID: 173924
Eaton ID: 9SX1000I
Unterbrechungsfreie Stromversorgung (USV) Eaton 9SX Doppelwandler (Online) 1 kVA 900 W 6 AC- Ausgänge
Detailed product title
Detailed product title
Eaton Unterbrechungsfreie Stromversorgung (USV) Eaton 9SX Doppelwandler (Online) 1 kVA 900 W 6 AC- Ausgänge
Product colour Black
Gross:
incl.
vat.
immediately
Added to cart
Gross:
incl.
vat.
immediately
Product description
Die USV Eaton 9SX bietet hohe Verfügbarkeit, Flexibilität und hochentwickelten Schutz für Infrastruktur, Industrie, Medizintechnik, IT, Netzwerk-, Speicher- und Telekommunikationsanwendungen. Sie liefert Online-Doppelwandler-Schutz im wandlungsfähigen Rack/Tower-Format mit bis zu 95 % Wirkungsgrad.
Technical specifications
Leistungen
| ECO mode | No |
Design
| Product colour | Black |
Power
| Battery technology | Sealed Lead Acid (VRLA) |
Verpackungsdaten
| Bundled software | Intelligent Power Software suite |
| Management card included | No |
Certificates
| Safety | IEC/EN 62040-1, UL 1778, CSA 22.2 |
Sonstige Funktionen
| USB port | Yes |
| Input frequency | 40/70 |
| Output power | 900 |
| Noise level | 41 |
| Nominal input voltage | 230 |
| Nominal output voltage | 230 |
| Input connection type | IEC C14 |
Operational conditions
| Operating temperature (T-T) | 0 - 40 |
Battery
| Hot-swap battery | Yes |
| Waveform | Pure sine |
| Automatic battery test | Yes |
| Typical backup time at half load | 16.5 |
Features
| Power factor | 0.9 |
| Number of output phases | 1 |
| UPS topology | Double-conversion (Online) |
| Number of input phases | 1 |
| Output power capacity | 1 |
| Input operation voltage (max) | 276 |
| Input operation voltage (min) | 190 |
| Output operation voltage (min) | 200 |
| Output operation voltage (max) | 240 |
| Output frequency | 50/60 |
Mouse
| Form factor | Tower |
| Certification | IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC / RCM / BIS / KCC |
Ports & interfaces
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Serial interface type | RS-232 |
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| Serial interface | Yes |
| AC outlets quantity | 6 |
Weight & dimensions
| Weight | 14,800 |
| Height | 252 |
| Width | 160 |
| Depth | 387 |
