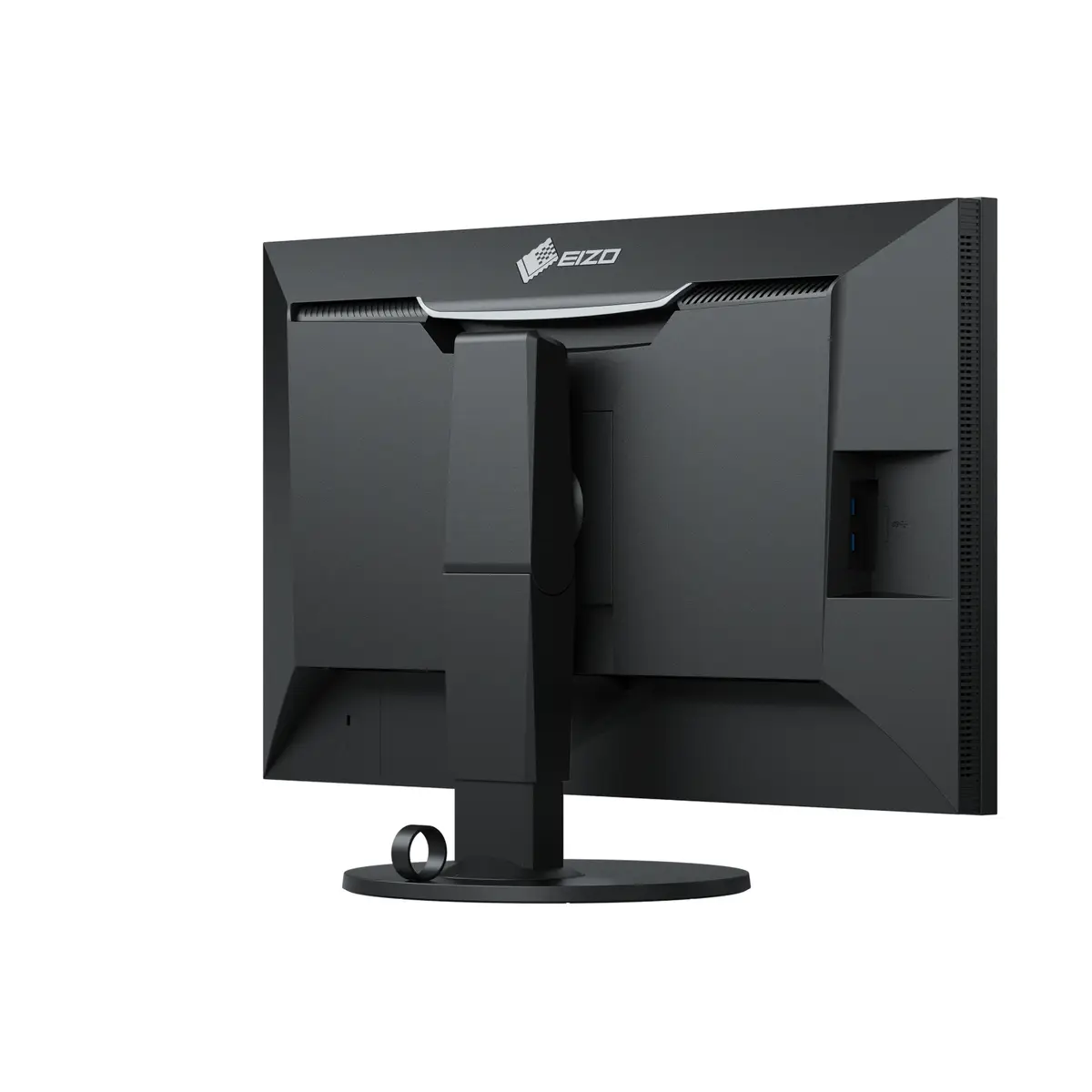

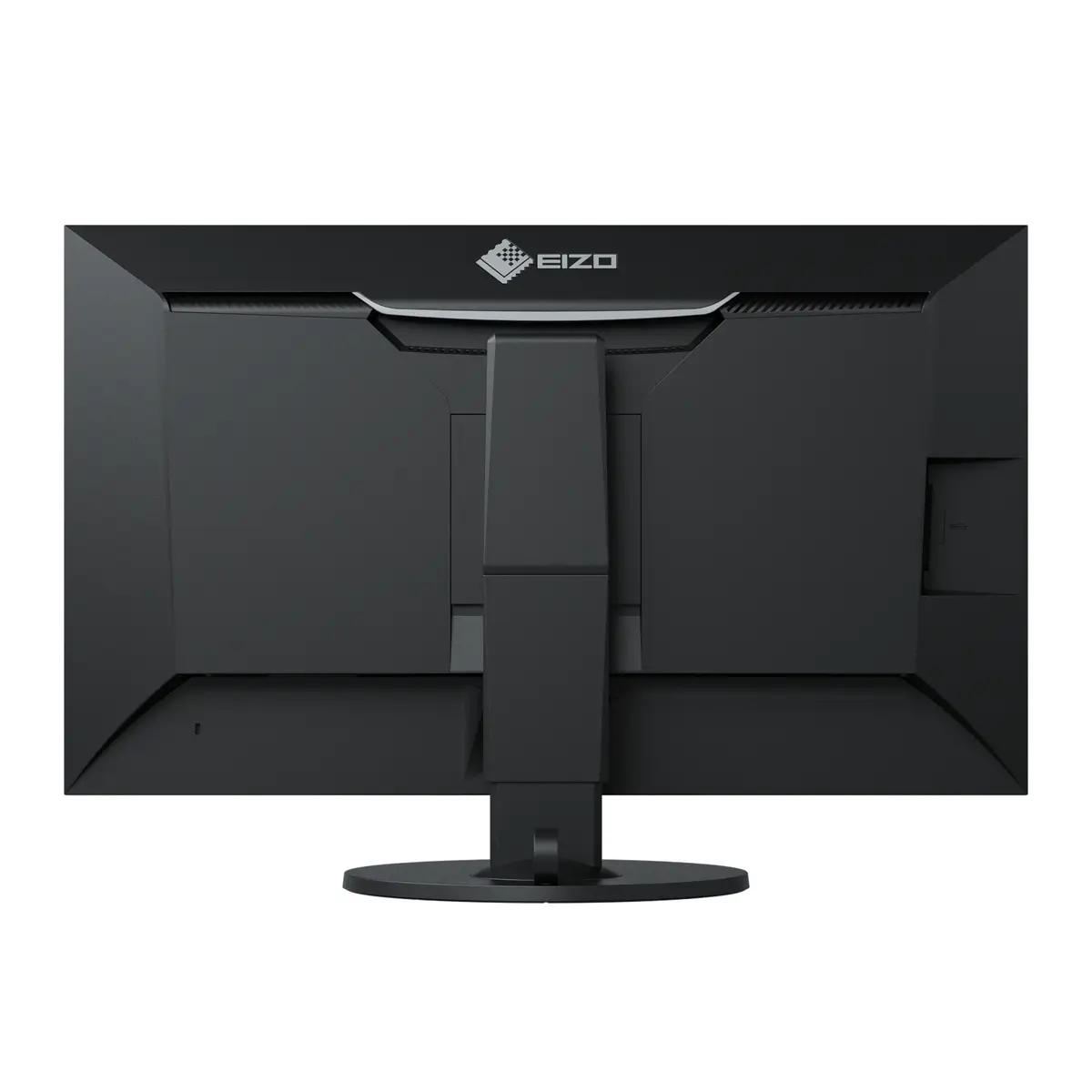

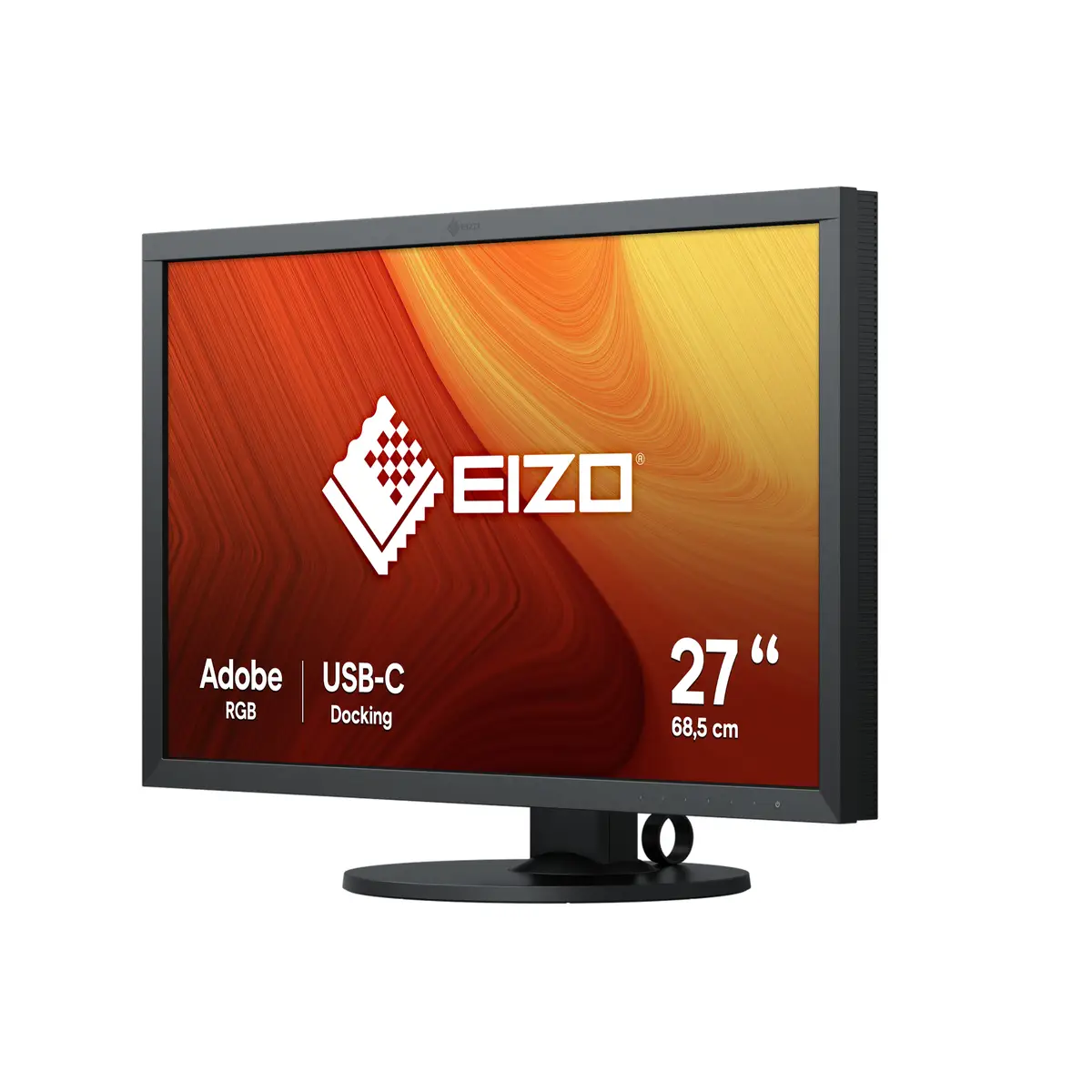

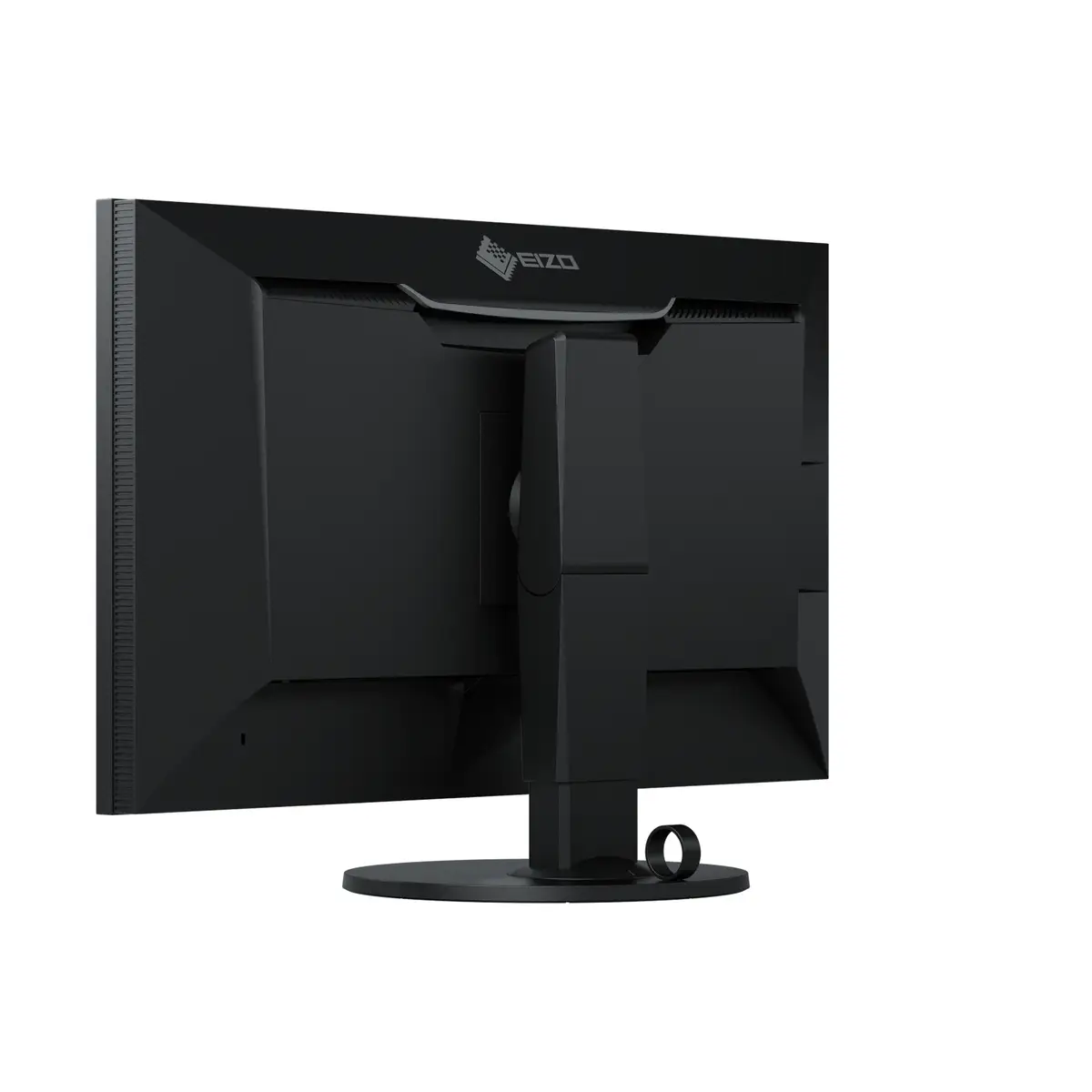

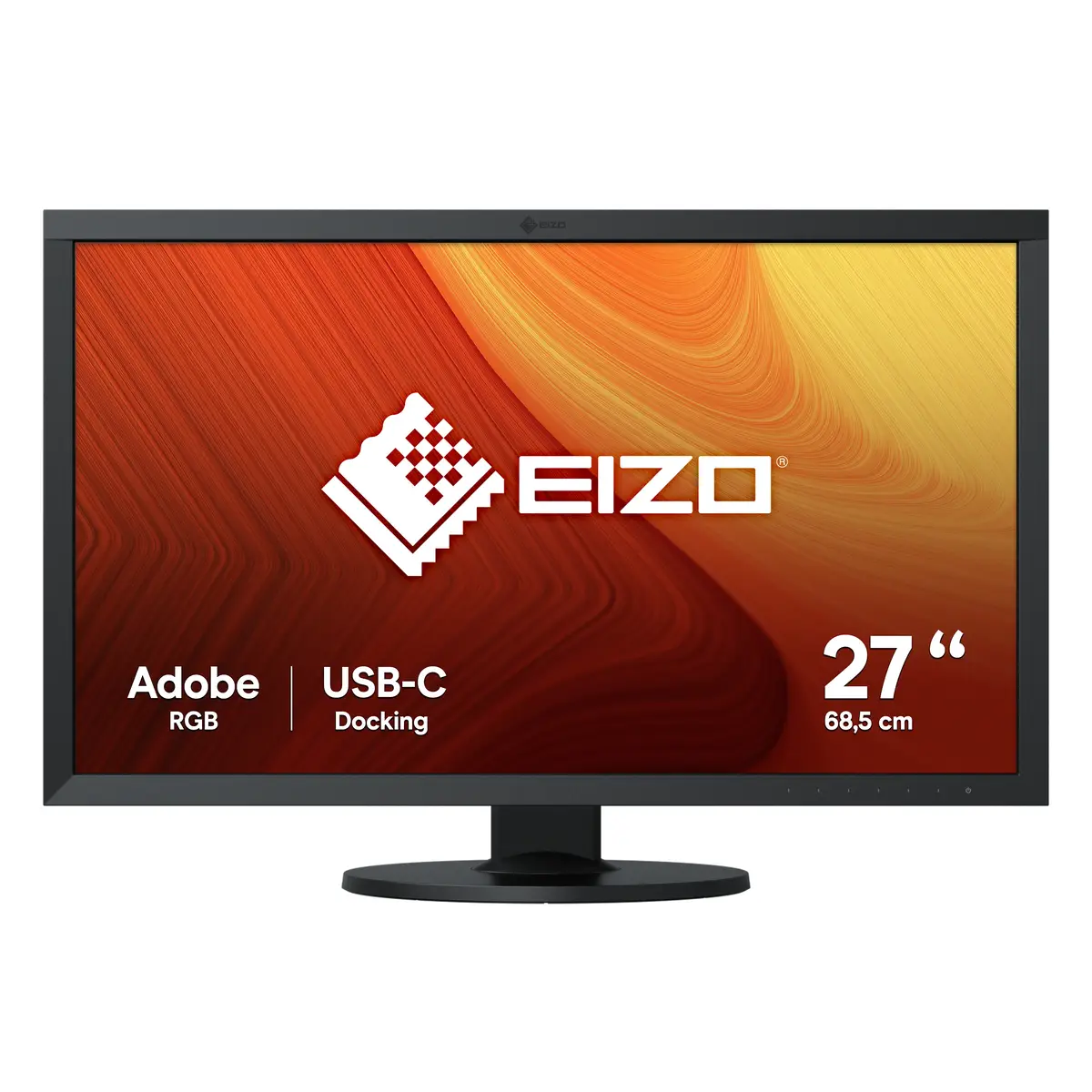

Name: ColorEdge CS2731 68,6cm (27 Zoll) 2560x1440 Pixel 350cd/m² 1000:1 16ms Pivot
Brand: 60002487
SKU: 196775

text.skipToContent text.skipToNavigation

ColorEdge CS2731 68,6cm (27 Zoll) 2560x1440 Pixel 350cd/m² 1000:1 16ms Pivot

ID: 196775 EIZO ID: CS2731

ColorEdge CS2731 68,6cm (27 Zoll) 2560x1440 Pixel 350cd/m² 1000:1 16ms Pivot

Detailed product title

EIZO ColorEdge CS2731 68,6 cm (27 Zoll) 2560x1440 Pixel 350cd/m² 1000:1 16ms Pivot

Response time 16 ms

Display resolution 2560 x 1440 pixels

Contrast ratio (typical) 1000:1

Display brightness (typical) 350 cd/m²

Display diagonal 27 "

Product colour Schwarz

Height adjustment Yes

Built-in speaker(s) No

ship in 4-7 days

Added to cart

ship in 4-7 days

Product description

The CS2731 unites precision, colour fidelity and cutting-edge connectivity thanks to its USB-C port. This makes the monitor the central interface for the graphic workflow of sophisticated creatives with high standards. The wide gamut, 16-bit look-up-table and precise factory calibration of the CS2731 allows you to enjoy an unadulterated look at your image files in creative workflows requiring high colour accuracy. Convenient functionalities such as monitor signal transmission, rapid data transfer and the power supply feature for connected devices are enabled with just one USB-C port.

Technical specifications

Other features

TV tuner integrated

Logistics data

Harmonized System (HS) code

85285210

Operational conditions

Operating relative humidity (H-H)	20 - 80
Storage temperature (T-T)	-20 - 60
Operating temperature (T-T)	0 - 35

Packaging content

Cables included

AC,HDMI,USB Type-C to USB Type-C

Sustainability

Sustainability certificates

ENERGY STAR

Other features

On/off switch	Yes
Compliance certificates	RoHS

Certificates

Certification

CE, CB, TÜV/GS, TÜV/Ergonomics (including ISO 9241- 307), cTÜVus, TÜV/S, EAC, PSE, FCC-B, CAN ICES-3 (B), RCM, VCCI-B, CCC, RoHS, China RoHS, WEEE

Packaging content

Stand included	Yes
Quick start guide	Yes

Weight & dimensions

Height (with stand)	404.1 mm
Depth (with stand)	265 mm
Width (with stand)	638 mm
Weight (with stand)	10,100 g
Weight (without stand)	6,500 g
Width (without stand)	638 mm
Height (without stand)	378.2 mm
Depth (without stand)	75 mm

Power

Energy efficiency scale	A to G
Energy efficiency class (SDR)	G
Power consumption (typical)	35.7 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240
AC input frequency	50/60
Power consumption (max)	159 W
Energy consumption (SDR) per 1000 hours	36 kW.h

Operational conditions

Storage relative humidity (H-H)

10 - 90

Ergonomics

VESA mounting	Yes
Height adjustment	Yes
Pivot	Yes
On Screen Display (OSD)	Yes
Swivelling	Yes
Swivel angle range	0 - 344
Tilt angle range	-5 - 35
Panel mounting interface	100 x 100 mm
Height adjustment	155 mm
Pivot angle	-90 - 90

Ports & interfaces

HDMI ports quantity	1
HDCP	Yes
HDMI	Yes
DVI-D ports quantity	1
USB hub version	2.0 / 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-B,USB Type-C
Number of upstream ports	2
USB Type-A downstream ports quantity	4
Number of USB Type-C upstream ports quantity	1
Number of USB Type-B upstream ports quantity	1
Built-in KVM switch	Yes
Built-in USB hub	Yes
USB Power Delivery up to	60 W

Design

Feet colour

Black

Multimedia

Built-in camera

Performance

NVIDIA G-SYNC	No
AMD FreeSync	No
Flicker-free technology	Yes
Low Blue Light technology	Yes

Display

Supported graphics resolutions	2560 x 1440,1920 x 1200 (WUXGA)
Backlight type	W-LED
Screen shape	Flat screen
Display number of colours	1.073 billion colours
Supported video modes	1080p,1080i,720p,576p,576i,480p,480i
Separate H/V sync	Yes
DDC/CI	Yes
Pixel pitch	0.233 x 0.233
Viewable size, horizontal	596.7 mm
Viewable size, vertical	335.7 mm
Response time	16 ms
Digital horizontal frequency	15 - 89
Digital vertical frequency	23 - 61
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Colour depth	10 bit
Adobe RGB coverage	99 %
Display brightness (typical)	350 cd/m²

Power

USB Power Delivery (USB PD)

Design

Cable lock slot type	Kensington
Cable lock slot	Yes

Ports & interfaces

DisplayPorts quantity

Audio

Built-in speaker(s)

Ports & interfaces

DVI port

Ports & interfaces

USB Type-C DisplayPort Alternate Mode

Display

Display technology	LCD
HD type	Quad HD
Panel type	IPS

Display

Native aspect ratio	16:9
RGB colour space	sRGB
Anti-glare screen	Yes
Contrast ratio (typical)	1000:1
Touchscreen	No
Display diagonal	27 "
Display resolution	2560 x 1440 pixels
Pixel density	109 ppi
Maximum refresh rate	60 Hz
sRGB coverage (typical)	100 %
DCI-P3 coverage	95 %

Design

Product colour	Schwarz
Market positioning	Photo editing
