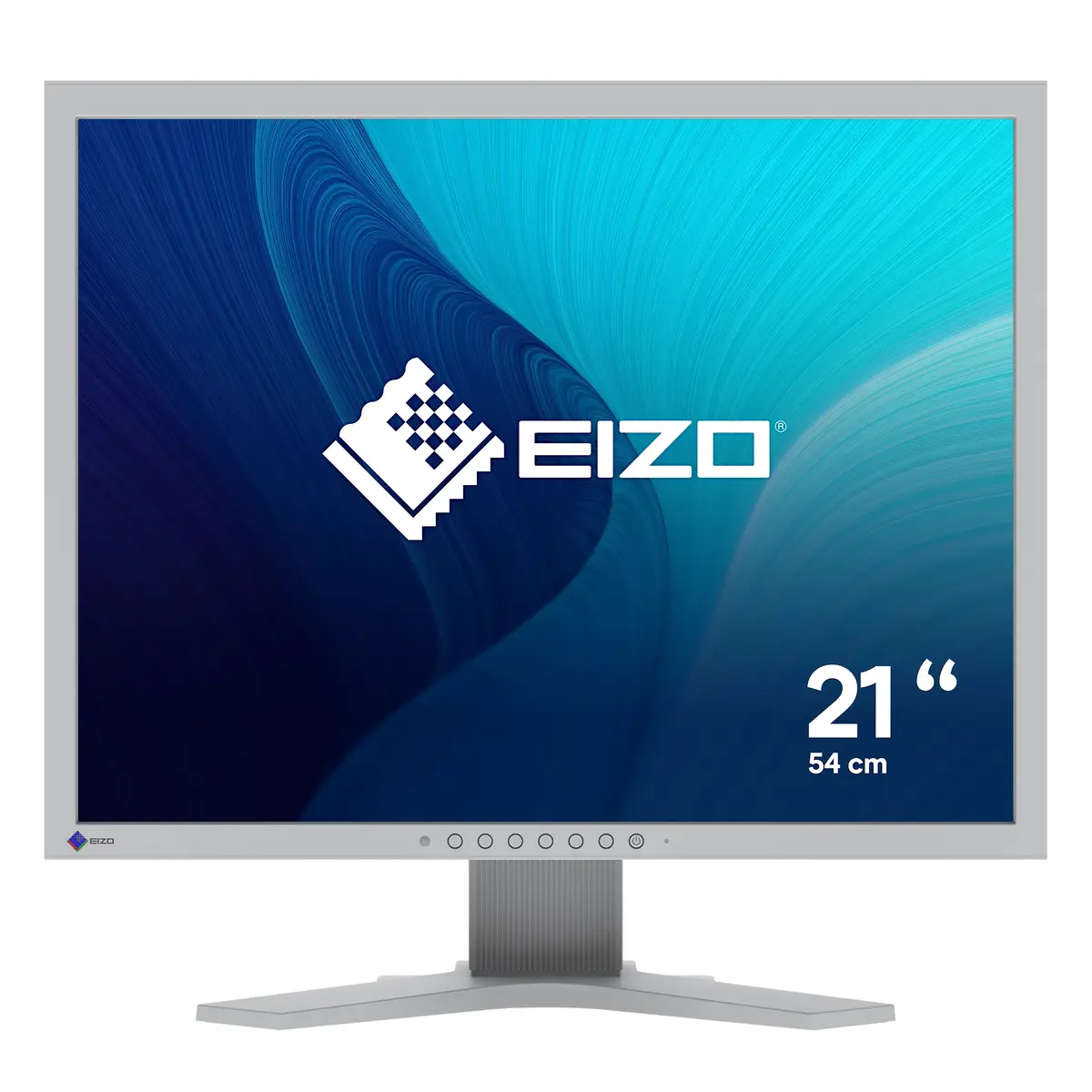

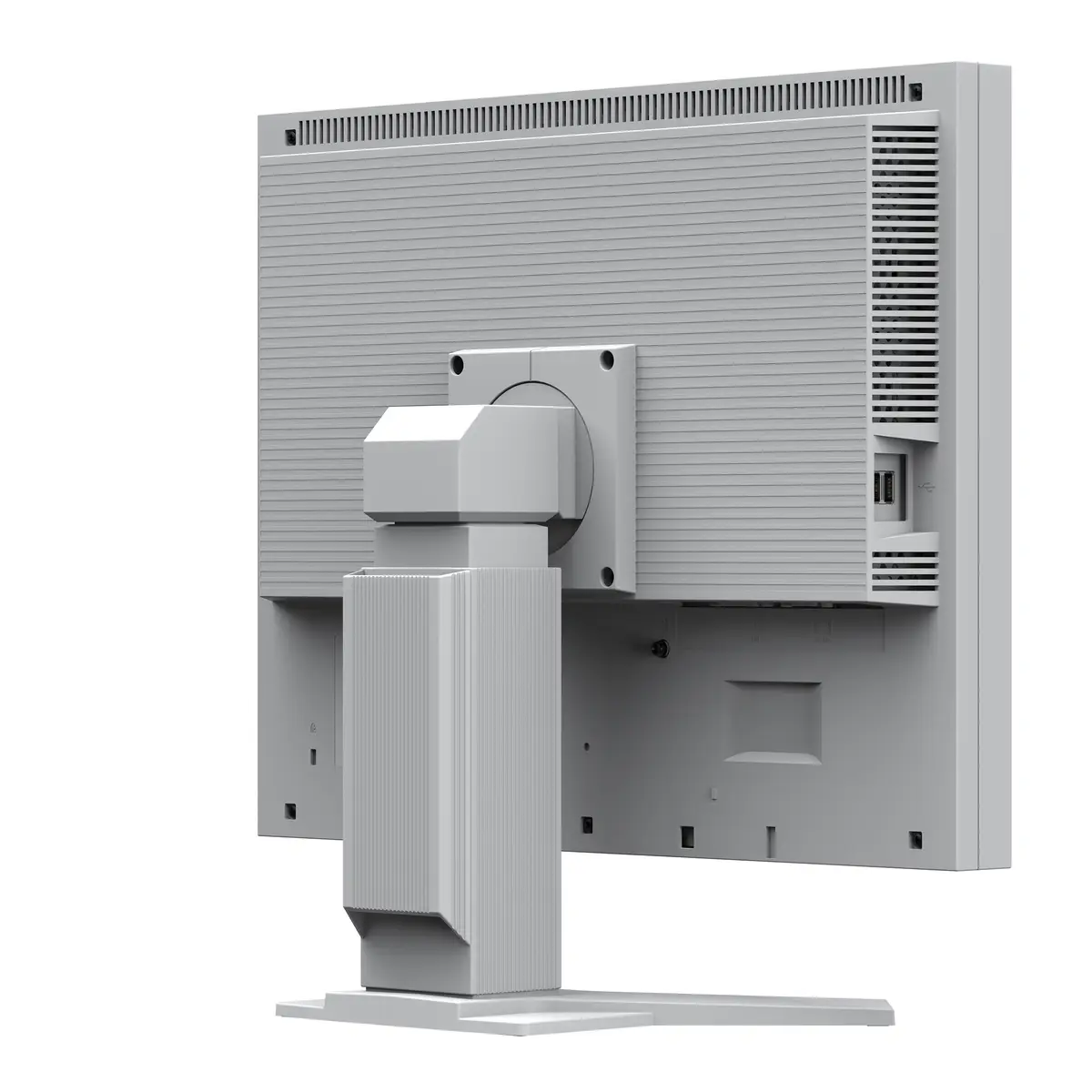

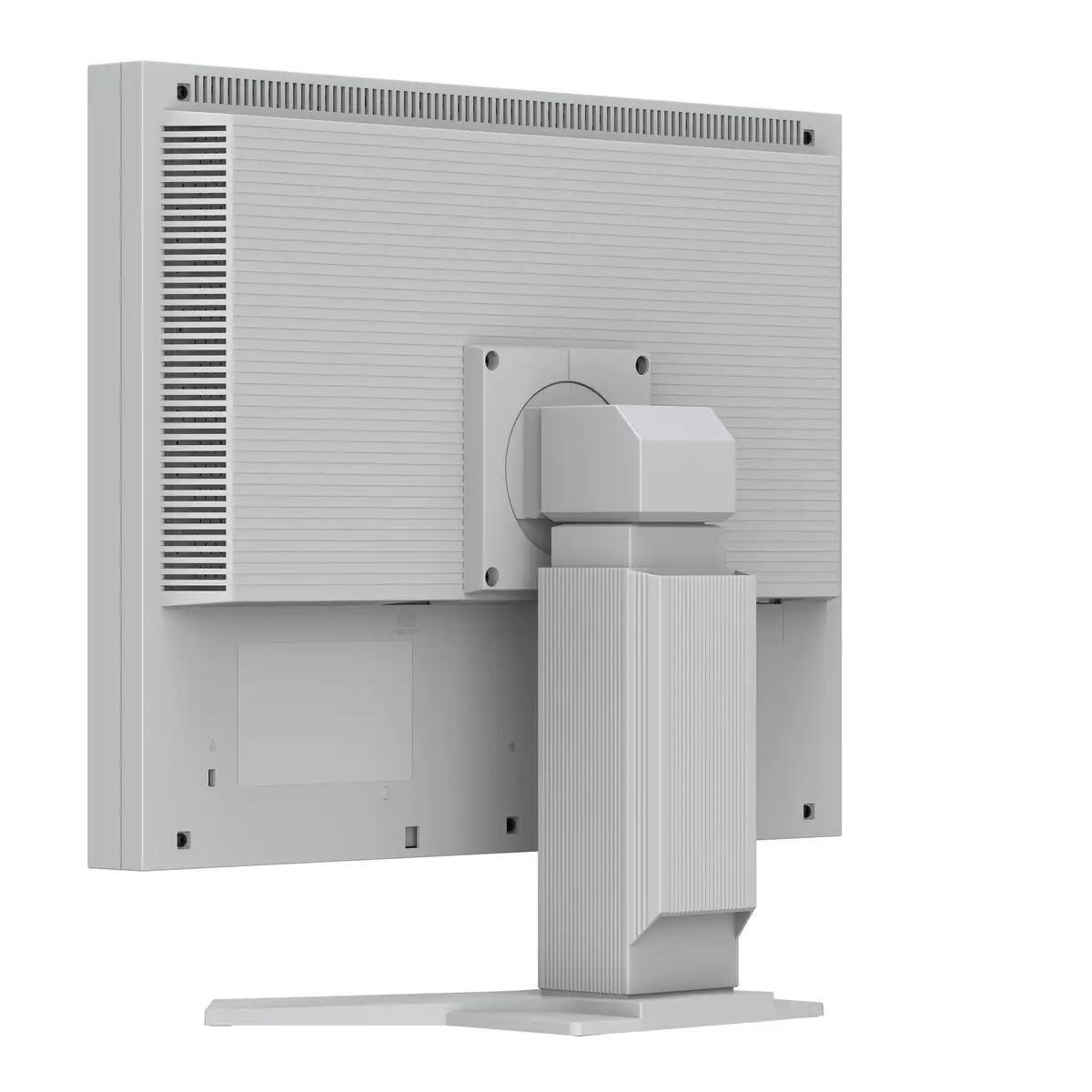

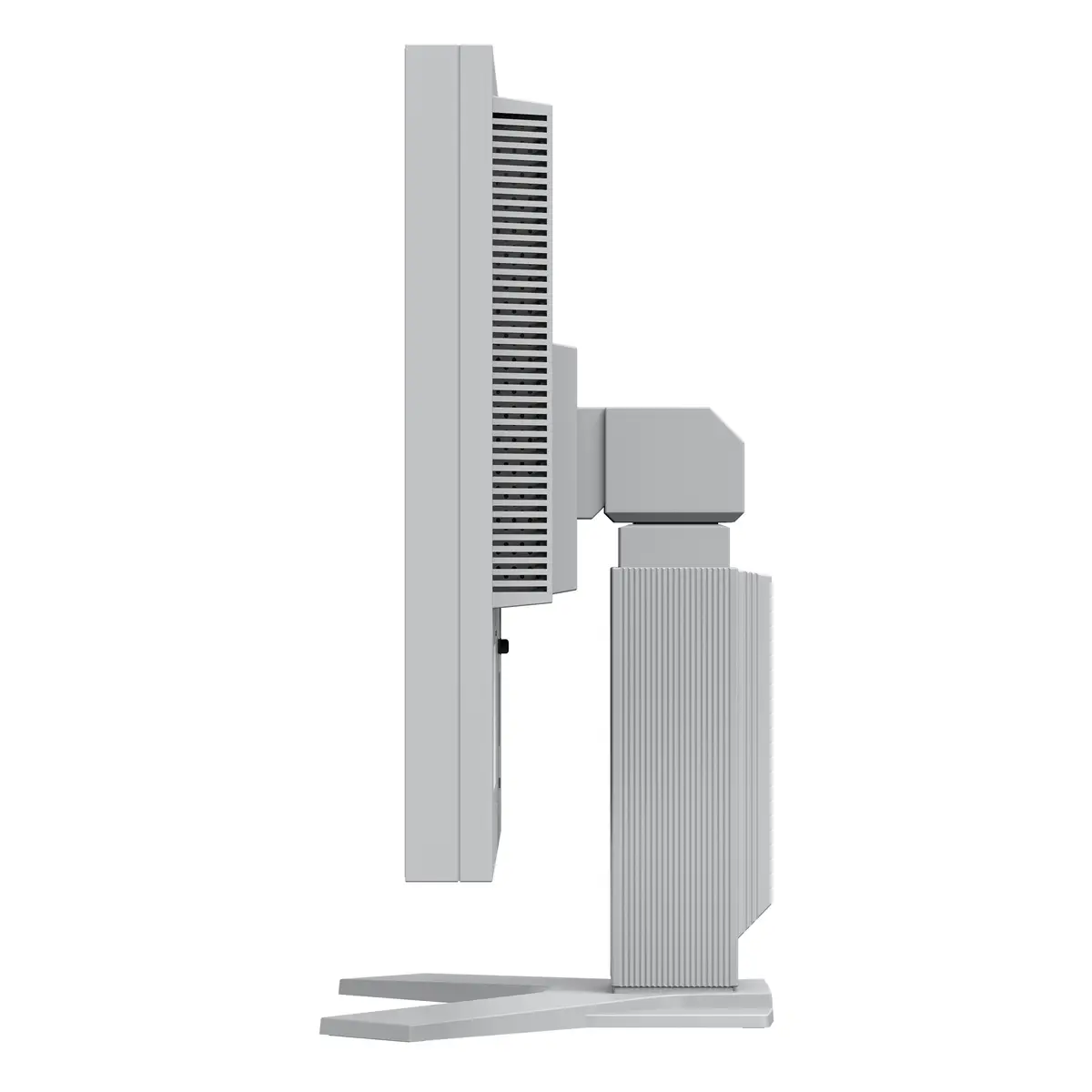

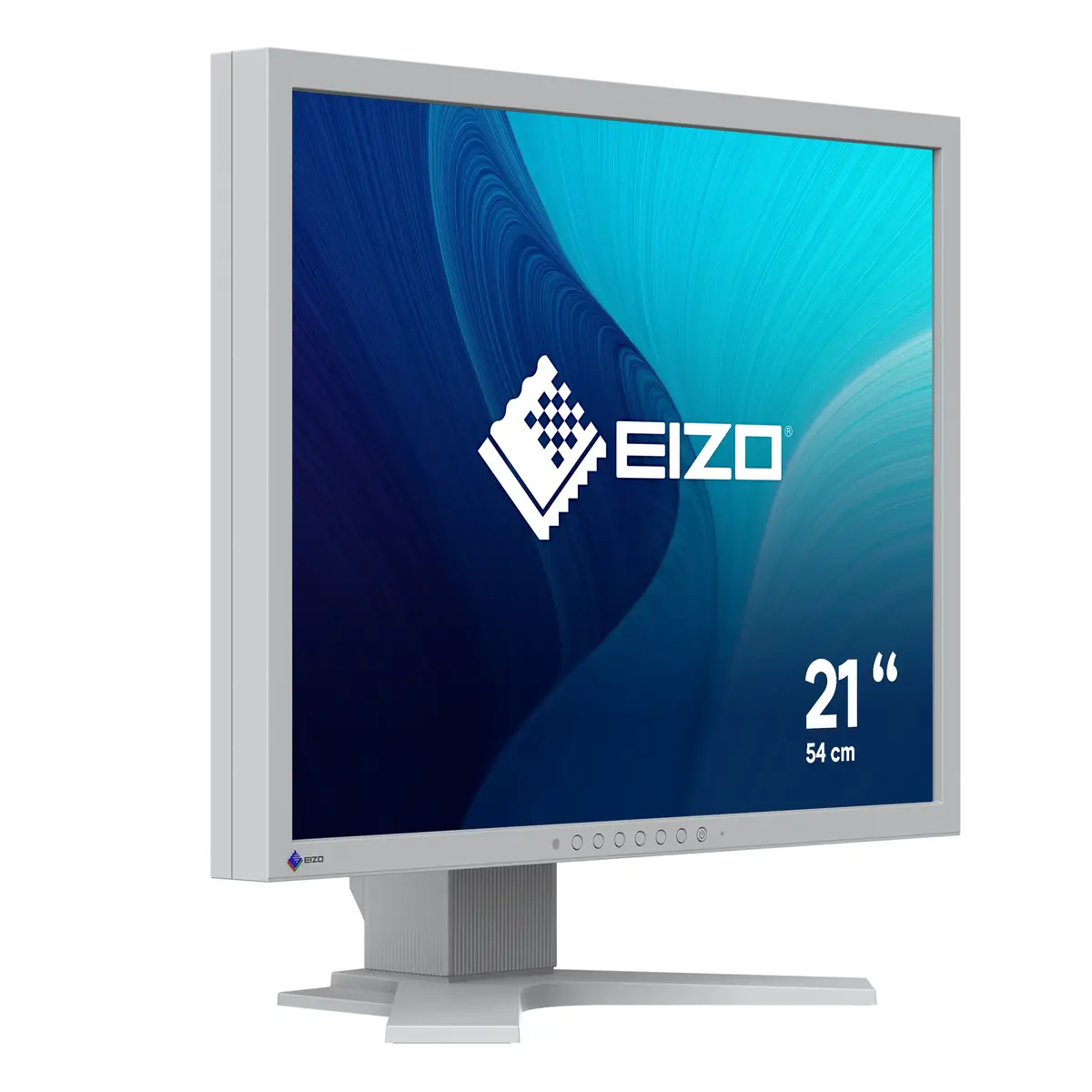

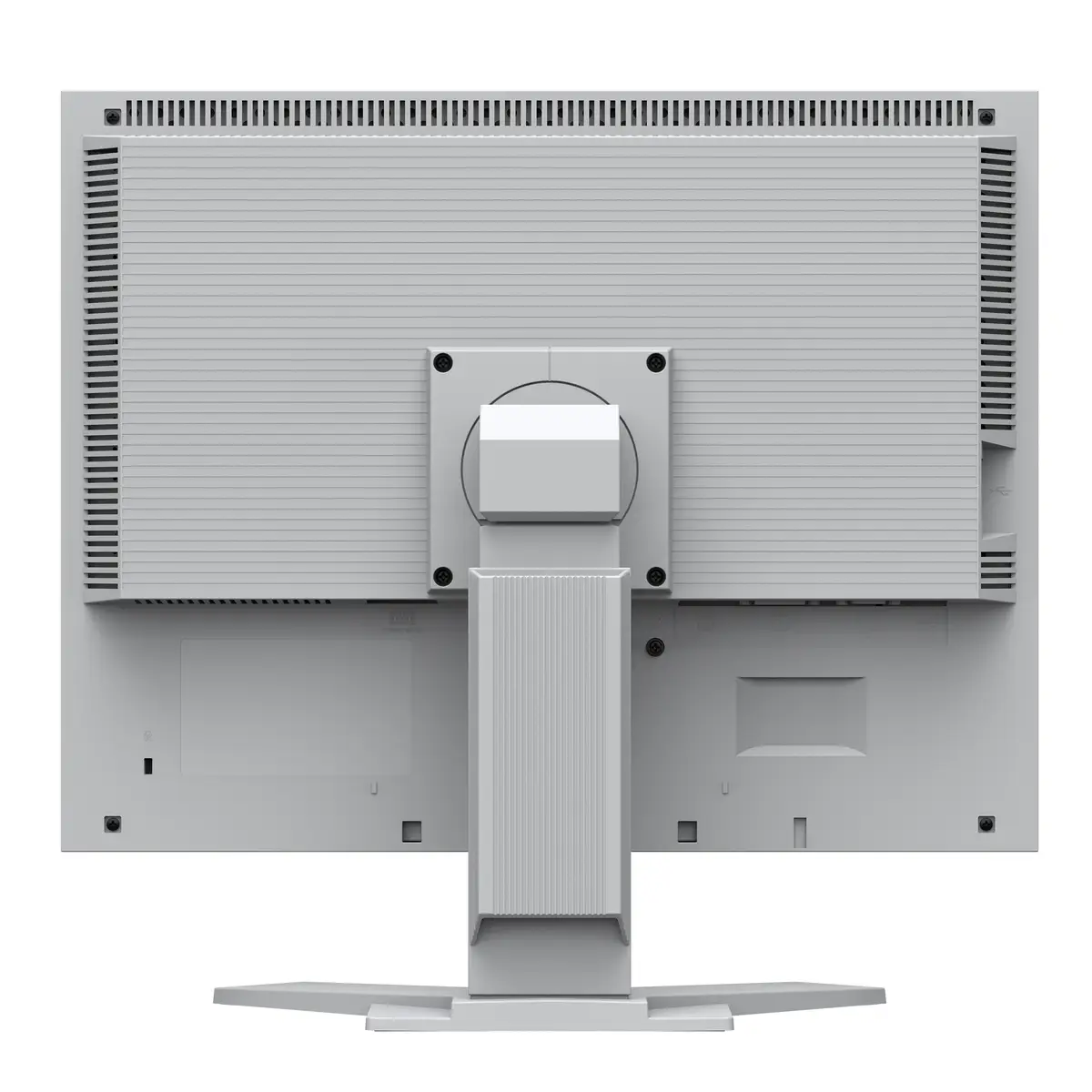

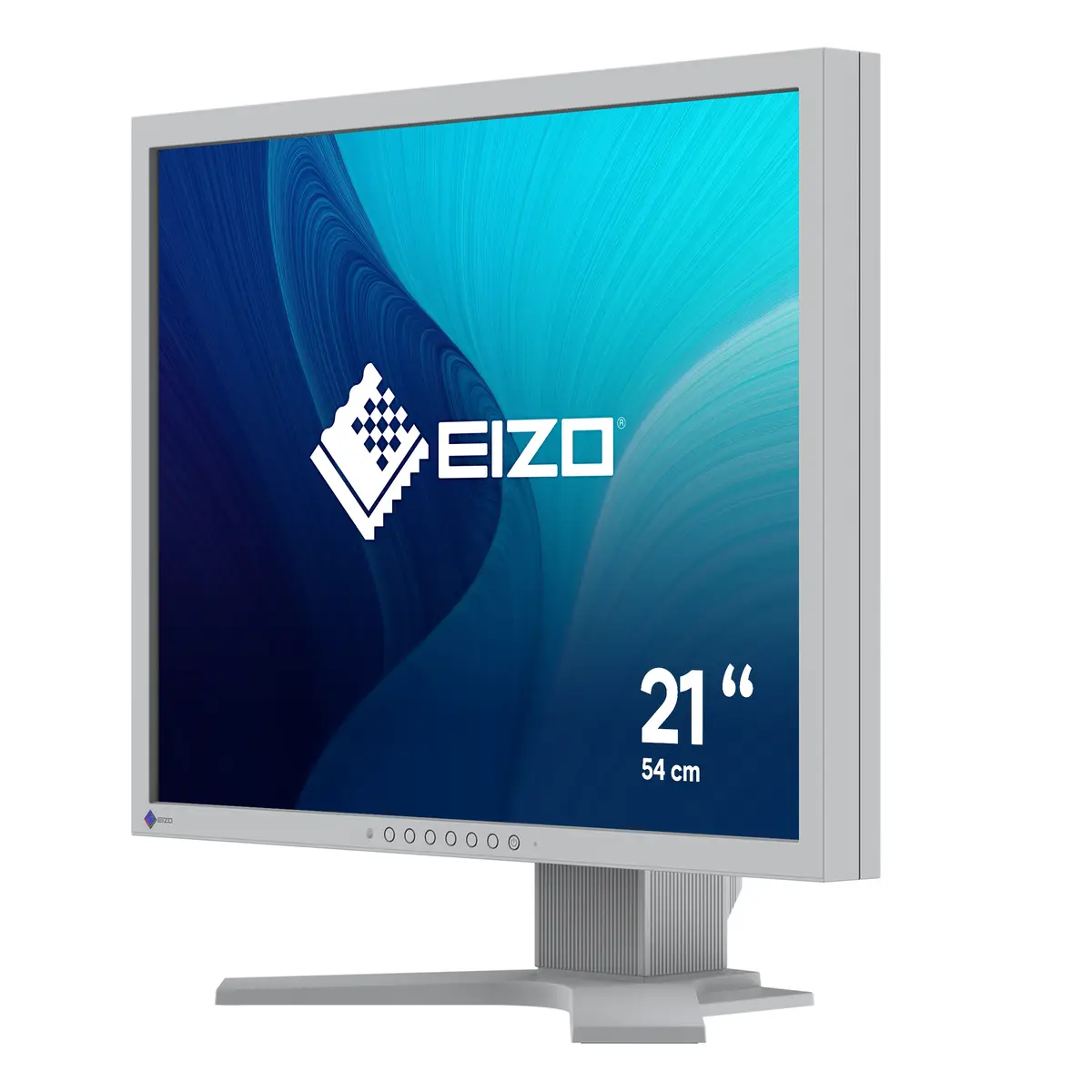

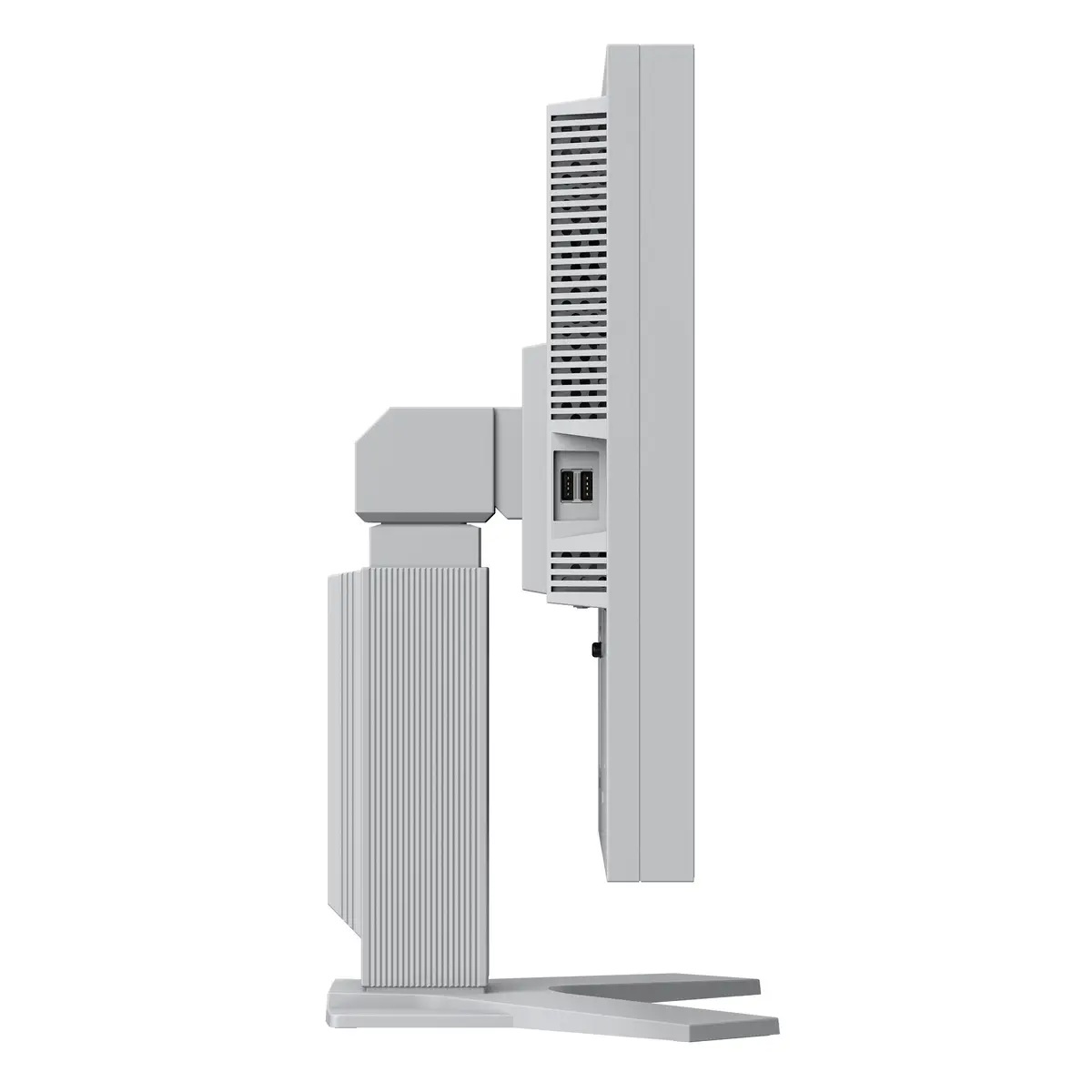

- FlexScan S2134 Computerbildschirm 54,1cm (21,3") 1600x1200 Pixel UXGA LCD 1800:1 500 cd/qm² Grau
+3 Images
8 Images
Product description
The FlexScan S2134 has a screen diagonal of 21 inches in 4:3 format. It convinces with its IPS LCD and the up to 500 cd/sqm bright and economical LED backlight. Its typical power consumption is just 13 watts. Thanks to the Auto EcoView function, the monitor saves additional energy by intelligently adjusting the image brightness to its surroundings. The EcoView Optimizer adjusts the backlight depending on the image content and thus also reduces power consumption. The S2134 stands for maximum user comfort, reduced environmental impact and low operating costs.
Technical specifications
Design
| Product colour | Grey |
| Anti-glare screen | Y |
| VESA mounting | Y |
| Panel mounting interface | 100 x 100 |
Bildschirm
| Supported graphics resolutions | 640 x 480 (VGA),720 x 400,800 x 600 (SVGA),1024 x |
| Backlight type | LED |
| Display technology | LCD |
| Native aspect ratio | 4:3 |
| Panel type | IPS |
| Screen shape | Flat screen |
| Display number of colours | 16.7 million colours |
| RGB colour space | sRGB |
| Contrast ratio (typical) | 1800:1 |
| Touchscreen | N |
| On Screen Display (OSD) | Y |
| Pixel pitch | 0.27 x 0.27 |
| Viewable size, horizontal | 432 mm |
| Viewable size, vertical | 324 mm |
| Display diagonal | 21.3 " |
| Display resolution | 1600 x 1200 |
| Viewing angle, horizontal | 178 deg |
| Viewing angle, vertical | 178 deg |
| Pixel density | 94 ppi |
| Maximum refresh rate | 60 Hz |
| Display brightness (typical) | 500 cd/m² |
Anschlüsse und Schnittstellen
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Y |
| HDMI | N |
| Headphone out | N |
| DVI-D ports quantity | 1 |
| USB upstream port type | USB Type-B |
| USB Type-A downstream ports quantity | 2 |
| Number of USB Type-B upstream ports quantity | 1 |
| Built-in USB hub | Y |
Video
| HD type | UXGA |
Maus
| Certification | CE, UKCA, CB, TÜV/GS,TÜV/Ergonomics (includingIS |
| Response time | 6 ms |
Leistungen
| Component video sync | Separate sync |
| Number of OSD languages | 6 |
| Flicker-free technology | Y |
Grafik
| NVIDIA G-SYNC | N |
| AMD FreeSync | N |
Ergonomie
| On Screen Display (OSD) languages | DEU,ENG,ESP,FRE,ITA,SWE |
| Height adjustment | 82 mm |
Technische Details
| Market positioning | Office |
| AC input voltage | 100 - 240 |
Verpackungsdaten
| Cables included | AC,DVI,USB Type-A to USBType-B,VGA |
| Quick start guide | Y |
Leistung
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | C |
| Energy efficiency class (HDR) | Not available |
| Power consumption (standby) | 0.5 W |
| AC input frequency | 50 |
| Power consumption (max) | 42 W |
| Energy consumption (SDR) per 1000 hours | 10 kW.h |
Sonstige Funktionen
| Built-in camera | N |
| Built-in speaker(s) | No |
| Height adjustment | Y |
| Pivot | Y |
| Swivelling | Y |
| Digital horizontal frequency | 31 - 76 |
| Digital vertical frequency | 59 - 61 |
| Power consumption (typical) | 13 W |
| Swivel angle range | -70 - 90 |
| Tilt angle range | 0 - 40 |
| Display diagonal (metric) | 54 cm |
| Pivot angle | 0 - 90 |
Gewicht und Abmessungen
| Height (with stand) | 453 mm |
| Depth (with stand) | 208.5 mm |
| Width (with stand) | 465 mm |
| Weight (with stand) | 8,100 g |
| Weight (without stand) | 5,100 g |
| Width (without stand) | 465 mm |
| Height (without stand) | 361 mm |
| Depth (without stand) | 64 mm |
Downloads
481949_document_EN_001
PDF Download
