Product description

Creative Collaboration Elevated

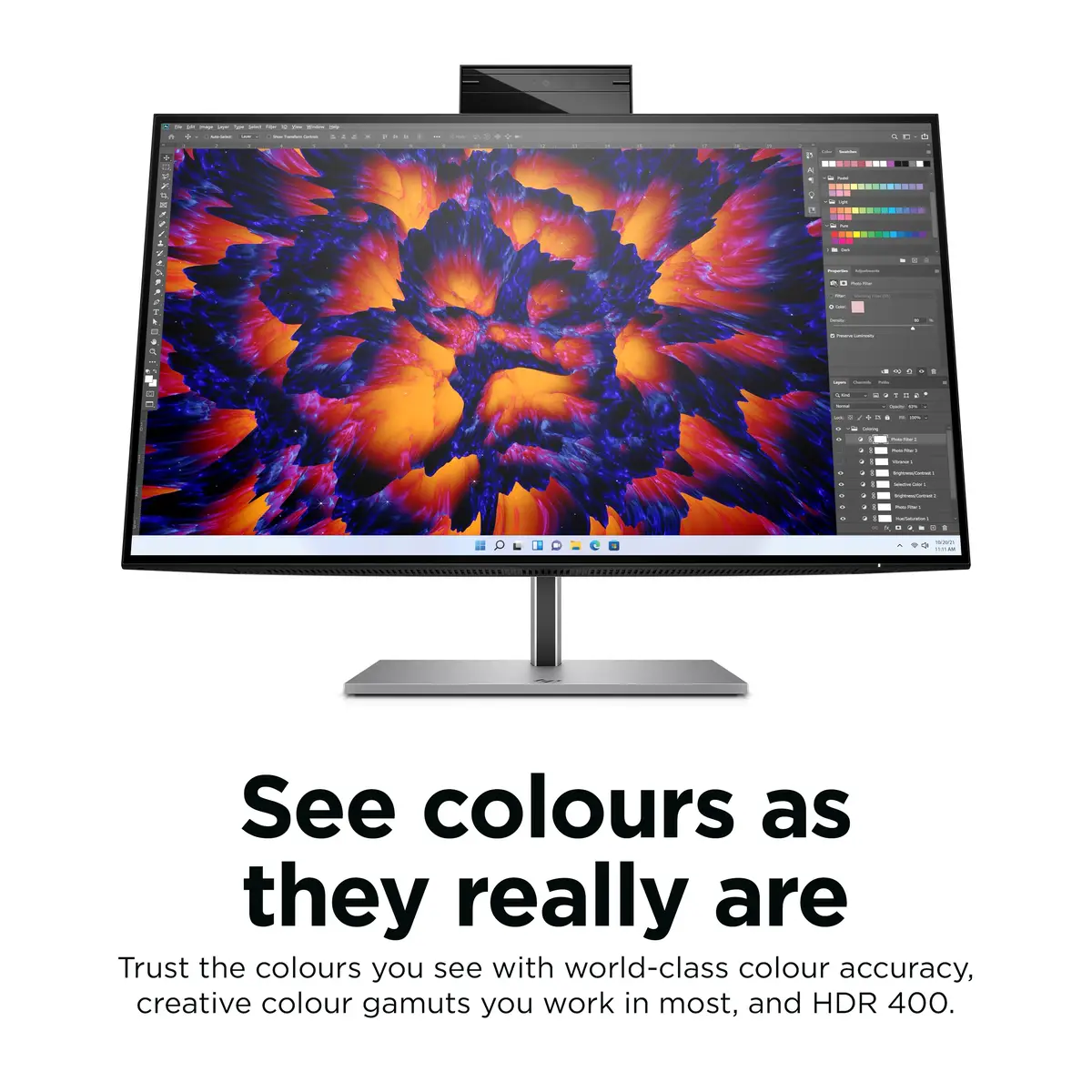

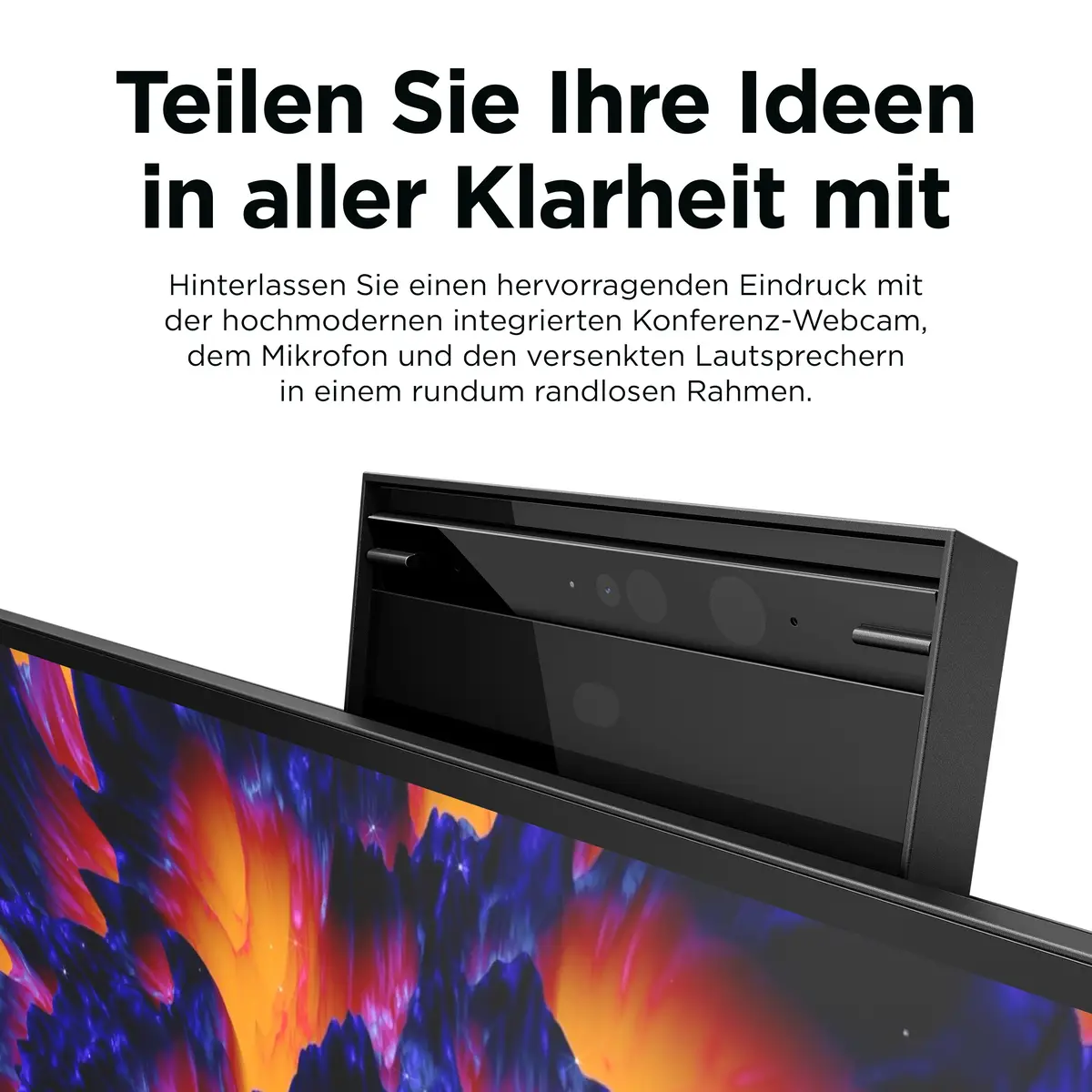

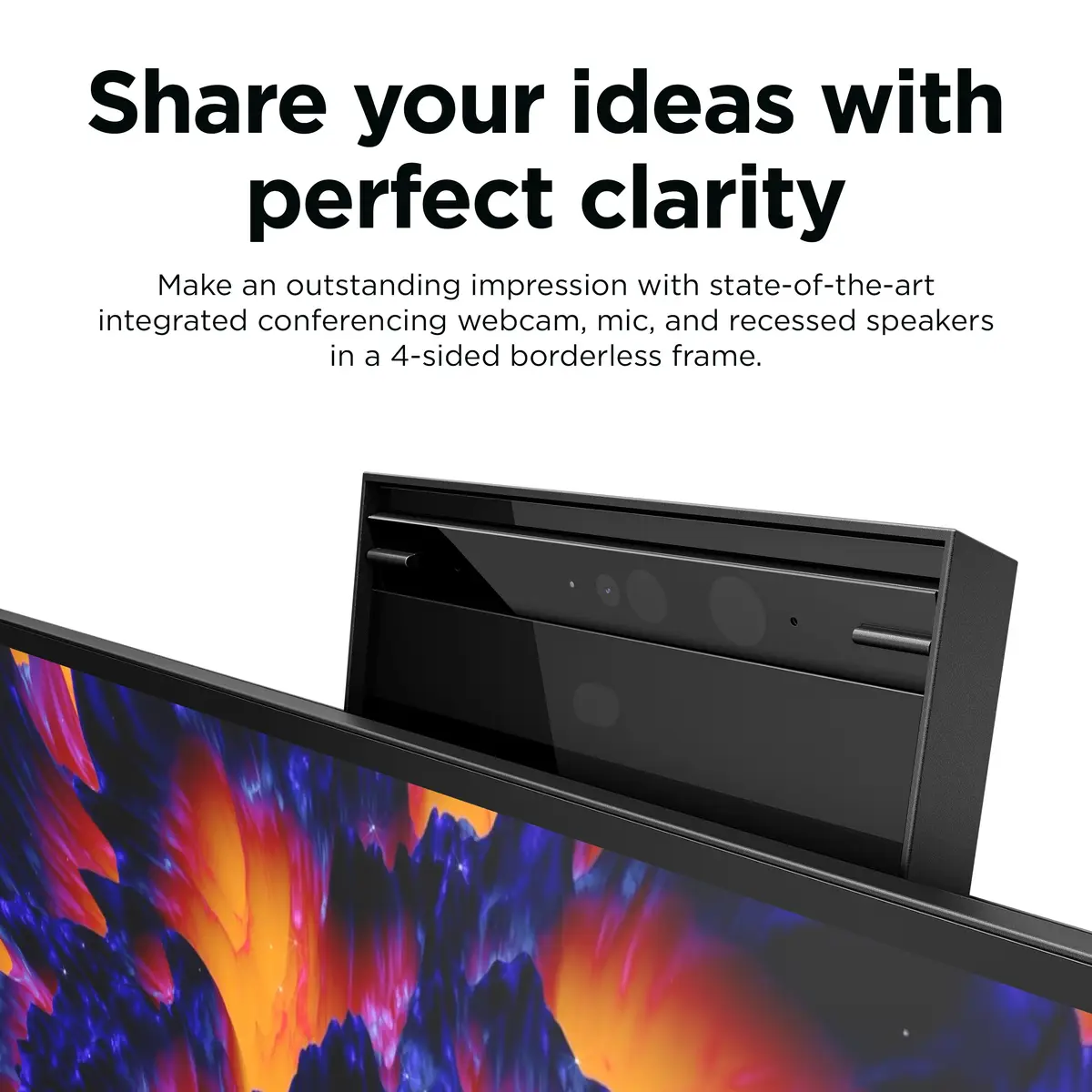

Enhanced by HP Presence^[2], you can collaborate wherever you find yourself all while creating with the brilliant and vibrant color you need. With integrated conferencing 5 MP webcam, speakers and mic, you feel as if you're face-to-face. With the 60,5 cm(23.8-inch) diagonal HP Z24m G3 Display, you have color accuracy, HDR, and QHD to bring your ideas to life.

Technical specifications

Bildschirm

Supported graphics resolutions	1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1440 x 900 (WXGA+),1600 x 1200 (UXGA),1600 x 900,1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1400,640 x 480 (VGA),720 x 400,800 x 600 (SVGA)
Display technology	LCD
Panel type	IPS
Display surface	Matt
Screen shape	Flat screen
Display number of colours	1.07 billion colours
Display bezel technology	Micro-Edge
RGB colour space	DCI-P3
Touchscreen	N
Surface hardness	3H
Contrast ratio (dynamic)	10000000:1
Aspect ratio	16:9
Pixel pitch	0.21 x 0.21
Horizontal scan range	30 - 140
Viewable size, horizontal	526.8 mm
Viewable size, vertical	296.4 mm
Display diagonal	23.8 "
Display resolution	2560 x 1440
Viewing angle, horizontal	178 deg
Viewing angle, vertical	178 deg
Pixel density	123 ppi

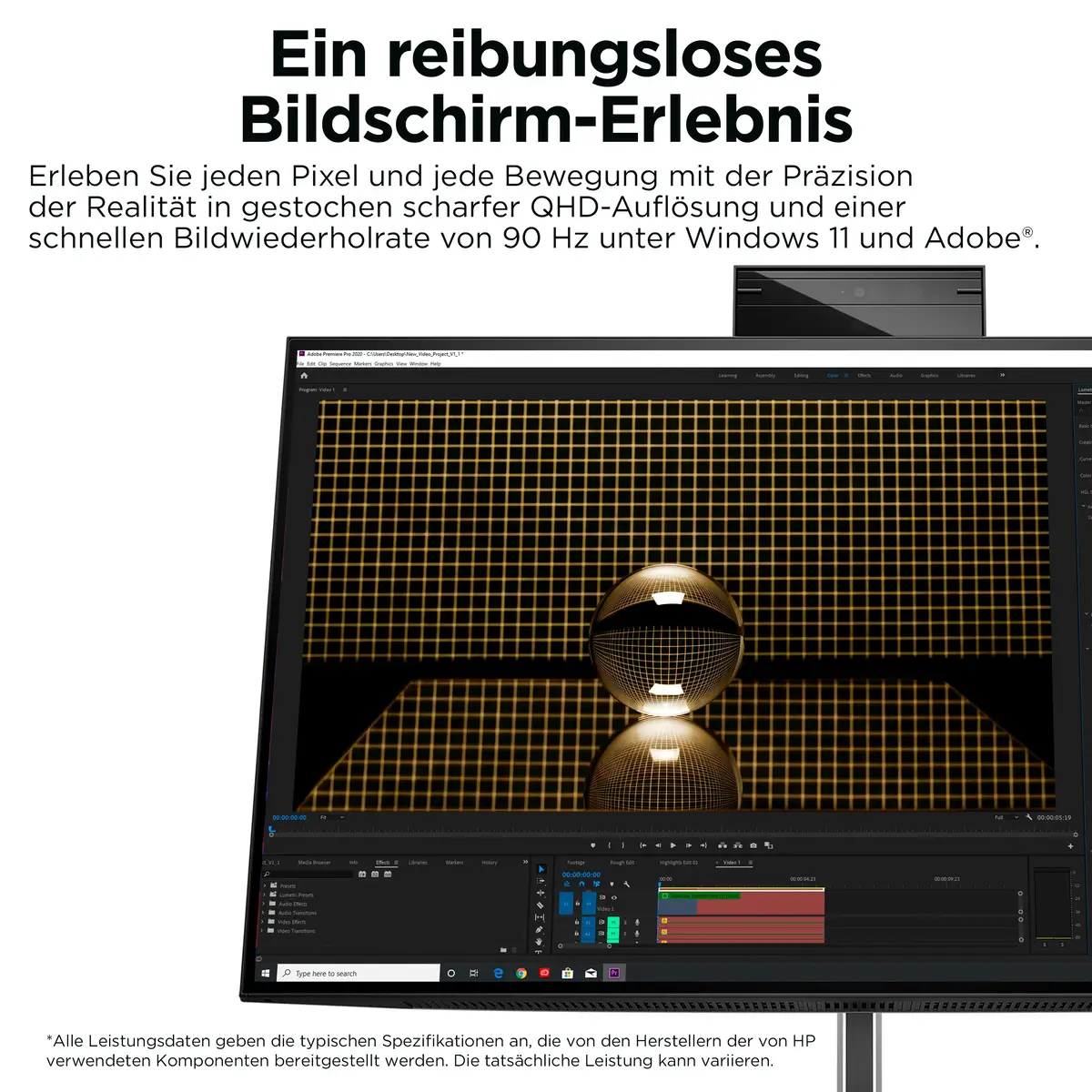

Maximum refresh rate	90 Hz
Colour gamut	99 %
sRGB coverage (typical)	99 %
Display brightness (typical)	400 cd/m²

Leistungen

Flicker-free technology	Y
Low Blue Light technology	Y
Infrared (IR) sensor	Y
Remotely operated	Y

Power

Energy efficiency scale	A to G
Energy efficiency class (SDR)	F
Energy efficiency class (HDR)	F
Power consumption (off)	0.3 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240
AC input frequency	50/60
Power consumption (max)	170 W

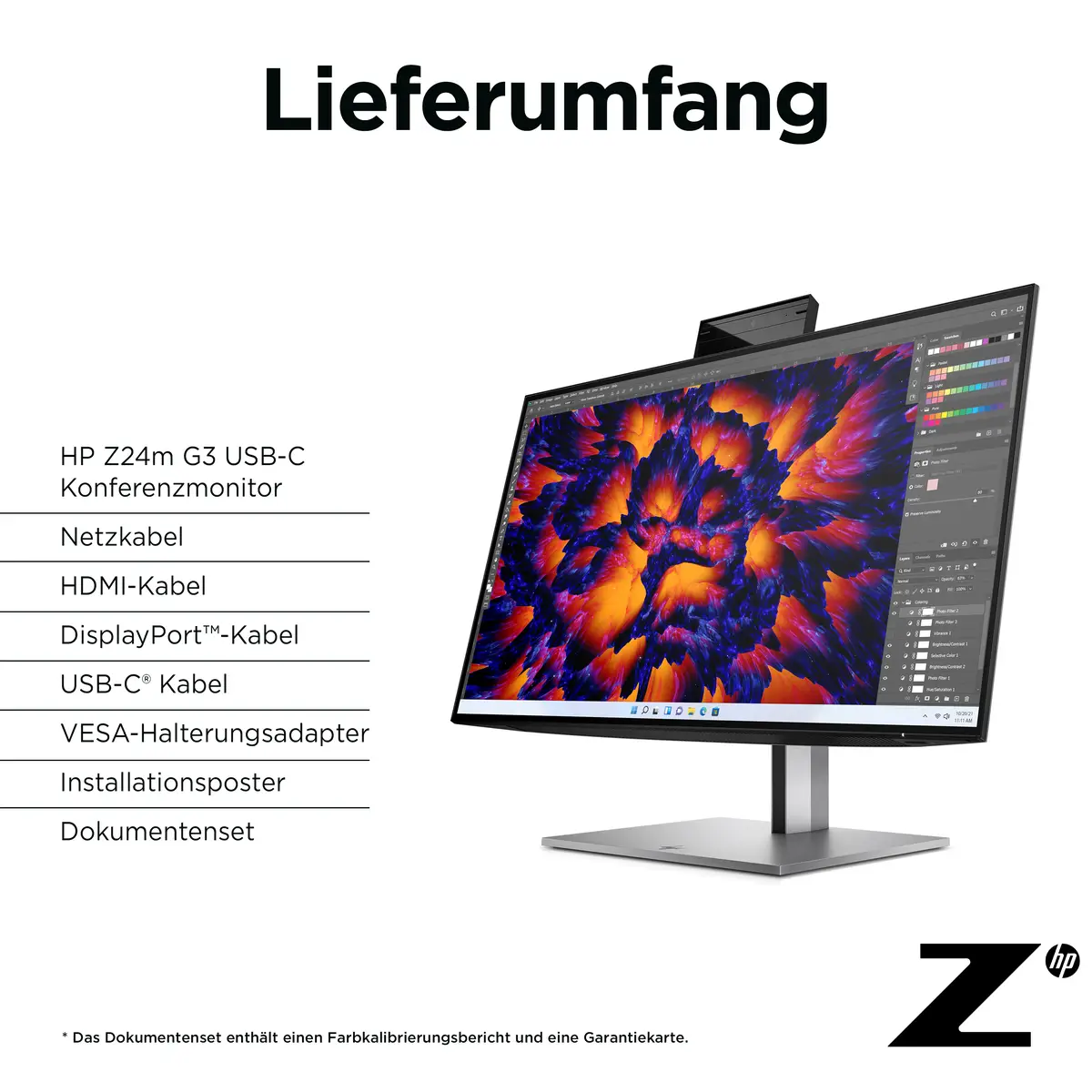

Lieferumfang

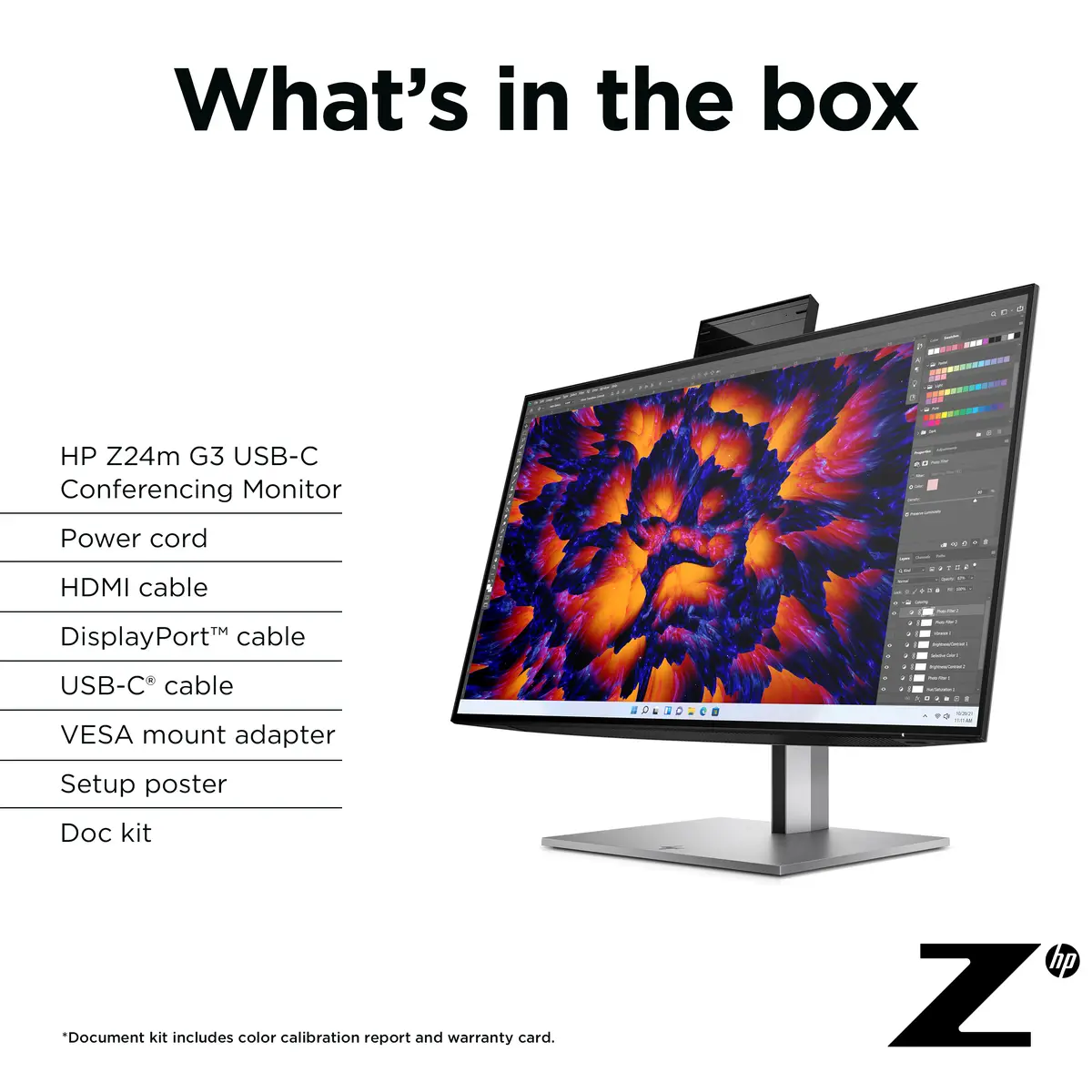

Cables included	AC,DisplayPort,HDMI,USB Type-C to USB Type-C
Stand included	Y

Technische Details

Market positioning	Business
Fast charging	Y
Response time	5 ms

Verpackungsdaten

Package type	Box
Quick start guide	Y
Package weight	8,200 g
Package depth	48.4 mm
Package width	538.3 mm
Package height	311.7 mm

Power supply

Power consumption (typical)

38 W

Sonstige Funktionen

Power supply type	Internal
UNSPSC-code	43211902
Digital horizontal frequency	30 - 140
Display diagonal (metric)	60.5 cm
DCI-P3 coverage	90 %

Operational conditions

Operating relative humidity (H-H)	5 - 95
Operating temperature (T-T)	5 - 35
Storage relative humidity (H-H)	20 - 80

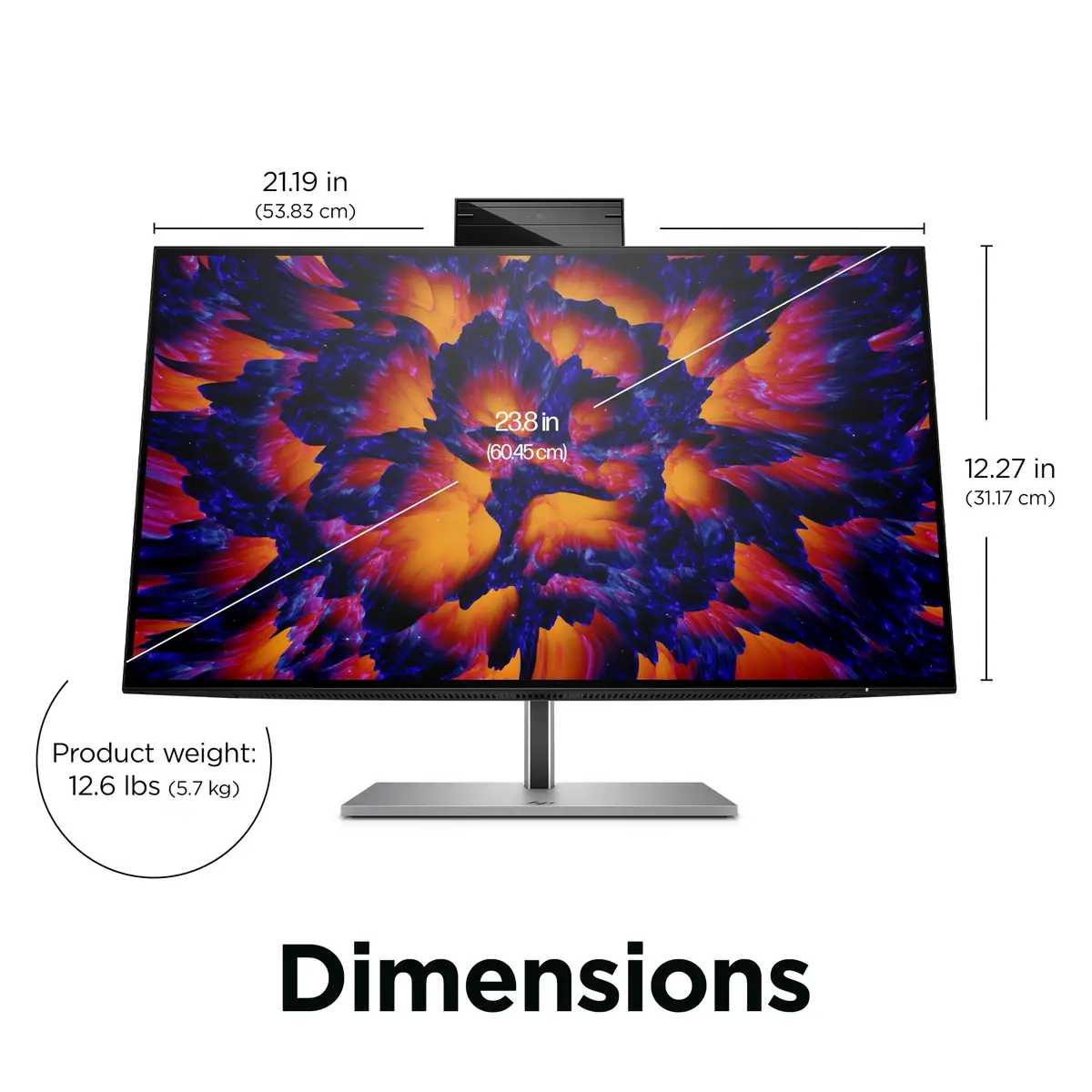

Gewicht und Abmessungen

Height (with stand)	489.3 mm
Depth (with stand)	195 mm
Weight	5,700 g
Height	387 mm
Width	625 mm
Depth	141 mm
Width (with stand)	538.3 mm
Weight (with stand)	5,700 g
Width (without stand)	625 mm
Height (without stand)	387 mm
Depth (without stand)	141 mm

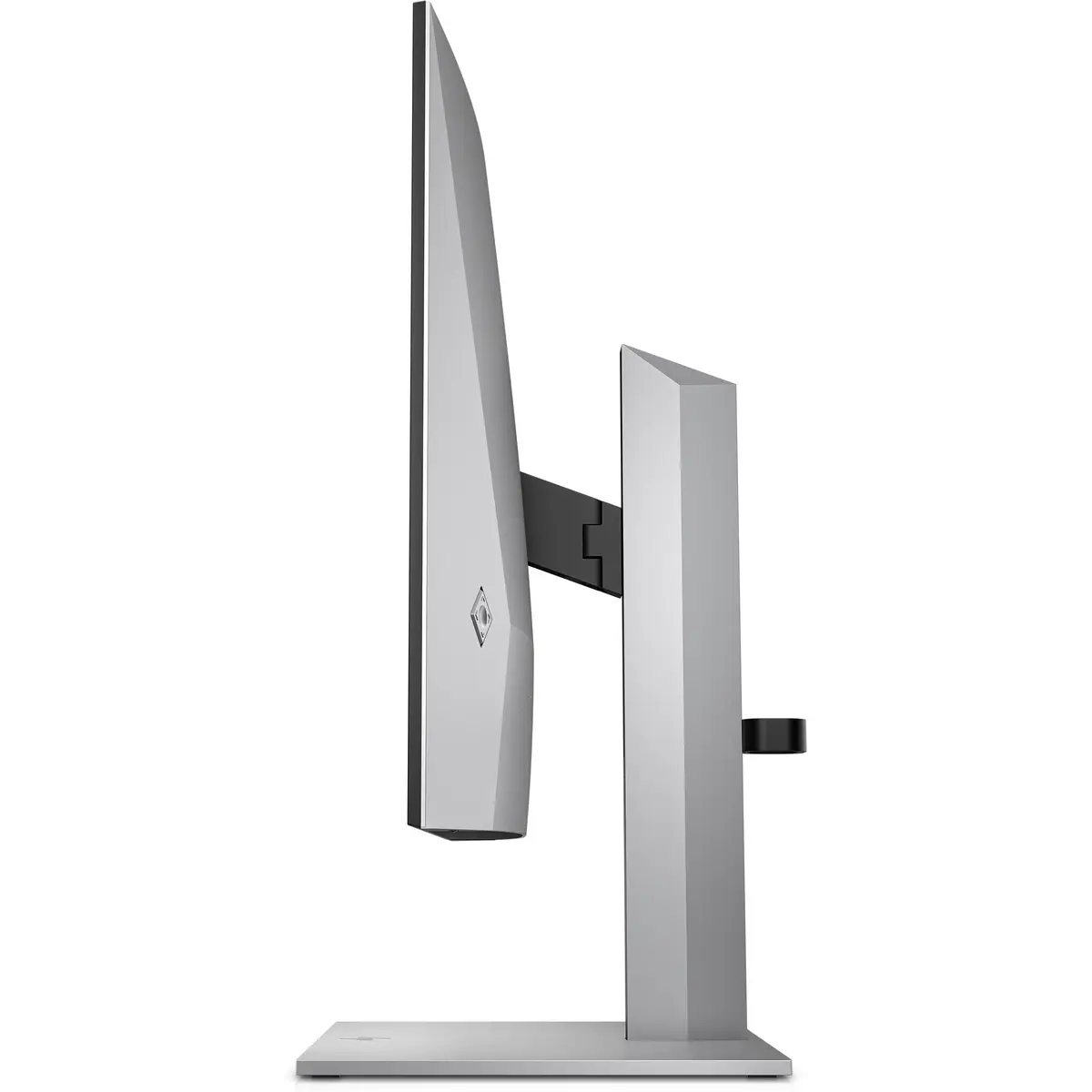

Ergonomics

Cable lock slot	Y
VESA mounting	Y
Height adjustment	Y
Pivot	Y
On Screen Display (OSD)	Y

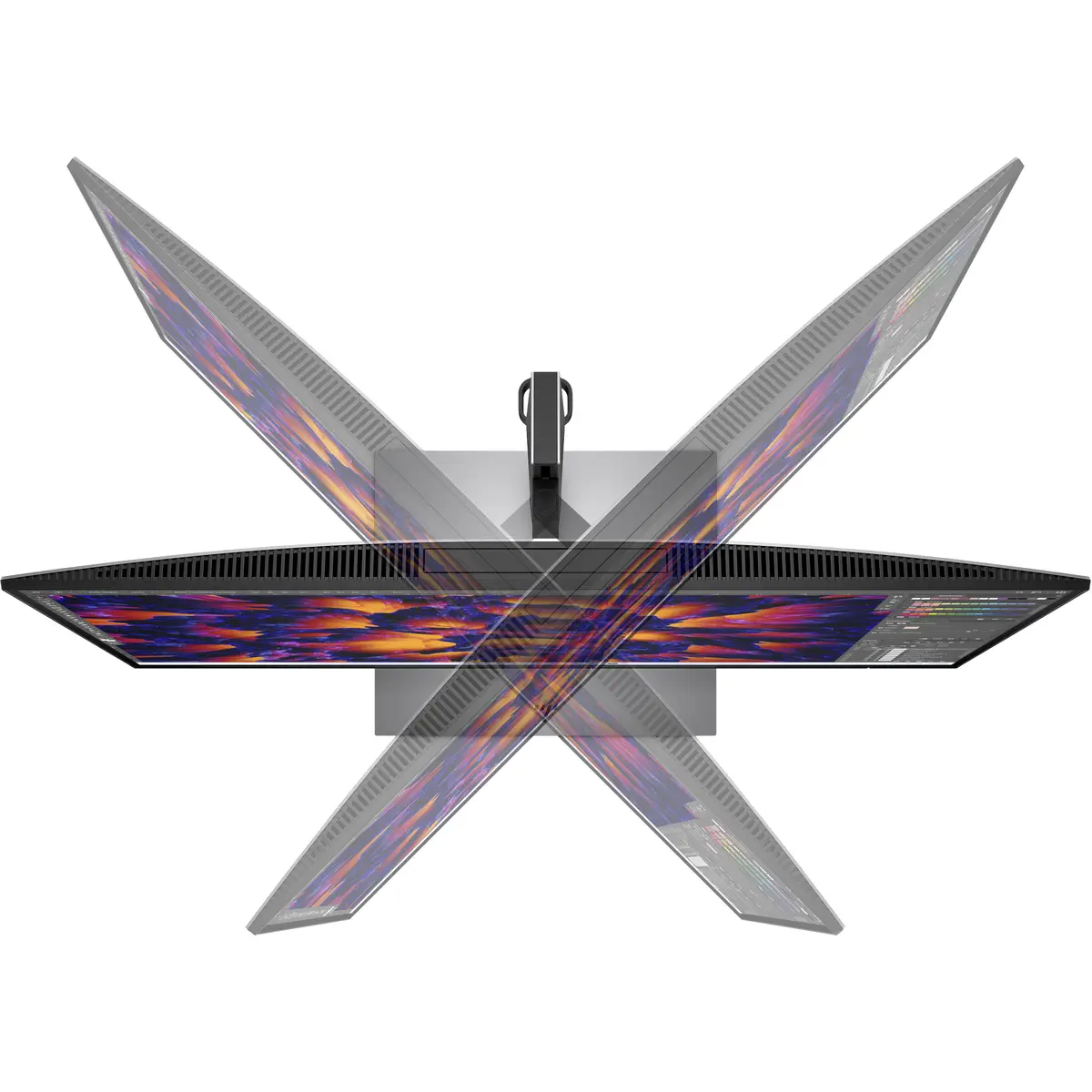

Swivelling	Y
Swivel angle range	-45 - 45
Tilt angle range	-5 - 20
Panel mounting interface	100 x 100
Height adjustment	150 mm
Pivot angle	-90 - 90

Features

HP segment	Business
Colour depth	10 bit

Multimedia

Number of speakers	2
Built-in camera	Y
Built-in speaker(s)	Y
Built-in microphone	Y
RMS rated power	10 W
Megapixel (approx.)	5 MP

Graphics

NVIDIA G-SYNC	N
AMD FreeSync	N

Video

HD type

Quad HD

Projector

Native aspect ratio	16:9
Contrast ratio (typical)	1000:1

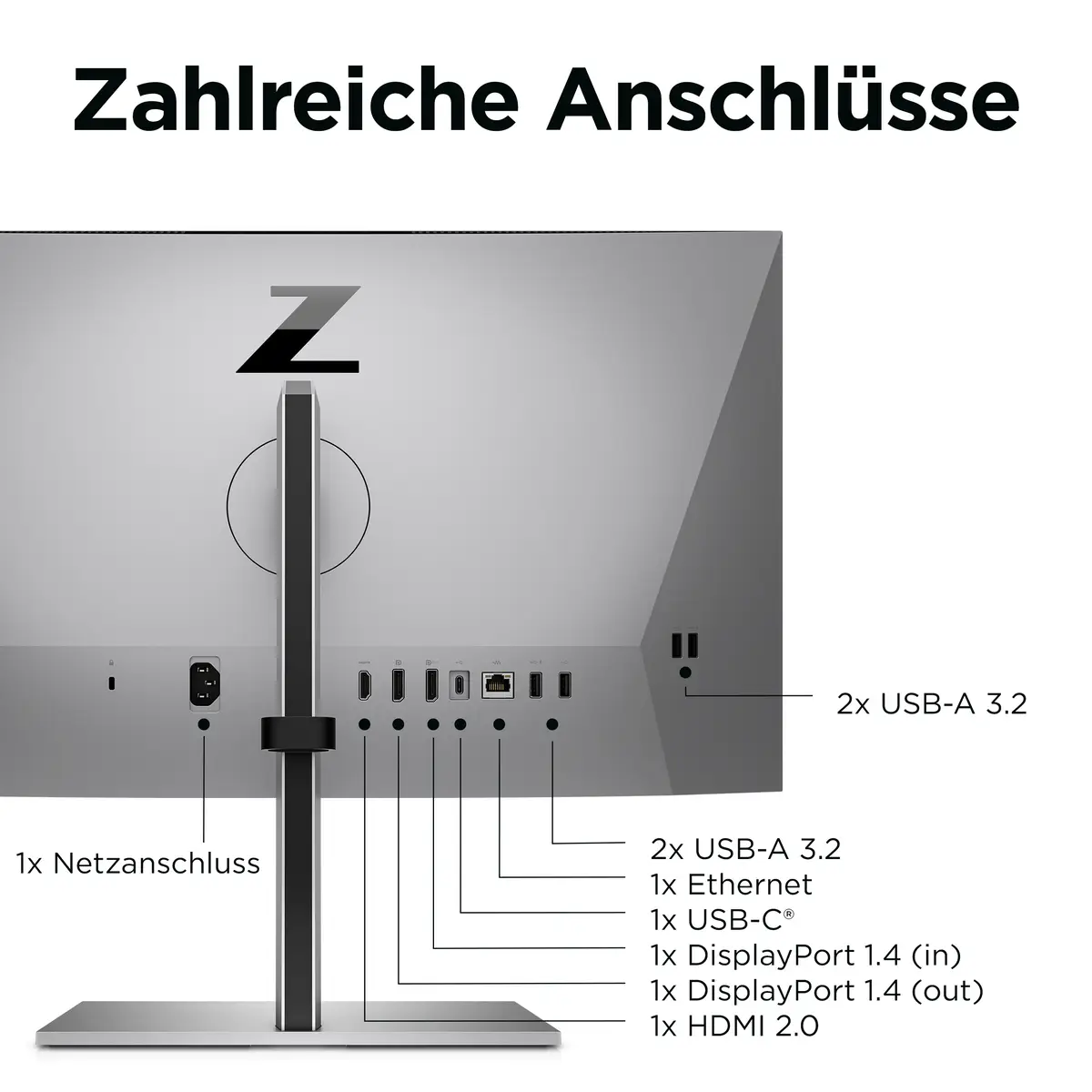

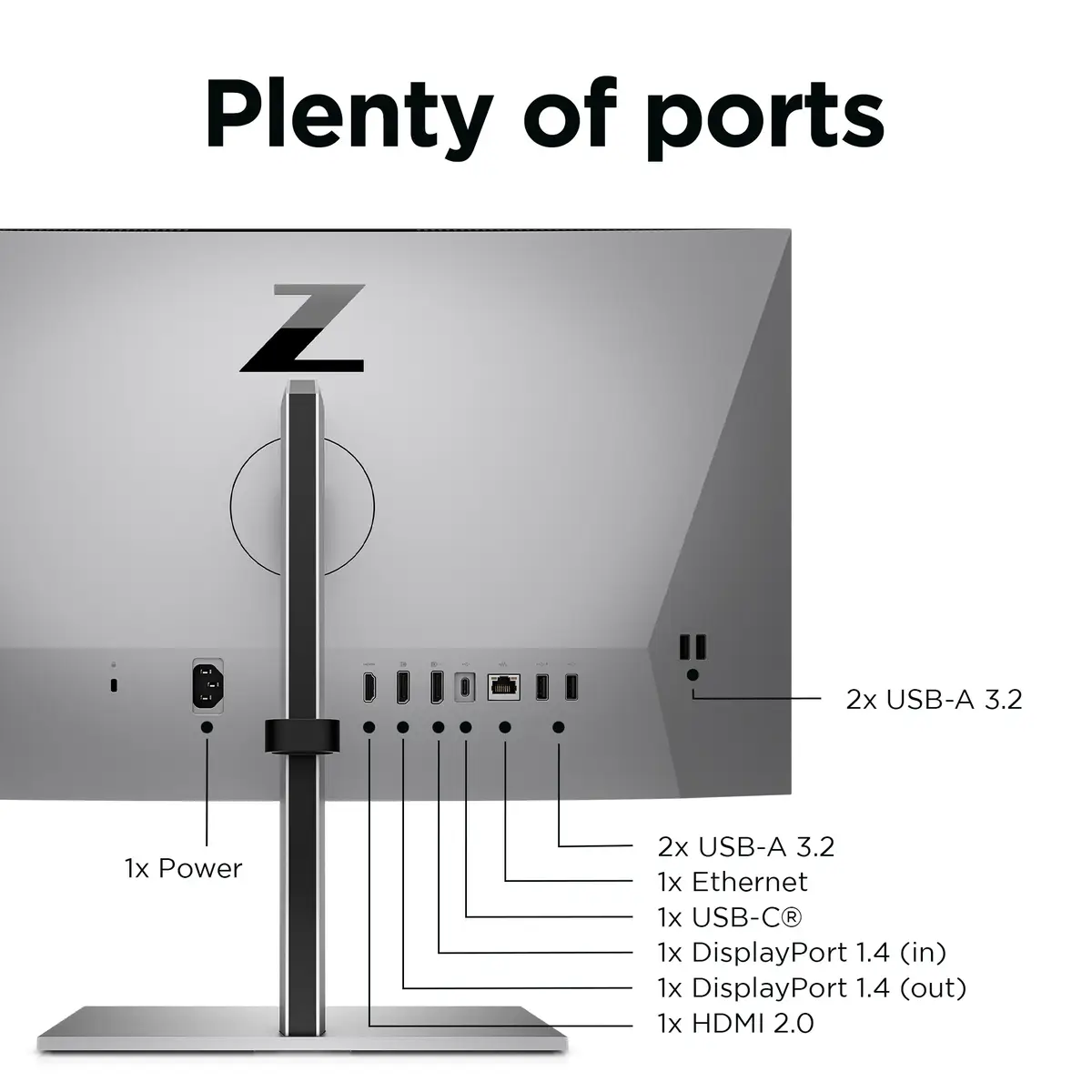

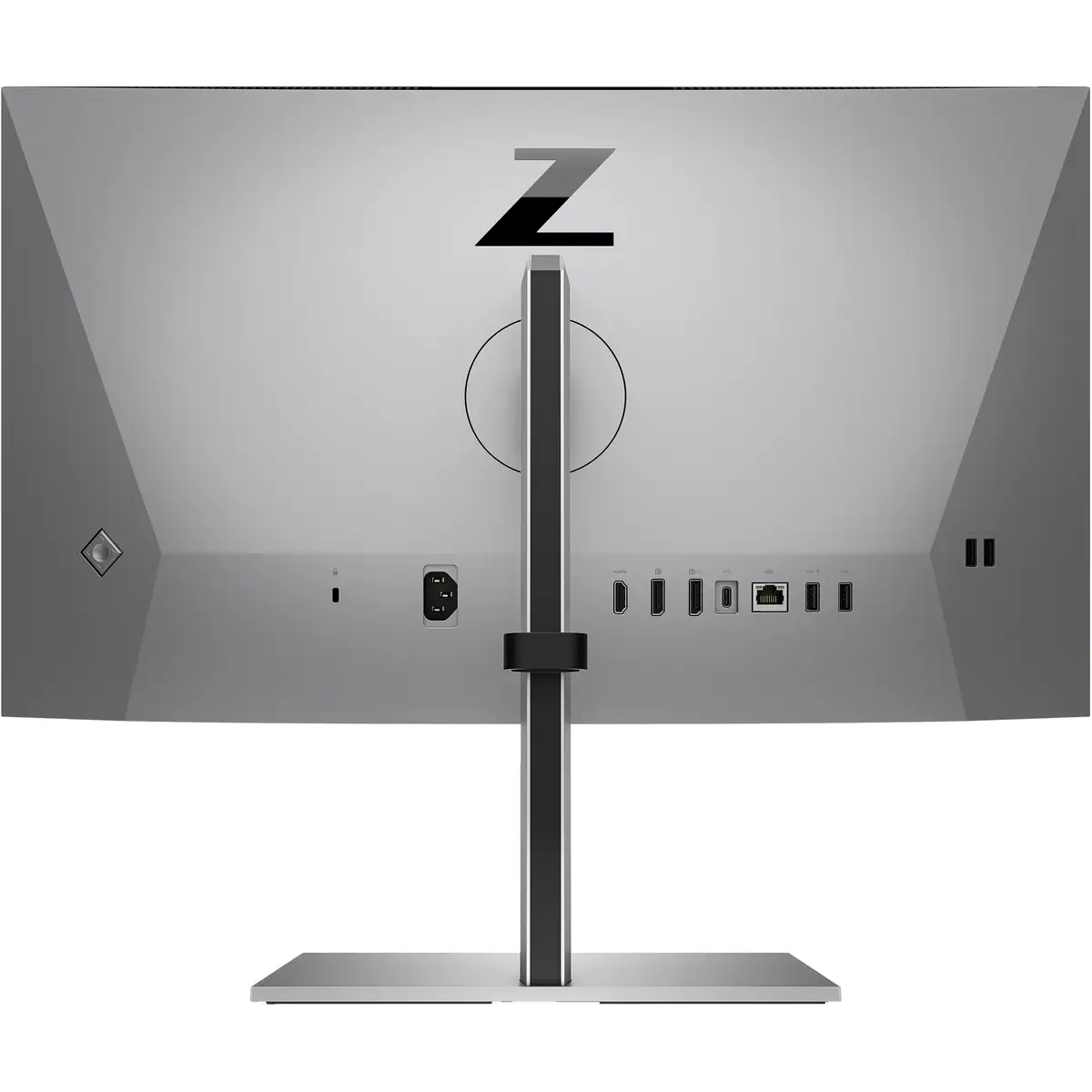

Ports & interfaces

DisplayPort version	1.4
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0
DisplayPorts quantity	1
HDCP	Y
USB Type-C DisplayPort Alternate Mode	Y
USB Power Delivery (USB PD)	Y
Ethernet LAN	Y
HDMI	Y
Headphone out	N
USB upstream port type	USB Type-C
USB Type-A downstream ports quantity	4
USB Type-C downstream ports quantity	1
Built-in USB hub	Y
USB Power Delivery up to	100 W

Design

Product colour	Silver
Anti-glare screen	Y
Feet colour	Silver,Black
Detachable stand	Y

Downloads

316256_document_DE_001

PDF Download

316256_document_DE_002

PDF Download

316256_document_EN_001

PDF Download

316256_document_EN_002

PDF Download

ID: 316256 HP Inc. ID: 4Q8N9AA#ABB

HP Z24m G3 60,5 cm (23.8") 2560x1440 Pixel 1000:1 400cd/m² 5ms

Detailed product title

HP Z24m G3 QHD Conferencing Display. Display diagonal: 60.5 cm (23.8"), Display resolution: 2560 x 1440 pixels, HD type: Quad HD, Display technology: LCD, Display surface: Matt, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub. VESA mounting, Height adjustment. Product colour: Silver

Response time 5 ms

Display resolution 2560 x 1440

Contrast ratio (typical) 1000:1

Display brightness (typical) 400 cd/m²

Display diagonal 23.8 "

Product colour Silver

Height adjustment Y

Built-in speaker(s) Y

ship in 4-7 days
