- ProLite Ultra 38,1cm (15") Display 370 cd/m² 700:1 8ms Schwarz
+4 Images
9 Images
Product description
The ProLite TF1534MC-B7X uses 10 pt Projective Capacitive touch technology built into an eye catching bezel with edge-to-edge glass, which guarantees high durability, scratch-resistance and perfect picture performance. The screen is IP65 rated which means it is dust and water resistant from the front. Together with the Touch-Through-Glass technology which delivers a seamless and accurate touch response, this makes the monitor an ideal solution for kiosk integrators, Instore Retail and behind-glass-retail. For ease of integration, the monitor can be equipped with optional external mounting brackets (OMK1-1).
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
TOUCH THROUGH-GLASS
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
IP
The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.

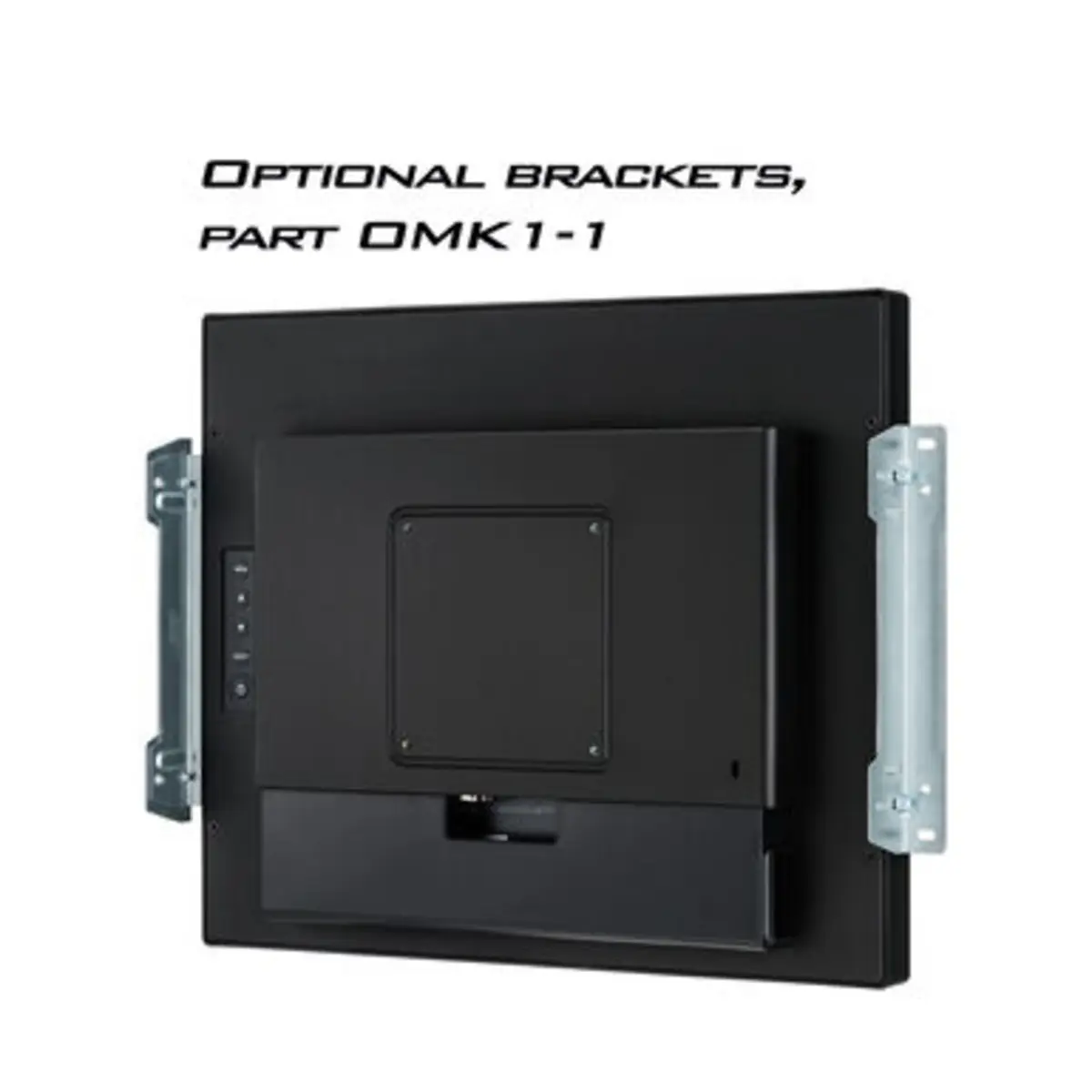

OPEN FRAME BRACKETS
This open frame monitor can be equipped with optional external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and In-store Retail.
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
TOUCH THROUGH-GLASS
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
IP
The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.
OPEN FRAME BRACKETS
This open frame monitor can be equipped with optional external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and In-store Retail.
Technical specifications
Design
| Product colour | Black |
| VESA mounting | Y |
| Panel mounting interface | 100 x 100 |
Bildschirm
| Touchscreen type | Multi-user |
| Native aspect ratio | 4:3 |
| Panel type | TN |
| Screen shape | Flat screen |
| Display number of colours | 16.2 million colours |
| Contrast ratio | 700:1 |
| Surface hardness | 7H |
| Number of simultaneous touchpoints | 10 |
| On Screen Display (OSD) | Y |
| Pixel pitch | 0.297 x 0.297 |
| Display diagonal | 15 " |
| Display resolution | 1024 x 768 |
| Viewing angle, horizontal | 170 deg |
| Viewing angle, vertical | 170 deg |
Anschlüsse und Schnittstellen
| VGA (D-Sub) ports | 1 |
| HDMI ports | 1 |
| DisplayPorts ports | 1 |
| HDMI | Y |
Leistungen
| Number of OSD languages | 7 |
Grafik
| NVIDIA G-SYNC | N |
| AMD FreeSync | N |
Ergonomie
| On Screen Display (OSD) languages | CHI (SIMPL),DEU,ENG,ESP,FRE,ITA,JPN |
Stromversorgung
| Energy consumption | 8 W |
Lieferumfang

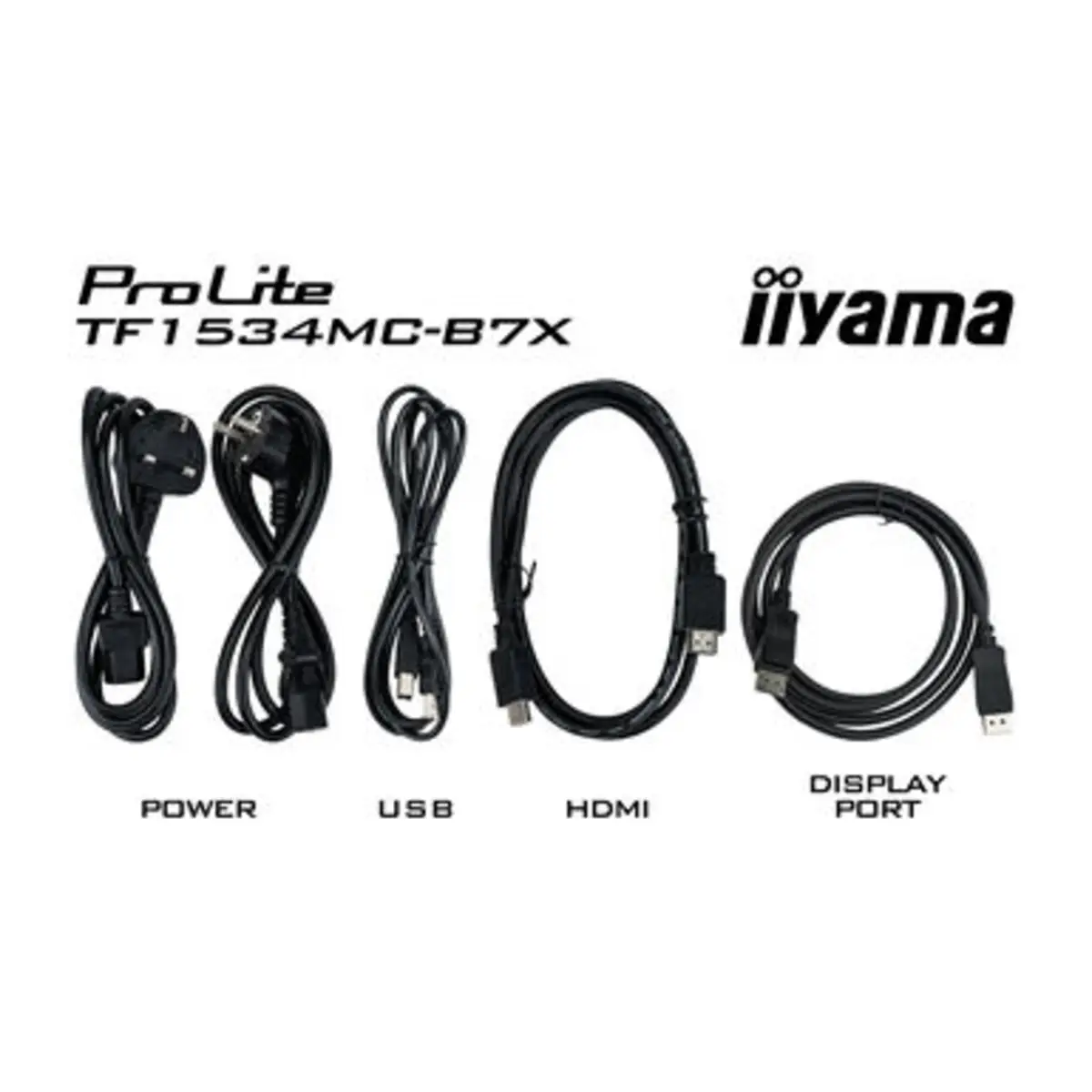

| Cables included | AC,DisplayPort,HDMI,USB |
Technische Details
| Response time | 8 ms |
Verpackungsdaten
| Package weight | 4,000 g |
| Package depth | 165 mm |
| Package width | 435 mm |
| Package height | 335 mm |
Leistung
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | E |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 1.5 W |
| Energy consumption (SDR) per 1000 hours | 10 kW.h |
Sonstige Funktionen
| Power supply type | DC |
| International Protection (IP) code | IP65 |
| Display viewable area (HxV) | 304 x 228 |
| Display diagonal (metric) | 38 cm |
Gewicht und Abmessungen
| Weight (without stand) | 2,700 g |
| Width (without stand) | 337.5 mm |
| Height (without stand) | 265.5 mm |
| Depth (without stand) | 44.5 mm |
Logistische Daten
| Harmonized System (HS) code | 85285210 |
Downloads
209306_document_EN_001
PDF Download
ID: 209306
Iiyama ID: TF1534MC-B7X
