ID: 628206 Iiyama ID: XUB2797UHSNP-B1

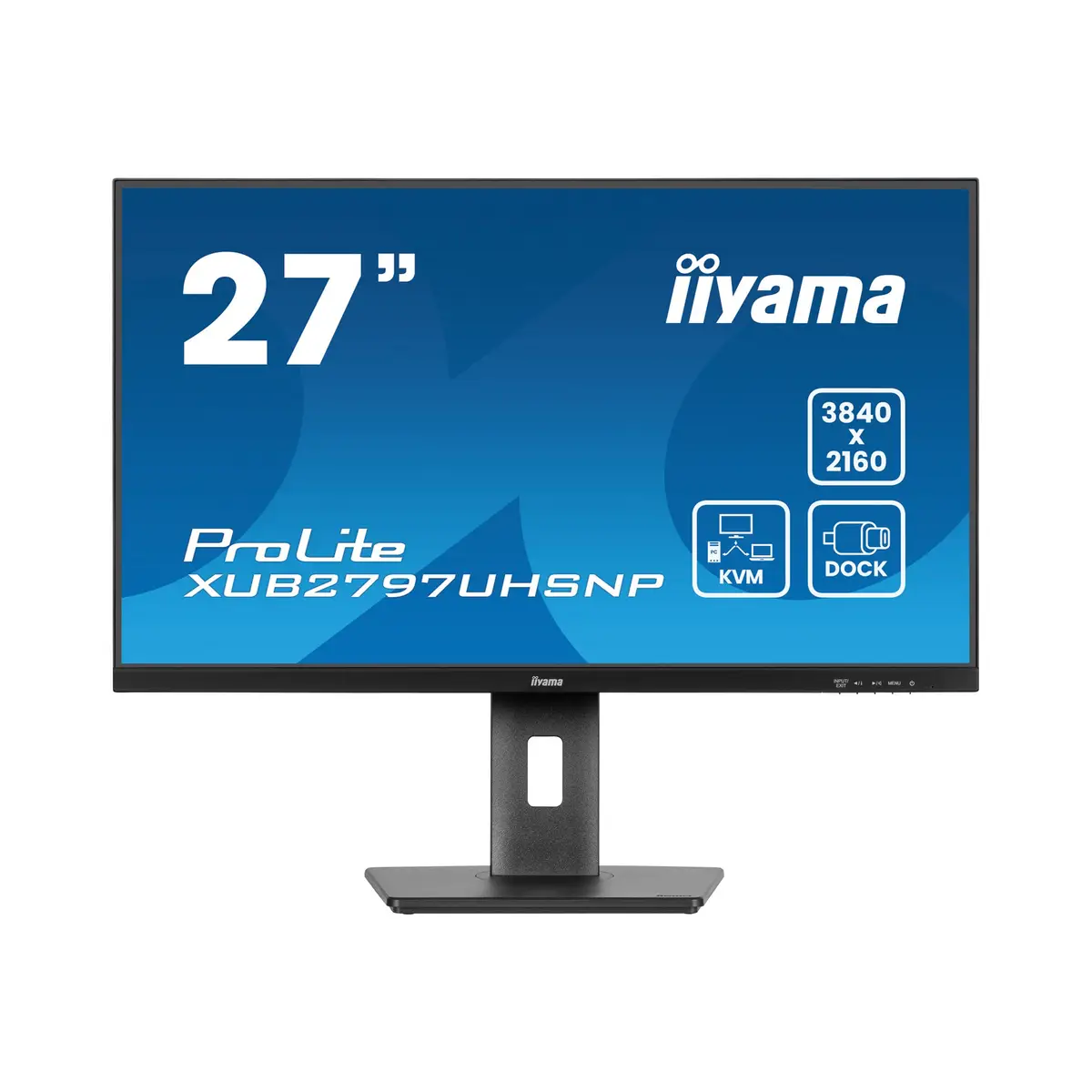

ProLite XUB2797UHSNP-B1 Computerbildschirm 68,6 cm (27") 3840 x 2160 Pixel 4K Ultra HD LED Schwarz

Detailed product title

iiyama ProLite XUB2797UHSNP-B1 Computerbildschirm 68,6 cm (27") 3840 x 2160 Pixel 4K Ultra HD LED Schwarz

Response time 4 ms

Display resolution 3840 x 2160 pixels

Contrast ratio (typical) 1300:1

Display brightness (typical) 350 cd/m²

Display diagonal 27 "

Product colour Black

Height adjustment Yes

Built-in speaker(s) Yes

ship in 4-7 days

Added to cart

ship in 4-7 days

Product description

27’’ 4K IPS technology panel with RJ45 (LAN), KVM Switch and USB-C Dock with 96W Leistungsabgabe
Discover the XUB2797UHSNP, a 27’’ 4K IPS panel equipped with USB-C dock (96W PD), KVM switch, and RJ45 for LAN connectivity. The KVM switch allows to connect multiple computers through a single console. Get rid of cable clutter with the USB-C dock that carries all data (audio and video) whilst powering your notebook. Easily extend your desktop by creating a dual-monitor set-up with the DisplayPort output. Enjoy accurate colours and wide viewing angles thanks to the IPS panel. Benefit from exceptional performance for tasks like photography and web design, thanks to the 4K resolution and high contrast. The ergonomic stand offers a height adjustment of 150mm and tilt/swivel mechanisms for portrait mode, optimizing comfort while working with extensive data sheets

Technical specifications

Technical details

User controls

picture adjust (brightness, contrast, Eco, ACR, OD, X-Res Technology, DPS), colour settings (6-Axis, i-Style colour, blue light reducer, gamma, RGB range, colour temp., user preset), PiP/PbP (sub source, PiP position, PiP size, swap), OSD (OSD H. position, OSD V. position, OSD rotate, OSD time, OSD background, DDC/CI, display information), language, recall, miscellanous (sharp and soft, video mode adjust, opening logo, LED, USB BC, MST, USB C, MAC Adress), KVM, input select (source), audio settings (volume, mute, input)

Packaging content

Cables included

AC,USB,HDMI,DisplayPort,USB Type-C

Packaging data

Package type	Box
Package weight	9,200 g
Package depth	138 mm
Package width	688 mm
Package height	463 mm

Other features

Packaging content	quick start guide, safety guide
Compliance certificates	CE,EAC,PSE,REACH,RoHS,TÜV mark,UKCA,VCCI,WEEE

Sustainability

Sustainability certificates

ErP,TCO

Power

Power consumption (typical)	33 W
AC input voltage	100 - 240
AC input frequency	50/60

Packaging content

Quick start guide

Weight & dimensions

Height (with stand)	547.5 mm
Depth (with stand)	209.5 mm
Width (with stand)	614.5 mm
Weight (with stand)	6,700 g
Width (without stand)	614.5 mm
Height (without stand)	397.5 mm
Depth (without stand)	209.5 mm

Power

Power supply type	Internal
Energy efficiency scale	A to G
Energy efficiency class (SDR)	F
Energy efficiency class (HDR)	Not available
Power consumption (off)	0.3 W
Power consumption (standby)	0.5 W
Energy consumption (SDR) per 1000 hours	26 kW.h

Ergonomics

Cable lock slot	Yes
VESA mounting	Yes
Height adjustment	Yes
Pivot	Yes
On Screen Display (OSD)	Yes
Swivelling	Yes
Swivel angle range	-45 - 45
Tilt angle range	23 - 5
Panel mounting interface	100 x 100 mm

Weight & dimensions

Weight	6,700 g
Width	614.5 mm
Depth	209.5 mm

Ports & interfaces

HDMI version	2.0
DisplayPorts quantity	1
HDCP	Yes
HDMI	Yes
Headphone out	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-C
Number of USB Type-C upstream ports quantity	1
Built-in KVM switch	Yes
Built-in USB hub	Yes
USB Power Delivery up to	96 W

Multimedia

Number of speakers	2
Built-in speaker(s)	Yes
RMS rated power	4 W

Performance

Flicker-free technology	Yes
Low Blue Light technology	Yes

Display

Display technology	LED
Native aspect ratio	16:9
HD type	4K Ultra HD
Display surface	Matt
Screen shape	Flat screen
Contrast ratio (dynamic)	80000000:1
DDC/CI	Yes
Pixel pitch	0.155 x 0.155
Horizontal scan range	30 - 140
Viewable size, horizontal	596.7 mm
Viewable size, vertical	335.7 mm
Response time	4 ms
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Colour depth	8 bit
Display diagonal (metric)	68.5 cm
NTSC coverage (typical)	72 %
sRGB coverage (typical)	99 %
Display brightness (typical)	350 cd/m²

Power

USB Power Delivery (USB PD)

Design

Cable lock slot type

Kensington

Performance

On Screen Display (OSD) languages

CZE,DEU,ENG,ESP,FRE,ITA,JPN,DUT,POL,RUS

Ports & interfaces

Ethernet LAN (RJ-45) ports

Ports & interfaces

HDMI ports quantity

Network

Ethernet LAN

Ergonomics

Pivot angle

90 - 90

Display

Panel type	IPS
Display number of colours	1.07 billion colours
Contrast ratio (typical)	1300:1
Touchscreen	No
Display diagonal	27 "
Display resolution	3840 x 2160 pixels
Maximum refresh rate	60 Hz

Design

Product colour	Black
Market positioning	Business
