- Displays
- Desktop Displays

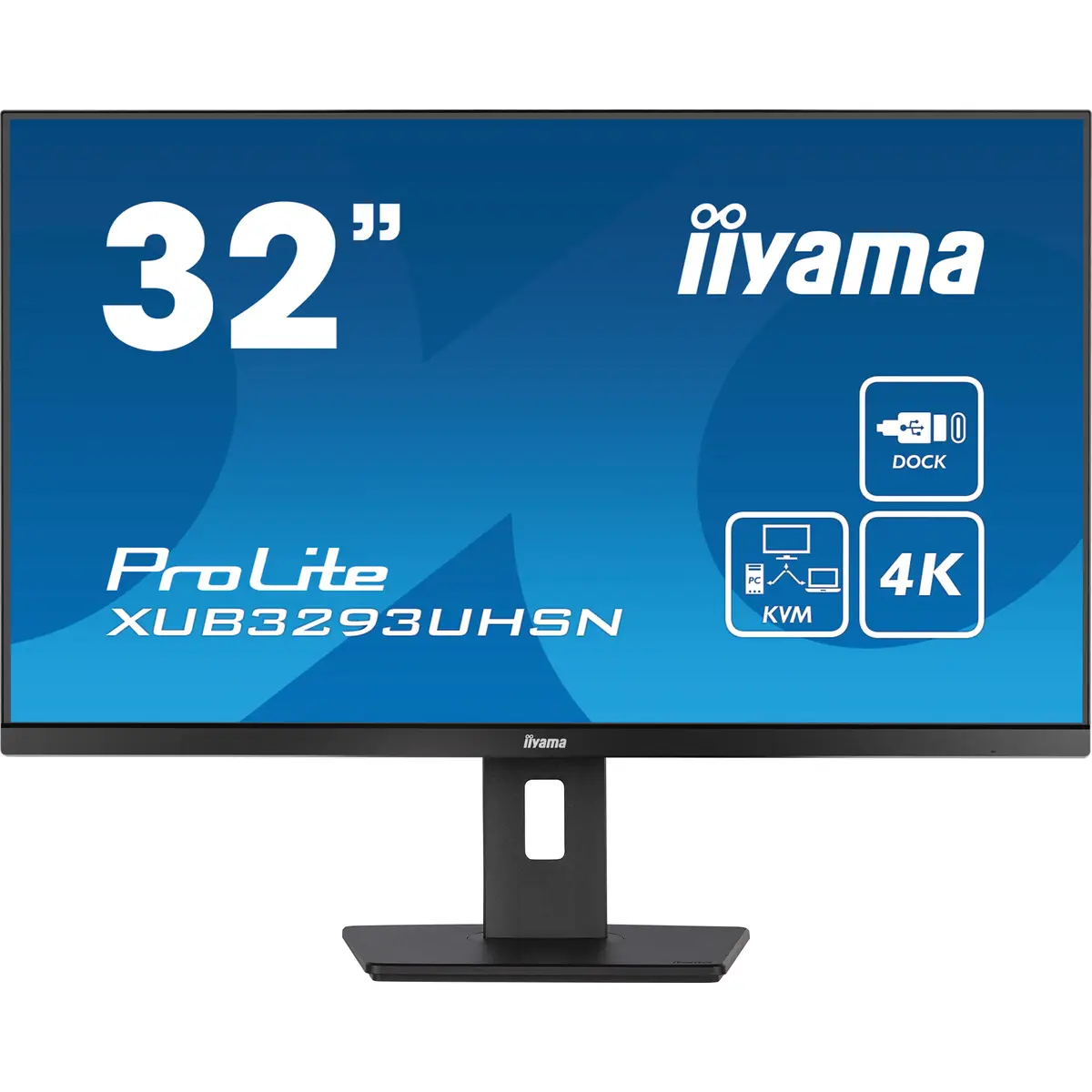

- Prolite 31.5" (80 cm) Desktop-Monitor mit IPS-Panel-Technologie, einem KVM-Switch, USB-C-Dock und RJ45 (LAN) Anschluss
5 Images
Product description
Equipped with the KVM switch, the XUB3293UHSN allows you to connect multiple computers that can be operated over one console (monitor, keyboard, mouse). The USB-C dock provides a clean and practical workspace by using a single cable to both send the signal from your notebook to your monitor and power and charge the notebook from the monitor. Additionally, if your monitor is connected to the Internet with a LAN cable, your notebook will automatically be connected to the network as well. IPS panel guarantees wide viewing angles and natural, highly accurate colours.
Technical specifications
Design
| Product colour | Black |
| VESA mounting | Y |
| Panel mounting interface | 100 x 100 |
Bildschirm
| Native aspect ratio | 16:9 |
| Panel type | IPS |
| Screen shape | Flat screen |
| Display number of colours | 1.07 billion colours |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 80000000:1 |
| On Screen Display (OSD) | Y |
| Pixel pitch | 0.182 x 0.182 |
| Horizontal scan range | 30 - 135 |
| Viewable size, horizontal | 698.1 mm |
| Viewable size, vertical | 392.7 mm |
| Display diagonal | 31.5 " |
| Display resolution | 3840 x 2160 |
| Viewing angle, horizontal | 178 deg |
| Viewing angle, vertical | 178 deg |
| Maximum refresh rate | 60 Hz |
| NTSC coverage (typical) | 93 % |
| sRGB coverage (typical) | 99 % |
| Display brightness (typical) | 350 cd/m² |

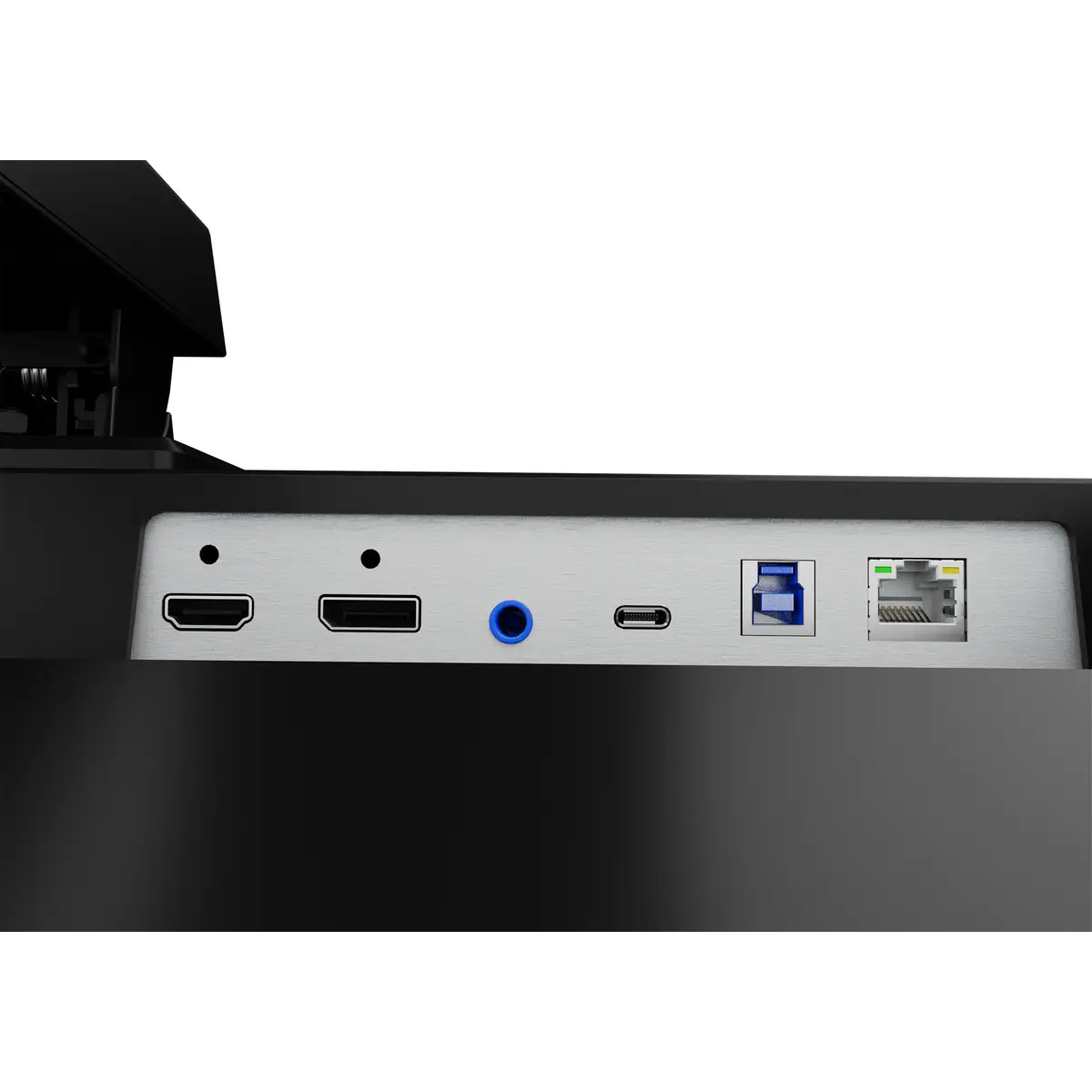

Anschlüsse und Schnittstellen
| DisplayPorts quantity | 1 |
| HDCP | Y |
| HDMI | Y |
| Headphone out | Y |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-C |
| USB Type-A downstream ports quantity | 2 |
| Number of USB Type-C upstream ports quantity | 1 |
| Built-in KVM switch | Y |
| Built-in USB hub | Y |
Netzwerk
| Ethernet LAN | Y |
Maus
| Response time | 4 ms |
Leistungen
| Flicker-free technology | Y |
| Low Blue Light technology | Y |
Grafik
| NVIDIA G-SYNC | N |
| AMD FreeSync | N |
Merkmale
| Number of speakers | 2 |
| Colour depth | 10 bit |
Ergonomie
| Cable lock slot type | Kensington |
| On Screen Display (OSD) languages | CZE,DEU,DUT,ENG,FRE,ITA,JPN,POL,RUS |
| Height adjustment | 150 mm |
Audio
| RMS rated power | 3 W |
Sicherheit
| Cable lock slot | Y |
Lieferumfang
| Stand included | Y |
Verpackungsdaten

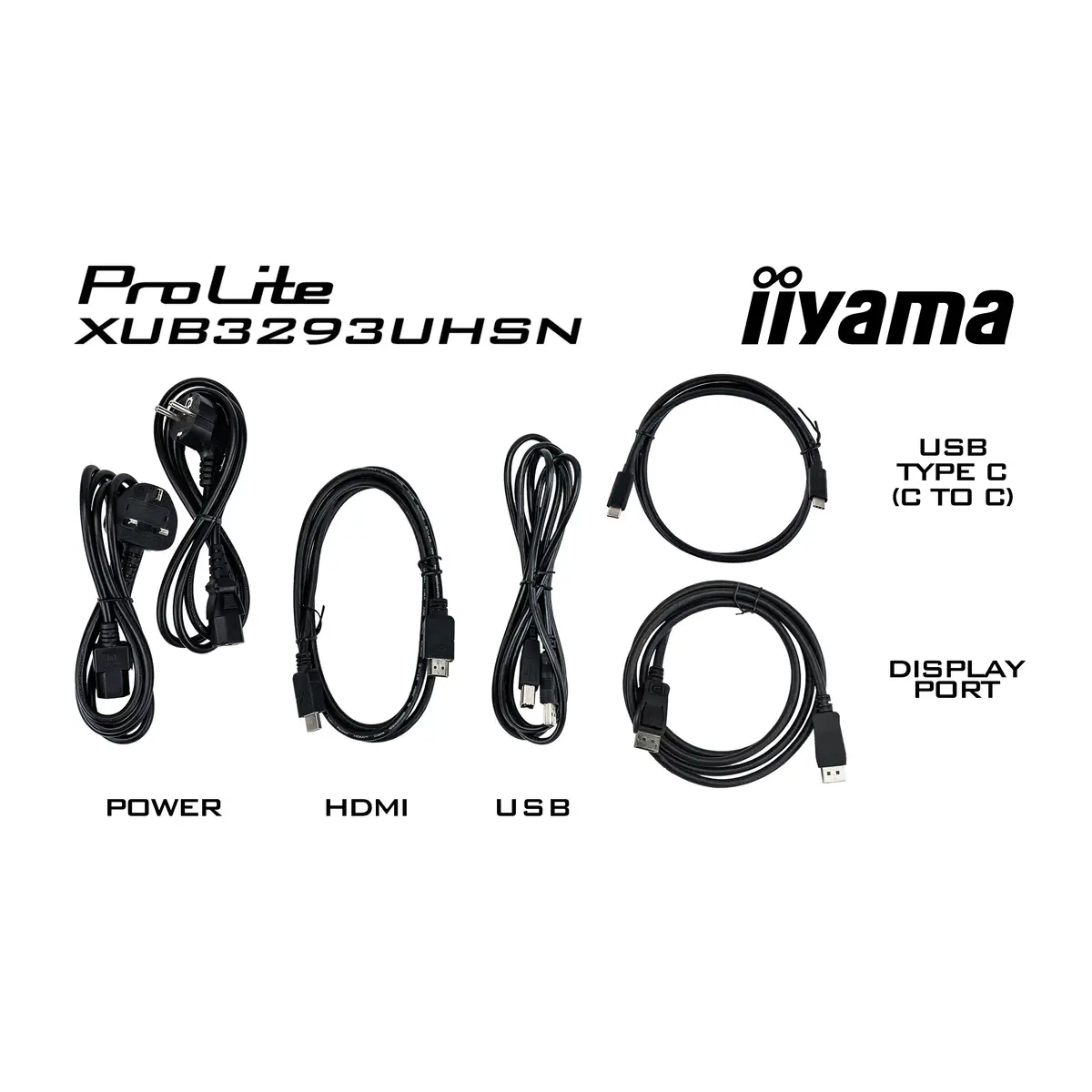

| Cables included | DisplayPort,HDMI,Power,USB,USB Type-C |
| Quick start guide | Y |
Leistung
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | G |
| Power consumption (off) | 0.5 W |
| Power consumption (standby) | 0.5 W |
| Energy consumption (SDR) per 1000 hours | 33 kW.h |
Sonstige Funktionen
| Power supply type | Internal |
| Built-in camera | N |
| Built-in speaker(s) | Yes |
| Height adjustment | Y |
| Pivot | Y |
| Swivelling | Y |
| Power consumption (typical) | 48 W |
| Swivel angle range | -45 - 45 |
| Display diagonal (metric) | 80 cm |
| Pivot angle | 0 - 90 |
Gewicht und Abmessungen
| Height (with stand) | 602 mm |
| Depth (with stand) | 239.5 mm |
| Width (with stand) | 714 mm |
| Weight (with stand) | 9,900 g |
Downloads
353312_document_001
PDF Download
353312_document_001
PDF Download
