ID: 440118 Samsung ID: LH43QBCEBGCXEN

Samsung 43" Crystal 4K UHD Signage QBC

Detailed product title

Samsung QB43C Digital Signage Display 109.2 cm 43" LCD 3840x2160 350 cd/m² 4K UHD Wi-Fi Tizen 7.0 Black

Display diagonal *

immediately

Added to cart

immediately

Product description

Maximum impact in the smallest space
The unrivalled ultra-slim depth of the QBC is an excellent option. QBC optimises space with its slim design that blends seamlessly into your business environment.
Uniform bezel
The bezels are uniform and even on all four sides of the screen, with the same thickness and dimensions. The uniform design of the frame avoids visual problems when the screen is set in portrait mode.
Centered VESA holes

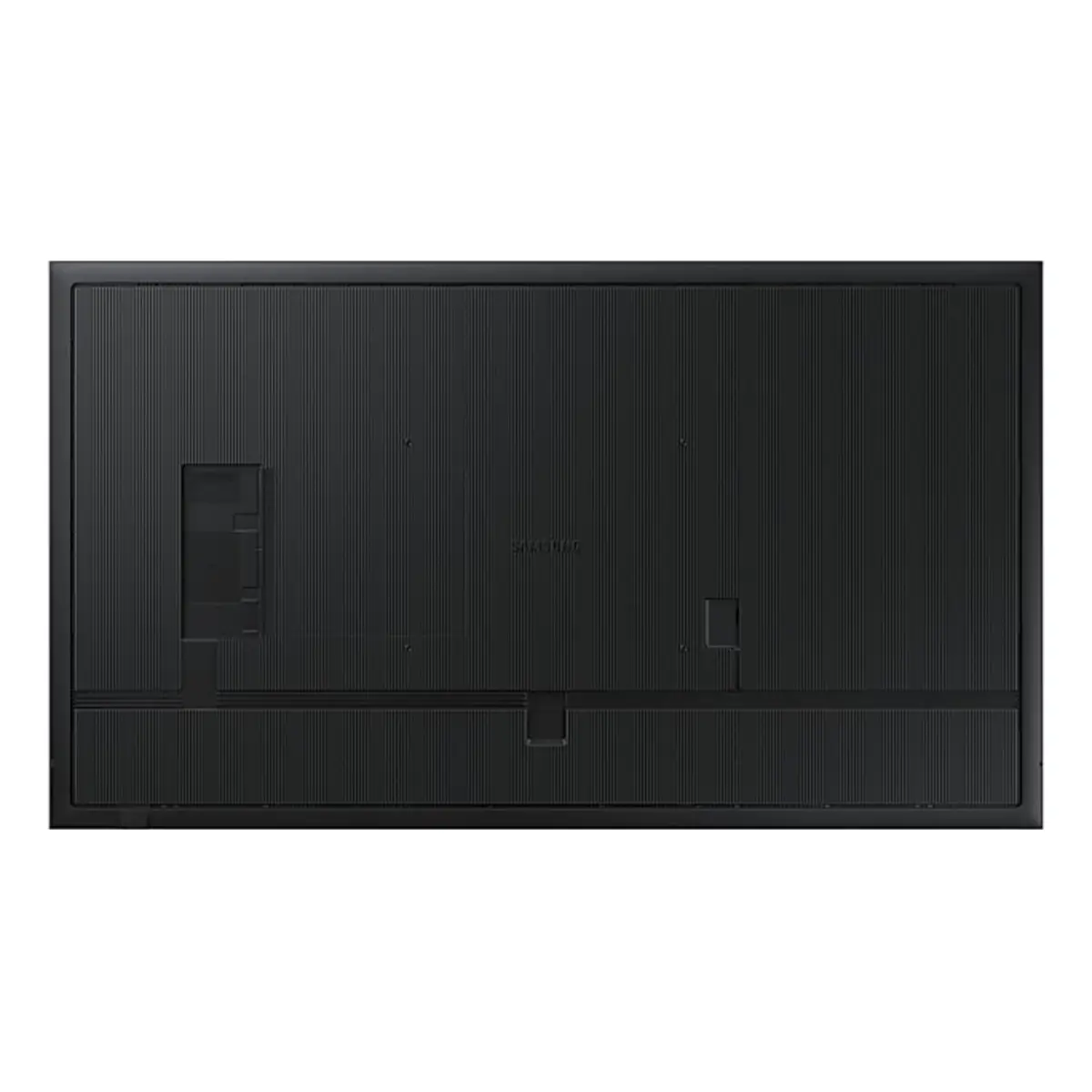

The central positioning of the VESA holes on the back of the display ensures even weight distribution and secure mounting. With the VESA holes located in the center, users can adjust the display in portrait mode without it tilting unintentionally.
Dynamic Crystal Color
With a billion shades of color, every image becomes more intense. Dynamic Crystal Color delivers true-to-life color variations so customers can see all the subtleties.
Crystal 4K Processor
Samsung's advanced video processing technology enhances every content for clarity and consistency. Intelligent UHD upscaling technology, powered by Samsung's Quantum Processor Lite 4K, boosts lower resolution videos to UHD and delivers professional picture quality.
Energy Star and EPEAT
Samsung is making a variety of efforts to reduce the environmental impact of smart signage and encourage users to live more sustainably. As a result, the QBC series has received a number of certifications for environmentally friendly products from recognized institutes.

Technical specifications

Other features

RJ-45 input ports	1
RS-232 output ports	1
RS-232 input ports	1

Technical details

Audio out (mini jack)

Operational conditions

Operating relative humidity (H-H)	10 - 80
Operating temperature (T-T)	0 - 40

Weight & dimensions

Package weight	11,300 g
Package depth	126 mm
Package width	1,093 mm
Package height	667 mm

Certificates

Certification

Class B 60950-1, 62368-1

Weight & dimensions

Bezel width (side)	11.5 mm
Bezel width (top)	11.5 mm
Bezel width (bottom)	11.5 mm
Display width	969.5 mm
Display depth	28.5 mm
Display height	557.8 mm
Display weight	8,800 g

Design

Product colour

Black

Power

Energy efficiency scale	A to G
Energy efficiency class (SDR)	G
Power consumption (typical)	121 W
AC input voltage	100 - 240
AC input frequency	50/60
Power consumption (sleep)	0.5 W
Energy consumption (SDR) per 1000 hours	74 kW.h

Ergonomics

VESA mounting	Yes
Panel mounting interface	200 x 200 mm mm

Features

Flash memory

8,000 MB

Ports & interfaces

HDMI version	2.0
HDCP version	2.2

Ports & interfaces

HDMI input ports quantity

Computer system

Built-in processor	Yes
Computer system type	System on Chip (SoC)
Computer system	Yes

Display

Horizontal scan range	30 - 81
Vertical scan range	48 - 75
Colour gamut	72 %

Design

Placement supported

Indoor

Performance

Operating hours (hours/days)

16/7

Design

Mounting type	Wall
Product design	Digital signage flat panel

Software

Operating system installed

Tizen 7.0

Ports & interfaces

Infrared data port	Yes
USB ports quantity	2
RS-232 interface	Yes
Remote (IR) input	1

Features

Purpose

Universal

Display

Haze rate

2 %

Ports & interfaces

Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	3
DVI port	No
HDCP	Yes
USB port	Yes

Network

Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes

Display

HD type	4K Ultra HD
RGB colour space	NTSC
Touchscreen	No
Display brightness	350 cd/m²

Display

Display technology	LCD
Panel type	VA
Contrast ratio (typical)	4000:1
Dynamic contrast ratio marketing name	Mega Contrast
Pixel pitch	0.245 x 0.245
Response time	8 ms
Display diagonal	43 "
Display resolution	3840 x 2160 pixels
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display diagonal (metric)	108 cm
