ID: 372929 Samsung ID: LH55OMNDSGBXEN

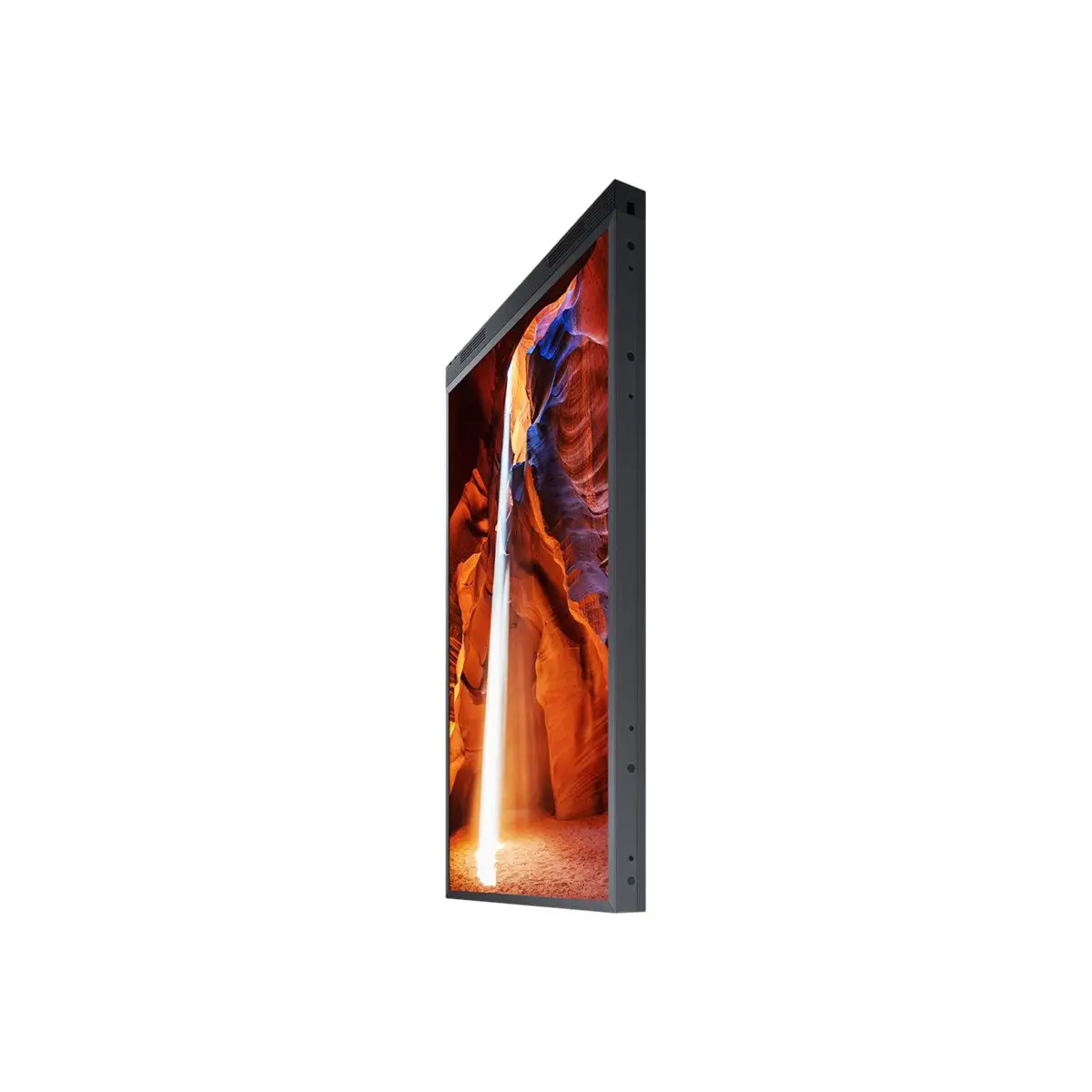

OM55N-DS 140cm (55") Digital Signage 1920x1080 Pixel

Detailed product title

Samsung OM55N-DS. Product design: Digital signage flat panel. Display diagonal: 139.7 cm (55"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 3000 cd/m², HD type: Full HD. Wi-Fi. Operating system installed: Tizen 5.0. Product colour: Black

immediately

Added to cart

immediately

Product description

Present bright content on a dual display
Dual display, double the impact. Designed to enhance various environments, maintaining image integrity on the window-facing side even in direct sunlight, while presenting information succinctly in-store to comprehensively reach the customer.
Modernize the space with flexible design
Choose the position of your display with multiple installation options and complement any environment with a flexible, smart design.
Maximize operational efficiency
A double-sided display allows content to be presented on both sides and is powered by just one power cable and LAN cable - for minimal clutter and maximum energy efficiency.
Optimized content management
The MagicINFO Player S7 embedded in the OMN-DS series, supported by the powerful TIZEN operating system, boosts the overall performance of the display, enables easy management of content and ensures seamless transition and playback of content.
Durable performance
With IP5X-certified dust protection and embedded proprietary features that prevent overheating, the OMN-DS series offers rugged durability throughout.
Clean cable configuration
The port cover keeps connections clean and organized. The integrated Wi-Fi function also enables updates without additional cables.

Technical specifications

Leistungen

HDCP version

2.2

Design

Product colour	Black
Placement supported	Indoor/outdoor
Orientation	Vertical

Power

Power consumption (typical)	500 W
AC input voltage	100 - 240
AC input frequency	50 - 60
Power consumption (sleep)	0.5 W

Technische Details

Product design

Digital signage flat panel

Verpackungsdaten

Package volume	52,000 cm3
Package depth	367 mm
Package width	940 mm
Package height	1,466 mm

Sonstige Funktionen

Infrared data port	Y
USB port	Y
Flash memory	8,000 MB
RS-232 input ports	1

Operational conditions

Operating relative humidity (H-H)	10 - 80
Operating temperature (T-T)	0 - 40

Smart TV

Operating system installed

Tizen 5.0

Computer system

Built-in processor	Y
Computer system type	System on Chip (SoC)
Computer system	Y

Display

Display technology	LCD
Panel type	VA
RGB colour space	NTSC
Touchscreen	N
Dynamic contrast ratio marketing name	Mega Contrast
Pixel pitch	0.63 x 0.63
Response time	6 ms
Display diagonal	55 "
Display resolution	1920 x 1080 pixels
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display brightness	3,000 cd/m²

Mouse

Certification	Class A 60950-1
Purpose	Universal

Network

Ethernet LAN	Y
Wi-Fi	Y

Video

HD type

Full HD

Projector

Contrast ratio (typical)	6000:1
Horizontal scan range	15 - 135
Vertical scan range	24 - 75
Colour gamut	72 %

Ports & interfaces

Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	2
HDMI version	2.0
DVI port	N
HDCP	Y
USB ports quantity	2
RS-232 interface	Y
Remote (IR) input	1

Weight & dimensions

Bezel width (side)	22.8 mm
Bezel width (top)	22.8 mm
Bezel width (bottom)	22.8 mm
Display width	726.8 mm
Display depth	69.5 mm
Display height	1,299 mm
Display weight	42,000 g
