ID: 344682 Samsung ID: LH75OMAEBGBXEN

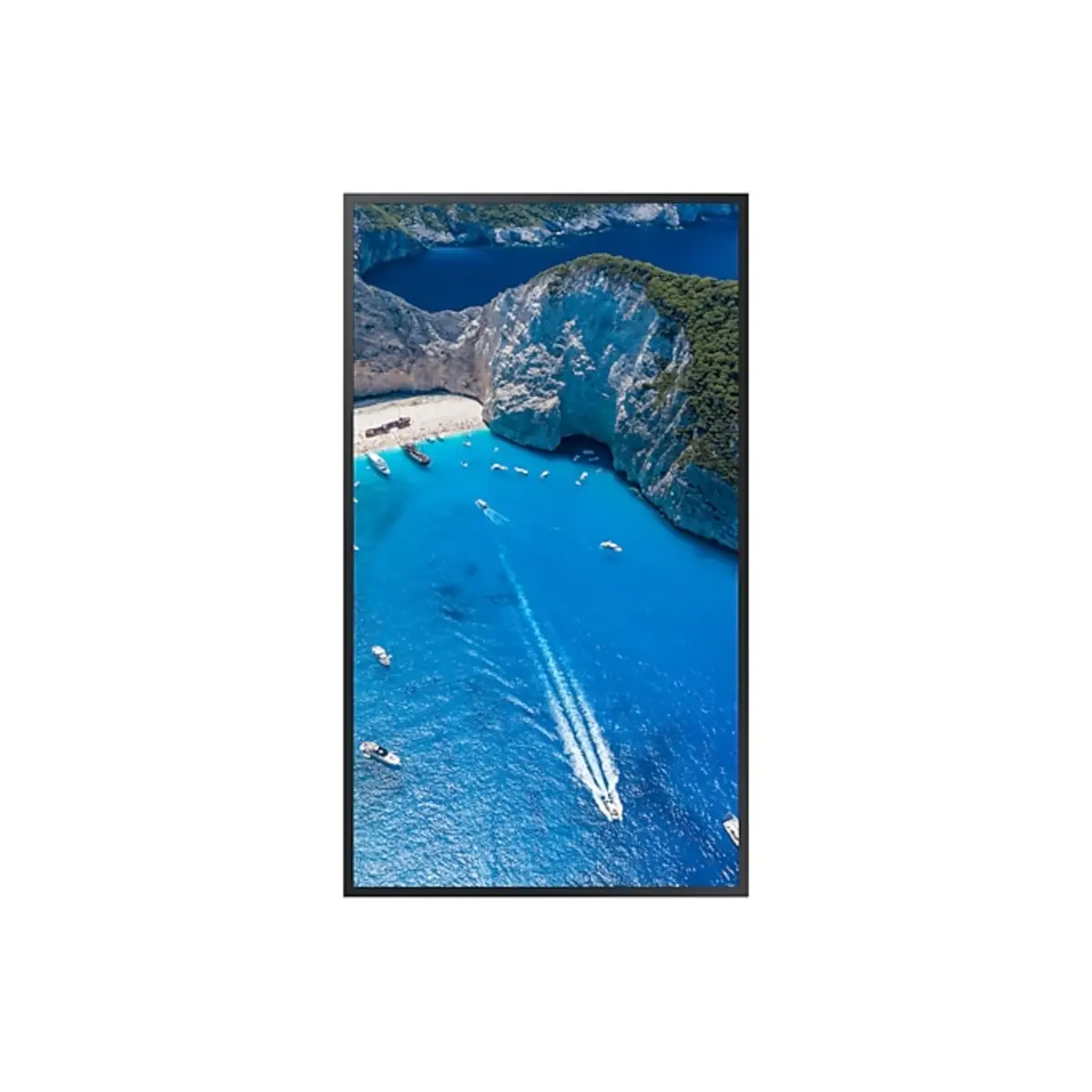

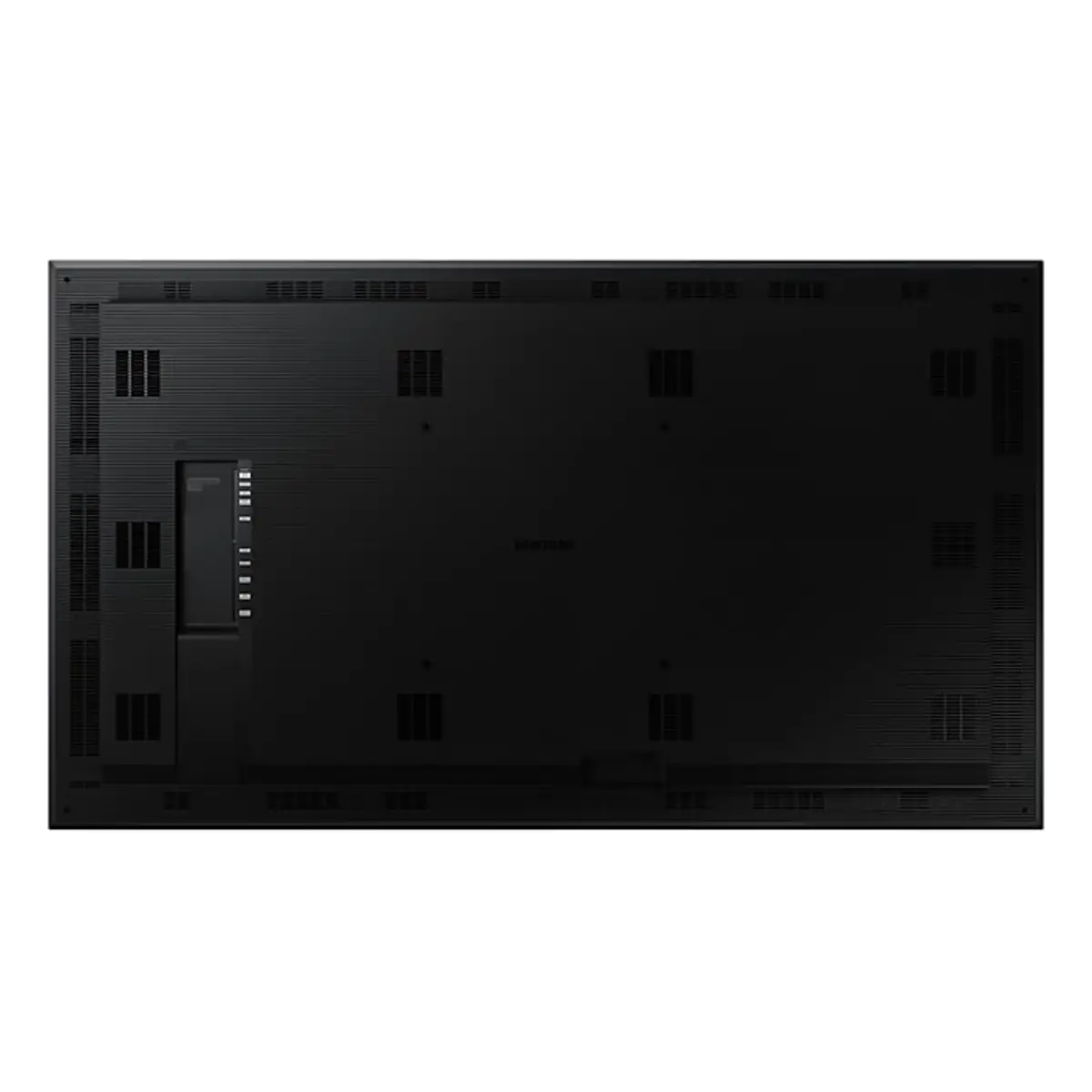

OM75A OMA Series LCD-Display Digital Signage 190cm (75") 3840x2160 Pixel 1200:1 400 cd/m² 14ms

Detailed product title

Samsung OM75A OMA Series LCD-Display Digital Signage 190cm (75") 3840x2160 Pixel 1200:1 400 cd/m² 14ms

ship in 4-7 days

Added to cart

ship in 4-7 days

Product description

Support a brilliant presentation of your content
With 4,000 nits of brightness, the OMA series displays content brightly and clearly - even in direct sunlight. The display with the brilliant UHD resolution can attract the attention of viewers in all weather conditions.

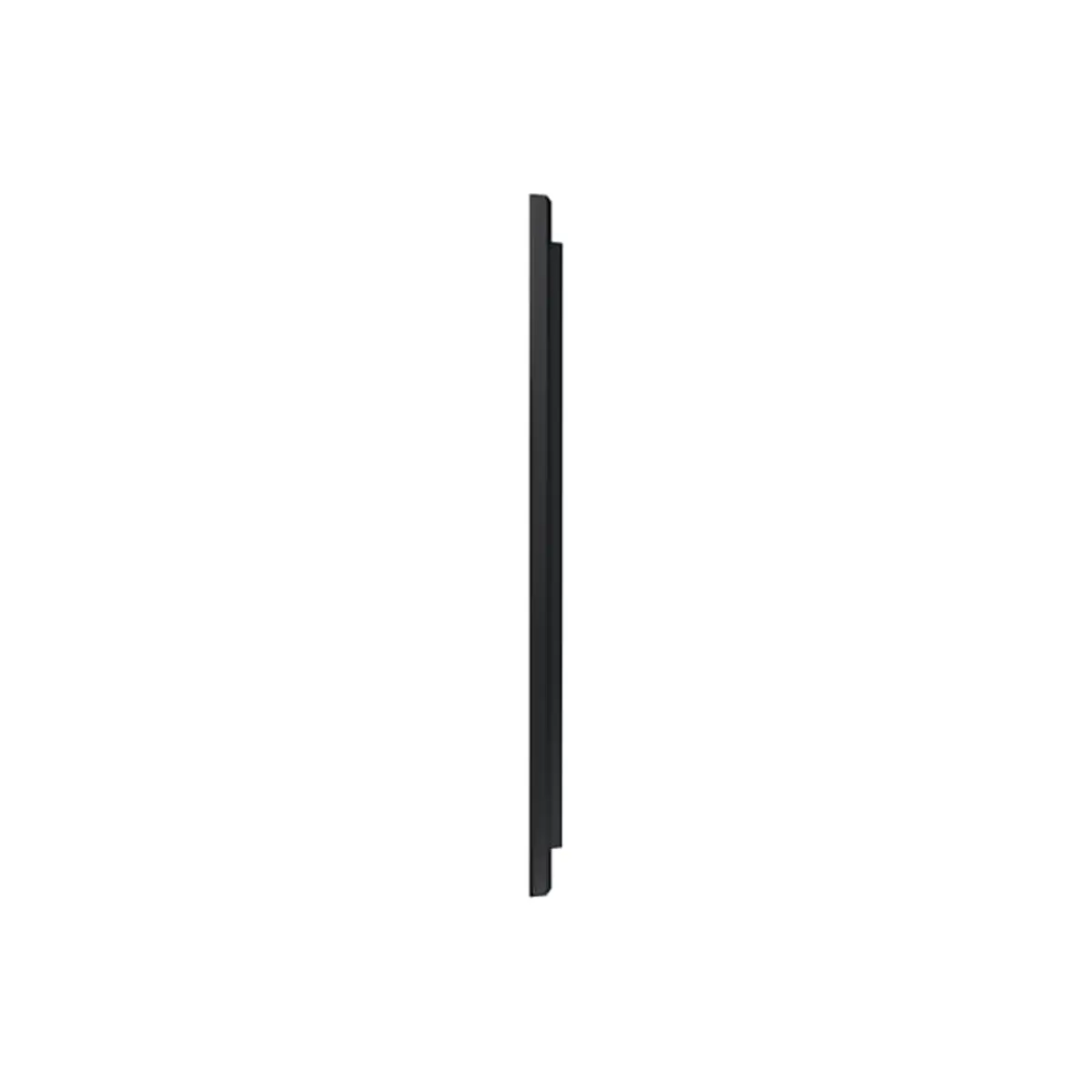

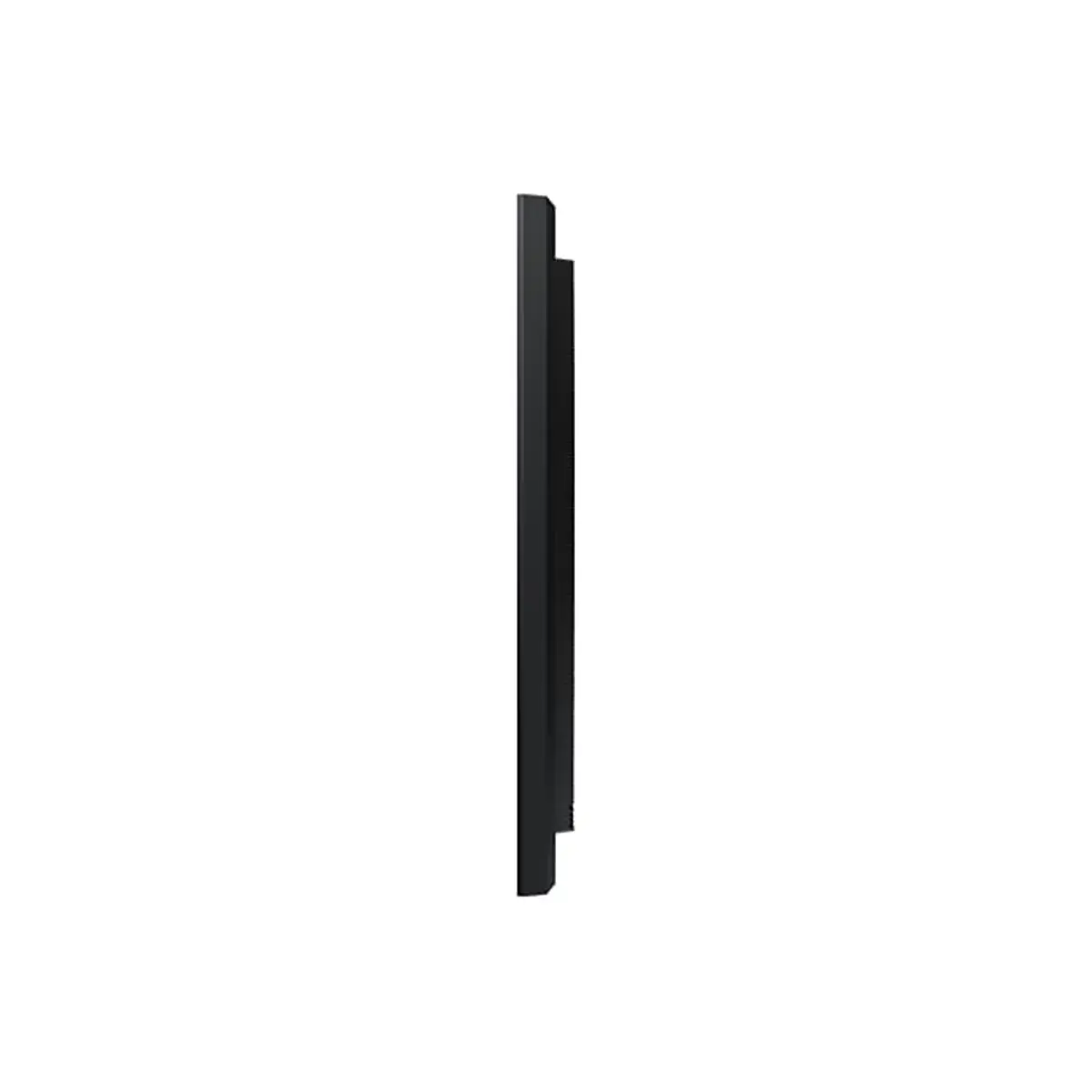

Modernize your rooms with a slim design
The compact size ensures that the display can be harmoniously integrated into any shop design.
Seamless content management
The MagicInfo S Player integrated into the OMA series and the Tizen operating system accelerate the performance of the display and simplify the management and seamless playback of content.
Brilliant content with high efficiency
The OMA series works efficiently and consumes less energy than conventional displays. At the same time, it displays brilliant images and offers exceptional performance. The result: retailers have a powerful display that attracts visitors and keeps costs under control.
Easy configuration
The cable routing and built-in WLAN module ensure a tidy look and enable content and firmware updates to be transferred without annoying cables.

Technical specifications

Logistics data

Harmonized System (HS) code

85285210

Leistungen

Operating hours (hours/days)	24/7
HDCP version	2.2

Design

Product colour

Black

Power

Power consumption (typical)	900 W
AC input voltage	100-240
AC input frequency	50-60
Power consumption (sleep)	0.5 W

Technische Details

Video out	1
Audio out (mini jack)	1
Product design	Digital signage flat panel

Verpackungsdaten

Package weight	48,500 g
Package depth	215 mm
Package width	1,890 mm
Package height	1,144 mm

Sonstige Funktionen

Infrared data port	Y
USB port	Y
RJ-45 input ports	1
RS-232 output ports	1
RS-232 input ports	1

Operational conditions

Operating relative humidity (H-H)	10 - 80
Operating temperature (T-T)	0 - 40

Smart TV

Operating system installed

Tizen 5.0

Ergonomics

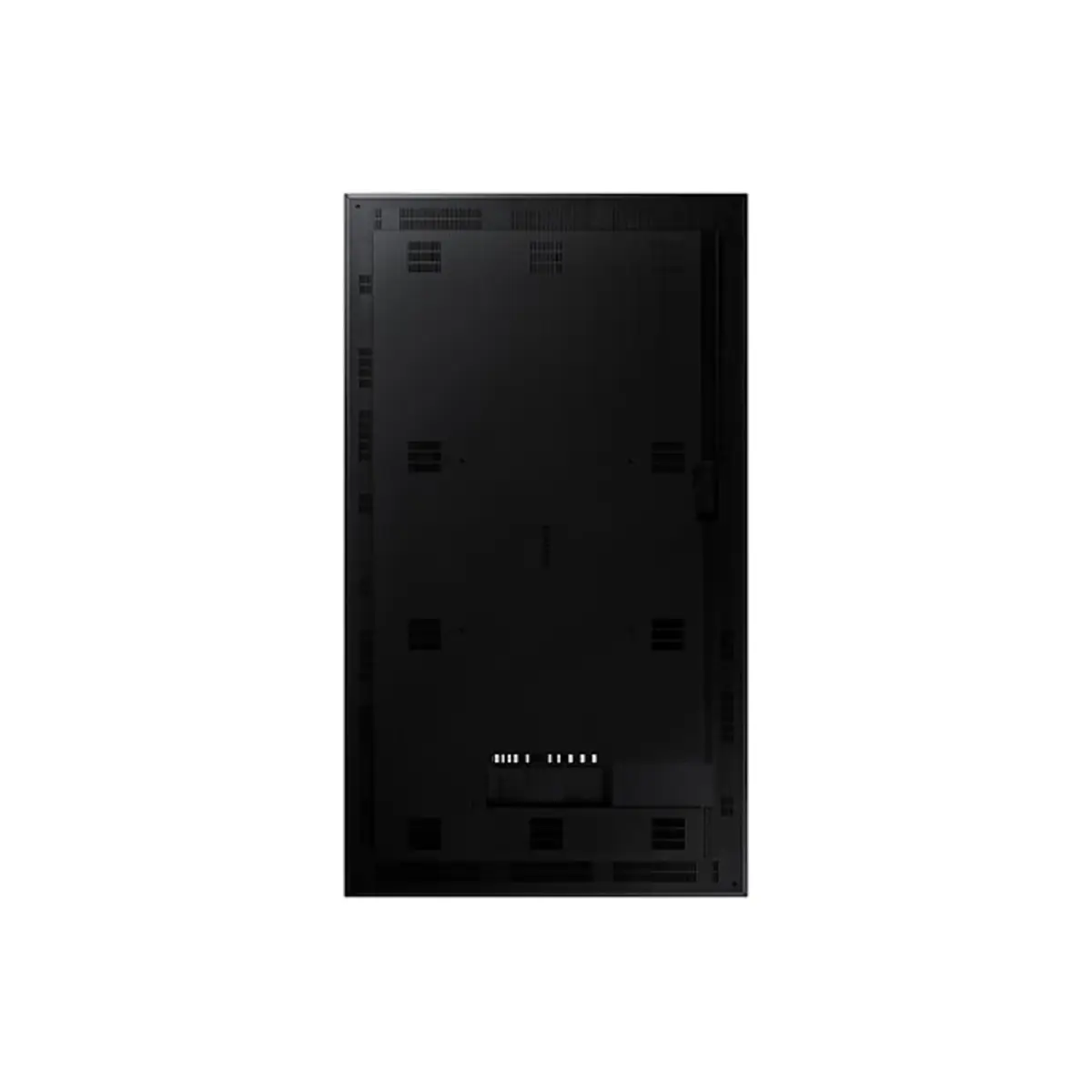

VESA mounting	Y
Panel mounting interface	400 x 400 mm

Computer system

Built-in processor	Y
Computer system type	System on Chip (SoC)
Computer system	Y

Display

Display technology	LCD
Panel type	ADS
RGB colour space	NTSC
Touchscreen	N
Dynamic contrast ratio marketing name	Mega Contrast
Pixel pitch	0.4296 x 0.4296
Response time	14 ms
Display diagonal	75 "
Display resolution	3840 x 2160 pixels
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display brightness	4,000 cd/m²
Haze rate	2.5 %

Mouse

Certification	Class A 60950-1
Purpose	Universal

Network

Ethernet LAN	Y
Wi-Fi	Y

Video

HD type

4K Ultra HD

Projector

Contrast ratio (typical)	1200:1
Horizontal scan range	15 - 85
Vertical scan range	24 - 75
Colour gamut	72 %

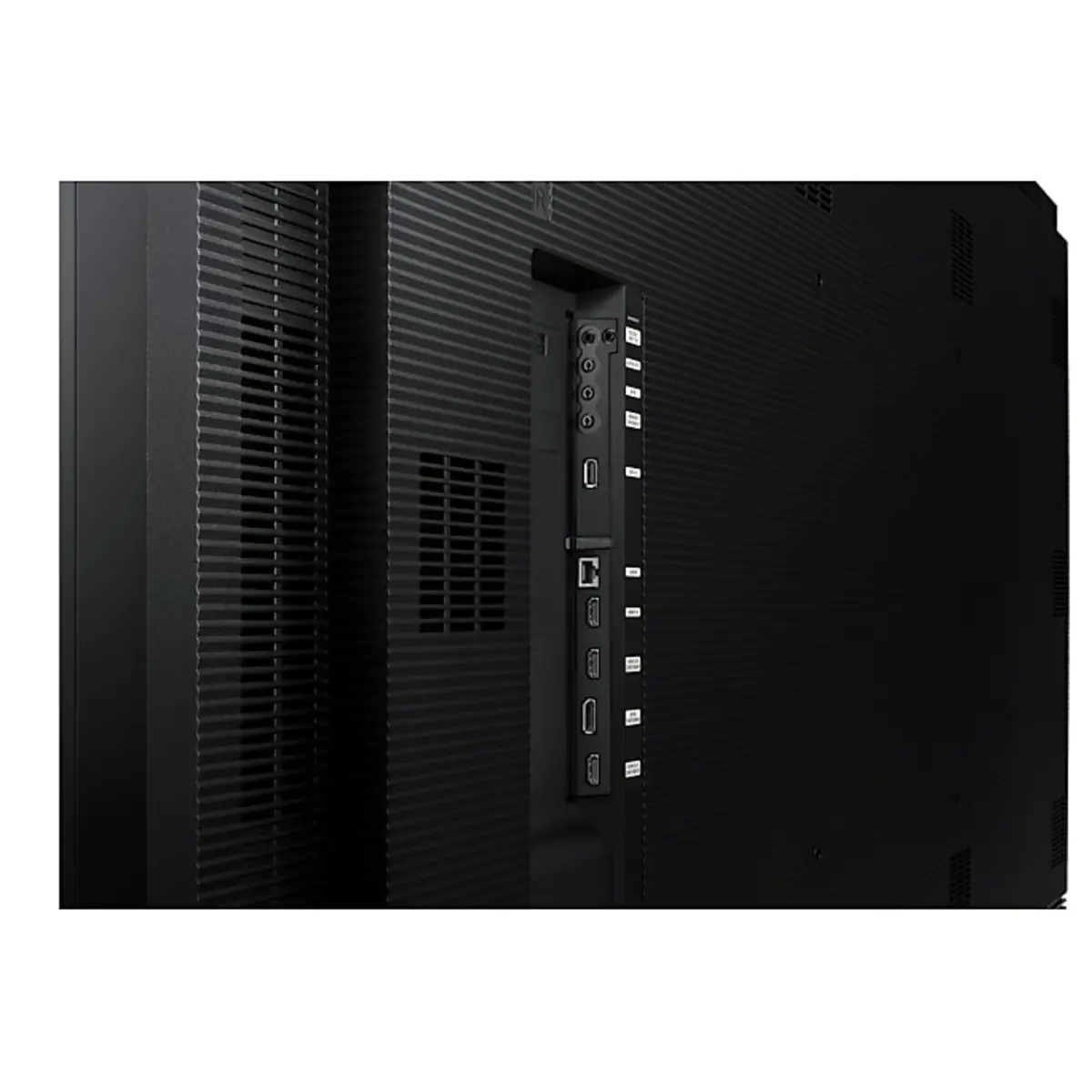

Ports & interfaces

DisplayPort version	1.2
HDMI ports quantity	2
HDMI version	2.0
DisplayPorts quantity	1
DVI port	N
HDCP	Y
USB ports quantity	1
RS-232 interface	Y
DisplayPorts in	1
Remote (IR) input	1

Weight & dimensions

Bezel width (side)	23.9 mm
Bezel width (top)	23.9 mm
Bezel width (bottom)	23.9 mm
Display width	1,703.1 mm
Display depth	85.4 mm
Display height	981.1 mm
Display weight	37,200 g
