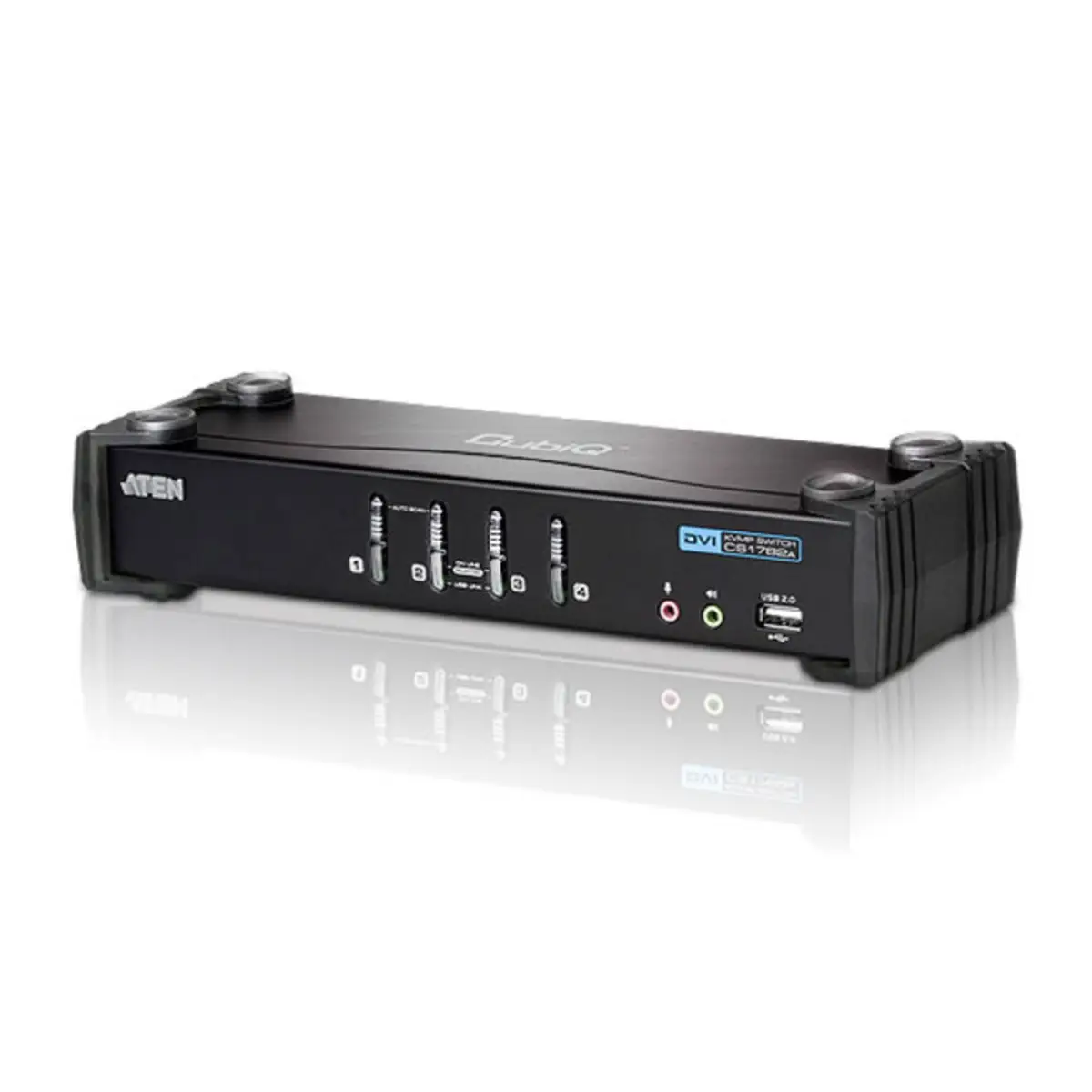

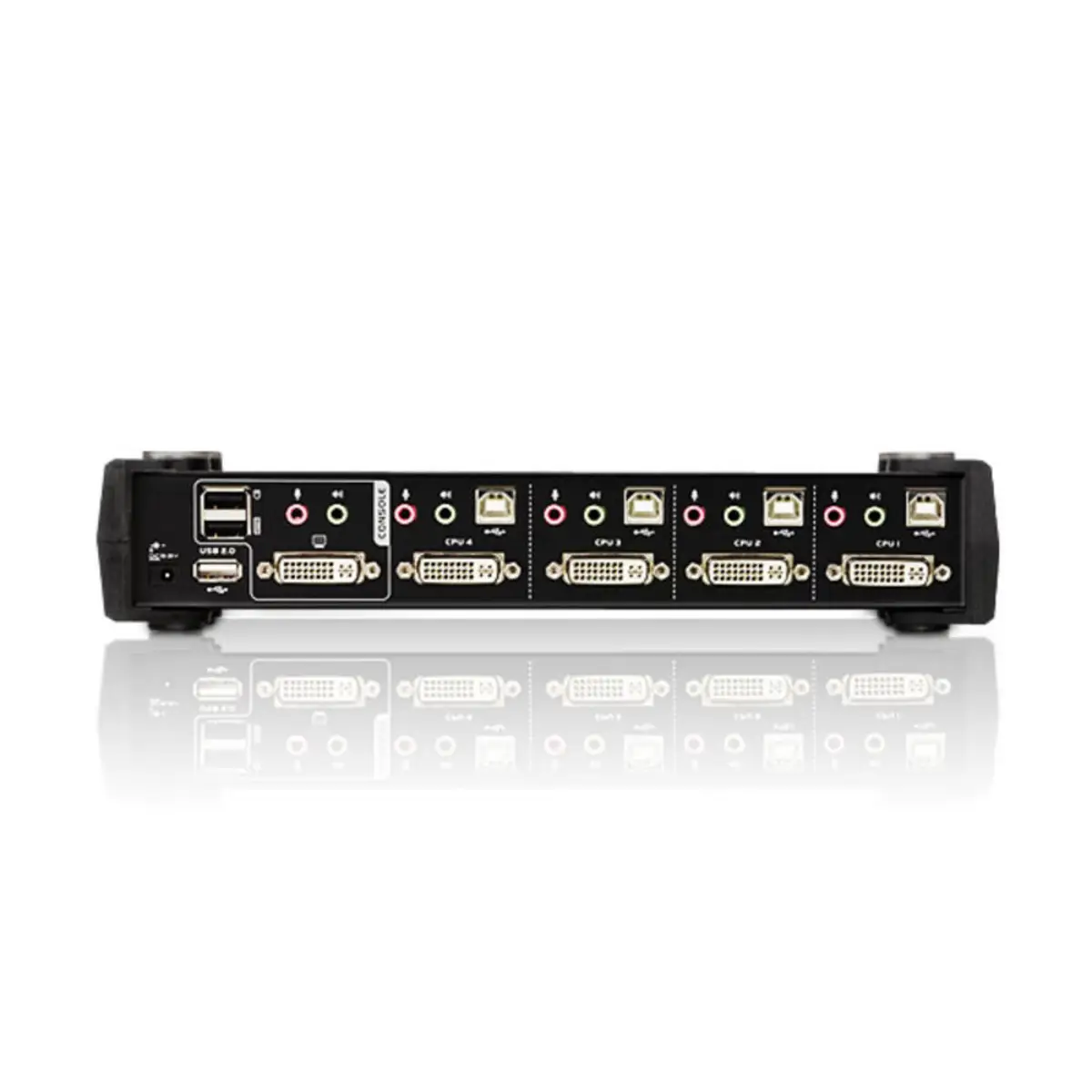

The CubiQ™ DVI-KVMP Switch with USB 2.0 CS1764A takes KVM functionality in a completely new direction by combining a 4-port KVM switch with a 2-port USB 2.0 hub. At the same time it has connection options for a digital monitor (DVI).

The CS1764A also includes ATEN's new Video DynaSync™ technology, which optimizes screen resolution and automatically detects devices that are turned on - the latter meaning that when one computer is turned off, the CS1764A automatically switches to the next computer that is turned on.

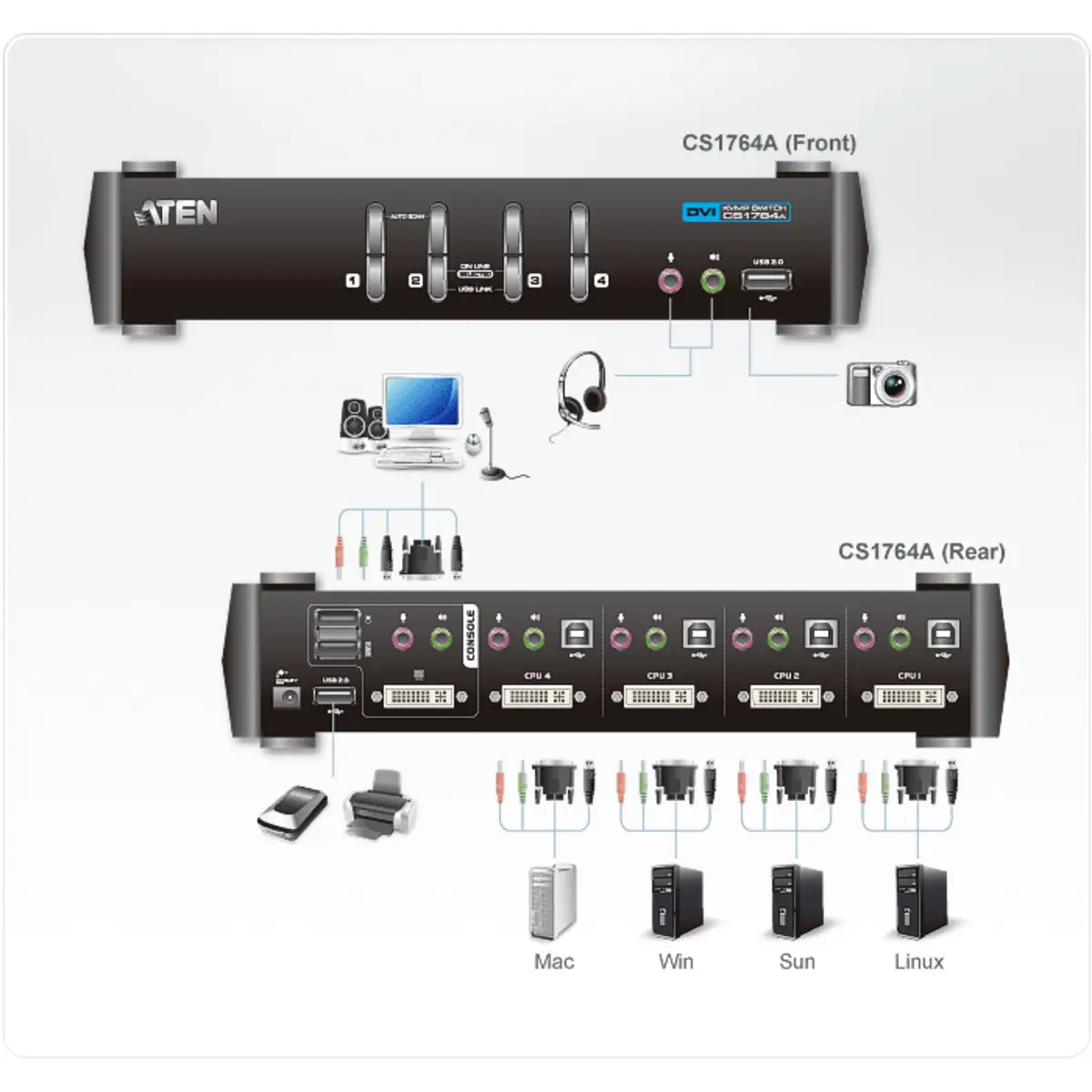

As a KVM switch, it allows four computers to be controlled from a single console (USB keyboard, monitor and USB mouse). As a USB 2.0 hub, it allows the computers connected to the unit to have time-shifted access to connected USB devices.

• Features:
• One USB console controls four computers with DVI graphics cards and two additional USB 2.0 devices
• Built-in 2-port USB 2.0 hub
• Fully compatible with USB 2.0 specifications
• Computer selection via front panel port select buttons and hotkeys
• Sound transmission with full bass range for an exceptional sound experience on 2.1-channel surround sound systems
• Multiplatform compatible: Windows, Linux, Mac and Sun
• Improved graphics quality - resolutions up to 1920 x 1200 at 60 Hz; DDC2B
• Independent switching between KVM, USB and audio signals
• Supports digital DVI and analog monitors - fully compatible with DVI specifications
• HDCP compatible
• Video DynaSync™ - stores the EDID (Extended Display Identification Data) of the console monitors to always ensure optimal image resolution
• Automatic detection of switched on devices - if one of the connected computers is switched off, the CS1764A automatically switches to the next switched on computer
• Console with mouse port emulation and bypass function supports most mouse drivers and multifunction mice
• Supports and emulates Sun/Mac keyboards*
• Automatic port switching for monitoring the connected computers
• Firmware upgradeable via USB

• PC keyboard combinations emulate Sun/Mac keyboards
• Sun/Mac keyboards only work with Sun or Macintosh computers

Scope of delivery

• 1 x CS1764A USB 2.0 KVMP™ switch for DVI graphics
• 4 x 2L-7D02U KVM cables with USB and DVI-D connectors (1.8m)
• 1 x 0AD6-1605-24EG power supply
• 1 x User Manual
