- KVM switches
- DisplayPort USB 2.0 KVM Switch 1 User 4 PC
+1 Images
6 Images
Product description

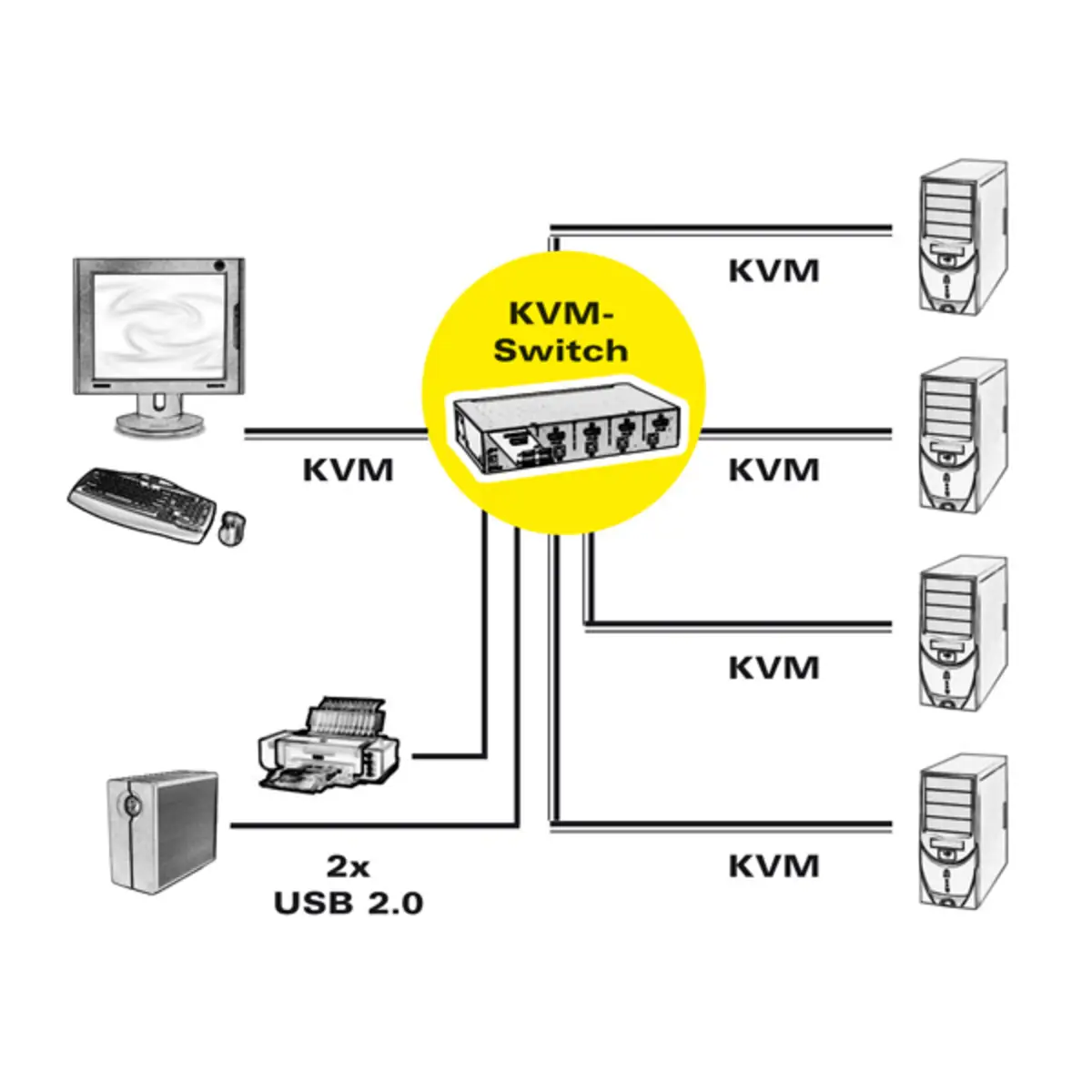

• Control four computers from a single USB console (DisplayPort monitor, USB mouse and keyboard)
• Integrated 2-port USB 2.0 hub allows two resp. four computers to share a USB devices
• Easy computer selection via front panel push buttons or hot-key function
• Auto scan function with selectable scan time interval
• Supports 7.1 channel high definition audio
• Max. resolution (nominal): 2560 x 1600
• No software required
• Supports Windows
• Integrated 2-port USB 2.0 hub allows two resp. four computers to share a USB devices
• Easy computer selection via front panel push buttons or hot-key function
• Auto scan function with selectable scan time interval
• Supports 7.1 channel high definition audio
• Max. resolution (nominal): 2560 x 1600
• No software required
• Supports Windows
Technical specifications
Leistungen
| Hot-Plug support | Y |
Sonstige Funktionen
| Audio connections | Y |
| Maximum resolution | 2560 x 1600 |
Keyboard
| USB hub | Y |
Ports & interfaces
| USB 2.0 ports quantity | 2 |
| USB connector type | USB Type-A |
| DC-in jack | Y |
| Video port type | DisplayPort |
| Keyboard port type | USB |
| Mouse port type | USB |
| Number of computers controlled | 4 |
| Display connection | Y |
Design
| Product colour | Black |
| Built-in display | N |
| Cascadable | N |
Downloads
137557_document_EN_001
PDF Download
ID: 137557
Roline ID: 14.01.3329

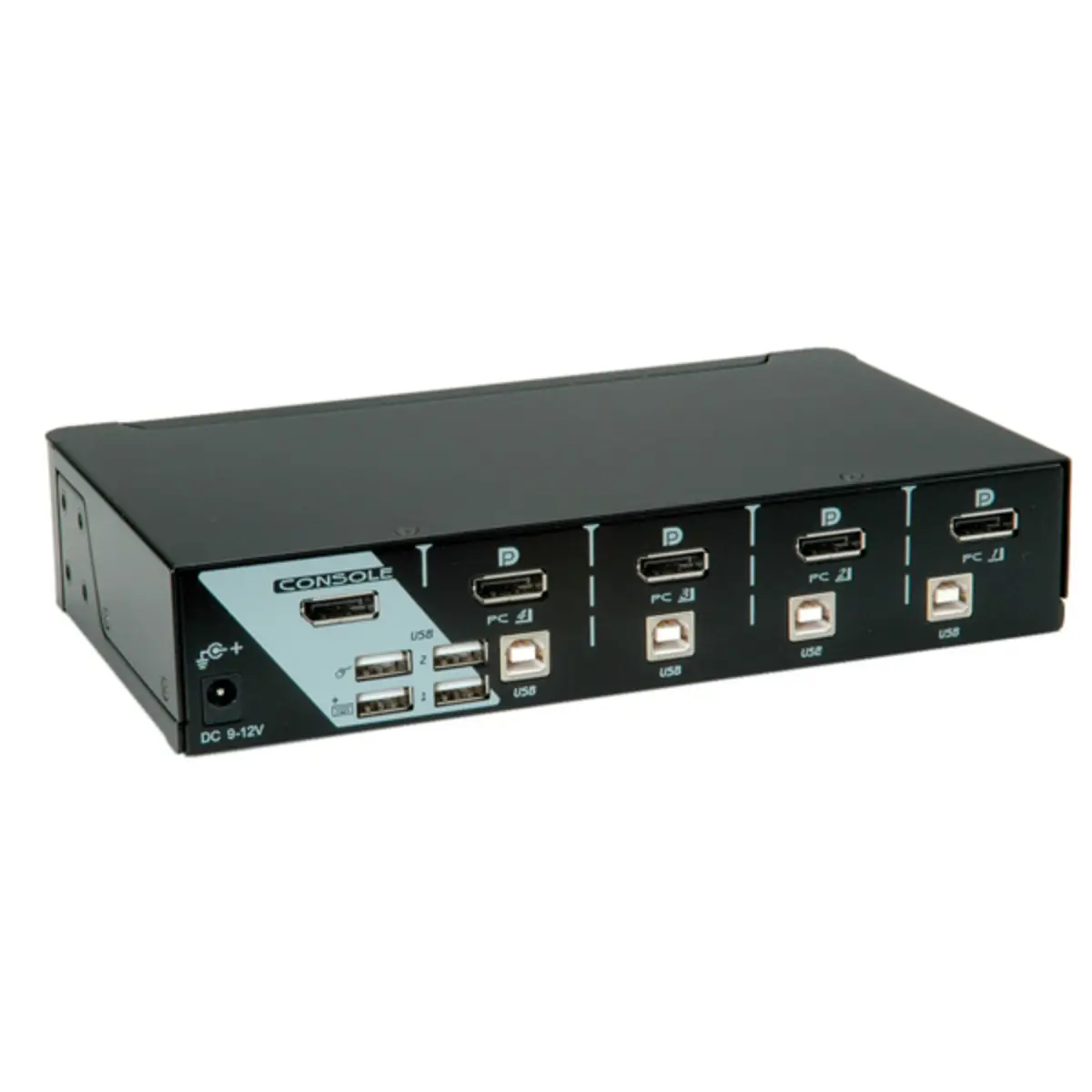

DisplayPort USB 2.0 KVM Switch 1 User 4 PC
Detailed product title
Detailed product title
Roline DisplayPort USB 2.0 KVM Switch 1 User 4 PC
6 Images
Number of computers controlled 4
Gross:
incl.
vat.
ship in 4-7 days
Added to cart
Gross:
incl.
vat.
ship in 4-7 days
Product description
• Control four computers from a single USB console (DisplayPort monitor, USB mouse and keyboard)
• Integrated 2-port USB 2.0 hub allows two resp. four computers to share a USB devices

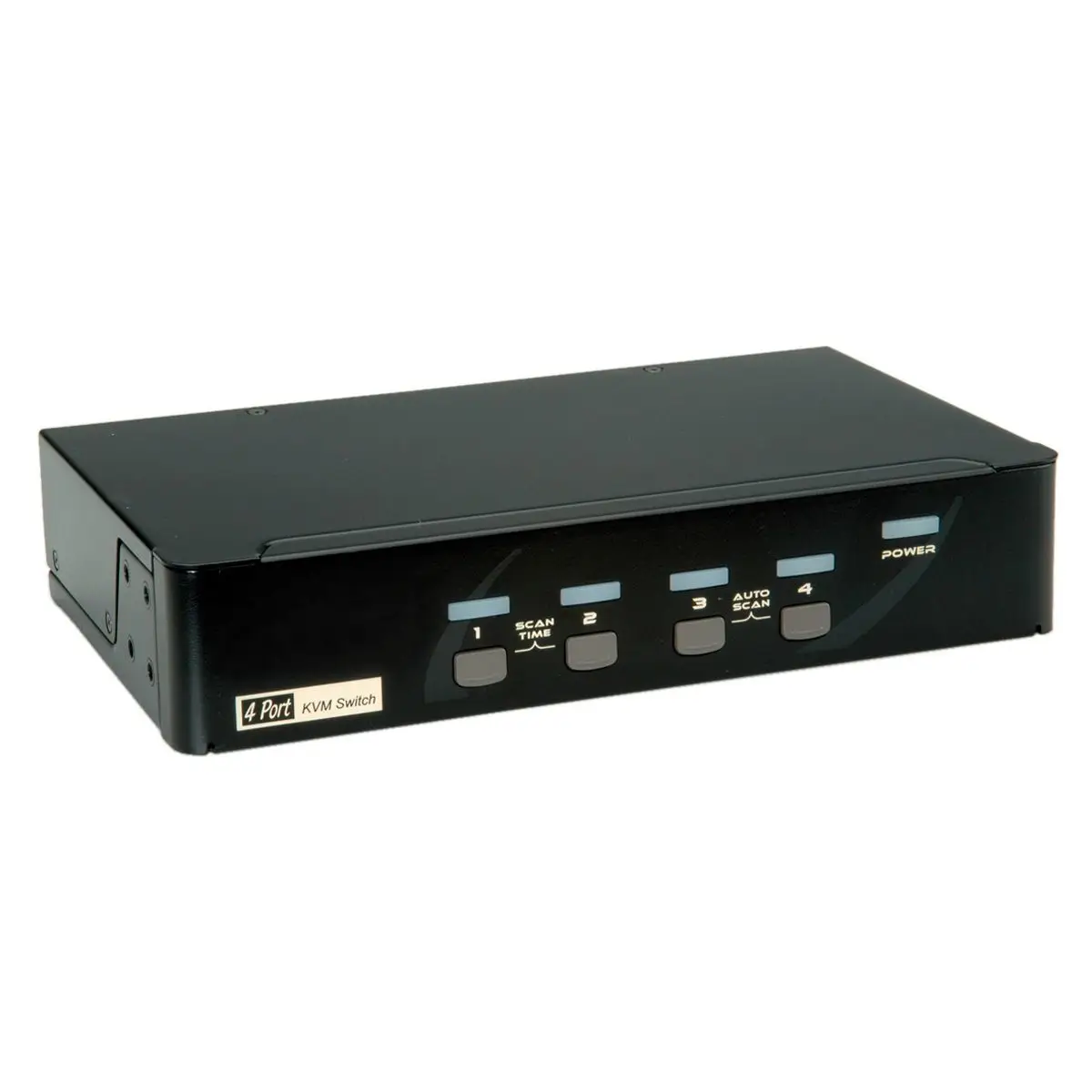

• Easy computer selection via front panel push buttons or hot-key function
• Auto scan function with selectable scan time interval
• Supports 7.1 channel high definition audio
• Max. resolution (nominal): 2560 x 1600
• No software required
• Supports Windows
• Integrated 2-port USB 2.0 hub allows two resp. four computers to share a USB devices
• Easy computer selection via front panel push buttons or hot-key function
• Auto scan function with selectable scan time interval
• Supports 7.1 channel high definition audio
• Max. resolution (nominal): 2560 x 1600
• No software required
• Supports Windows
Technical specifications
Leistungen
| Hot-Plug support | Y |
Sonstige Funktionen
| Audio connections | Y |
| Maximum resolution | 2560 x 1600 |
Keyboard
| USB hub | Y |
Ports & interfaces
| USB 2.0 ports quantity | 2 |
| USB connector type | USB Type-A |
| DC-in jack | Y |
| Video port type | DisplayPort |
| Keyboard port type | USB |
| Mouse port type | USB |
| Number of computers controlled | 4 |
| Display connection | Y |
Design
| Product colour | Black |
| Built-in display | N |
| Cascadable | N |
Downloads
137557_document_EN_001
PDF Download
