- 2 Port PCIe USB 3.1 Karte 2x USB 3.1 Typ C Gen 2 10 Gbit/s PCI Express
5 Images
Product description
PCI-Express USB-C Card | 10Gbps | PCIe Gen3 x4 | 2-Year Warranty

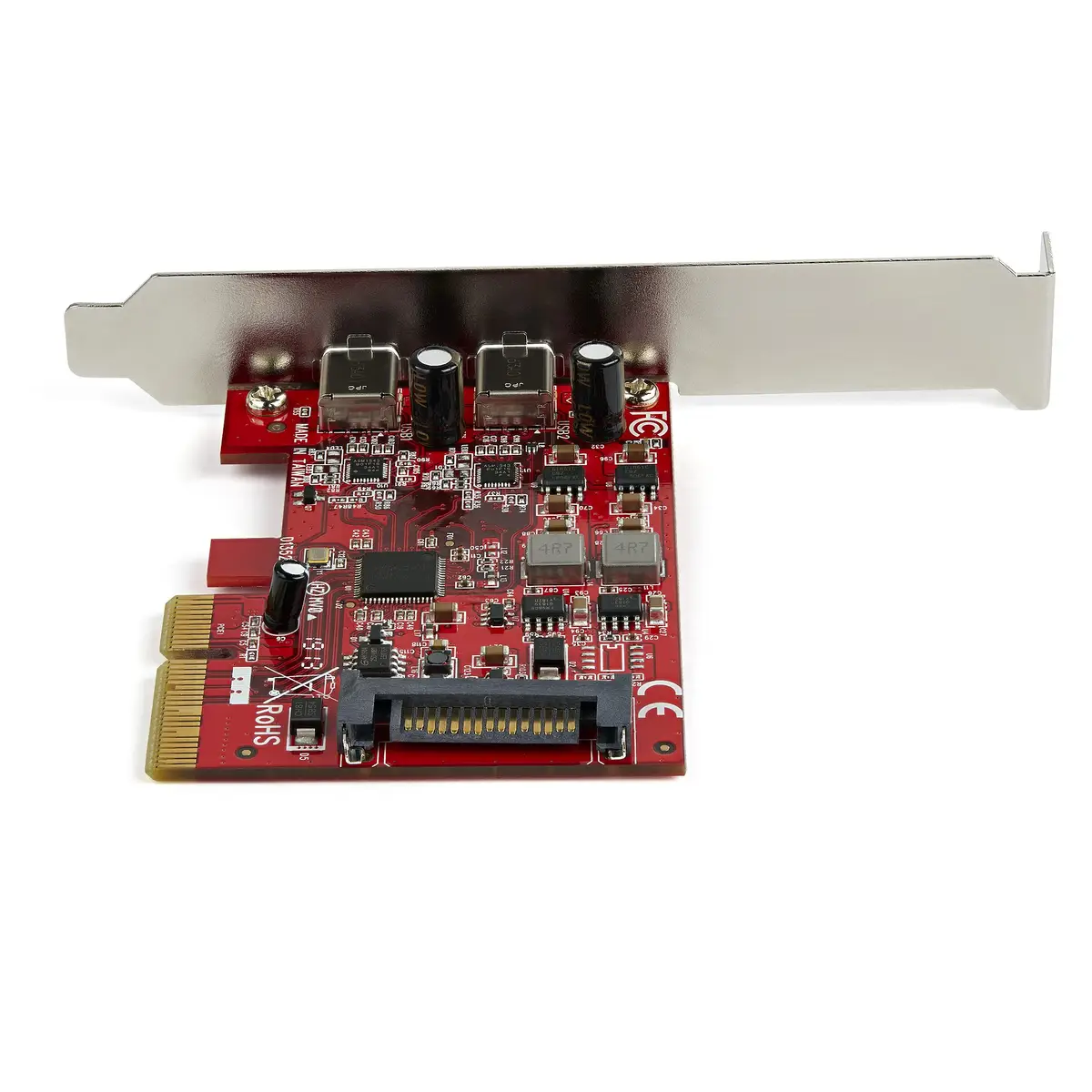

This PCIe USB 3.2 Gen 2 card installs into an available PCI-Express slot in your computer and enables you to upgrade your current system by adding two USB-C™ (10Gbps) ports.
Faster USB Performance
Also known as USB 3.1 Gen 2, this USB 3.2 Gen 2 card adds two 10Gbps USB Type-C™ ports to your computer.
Utilizing an ASMedia ASM3142 chipset, this card harnesses the speed of USB 3.2 Gen 2. With higher data throughput support, this USB 3.2 Gen 2 PCIe expansion card is a necessity for external drives and many other USB 3.2 Gen 2 peripherals and includes an optional SATA power connector for high power devices.
The card is backward compatible with USB 3.2 Gen 1 (5Gbps) and USB 2.0 (480mbps) devices. The card works with newer USB-C devices, but can easily support your existing USB-A peripherals using inexpensive USB Type C cables and adapters. See our Accessories Tab for supported options.
Easy Installation
The USB 3.2 card is compatible with Windows®, Linux® and macOS® operating systems. The card includes both standard-profile and low-profile brackets to install in various form-factor PCs and servers.
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
The PEXUSB312C3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
This PCIe USB 3.2 Gen 2 card installs into an available PCI-Express slot in your computer and enables you to upgrade your current system by adding two USB-C™ (10Gbps) ports.
Faster USB Performance
Also known as USB 3.1 Gen 2, this USB 3.2 Gen 2 card adds two 10Gbps USB Type-C™ ports to your computer.
Utilizing an ASMedia ASM3142 chipset, this card harnesses the speed of USB 3.2 Gen 2. With higher data throughput support, this USB 3.2 Gen 2 PCIe expansion card is a necessity for external drives and many other USB 3.2 Gen 2 peripherals and includes an optional SATA power connector for high power devices.
The card is backward compatible with USB 3.2 Gen 1 (5Gbps) and USB 2.0 (480mbps) devices. The card works with newer USB-C devices, but can easily support your existing USB-A peripherals using inexpensive USB Type C cables and adapters. See our Accessories Tab for supported options.
Easy Installation
The USB 3.2 card is compatible with Windows®, Linux® and macOS® operating systems. The card includes both standard-profile and low-profile brackets to install in various form-factor PCs and servers.
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
The PEXUSB312C3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Technical specifications
Logistics data
| Harmonized System (HS) code | 84733020 |
| Master (outer) case height | 320 mm |
| Master (outer) case width | 380 mm |
| Master (outer) case length | 490 mm |
| Products per master (outer) case | 60 ST |
Software
| Server operating systems supported | Windows Server 2008 R2,Windows Server 2012,Windows |
Weight & dimensions
| Weight | 45 g |
Kopfhörer
| Chipset | ASMedia - ASM3142 |
Lieferumfang
| Mounting brackets included | Y |
Verpackungsdaten
| Package weight | 120 g |
| Package depth | 173 mm |
| Package width | 142 mm |
| Package height | 30 mm |
Sonstige Funktionen
| UASP support | Y |
Sustainability
| Sustainability certificates | CE,RoHS |
| Sustainability compliance | Y |
Operational conditions
| Operating relative humidity (H-H) | 20 - 80 |
| Storage temperature (T-T) | -20 - 85 |
| Operating temperature (T-T) | 0 - 70 |
Audio
| Internal | Y |
Features
| Height | 18 mm |
| Width | 80 mm |
| Depth | 122 mm |
Computer system
| Linux operating systems supported | Y |
| Windows operating systems supported | Windows 10,Windows 10Education,Windows 10Educati |
| Mac operating systems supported | Mac OS X 10.13 HighSierra,Mac OS X 10.14Mojave,M |
Mouse
| Certification | CE, FCC, REACH |
Ports & interfaces
| Host interface | PCIe |
Design
| Product colour | Red |
Downloads
199617_document_DE_001
PDF Download
199617_document_EN_001
PDF Download
ID: 199617
StarTech.com ID: PEXUSB312C3
2 Port PCIe USB 3.1 Karte 2x USB 3.1 Typ C Gen 2 10 Gbit/s PCI Express
Detailed product title
Detailed product title
StarTech.com 2-Port USB 3.2 Gen 2 PCIe Card, USB-C 10Gbps SuperSpeed PCI Express 3.0 x4 Controller Card, USB Type-C Adapter Card, Data Only, Windows/macOS/Linux, TAA. Host interface: PCIe, Output interface: USB 3.2 Gen 1 (3.1 Gen 1), Expansion card form factor: Full-height / Low-profile. Product colour: Red, Certification: CE, FCC, REACH. Chipset: ASMedia - ASM3142, Data transfer rate (max): 10 Gbit/s. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur,..., Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019. Width: 80 mm, Depth: 122 mm, Height: 18 mm
