- Network
- Network cards & adapter
- 4-Port Gigabit Netzwerkkarte PCIe PoE
5 Images
Product description

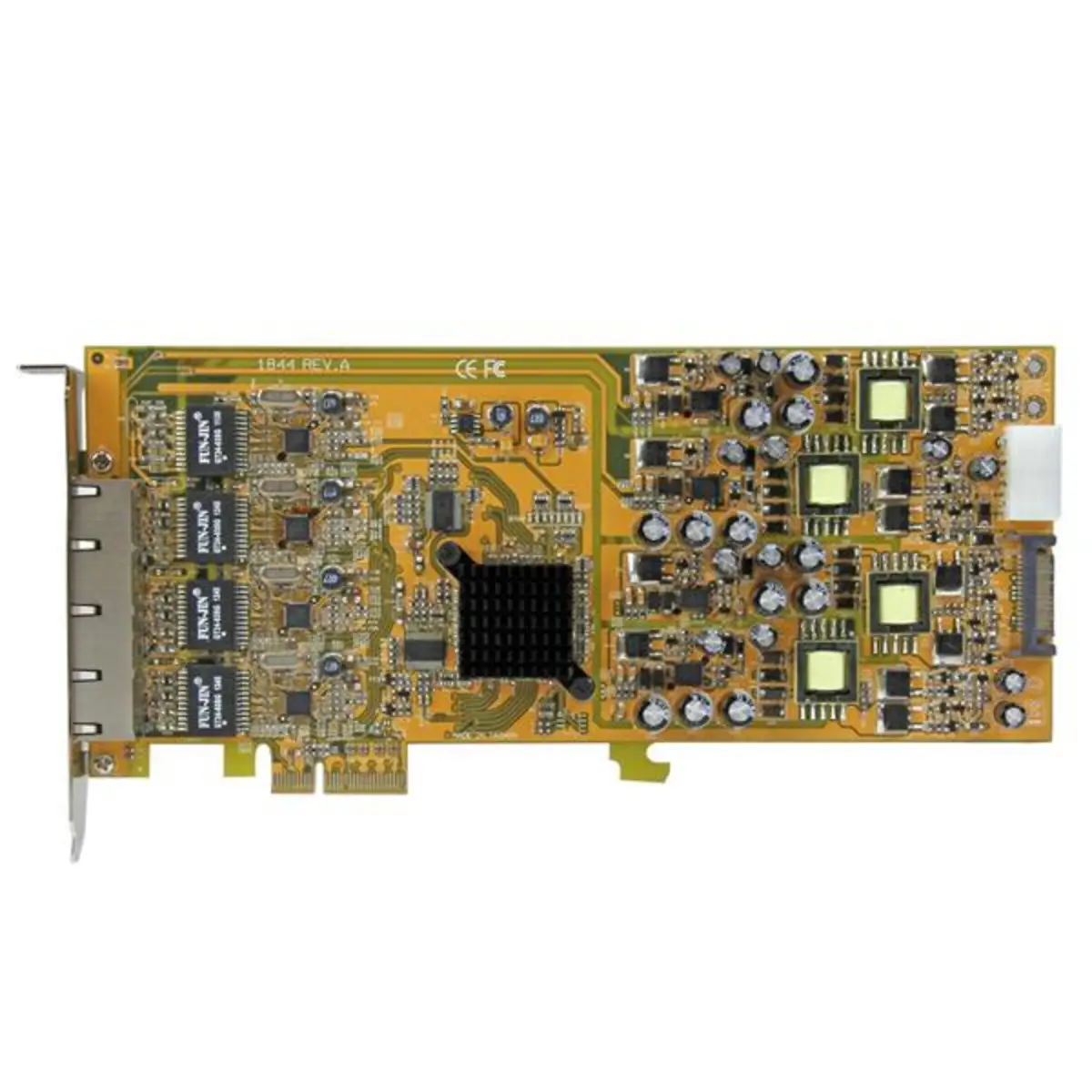

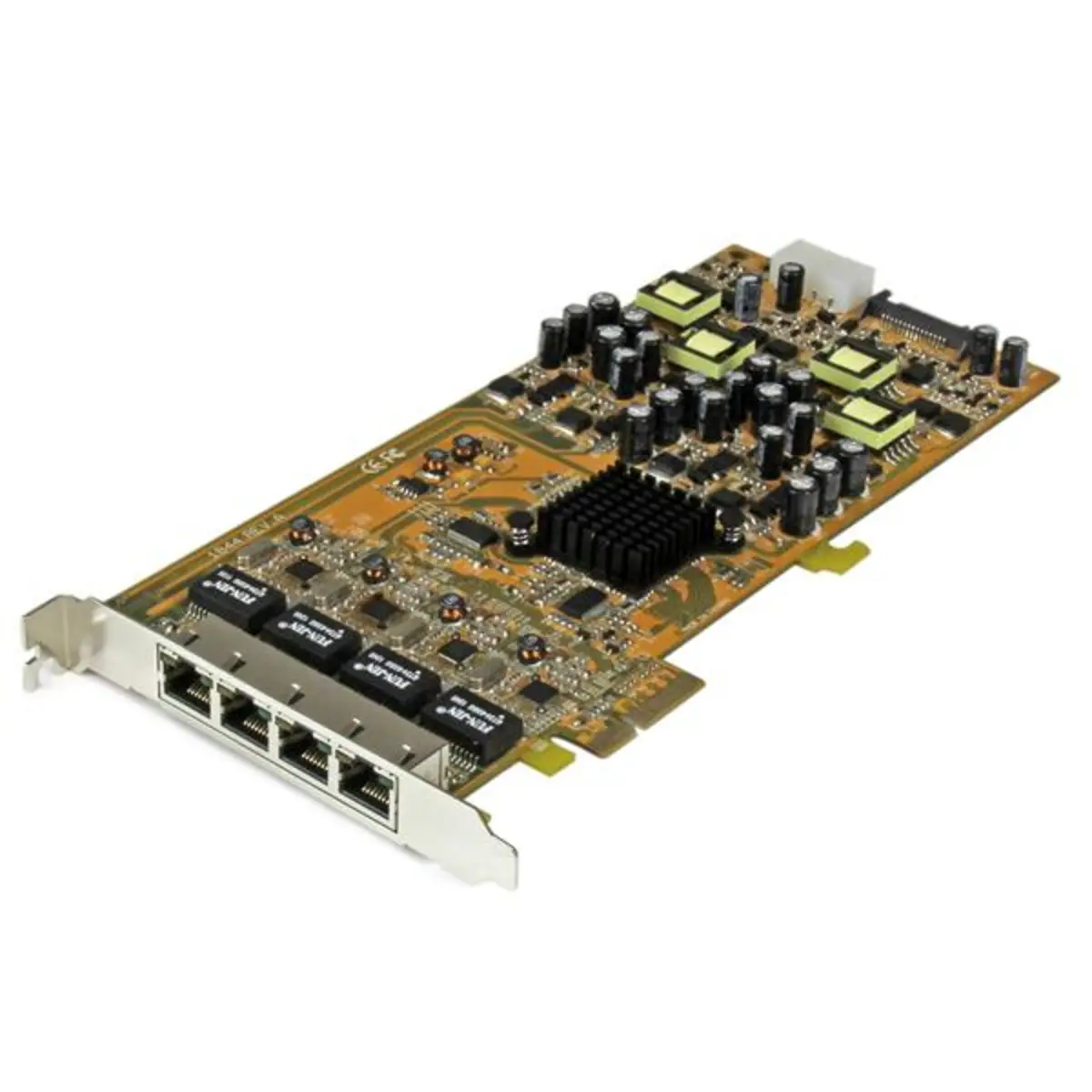

Add 4 Gigabit Power over Ethernet ports to a PCI Express-enabled computer
The ST4000PEXPSE 4-Port PoE NIC lets you add four Gigabit Power over Ethernet ports through a single PCI Express slot. Each port can provide up to 25.5W of power, combining network data and power over a single Ethernet cable for reduced cable clutter and added convenience for remote PoE devices.
The PCI express PoE card supports the IEEE 802.3at (Type 1 and 2) standard for Power Sourcing Equipment (PSE), and can deliver up to 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and data connection for PoE devices such as IP cameras, IP phones or wireless access points.
Suitable for any standard profile PCIe-enabled client, server or workstation, the PoE network card supports features such as Jumbo Frames (up to 9KB), VLAN tagging and Wake on LAN (WoL).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Position your network devices where power outlets aren’t available, with 25.5 Watts per-port PoE output
- Reduce expenses by using existing standard Cat5 (or better) Ethernet cabling to deliver power and data
- Optimize network traffic with support for advanced features, like Jumbo Frames and VLAN tagging
The ST4000PEXPSE 4-Port PoE NIC lets you add four Gigabit Power over Ethernet ports through a single PCI Express slot. Each port can provide up to 25.5W of power, combining network data and power over a single Ethernet cable for reduced cable clutter and added convenience for remote PoE devices.
The PCI express PoE card supports the IEEE 802.3at (Type 1 and 2) standard for Power Sourcing Equipment (PSE), and can deliver up to 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and data connection for PoE devices such as IP cameras, IP phones or wireless access points.
Suitable for any standard profile PCIe-enabled client, server or workstation, the PoE network card supports features such as Jumbo Frames (up to 9KB), VLAN tagging and Wake on LAN (WoL).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Position your network devices where power outlets aren’t available, with 25.5 Watts per-port PoE output
- Reduce expenses by using existing standard Cat5 (or better) Ethernet cabling to deliver power and data
- Optimize network traffic with support for advanced features, like Jumbo Frames and VLAN tagging
Technical specifications
Logistics data
| Harmonized System (HS) code | 85176990 |
Software
| Drivers included | Y |
| Server operating systems supported | Windows Server 2003,Windows Server 2008 R2,Windows |
Systemanforderung
| Linux operating systems supported | Y |
Kopfhörer
| Chipset | RTL8111E |
Verpackungsdaten
| Package weight | 428 g |
| Package depth | 296 mm |
| Package width | 188 mm |
| Package height | 66 mm |
Sonstige Funktionen
| Networking standards | IEEE 802.1p,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IE |
| Manual | Y |
| Output voltage | 48 |
| Buffer size | 48 KB |
| Number of SATA power connectors | 1 |
Sustainability
| Sustainability certificates | RoHS |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 |
| Storage temperature (T-T) | -40 - 75 |
| Operating temperature (T-T) | 0 - 55 |
Audio
| Internal | Y |
Gewicht und Abmessungen
| Weight | 102 g |
| Height | 120 mm |
| Width | 18 mm |
| Depth | 243 mm |
Ergonomics
| LED indicators | Link,PoE |
Features
| Maximum data transfer rate | 2,000 Mbit/s |
Computer system
| Windows operating systems supported | Windows 10,Windows 10Education,Windows 10Educati |
Mouse
| Certification | CE, FCC, REACH, TAA |
Network
| Cabling technology | 10/100/1000BaseT(X) |
| Ethernet LAN | Y |
| Wake-on-LAN ready | Y |
| Full duplex | Y |
| Ethernet LAN data rates | 10,100,1000 |
| Jumbo frames support | Y |
| Jumbo frames | 9,000 |
| Auto MDIX IEEE | Y |
Ports & interfaces

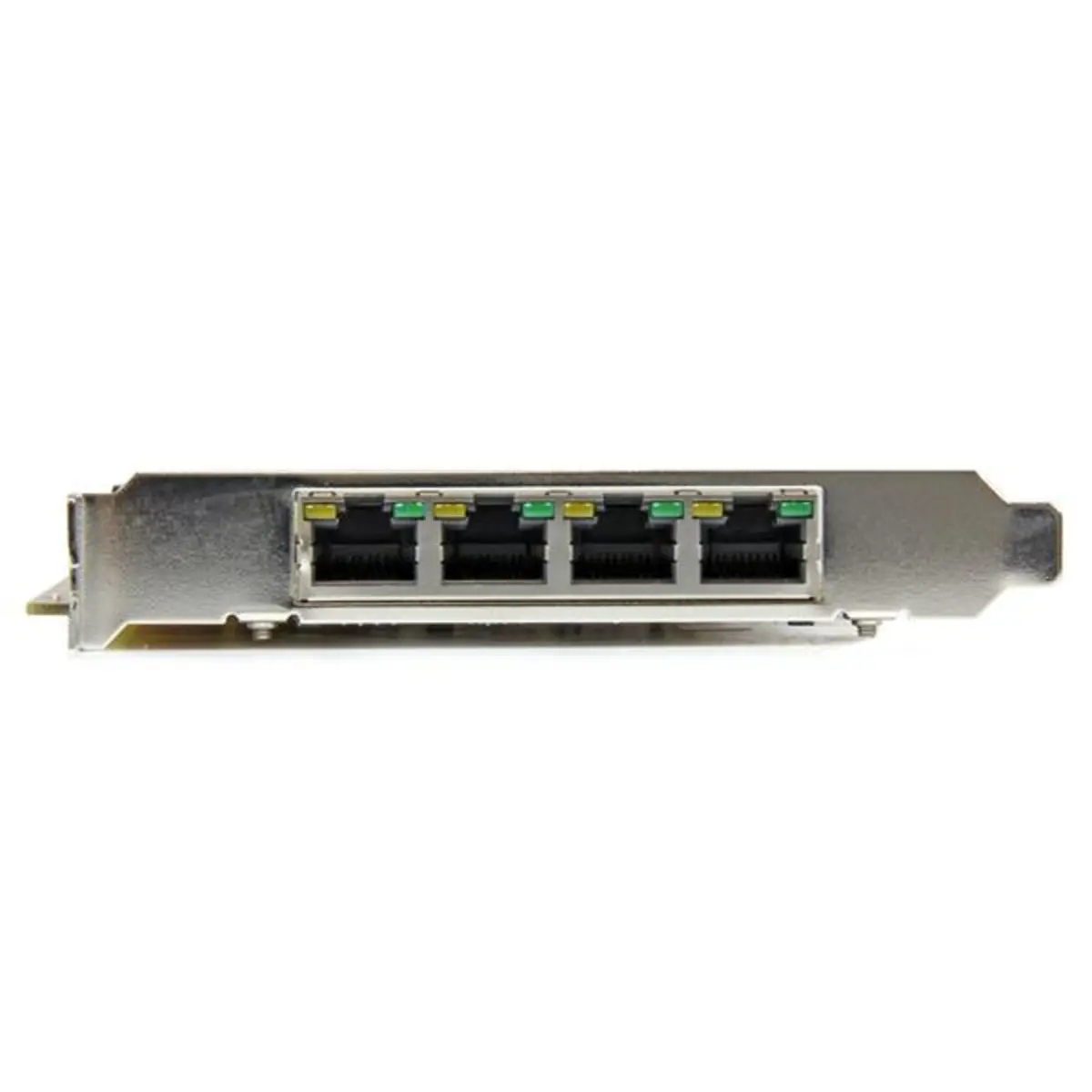

| Ethernet LAN (RJ-45) ports | 4 |
| Host interface | PCI Express |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| PCI Card form factor | Full-height |
ID: 131446
StarTech.com ID: ST4000PEXPSE
4-Port Gigabit Netzwerkkarte PCIe PoE
Detailed product title
Detailed product title
StarTech.com 4-Port Gigabit Netzwerkkarte PCIe PoE
5 Images
Gross:
incl.
vat.
ship in 2-3 weeks
Added to cart
Gross:
incl.
vat.
ship in 2-3 weeks
Product description
Add 4 Gigabit Power over Ethernet ports to a PCI Express-enabled computer
The ST4000PEXPSE 4-Port PoE NIC lets you add four Gigabit Power over Ethernet ports through a single PCI Express slot. Each port can provide up to 25.5W of power, combining network data and power over a single Ethernet cable for reduced cable clutter and added convenience for remote PoE devices.
The PCI express PoE card supports the IEEE 802.3at (Type 1 and 2) standard for Power Sourcing Equipment (PSE), and can deliver up to 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and data connection for PoE devices such as IP cameras, IP phones or wireless access points.
Suitable for any standard profile PCIe-enabled client, server or workstation, the PoE network card supports features such as Jumbo Frames (up to 9KB), VLAN tagging and Wake on LAN (WoL).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Position your network devices where power outlets aren’t available, with 25.5 Watts per-port PoE output
- Reduce expenses by using existing standard Cat5 (or better) Ethernet cabling to deliver power and data
- Optimize network traffic with support for advanced features, like Jumbo Frames and VLAN tagging
The ST4000PEXPSE 4-Port PoE NIC lets you add four Gigabit Power over Ethernet ports through a single PCI Express slot. Each port can provide up to 25.5W of power, combining network data and power over a single Ethernet cable for reduced cable clutter and added convenience for remote PoE devices.
The PCI express PoE card supports the IEEE 802.3at (Type 1 and 2) standard for Power Sourcing Equipment (PSE), and can deliver up to 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and data connection for PoE devices such as IP cameras, IP phones or wireless access points.
Suitable for any standard profile PCIe-enabled client, server or workstation, the PoE network card supports features such as Jumbo Frames (up to 9KB), VLAN tagging and Wake on LAN (WoL).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Position your network devices where power outlets aren’t available, with 25.5 Watts per-port PoE output
- Reduce expenses by using existing standard Cat5 (or better) Ethernet cabling to deliver power and data
- Optimize network traffic with support for advanced features, like Jumbo Frames and VLAN tagging
Technical specifications
Logistics data
| Harmonized System (HS) code | 85176990 |
Software
| Drivers included | Y |
| Server operating systems supported | Windows Server 2003,Windows Server 2008 R2,Windows |
Systemanforderung
| Linux operating systems supported | Y |
Kopfhörer
| Chipset | RTL8111E |
Verpackungsdaten
| Package weight | 428 g |
| Package depth | 296 mm |
| Package width | 188 mm |
| Package height | 66 mm |
Sonstige Funktionen
| Networking standards | IEEE 802.1p,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IE |
| Manual | Y |
| Output voltage | 48 |
| Buffer size | 48 KB |
| Number of SATA power connectors | 1 |
Sustainability
| Sustainability certificates | RoHS |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 |
| Storage temperature (T-T) | -40 - 75 |
| Operating temperature (T-T) | 0 - 55 |
Audio
| Internal | Y |
Gewicht und Abmessungen
| Weight | 102 g |
| Height | 120 mm |
| Width | 18 mm |
| Depth | 243 mm |
Ergonomics
| LED indicators | Link,PoE |
Features
| Maximum data transfer rate | 2,000 Mbit/s |
Computer system
| Windows operating systems supported | Windows 10,Windows 10Education,Windows 10Educati |
Mouse
| Certification | CE, FCC, REACH, TAA |
Network
| Cabling technology | 10/100/1000BaseT(X) |
| Ethernet LAN | Y |
| Wake-on-LAN ready | Y |
| Full duplex | Y |
| Ethernet LAN data rates | 10,100,1000 |
| Jumbo frames support | Y |
| Jumbo frames | 9,000 |
| Auto MDIX IEEE | Y |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 4 |
| Host interface | PCI Express |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| PCI Card form factor | Full-height |
