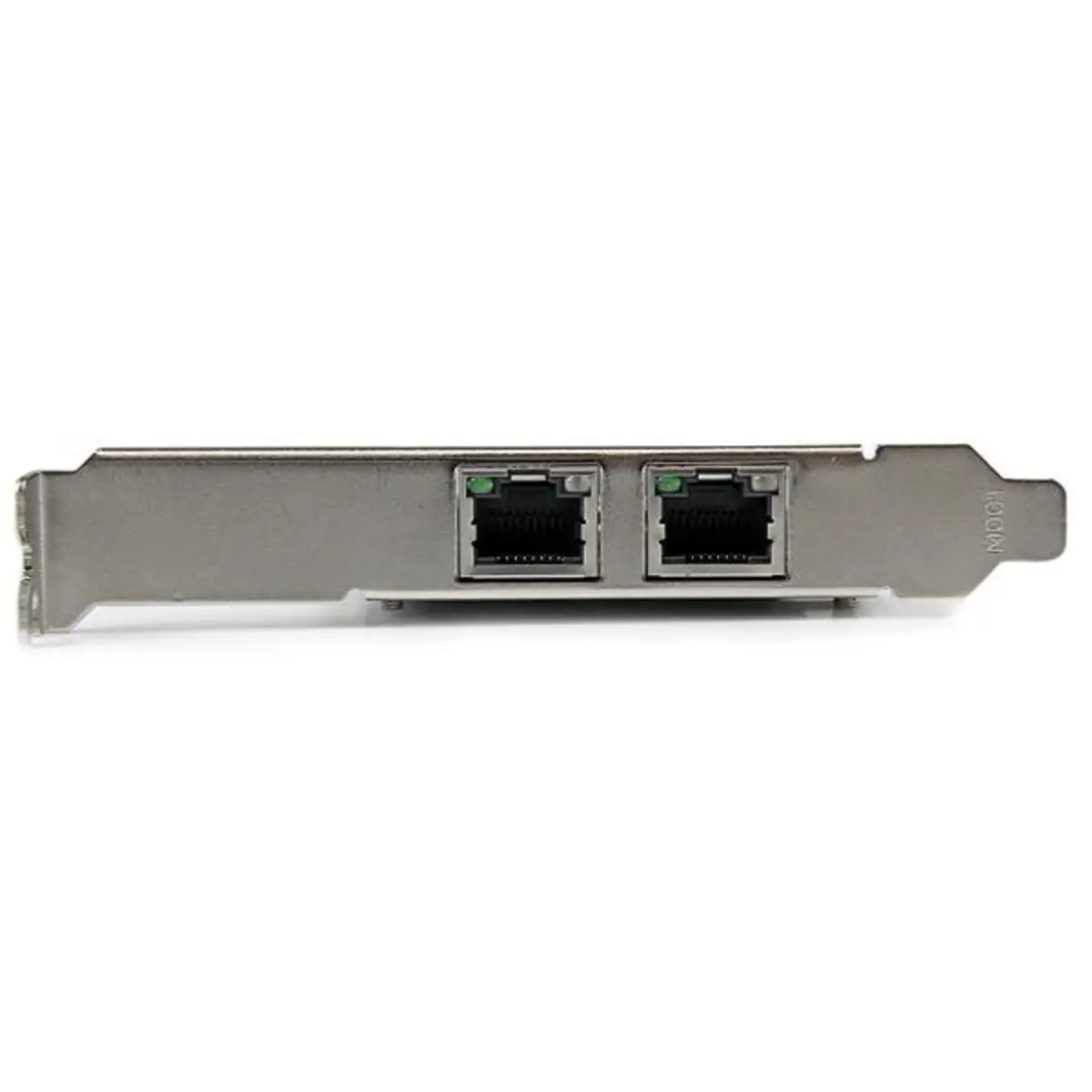

- StarTech PCI-Express Network Card Gigabit Ethernet Dual Port
1 Images
ID: 124247
StarTech.com ID: ST2000SPEXI
StarTech PCI-Express Network Card Gigabit Ethernet Dual Port
Detailed product title
Detailed product title
StarTech.com Dual Port PCI Express (PCIe x4) Gigabit Ethernet Server Adapter Network Card - Intel i350 NIC. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 2000 Mbit/s. Product colour: Aluminium, Black
Product colour Aluminium,Black
Gross:
incl.
vat.
please ask for availability
Added to cart
Gross:
incl.
vat.
please ask for availability
Product description
Add dual Gigabit Ethernet ports to a client, server or workstation through a PCI Express slot
The ST2000SPEXI PCI Express Dual Port Gigabit Network Card lets you add two gigabit Ethernet ports to a desktop computer through a single, four-lane (x4 or higher)PCI Express slot.Each port is fully compatible with IEEE 802.3/u/ab standards, for 10/100/1000 Mbps auto-negotiation.
This 2-port GbE network card is based on the high-performance Intel® I350 chipset, which offers several advanced driver options including IEEE 802.3ad link aggregation / teaming support, enabling you to add additional bandwidth to your system. Support for Jumbo Frames, full-duplex operation and 802.1q VLAN tagging also aid in creating an efficient network configuration.
Also useful for virtualization applications (check your VM software for chipset compatibility) or setting up a dual-homed host configuration, this dual-port network card lets you accommodate several complex network scenarios, to meet your business needs. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
The ST2000SPEXI PCI Express Dual Port Gigabit Network Card lets you add two gigabit Ethernet ports to a desktop computer through a single, four-lane (x4 or higher)PCI Express slot.Each port is fully compatible with IEEE 802.3/u/ab standards, for 10/100/1000 Mbps auto-negotiation.
This 2-port GbE network card is based on the high-performance Intel® I350 chipset, which offers several advanced driver options including IEEE 802.3ad link aggregation / teaming support, enabling you to add additional bandwidth to your system. Support for Jumbo Frames, full-duplex operation and 802.1q VLAN tagging also aid in creating an efficient network configuration.
Also useful for virtualization applications (check your VM software for chipset compatibility) or setting up a dual-homed host configuration, this dual-port network card lets you accommodate several complex network scenarios, to meet your business needs. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Technical specifications
Logistics data
| Harmonized System (HS) code | 85176990 |
Leistungen
| Mean time between failures (MTBF) | 432,400 std |
Design
| Product colour | Aluminium,Black |
| Component for | Server |
Kopfhörer
| Chipset | Intel - I350-AM2 |
Verpackungsdaten
| Package weight | 165 g |
| Package depth | 144 mm |
| Package width | 172 mm |
| Package height | 29 mm |
| Low-profile bracket | Y |
Sonstige Funktionen
| Interface | Ethernet |
| Networking standards | IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3u |
| Manual | Y |
| Power LED | Y |
| Link/Act LED | Y |
Sustainability
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
Operational conditions
| Operating relative humidity (H-H) | 5 - 85 |
| Storage temperature (T-T) | -20 - 60 |
| Operating temperature (T-T) | 0 - 50 |
Audio
| Internal | Y |
Ergonomics
| LED indicators | Activity,Link |
Features
| Maximum data transfer rate | 2,000 Mbit/s |
Computer system
| Linux operating systems supported | Y |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows Vista x64,Windows XP,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
Mouse
| Certification | CE, FCC, REACH |
Network
| LAN controller | Intel I350-AM2 |
| Cabling technology | 10/100/1000BaseT(X) |
| Ethernet LAN | Y |
| Wake-on-LAN ready | Y |
| Full duplex | Y |
| Ethernet LAN data rates | 10,100,1000 |
| Jumbo frames support | Y |
| Jumbo frames | 9,000 |
| VLAN tagging | Y |
| Auto MDIX IEEE | Y |
Software
| Drivers included | Y |
| Server operating systems supported | Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019 |
Tablet
| Connectivity technology | Wired |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 2 |
| Host interface | PCI Express |
| PCI version | 2.1 |
Weight & dimensions
| Weight | 80 g |
| Height | 121 mm |
| Width | 19 mm |
| Depth | 67 mm |
