Product description

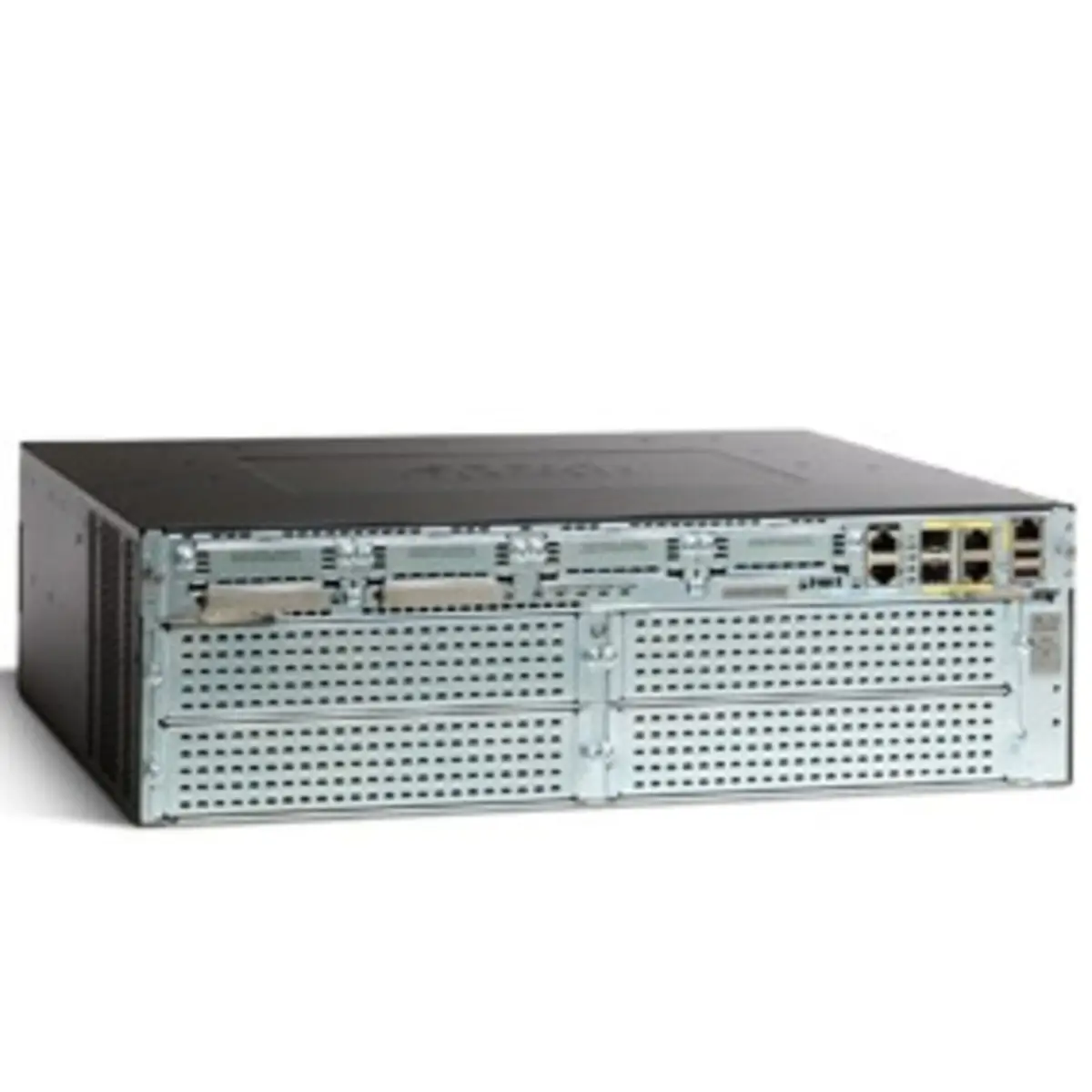

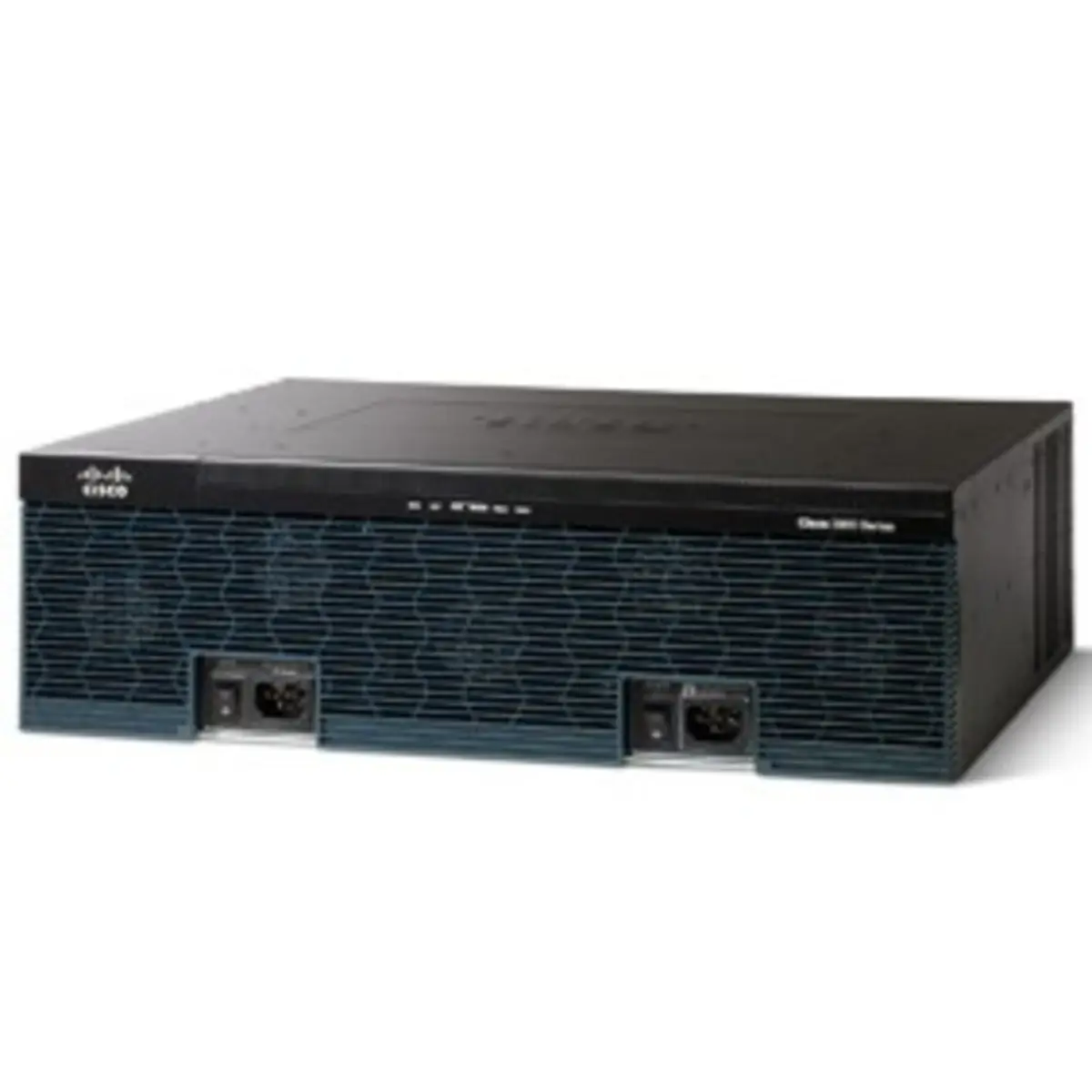

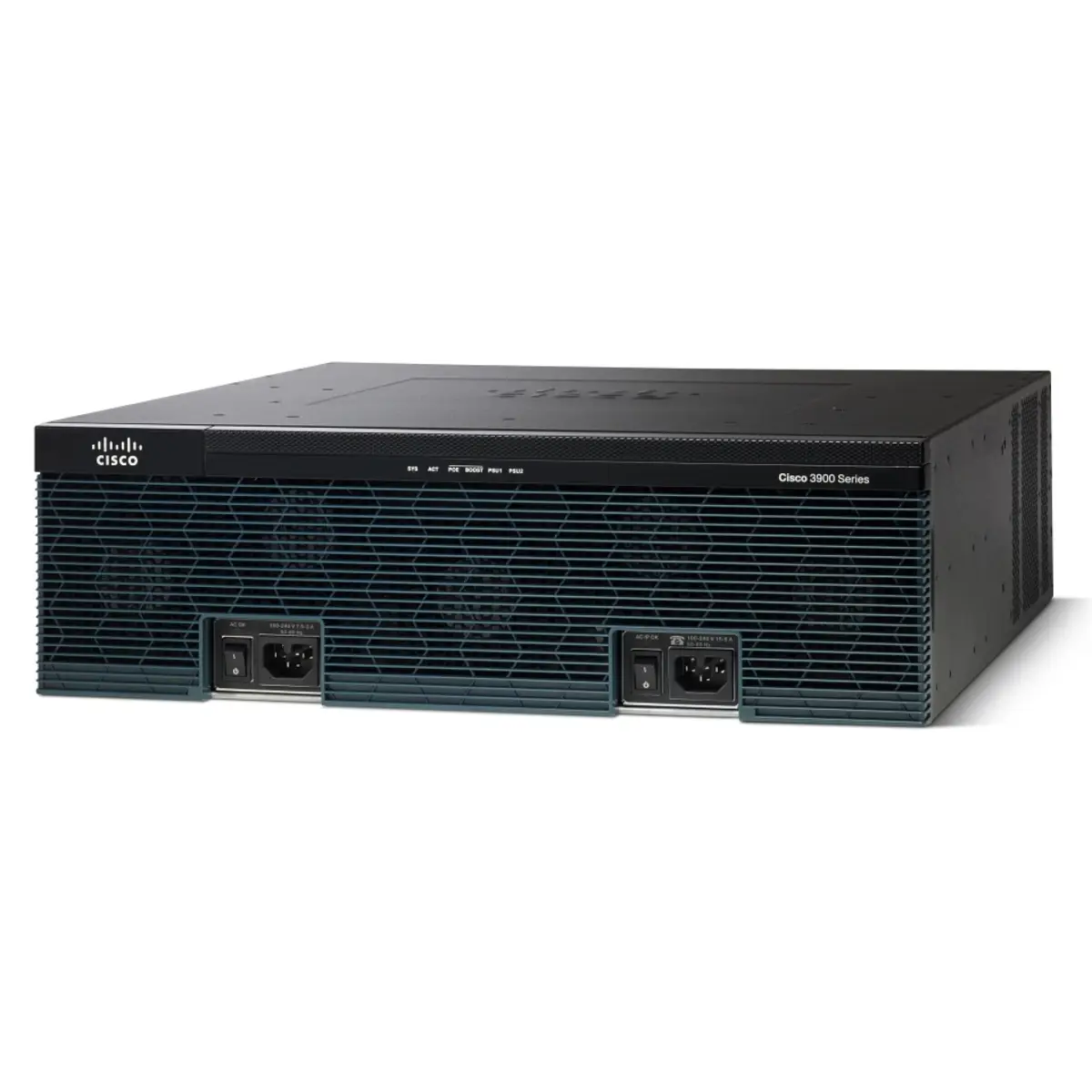

The Cisco 3945E Integrated Services Router (ISR) delivers highly secure data, voice, video, and application services to large branch offices.
Cisco 3945E features include:
- Modular Services Performance Engine (SPE) 250 for even higher performance as WAN environments evolve;
- 4 integrated 10/100/1000 Ethernet ports with 2 SFP ports;
- 4 service module slots;
- 3 Enhanced High-Speed WAN Interface Card slots;
- 3 onboard digital signal processor (DSP) slots.
Power
- Dual integrated power supplies;
- Fully integrated power distribution to modules supporting 802.3af Power over Ethernet (PoE)'
- A universal IOS image helps you deploy new IOS services quickly.
Security
- Embedded hardware-accelerated VPN encryption for secure connectivity;
- Integrated threat control using Cisco IOS Firewall, Zone-Based Firewall, IPS, and Content Filtering.
- Identity management using authentication, authorization, and accounting (AAA) and public key infrastructure.
Unified Communications
- High-density packet voice DSP module, optimized for voice and video support;
- Standards-certified VoiceXML browser services;
- Cisco Unified Border Element capabilities for up to 2500 sessions;
- Support for Cisco Unity Express voicemail, Cisco Communications Manager Express, and Survivable Remote Site Telephony.
Cisco 3945E features include:
- Modular Services Performance Engine (SPE) 250 for even higher performance as WAN environments evolve;
- 4 integrated 10/100/1000 Ethernet ports with 2 SFP ports;
- 4 service module slots;
- 3 Enhanced High-Speed WAN Interface Card slots;
- 3 onboard digital signal processor (DSP) slots.
Power
- Dual integrated power supplies;
- Fully integrated power distribution to modules supporting 802.3af Power over Ethernet (PoE)'
- A universal IOS image helps you deploy new IOS services quickly.
Security
- Embedded hardware-accelerated VPN encryption for secure connectivity;
- Integrated threat control using Cisco IOS Firewall, Zone-Based Firewall, IPS, and Content Filtering.
- Identity management using authentication, authorization, and accounting (AAA) and public key infrastructure.
Unified Communications
- High-density packet voice DSP module, optimized for voice and video support;
- Standards-certified VoiceXML browser services;
- Cisco Unified Border Element capabilities for up to 2500 sessions;
- Support for Cisco Unity Express voicemail, Cisco Communications Manager Express, and Survivable Remote Site Telephony.
Technical specifications
Design
Safety | UL 60950-1, CAN/CSA C22.2No. 60950-1, EN 60950-1, |
Rack capacity | 3U |
Anschlüsse und Schnittstellen
Ethernet LAN (RJ-45) ports | 4 |
USB ports quantity | 2 |
USB version | 2.0 |
Installed SFP modules quantity | 2 |
Netzwerk
Cabling technology | 10/100/1000Base-T(X) |
Ethernet LAN | Y |
Security algorithms | IPSEC,SSL/TLS |
Web-based management | N |
Full duplex | Y |
Ethernet LAN data rates | 10,100,1000 |
Ergonomie
On/off switch | Y |
Protokolle
Supported protocols | IPv4, IPv6, OSPF, EIGRP,BGP, IS‑IS, IGMPv3, PIM S |
Supported network protocols | IPSec |
DHCP server | N |
DHCP client | N |
Switching protocols | MPLS |
Routing protocols | BGP,EIGRP,IGRP,IS-IS,OSPF |
WAN-Verbindung
Ethernet WAN | Y |
Sicherheit
Filtering description | Content |
Technische Details
AC input voltage | 100 - 240 |
Zertifikate
Electromagnetic compatibility | 47 CFR, Part 15, ICES-003Class A, EN55022 Class A |
Leistung
Power source type | AC |
AC input frequency | 47 - 63 |
Betriebsbedingungen
Operating relative humidity (H-H) | 5 - 85 |
Storage temperature (T-T) | -40 - 70 |
Operating temperature (T-T) | 0 - 40 |
Operating altitude | 0 - 4000 |
Storage relative humidity (H-H) | 5 - 95 |
Non-operating altitude | 0 - 4750 |
Sonstige Funktionen
Networking standards | IEEE 802.1Q,IEEE 802.1ag,IEEE 802.3 |
Rack mounting | Y |
Power consumption (typical) | 158 W |
Input current | 7.1 |
Internal memory | 1,024 MB |
Flash memory | 256 MB |
Gewicht und Abmessungen
Weight | 27,200 g |
Height | 133.35 mm |
Width | 438.15 mm |
Depth | 476.25 mm |
