Product description
KVM with USB | TAA Compliant | USB 3.0 Hub | HDMI 2.0 | Digital & Analog Audio
This 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of two connected computers.
4K 60Hz Picture and Full Audio Support
The HDMI KVM switch supports resolutions up to 4K at 60Hz. It drives two large monitors at the full 4K resolution. Includes EDID and HDCP signal emulation so monitors always remain synced for faster switching times, and desktop settings are maintained to avoid disrupting your workflow.
With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the HDMI 2.0 KVM switch delivers full audio compatibility.
Integrated USB Hub
The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.
Windows, Mac & Linux Compatible
While supporting Windows, this HDMI KVM switch is also compatible with Mac and Linux operating systems.
Easy to Operate

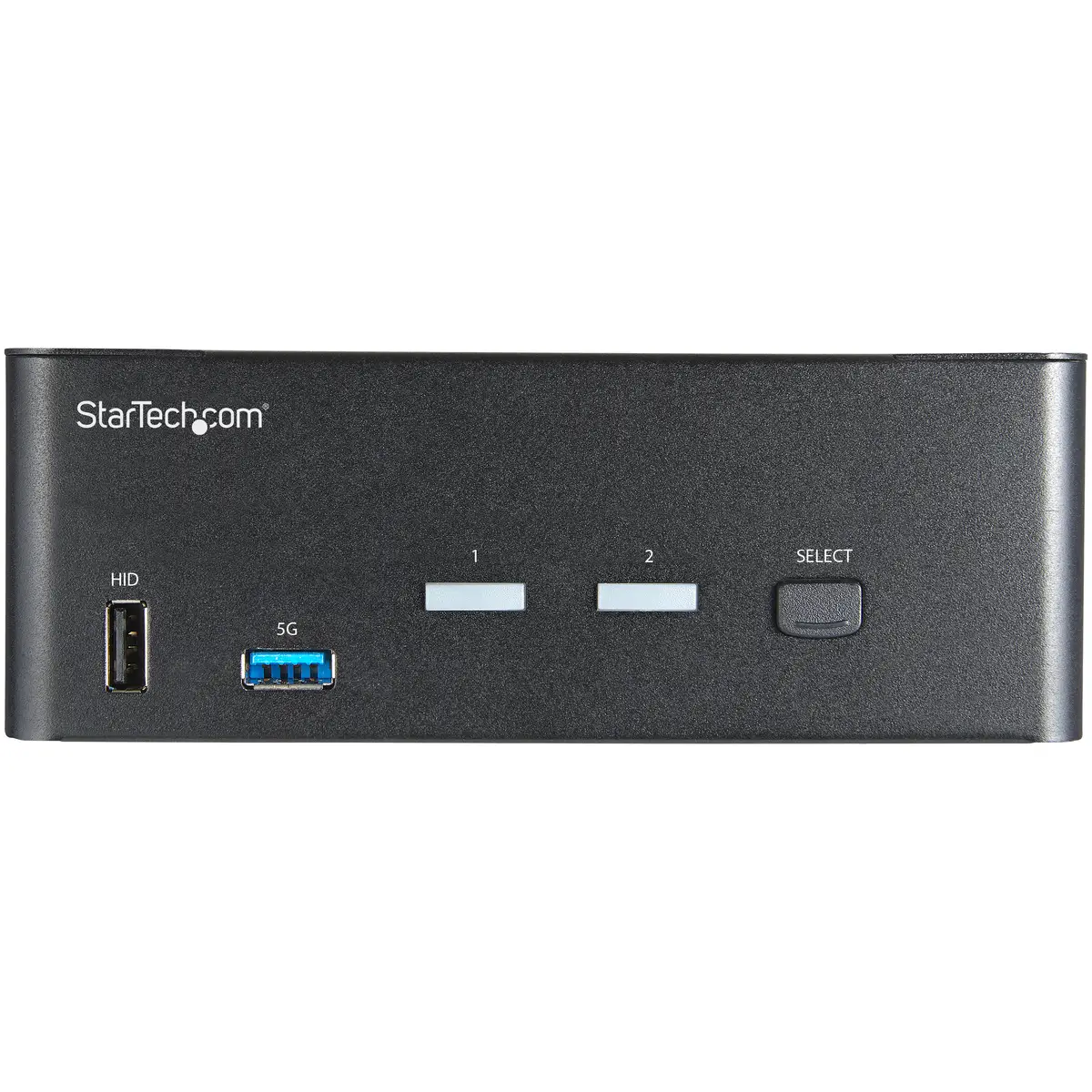

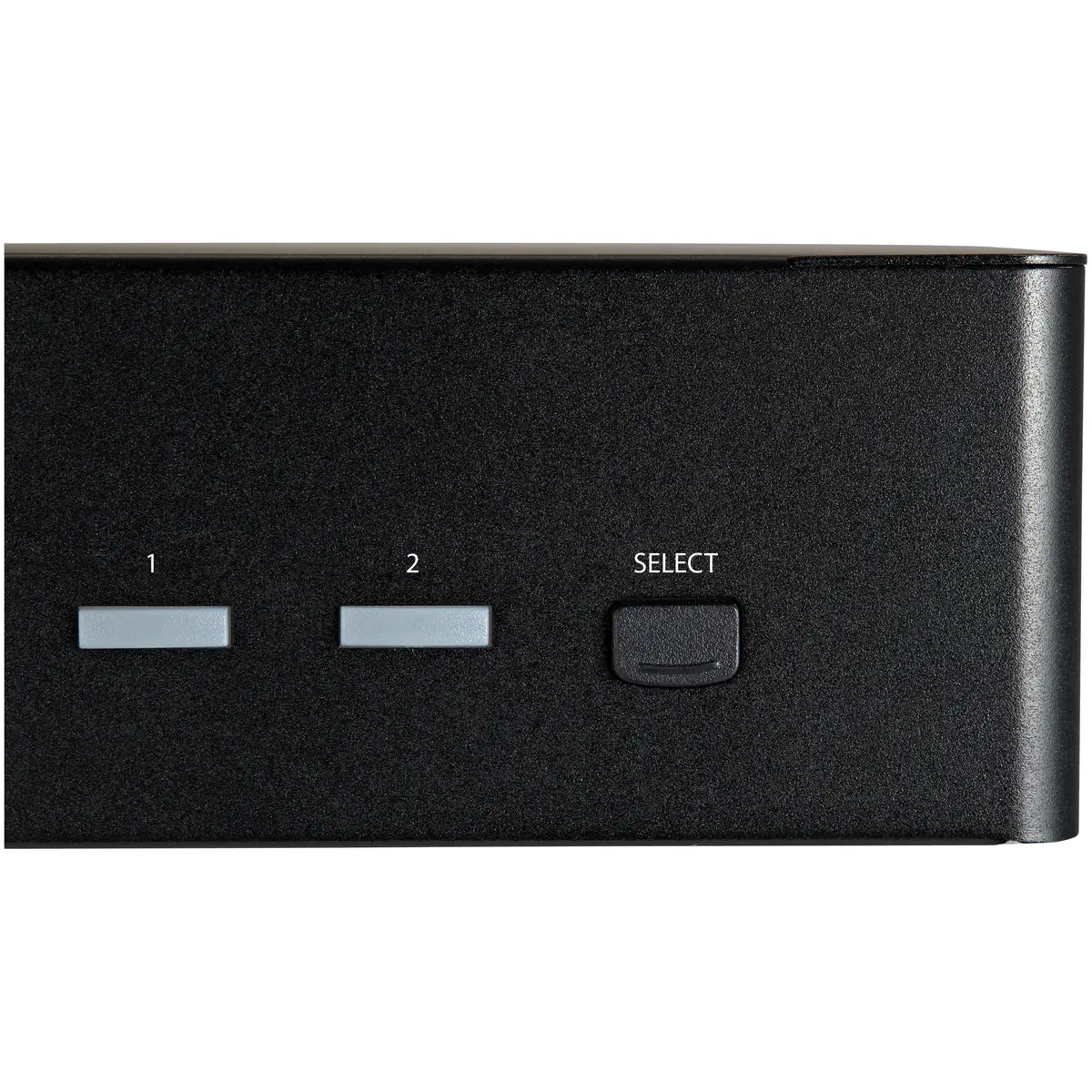

The front-panel pushbuttons make it easy to switch between systems and activate the auto-scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors.
This 2-port HDMI KVM switch is backed by a 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- DUAL 4K 60Hz UHD: 2 Port HDMI Dual Screen KVM switch supports up to 4K at 60Hz on two monitors for applications like CAD/CAM, video editing and content creation; works with major brands including Dell, HP, and Lenovo
- FAST SWITCHING: Includes EDID and HDCP signal emulation so monitors stay synced for faster switching times, and desktop settings are maintained to avoid disrupting your workflow while switching between up to 2 computers
- TECH SPECS: 2-Port Dual Screen HDMI 2.0
This 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of two connected computers.
4K 60Hz Picture and Full Audio Support
The HDMI KVM switch supports resolutions up to 4K at 60Hz. It drives two large monitors at the full 4K resolution. Includes EDID and HDCP signal emulation so monitors always remain synced for faster switching times, and desktop settings are maintained to avoid disrupting your workflow.
With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the HDMI 2.0 KVM switch delivers full audio compatibility.
Integrated USB Hub
The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.
Windows, Mac & Linux Compatible
While supporting Windows, this HDMI KVM switch is also compatible with Mac and Linux operating systems.
Easy to Operate
The front-panel pushbuttons make it easy to switch between systems and activate the auto-scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors.
This 2-port HDMI KVM switch is backed by a 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- DUAL 4K 60Hz UHD: 2 Port HDMI Dual Screen KVM switch supports up to 4K at 60Hz on two monitors for applications like CAD/CAM, video editing and content creation; works with major brands including Dell, HP, and Lenovo
- FAST SWITCHING: Includes EDID and HDCP signal emulation so monitors stay synced for faster switching times, and desktop settings are maintained to avoid disrupting your workflow while switching between up to 2 computers
- TECH SPECS: 2-Port Dual Screen HDMI 2.0
Technical specifications
Design
| Product colour | Black |
| Built-in display | N |
| Push button | Y |
Logistics data
| Harmonized System (HS) code | 85176200 |
| Master (outer) case height | 277 mm |
| Master (outer) case width | 397 mm |
| Master (outer) case length | 315 mm |
| Products per master (outer) case | 6 ST |
Leistungen
| Housing material | Steel |
| Daisy chain | N |
| Mean time between failures (MTBF) | 156,000 std |
| Data transfer rate (max) | 5 Gbit/s |
| Audio channels | 7.1 |
| Number of users | 1 |
| Scan interval | 3,8,15,30 |
Kopfhörer
| Chipset | Genesys Logic - GL3523 |
Stromversorgung
| Power consumption (typical) | 36 W |
Power
| AC input voltage | 100 - 240 |
| Output current | 3 A |
| Compatible power plug types | AU,EU,JP,UK,US |
Verpackungsdaten
| AC adapter included | Y |
| Package weight | 147 g |
| Package depth | 189 mm |
| Package width | 238 mm |
| Package height | 91 mm |
| Rubber feet | Y |
Sonstige Funktionen
| Power plug type | Type M |
| Manual | Y |
| Rack mounting | N |
| External power adapter | Y |
| Audio connections | Y |
| Maximum resolution | 3840 x 2160 |
| Output voltage | 12 |
| Input current | 1 |
| Audio support | Y |
| IP control | N |
Operational conditions
| Operating relative humidity (H-H) | 0 - 80 |
| Storage temperature (T-T) | -10 - 60 |
| Operating temperature (T-T) | 0 - 40 |
Gewicht und Abmessungen
| Weight | 779 g |
| Height | 58 mm |
| Width | 100 mm |
| Depth | 160 mm |
Ergonomics
| LED indicators | Y |
| On Screen Display (OSD) | N |
Mouse
| Certification | CE, FCC, RoHS |
Keyboard
| Hot keys | Y |
| USB hub | Y |
Ports & interfaces
| HDMI ports quantity | 6 |
| HDMI version | 2.0 |
| Headphone outputs | 3 |
| HDCP | Y |
| USB connector type | Mini-USB B,USB Type-A,USBType-B |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| Video port type | HDMI |
| Keyboard port type | USB |
| Mouse port type | USB |
| Console ports | 3.5mm headphone,HDMI,USB A |
| Number of computers controlled | 2 |
| Console USB ports quantity | 4 |
