Name: Catalyst 3650 Switch managed 48x10/100/1000 (PoE+) +4xSFP Desktop an Rack montierbar PoE+
Brand: 60000017
SKU: 121906

text.skipToContent text.skipToNavigation

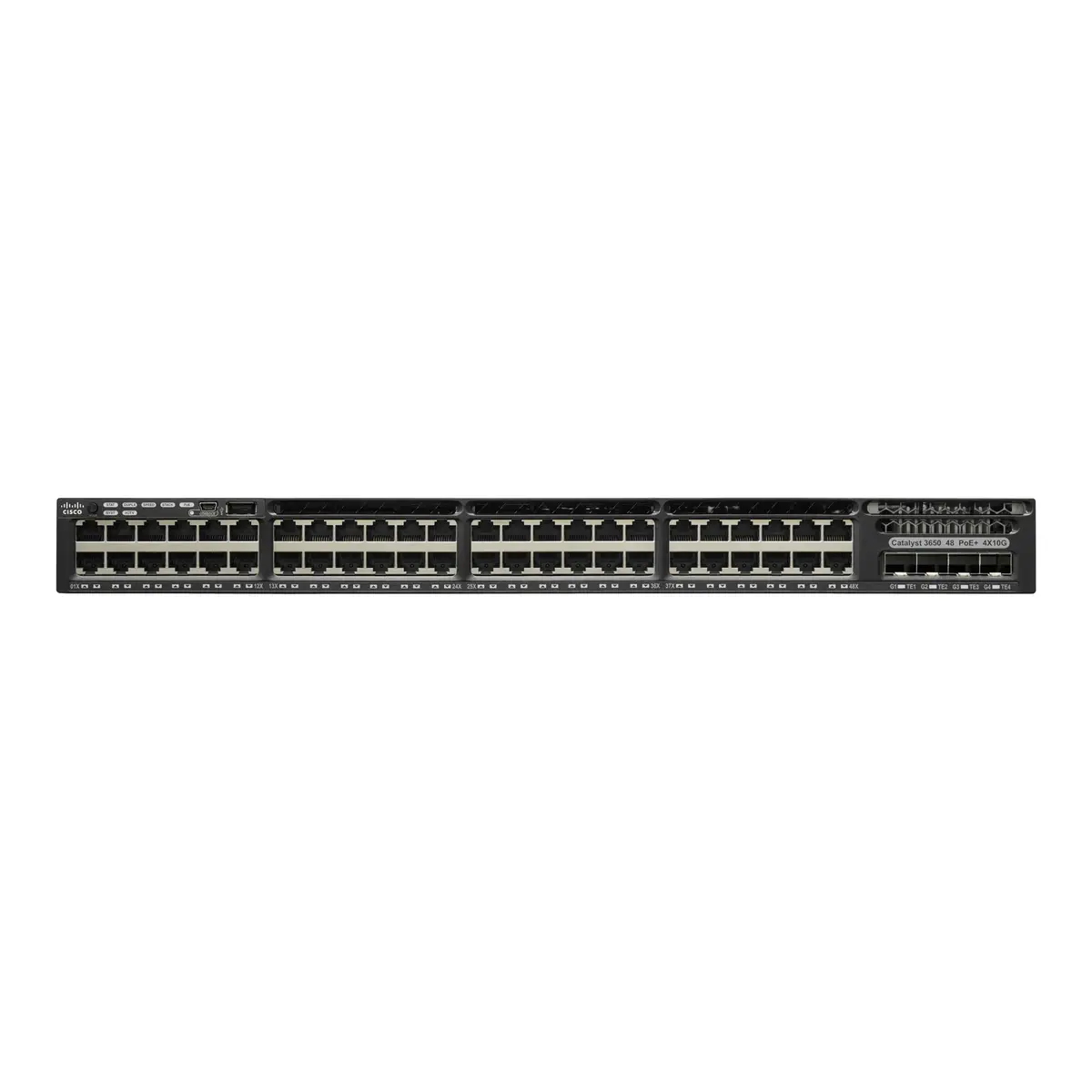

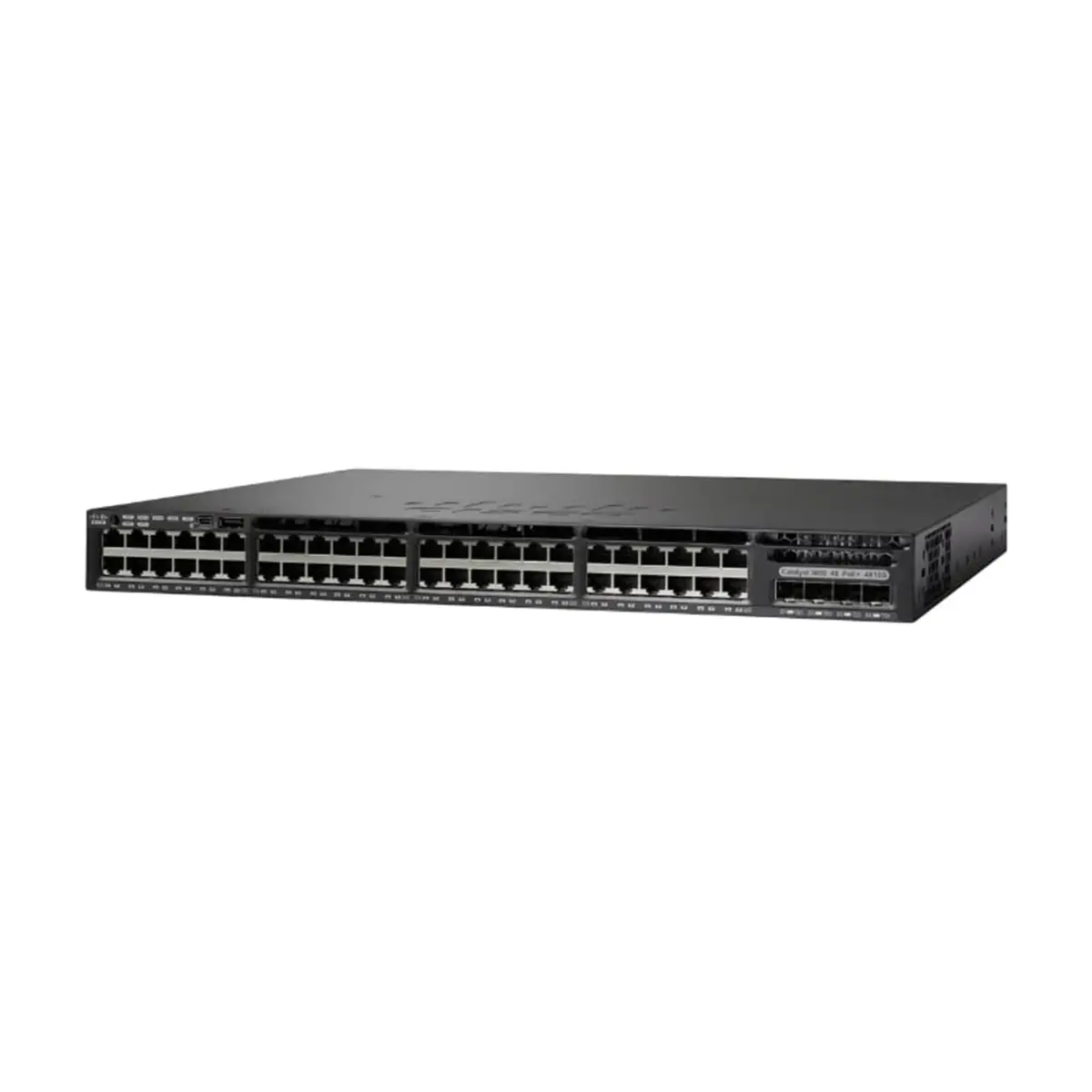

Catalyst 3650 Switch managed 48x10/100/1000 (PoE+) +4xSFP Desktop an Rack montierbar PoE+

ID: 121906 Cisco ID: WS-C3650-48PS-L

Catalyst 3650 Switch managed 48x10/100/1000 (PoE+) +4xSFP Desktop an Rack montierbar PoE+

Detailed product title

Cisco Catalyst 3650-48PS-L Network Switch, 48 Gigabit Ethernet (GbE) PoE+ Ports, four 1 G Uplinks, 640WAC Power Supply, 1 RU, LAN Base Feature Set, Enhanced Limited Lifetime Warranty (WS-C3650-48PS-L). Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 32000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Basic switching RJ-45 Ethernet ports quantity 48

please ask for availability

Added to cart

please ask for availability

Product description

The Cisco Catalyst 3650-48PS-L Network Switch is a next-generation, enterprise-class access-layer switch that provides the foundation for full convergence between wired and wireless on a single platform. Standalone or stackable, this switch is built on the advanced Cisco StackWise-160 and takes advantage of the new Cisco Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC).

Technical specifications

Logistics data

Harmonized System (HS) code

85176990

Leistungen

Memory type	DRAM
Mean time between failures (MTBF)	383,760 std

Design

Stackable

Thin Client

Internal memory

4,096 MB

Power

Number of power supply units	1
Redundant power supply (RPS) support	Y
Power consumption (typical)	64.18 W
AC input voltage	100 - 240
AC input frequency	50 - 60

Certificates

Safety

UL 60950-1, CAN/CSA-C22.2No. 60950-1, EN 60950-1,

Sonstige Funktionen

Networking standards	IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IE
Rack mounting	Y
Flash memory	2,000 MB
Noise level	48 dB
Switching capacity	176 Gbit/s

Operational conditions

Operating relative humidity (H-H)	5 - 96
Storage temperature (T-T)	-40 - 70
Operating temperature (T-T)	-5 - 50
Operating altitude	0 - 1500
Non-operating altitude	0 - 5000

Ergonomics

LED indicators

Network

Full duplex	Y
MAC address table	32,000 entrie
Jumbo frames support	Y
Auto MDI/MDI-X	Y
Link aggregation	Y
VLAN support	Y
Bandwidth	160 Gbit/s
Number of VLANs	4,094
Rate limiting	Y
IP routing	Y
Spanning tree protocol	Y
10G support	N

Ports & interfaces

SFP module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	48

Weight & dimensions

Weight	7,600 g
Height	44 mm
Width	445 mm
Depth	448 mm

Power over Ethernet (PoE)

Power over Ethernet plus (PoE+) ports quantity	48
Total Power over Ethernet (PoE) budget	390 W

Multicast features

Multicast support

Security

Access Control List (ACL)	Y
IGMP snooping	Y
DHCP features	DHCP server
SSH/SSL support	Y

Management features

Web-based management	Y
Quality of Service (QoS) support	Y
Switch layer	L3

Downloads

121906_document_DE_001

PDF Download
