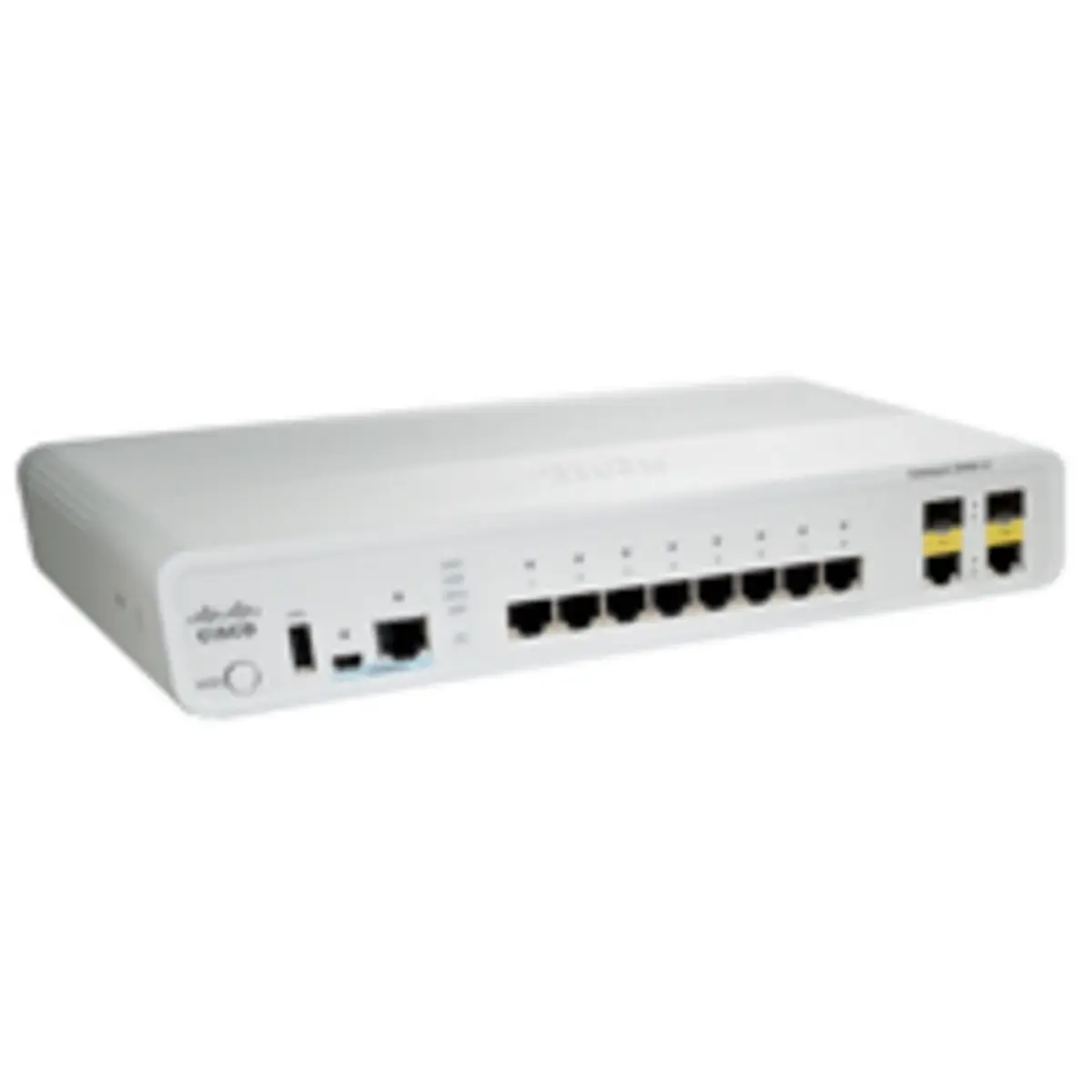

Cisco® Catalyst® compact switches easily extend an intelligent, fully managed Cisco Catalyst wired switching infrastructure, including end-to-end IP and Borderless Network services, with a single Ethernet cable or fiber from the wiring closet. These attractive, small form-factor Fast Ethernet switches are ideal for connecting multiple devices on the retail sales floor; in classrooms, hotels, and factories; and for extending wireless LAN networks: wherever space is at a premium and multiple cable runs could be challenging.
Cisco Catalyst 2960-C Series Compact Switche highlights:
- Extend a highly secure, intelligent, managed Cisco Catalyst infrastructure with a single Ethernet cable or fiber from the wiring closet;
- Support for advanced security and services, including voice, video, and Cisco Borderless Network services, to remote endpoints;
- Attractive, small form factor and fanless operation fit in confined spaces where multiple cable runs could be challenging;
- Easy to deploy, manage and extend the network loop free;
- Enhanced limited lifetime hardware warranty.
| Mean time between failures (MTBF) | 516,980 std |
| Weight | 1,270 g |
| Supported network protocols | IP, IPv6, FTP, TFTP, UDP, ICMP, TCP, ARP, NTP, OSPFv2, BOOTP, Telnet |
| Power consumption (typical) | 11 W |
| Throughput | 3.8 Mpps |
| Safety | UL, CAN/CSA, EN, IEC, CE, GB |
| Networking standards | IEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Rack mounting | N |
| Input voltage | 100 - 240 |
| Input current | 0.21 - 0.1 |
| Internal memory | 128 MB |
| Flash memory | 64 MB |
| Flow control support | Y |
| Operating relative humidity (H-H) | 5 - 95 |
| Storage temperature (T-T) | -25 - 70 |
| Operating temperature (T-T) | -5 - 45 |
| Operating altitude | 0 - 3048 |
| Storage relative humidity (H-H) | 5 - 95 |
| Non-operating altitude | 0 - 4000 |
| LED indicators | LAN,Link,Power,Y |
| Height | 44.4 mm |
| Width | 269 mm |
| Depth | 213 mm |
| Certification | FCC, EN, CE, AS/NZS, VCCI, KCC, ANATEL, CCC, GOST, ROHS, CLEI |
| Copper ethernet cabling technology | 1000BASE-T,1000BASE-TX,100BASE-T,100BASE-TX,10BASE-T |
| Full duplex | Y |
| MAC address table | 8,000 entrie |
| Jumbo frames support | Y |
| Auto MDI/MDI-X | Y |
| Link aggregation | Y |
| Number of VLANs | 255 |
| Routing entries | 4,000 |
| Rate limiting | Y |
| Broadcast storm control | Y |
| IP routing | Y |
| Spanning tree protocol | Y |
| 10G support | N |
| Heat dissipation | 38 BTU/h |
| USB 2.0 ports quantity | 2 |
| Console port | RS-232 |
| Fiber ports quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Combo SFP ports quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Power over Ethernet (PoE) | N |
| Multicast support | Y |
| Security algorithms | 802.1x RADIUS,SSH |
| Access Control List (ACL) | Y |
| IGMP snooping | Y |
| DHCP features | DHCP server |
| Static port security | Y |
| SSH/SSL support | Y |
| BPDU filtering/protection | Y |
| Fiber ethernet cabling technology | 1000BASE‑LH,1000BASE‑LX,1000BASE‑SX,1000BASE‑ZX,100BASE-BX,100BASE-FX,100BASE-LX |
| Management protocols | SNMPv1/v2c/v3, LLDP, IGMP |
| Web-based management | Y |
| Quality of Service (QoS) support | Y |
| Switch type | Managed |
| System event log | Y |
| MIB support | RMON-MIB, RMON2-MIB, Bridge-MIB, CDP-MIB, Entity-MIB, ENVMON-MIB, Flash-MIB, FTP-MIB, Image-MIB, IP-Stat-MIB, LAG-MIB, MAC-MIB, PAGP-MIB, Ping-MIB, QOS-MIB, Security-MIB, RTTMON-MIB, SMI-MIB, STP-MIB, Syslog-MIB, TC-MIB, TCP-MIB, UDLDP-MIB, VTP-MIB, Eth-MIB, PAE-MIB, IF-MIB, IP-MIB, TS-MIB, UDP-MIB, ePM MIB |
| Traffic classification | Y |
| Switch layer | L2 |
| ARP inspection | Y |
| Product colour | White |
| Stackable | N |
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity 8
Power over Ethernet (PoE) N
Switch type Managed
Cisco® Catalyst® compact switches easily extend an intelligent, fully managed Cisco Catalyst wired switching infrastructure, including end-to-end IP and Borderless Network services, with a single Ethernet cable or fiber from the wiring closet. These attractive, small form-factor Fast Ethernet switches are ideal for connecting multiple devices on the retail sales floor; in classrooms, hotels, and factories; and for extending wireless LAN networks: wherever space is at a premium and multiple cable runs could be challenging.
Cisco Catalyst 2960-C Series Compact Switche highlights:
- Extend a highly secure, intelligent, managed Cisco Catalyst infrastructure with a single Ethernet cable or fiber from the wiring closet;
- Support for advanced security and services, including voice, video, and Cisco Borderless Network services, to remote endpoints;
- Attractive, small form factor and fanless operation fit in confined spaces where multiple cable runs could be challenging;
- Easy to deploy, manage and extend the network loop free;
- Enhanced limited lifetime hardware warranty.
| Mean time between failures (MTBF) | 516,980 std |
| Weight | 1,270 g |
| Supported network protocols | IP, IPv6, FTP, TFTP, UDP, ICMP, TCP, ARP, NTP, OSPFv2, BOOTP, Telnet |
| Power consumption (typical) | 11 W |
| Throughput | 3.8 Mpps |
| Safety | UL, CAN/CSA, EN, IEC, CE, GB |
| Networking standards | IEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Rack mounting | N |
| Input voltage | 100 - 240 |
| Input current | 0.21 - 0.1 |
| Internal memory | 128 MB |
| Flash memory | 64 MB |
| Flow control support | Y |
| Operating relative humidity (H-H) | 5 - 95 |
| Storage temperature (T-T) | -25 - 70 |
| Operating temperature (T-T) | -5 - 45 |
| Operating altitude | 0 - 3048 |
| Storage relative humidity (H-H) | 5 - 95 |
| Non-operating altitude | 0 - 4000 |
| LED indicators | LAN,Link,Power,Y |
| Height | 44.4 mm |
| Width | 269 mm |
| Depth | 213 mm |
| Certification | FCC, EN, CE, AS/NZS, VCCI, KCC, ANATEL, CCC, GOST, ROHS, CLEI |
| Copper ethernet cabling technology | 1000BASE-T,1000BASE-TX,100BASE-T,100BASE-TX,10BASE-T |
| Full duplex | Y |
| MAC address table | 8,000 entrie |
| Jumbo frames support | Y |
| Auto MDI/MDI-X | Y |
| Link aggregation | Y |
| Number of VLANs | 255 |
| Routing entries | 4,000 |
| Rate limiting | Y |
| Broadcast storm control | Y |
| IP routing | Y |
| Spanning tree protocol | Y |
| 10G support | N |
| Heat dissipation | 38 BTU/h |
| USB 2.0 ports quantity | 2 |
| Console port | RS-232 |
| Fiber ports quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Combo SFP ports quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Power over Ethernet (PoE) | N |
| Multicast support | Y |
| Security algorithms | 802.1x RADIUS,SSH |
| Access Control List (ACL) | Y |
| IGMP snooping | Y |
| DHCP features | DHCP server |
| Static port security | Y |
| SSH/SSL support | Y |
| BPDU filtering/protection | Y |
| Fiber ethernet cabling technology | 1000BASE‑LH,1000BASE‑LX,1000BASE‑SX,1000BASE‑ZX,100BASE-BX,100BASE-FX,100BASE-LX |
| Management protocols | SNMPv1/v2c/v3, LLDP, IGMP |
| Web-based management | Y |
| Quality of Service (QoS) support | Y |
| Switch type | Managed |
| System event log | Y |
| MIB support | RMON-MIB, RMON2-MIB, Bridge-MIB, CDP-MIB, Entity-MIB, ENVMON-MIB, Flash-MIB, FTP-MIB, Image-MIB, IP-Stat-MIB, LAG-MIB, MAC-MIB, PAGP-MIB, Ping-MIB, QOS-MIB, Security-MIB, RTTMON-MIB, SMI-MIB, STP-MIB, Syslog-MIB, TC-MIB, TCP-MIB, UDLDP-MIB, VTP-MIB, Eth-MIB, PAE-MIB, IF-MIB, IP-MIB, TS-MIB, UDP-MIB, ePM MIB |
| Traffic classification | Y |
| Switch layer | L2 |
| ARP inspection | Y |
| Product colour | White |
| Stackable | N |
