Product description

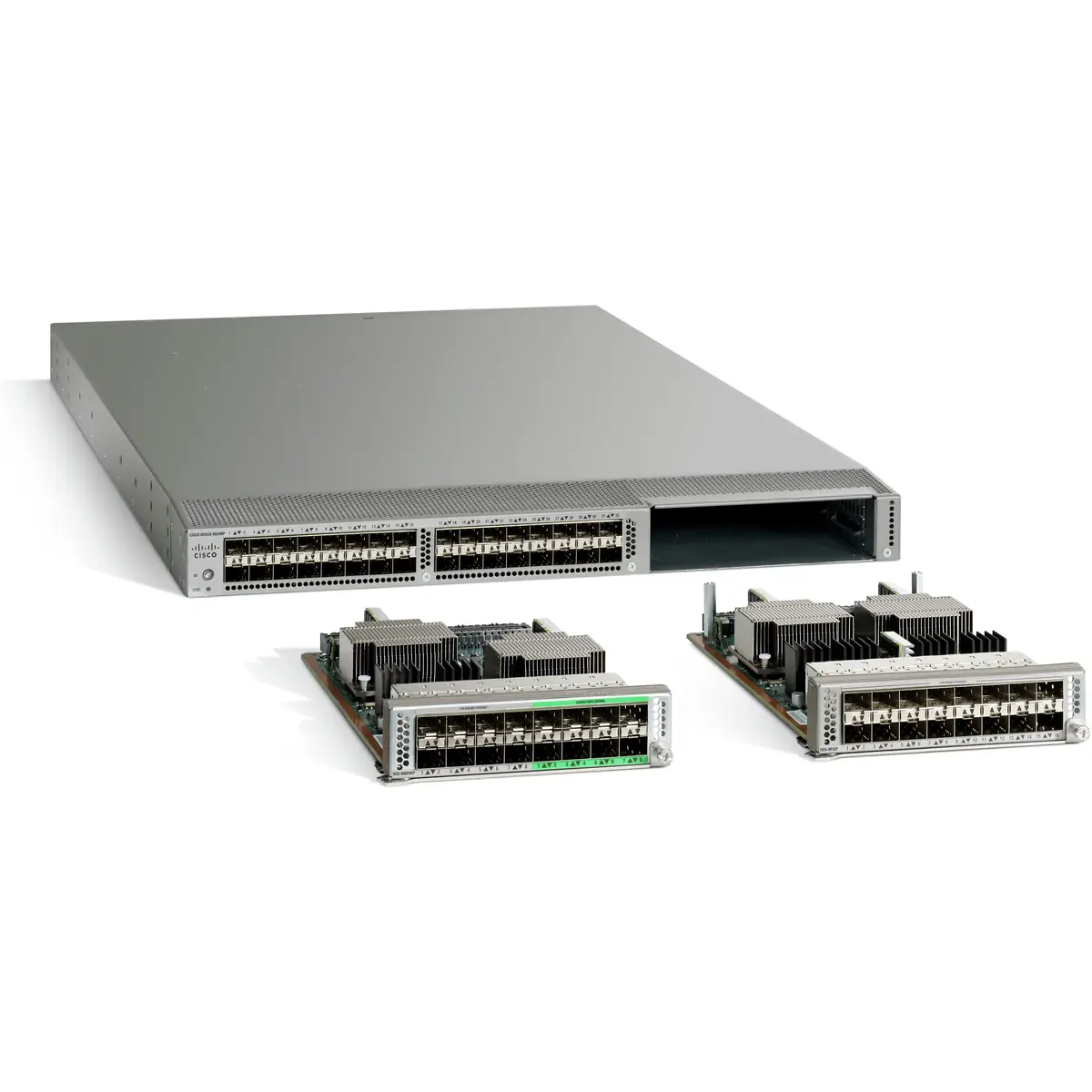

The Cisco Nexus 5500 platform is equipped with expansion modules that can be used to increase the number of 10 Gigabit Ethernet and FCoE ports or to connect to Fibre Channel SANs with 8/4/2/1-Gbps Fibre Channel switch ports, or both.
The Cisco Nexus 5548P and 5548UP supports one expansion module, and 5596UP supports three expansion modules from the following offerings
- Ethernet module that provides sixteen 1/10 Gigabit Ethernet and FCoE ports using the SFP+ interface
- Fibre Channel plus Ethernet module that provides eight 1/10 Gigabit Ethernet and FCoE ports using the SFP+ interface, and eight ports of 8/4/2/1-Gbps native Fibre Channel connectivity using the SFP+/SFP interface
- A unified port module that provides up to sixteen 1/10 Gigabit Ethernet and FCoE ports using the SFP+ interface or up to sixteen ports of 8/4/2/1-Gbps native Fibre Channel connectivity using the SFP+ and SFP interface. The use of 1/10 Gigabit Ethernet or 8/4/2/1-Gbps Fibre Channel on a port is mutually exclusive but selectable for any of the 16 physical ports per module.
The Cisco Nexus 5548P and 5548UP supports one expansion module, and 5596UP supports three expansion modules from the following offerings
- Ethernet module that provides sixteen 1/10 Gigabit Ethernet and FCoE ports using the SFP+ interface
- Fibre Channel plus Ethernet module that provides eight 1/10 Gigabit Ethernet and FCoE ports using the SFP+ interface, and eight ports of 8/4/2/1-Gbps native Fibre Channel connectivity using the SFP+/SFP interface
- A unified port module that provides up to sixteen 1/10 Gigabit Ethernet and FCoE ports using the SFP+ interface or up to sixteen ports of 8/4/2/1-Gbps native Fibre Channel connectivity using the SFP+ and SFP interface. The use of 1/10 Gigabit Ethernet or 8/4/2/1-Gbps Fibre Channel on a port is mutually exclusive but selectable for any of the 16 physical ports per module.
Technical specifications
Logistics data
| Harmonized System (HS) code | 85176990 |
Leistungen
| Expansion module support | Y |
Protokolle
| Switching protocols | EIGRP, OSPFv2, BGP, HSRP, VRRP, PIMv2, MSDP, IGMPv2/v3 |
Power
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 |
| AC input frequency | 50 - 60 |
| Power consumption (max) | 882 W |
| Power supply included | Y |
Certificates
| Safety | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, AS/NZS 609, GB49430-1 |
| Electromagnetic compatibility | 47CFR, AS/NZS CISPR22, CISPR22, EN55022, ICES003, VCCI |
Power supply
| Power consumption (typical) | 680 W |
Sonstige Funktionen
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1Qaz,IEEE 802.1Qbb,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3u,IEEE 802.3x |
| Rack mounting | Y |
| Input voltage | 100 - 240 |
| Flow control support | Y |
Operational conditions
| Operating relative humidity (H-H) | 5 - 95 |
| Storage temperature (T-T) | -40 - 70 |
| Operating temperature (T-T) | 0 - 40 |
| Operating altitude | 0 - 3000 |
Gewicht und Abmessungen
| Weight | 21,550 g |
| Height | 88 mm |
| Width | 439 mm |
| Depth | 749 mm |
Ergonomics
| LED indicators | Y |
Mouse
| Form factor | 2U |
| Certification | RoHS |
Network
| Copper ethernet cabling technology | 1000BASE-TX,100BASE-TX,10BASE-T |
| MAC address table | 32,000 entrie |
| Jumbo frames support | Y |
| Link aggregation | Y |
| VLAN support | Y |
| Jumbo frames | 9,216 |
| Virtual LAN features | Private VLAN |
| Broadcast storm control | Y |
| Spanning tree protocol | Y |
| 10G support | Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | N |
Multicast features
| Multicast support | Y |
Security
| Security algorithms | 802.1x RADIUS,AES |
| Access Control List (ACL) | Y |
| IGMP snooping | Y |
| DHCP features | DHCP server,DHCP client |
Management features
| Management protocols | SSHv2, Telnet, RADIUS, TACACS+, SNMP, RMON, RBAC, NTP |
| Quality of Service (QoS) support | Y |
| Switch type | Managed |
| Switch layer | L2/L3 |
| ARP inspection | Y |
Design
| Product colour | Silver |
| Stackable | N |
| Heat dissipation | 1,331 BTU/h |
Downloads
108861_document_DE_001
PDF Download
108861_document_DE_002
PDF Download
108861_document_EN_001
PDF Download
ID: 108861
Cisco ID: N5K-C5596UP-FA

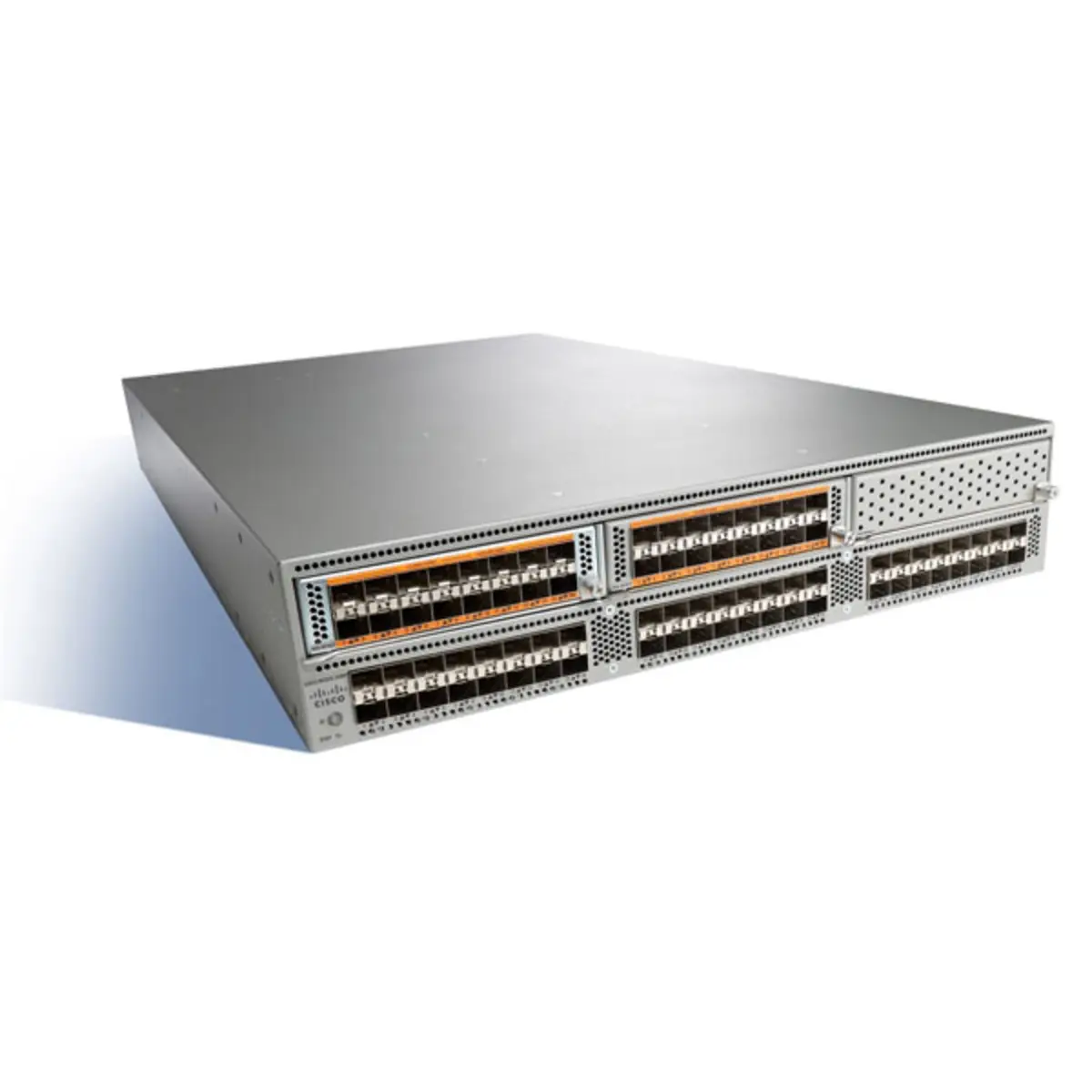

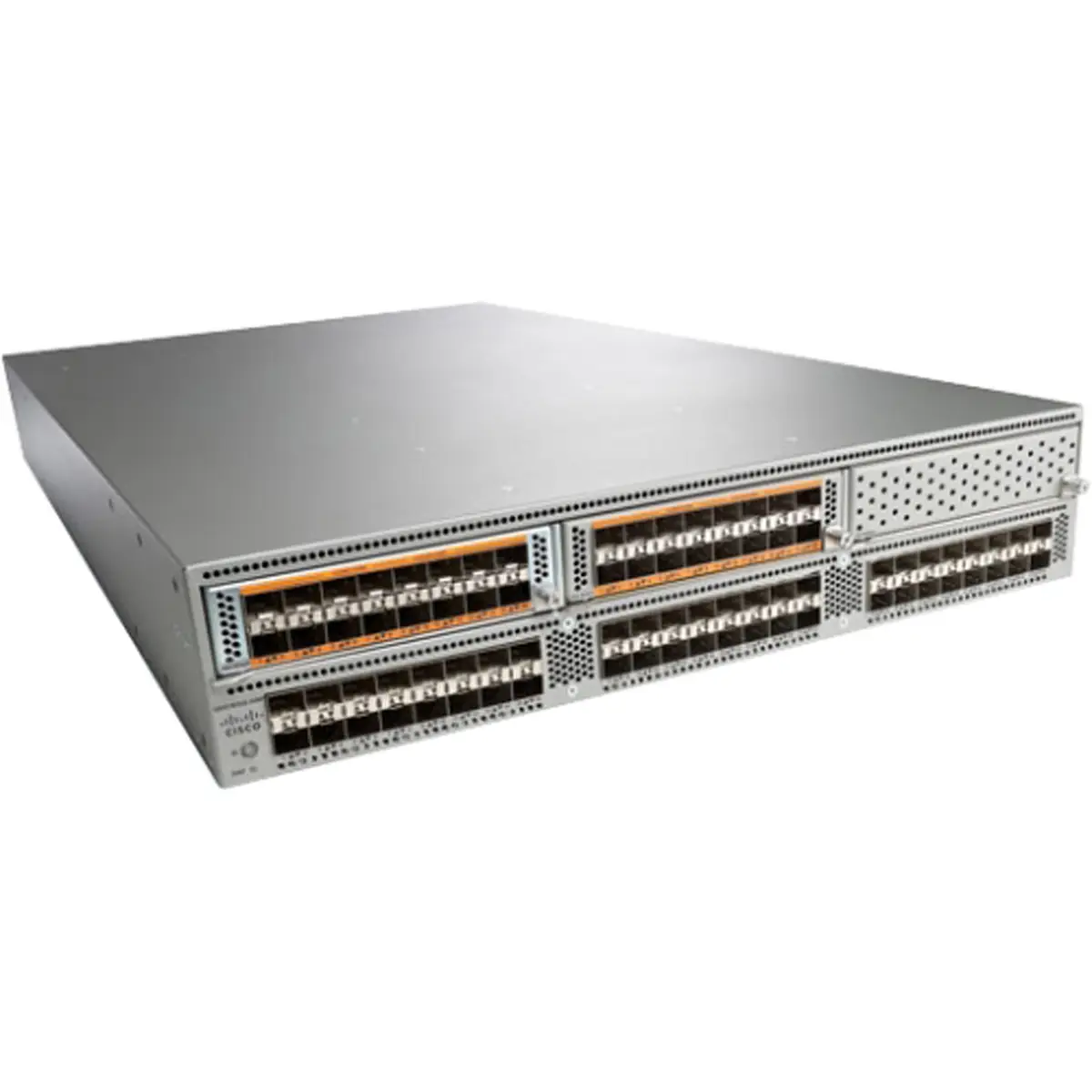

Nexus 5596UP 2RU Chassis, 2PS, 4 Fans, 48 Fixed 10Gigabit Ethernet Ports
Detailed product title
Detailed product title
Nexus 5596UP 2RU Chassis, 2PS, 4 Fans, 48 Fixed 10Gigabit Ethernet Ports
