4 Images
Product description
We reserve the right to amend any or all information without prior notice. Furthermore, all prices and offers are subject to change. We assume no responsibility for misprints or the accuracy of technical information. Product pictures and/or graphics are of an exemplary nature and can deviate from the original.
Technical specifications
Design
| Product colour | Black |
Power
| Power consumption (max) | 130 W |
Sonstige Funktionen
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
| Rack mounting | Yes |
| Dimensions (WxDxH) | 266 x 160 x 44 mm |
| Input voltage | 100 - 240 V |
| Output power | 15.4 W |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
| Operating temperature (T-T) | -20 - 90 °F |
Gewicht und Abmessungen
| Weight | 1400 g |
Ergonomics
| Plug and Play | Yes |
Mouse
| Certification | FCC Class A, CE |
Network
| Cabling technology | Cat. 5 UTP/STP |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Auto MDI/MDI-X | Yes |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 8 |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
Downloads
137484_document_EN_001
PDF Download
ID: 137484
Roline ID: 21.13.1191

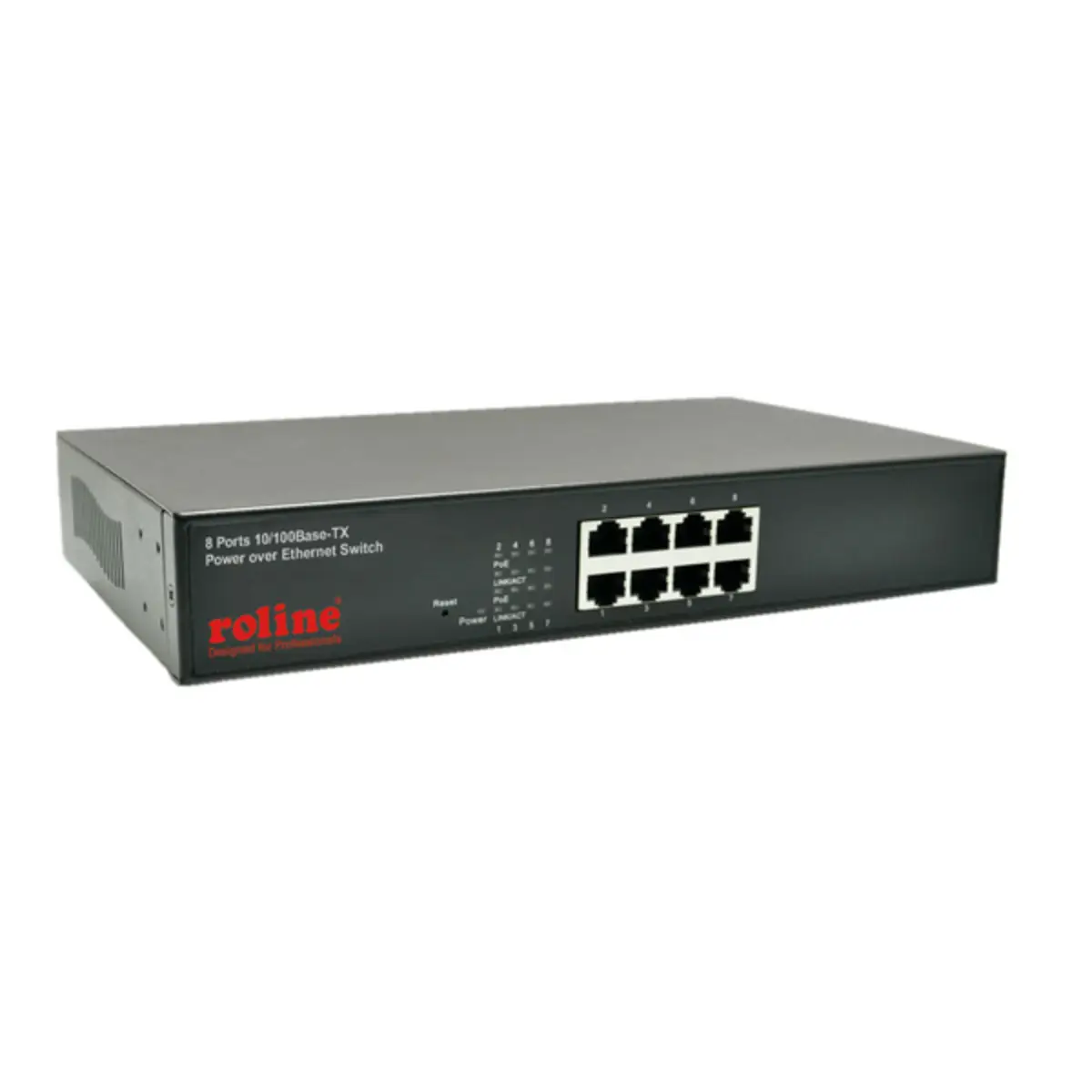

Switch 8x10/100 (PoE) Desktop PoE
Detailed product title
Detailed product title
ROLINE PoE Fast Ethernet Switch, 130 W, 8 Ports. Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: Cat. 5 UTP/STP, Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x. Product colour: Black. Output power: 15.4 W, AC adapter frequency: 50/60 Hz, Input voltage: 100 - 240 V. Certification: FCC Class A, CE. Weight: 1.4 kg, Dimensions (WxDxH): 266 x 160 x 44 mm
4 Images
Power over Ethernet (PoE) Yes
Gross:
incl.
vat.
immediately
Added to cart
Gross:
incl.
vat.
immediately
Product description
We reserve the right to amend any or all information without prior notice. Furthermore, all prices and offers are subject to change. We assume no responsibility for misprints or the accuracy of technical information. Product pictures and/or graphics are of an exemplary nature and can deviate from the original.
Technical specifications
Design
| Product colour | Black |
Power
| Power consumption (max) | 130 W |
Sonstige Funktionen
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
| Rack mounting | Yes |
| Dimensions (WxDxH) | 266 x 160 x 44 mm |
| Input voltage | 100 - 240 V |
| Output power | 15.4 W |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
| Operating temperature (T-T) | -20 - 90 °F |
Gewicht und Abmessungen
| Weight | 1400 g |
Ergonomics
| Plug and Play | Yes |
Mouse
| Certification | FCC Class A, CE |
Network
| Cabling technology | Cat. 5 UTP/STP |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Auto MDI/MDI-X | Yes |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 8 |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
Downloads
137484_document_EN_001
PDF Download
