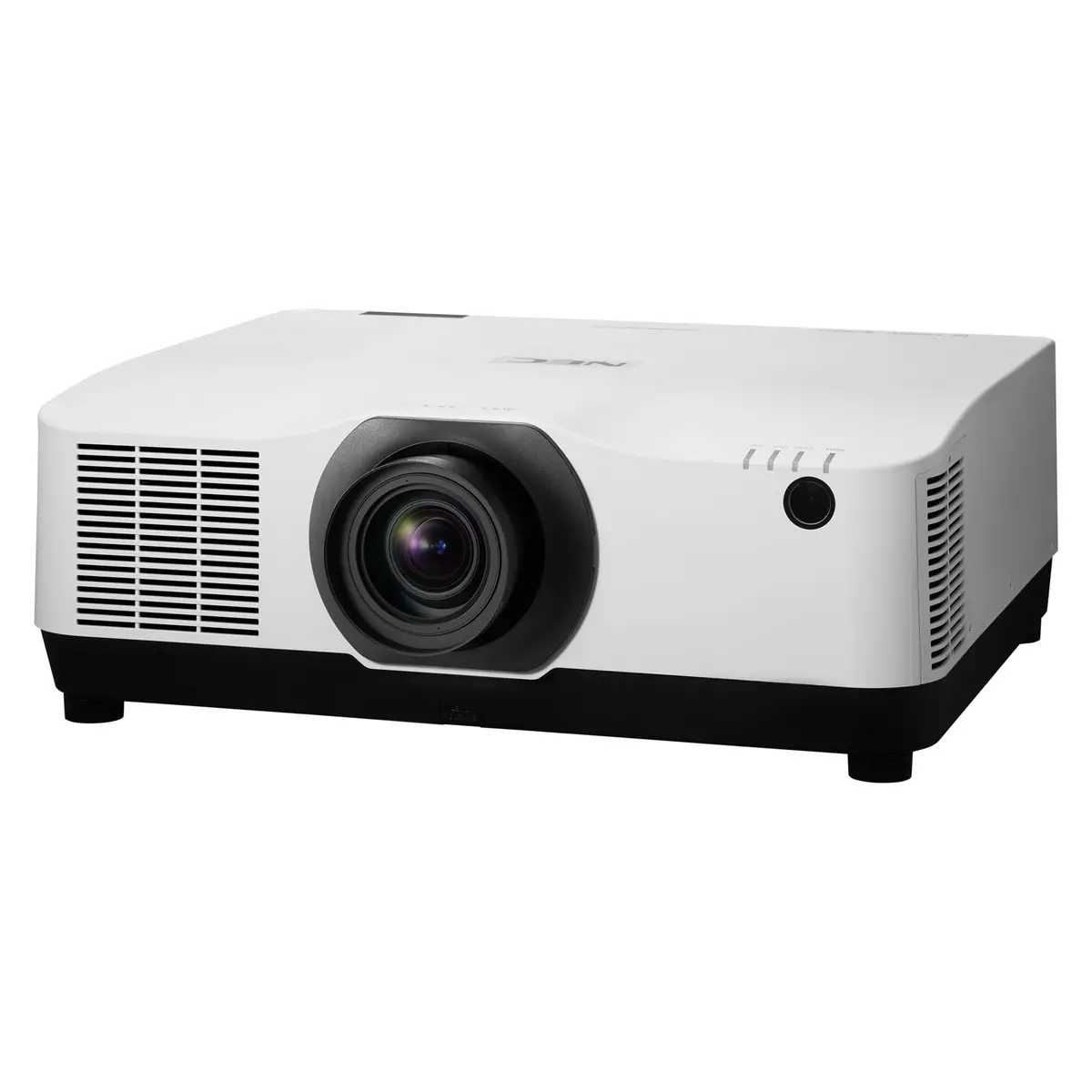

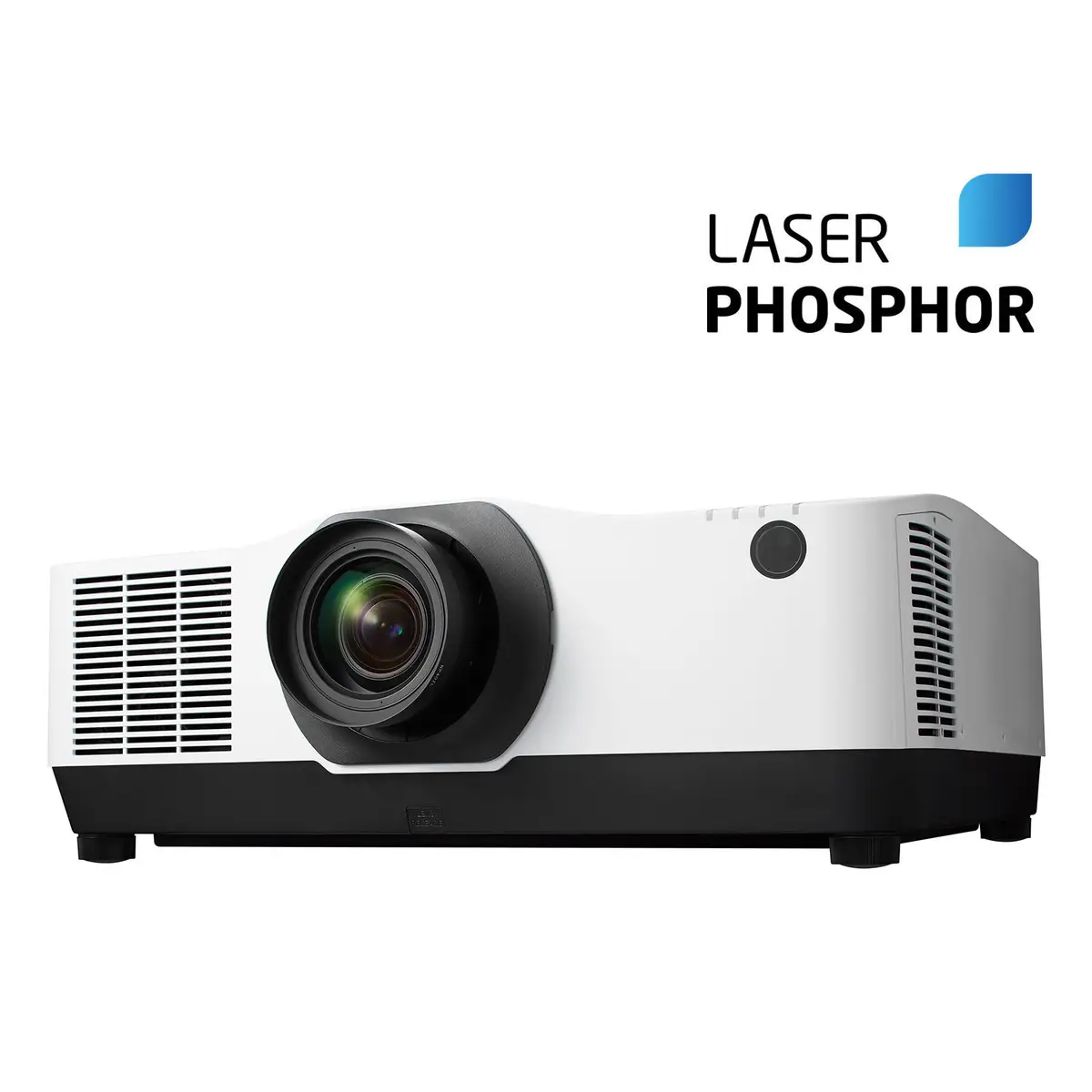

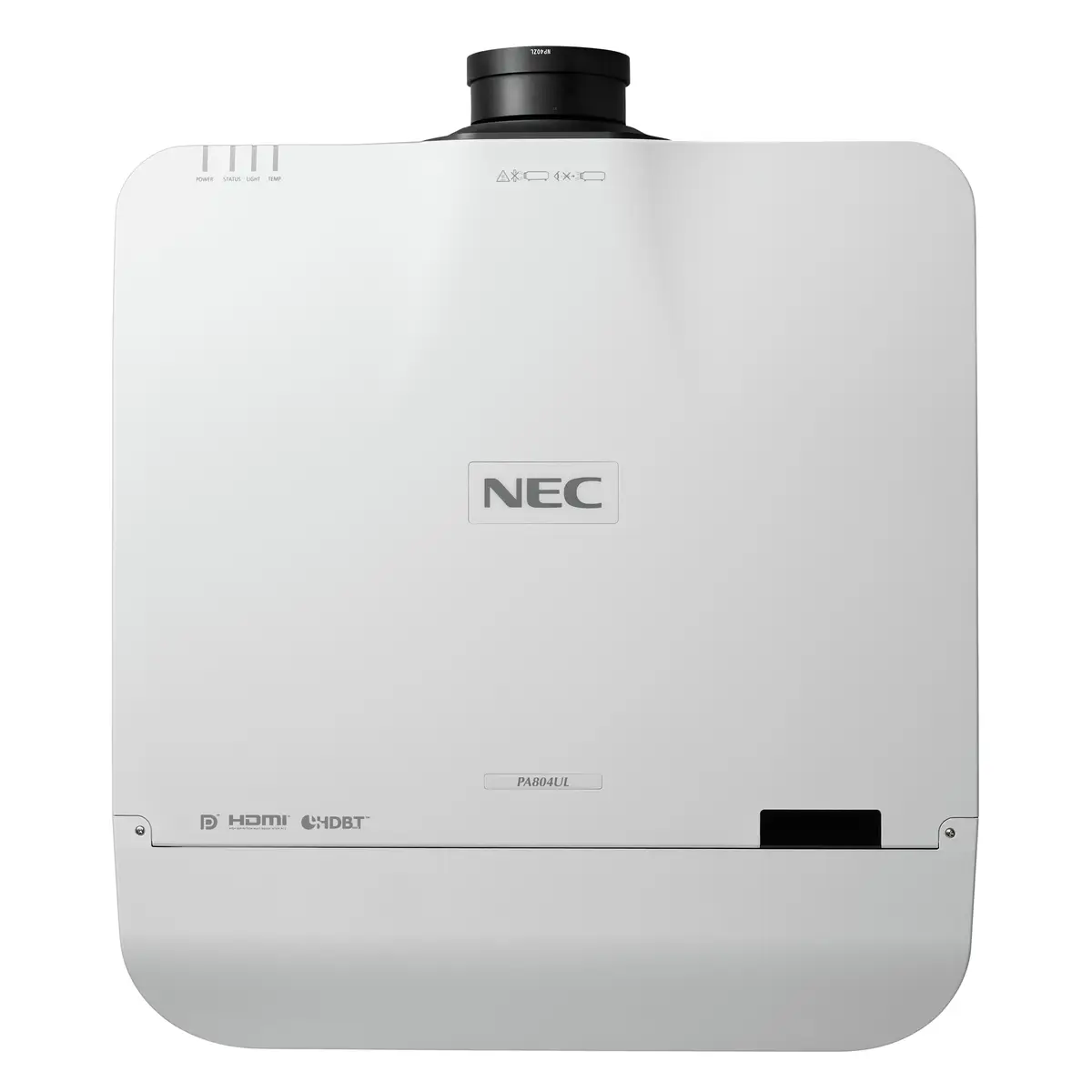

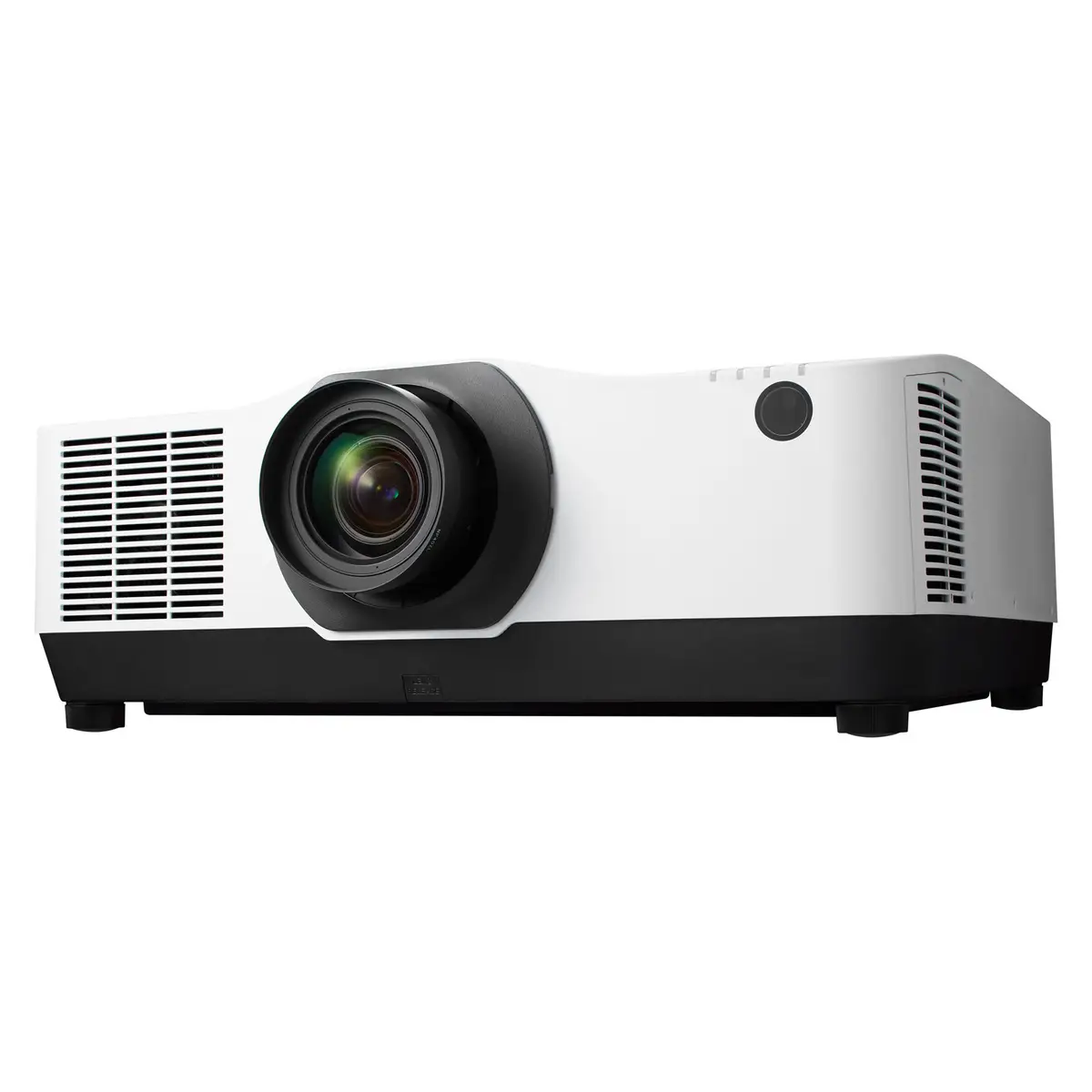

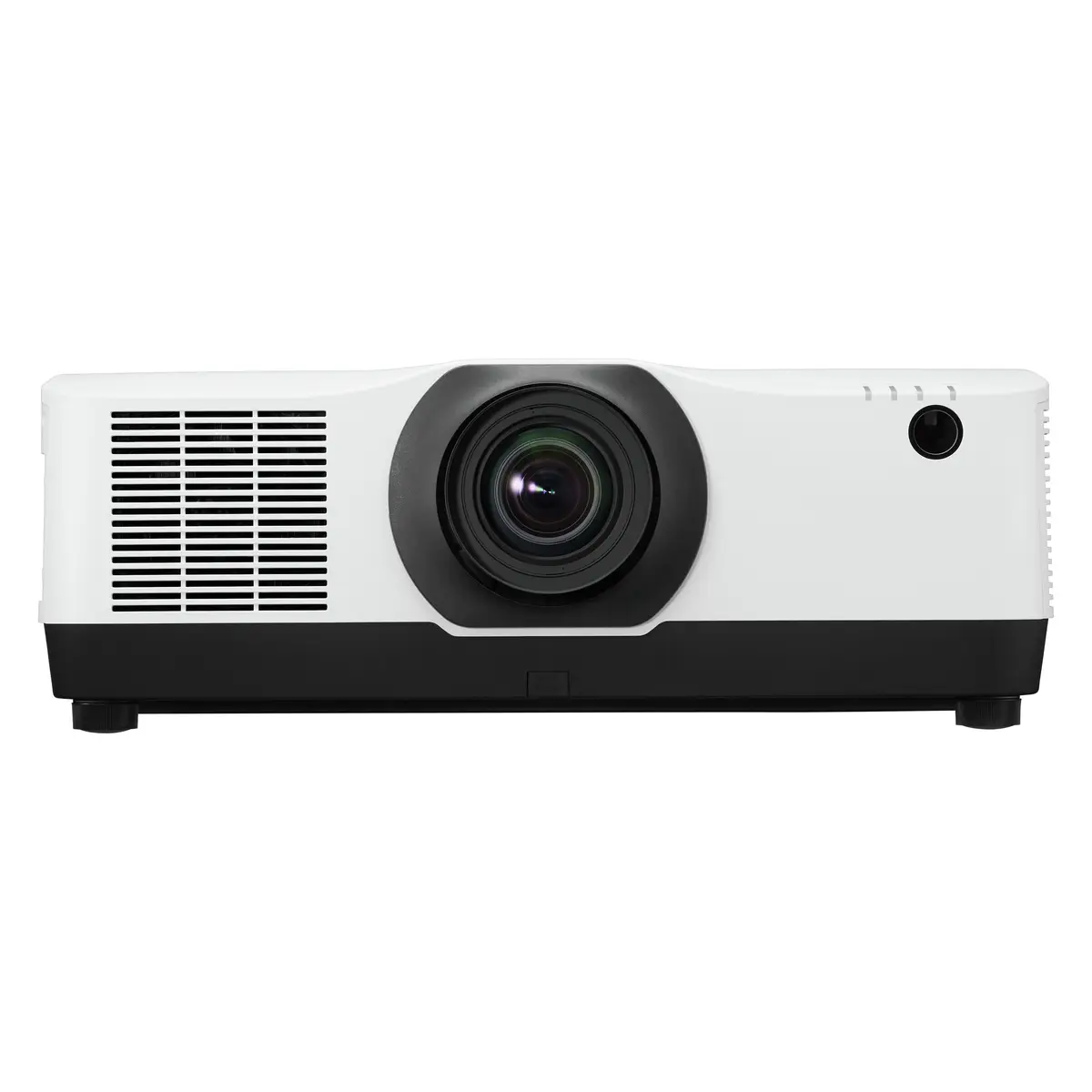

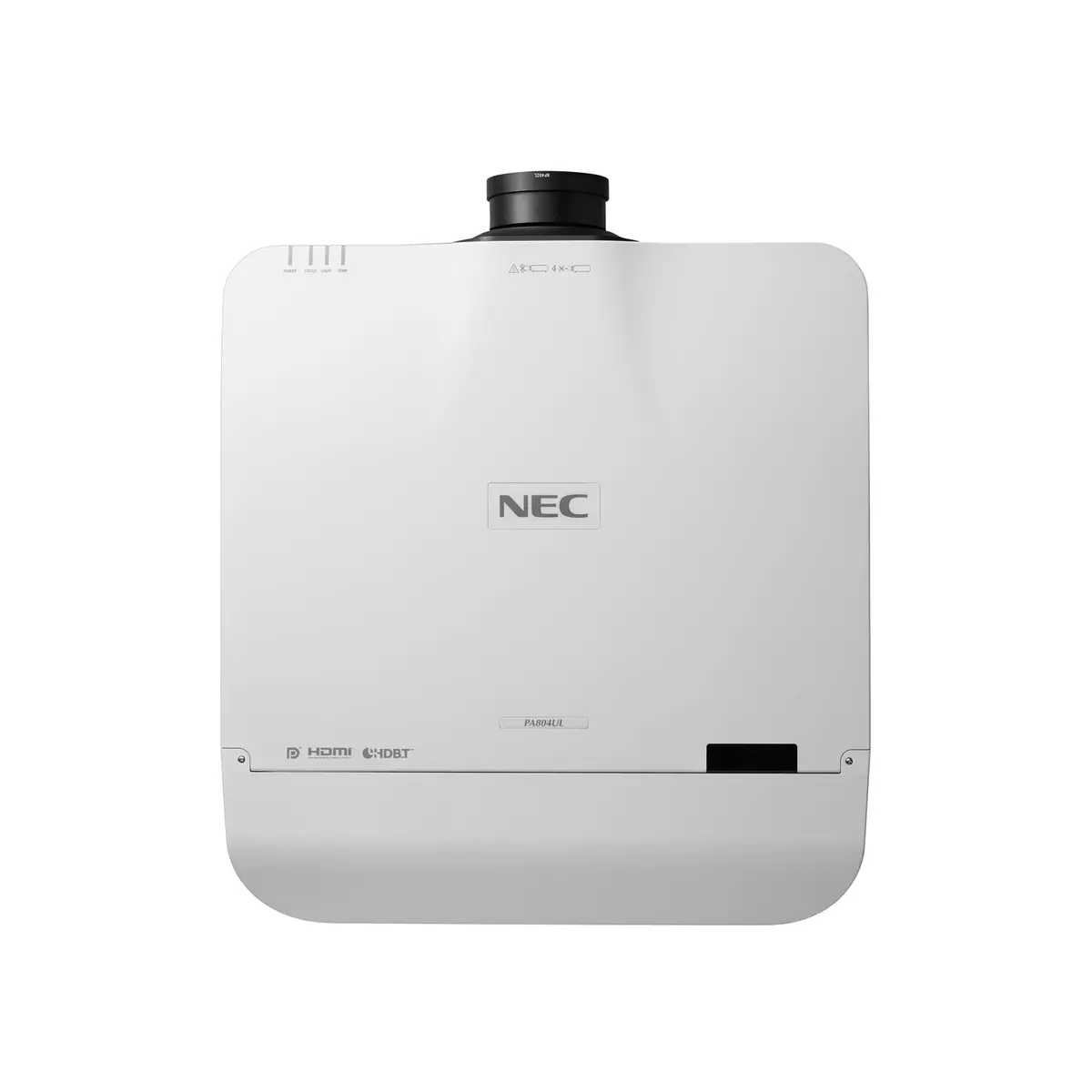

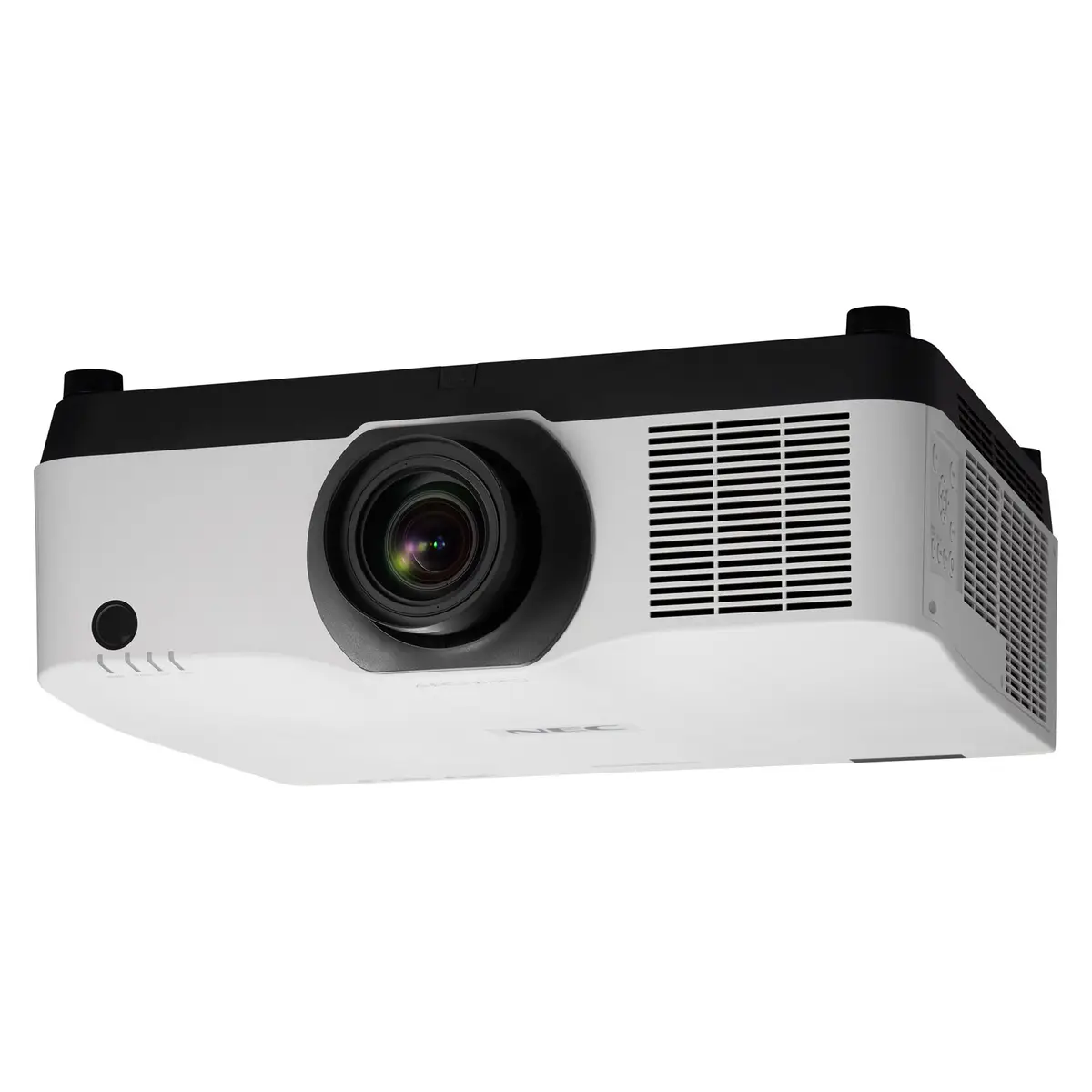

- Display PA804UL 3-LCD Projektor 1920x1200 Pixel 8200 ANSI Lumen
Now even larger spaces can benefit from NEC’s innovation in super-silent technology with the 8,200 lumens PA804UL laser projector, ensuring all attention is focused on the stunning image delivery.
Featuring unprecedented White Point performance, factory pre-calibrated for the perfect white, 12-bit colour signal processing and wide colour space, the audience will experience extraordinarily vivid colour saturation and contrast levels.
With the newly designed sealed optical engine there is no possibility of dust contaminating the LCD panels for long-term picture stability and brilliant colour brightness. What’s more, with our unique filterless LCD projector design and no lamp replacement, service costs are dramatically reduced for a low cost of ownership and up to 20,000 hours life-time.
Fully compatible with previous generation lamp-based PA Series mechanical lenses, NEC customers can easily make the transition to benefit from the latest laser technology. The PA804UL is a professional installation projector featuring advanced installation capabilities as demanded by higher education, leisure and museum applications.
Product colour | White |
Focus | Auto/Manual |
Zoom type | Auto/Manual |
Horizontal lens shift range | -20 - 20 |
Vertical lens shift range | -50 - 10 |
Supported graphics resolutions | 1920 x 1200 (WUXGA),2048x 1080,2560 x 1600 (WQXGA |
Native aspect ratio | 16:10 |
Contrast ratio (typical) | 3000000:1 |
Horizontal scan range | 15 - 153 |
Vertical scan range | 48 - 120 |
Service life of light source | 20,000 std |

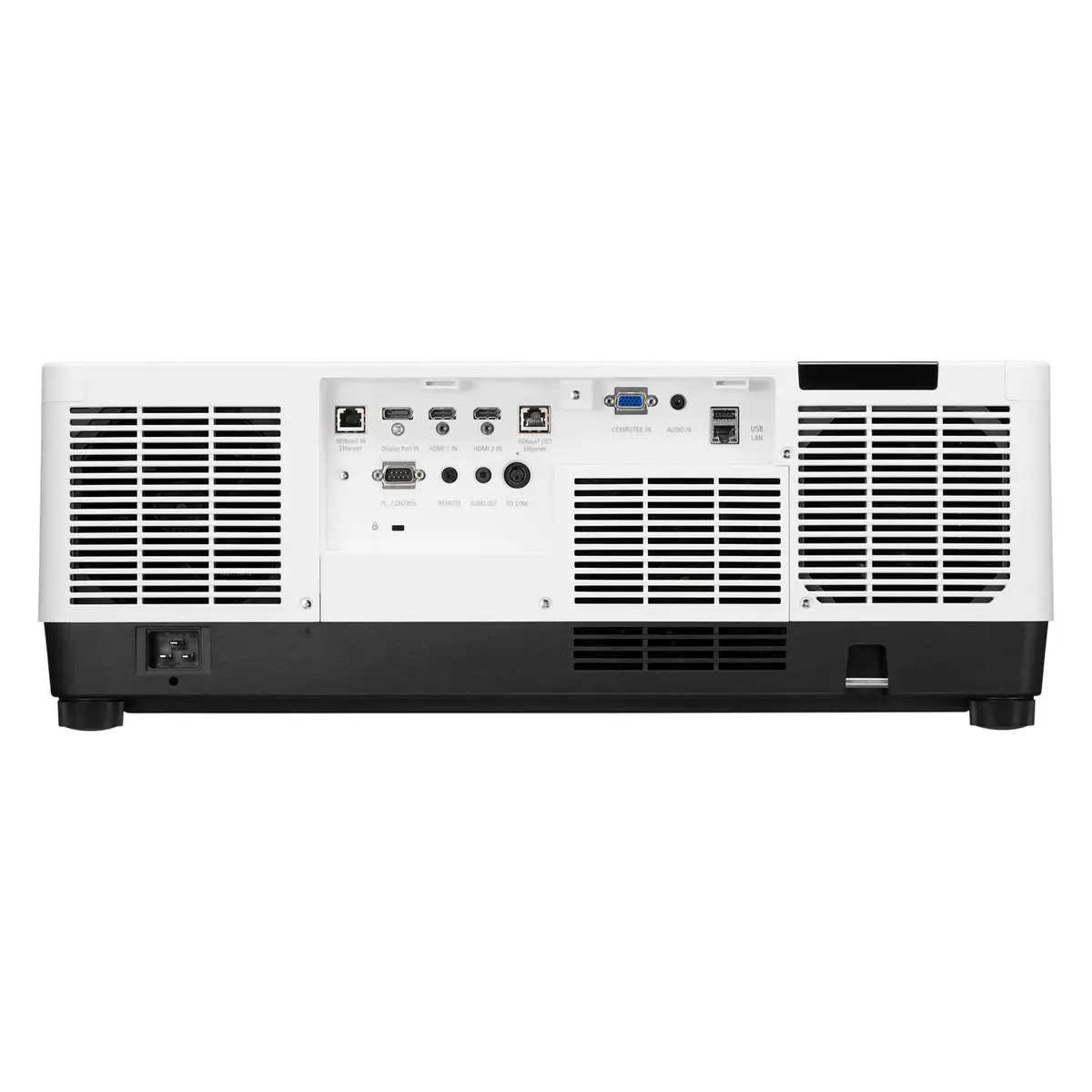

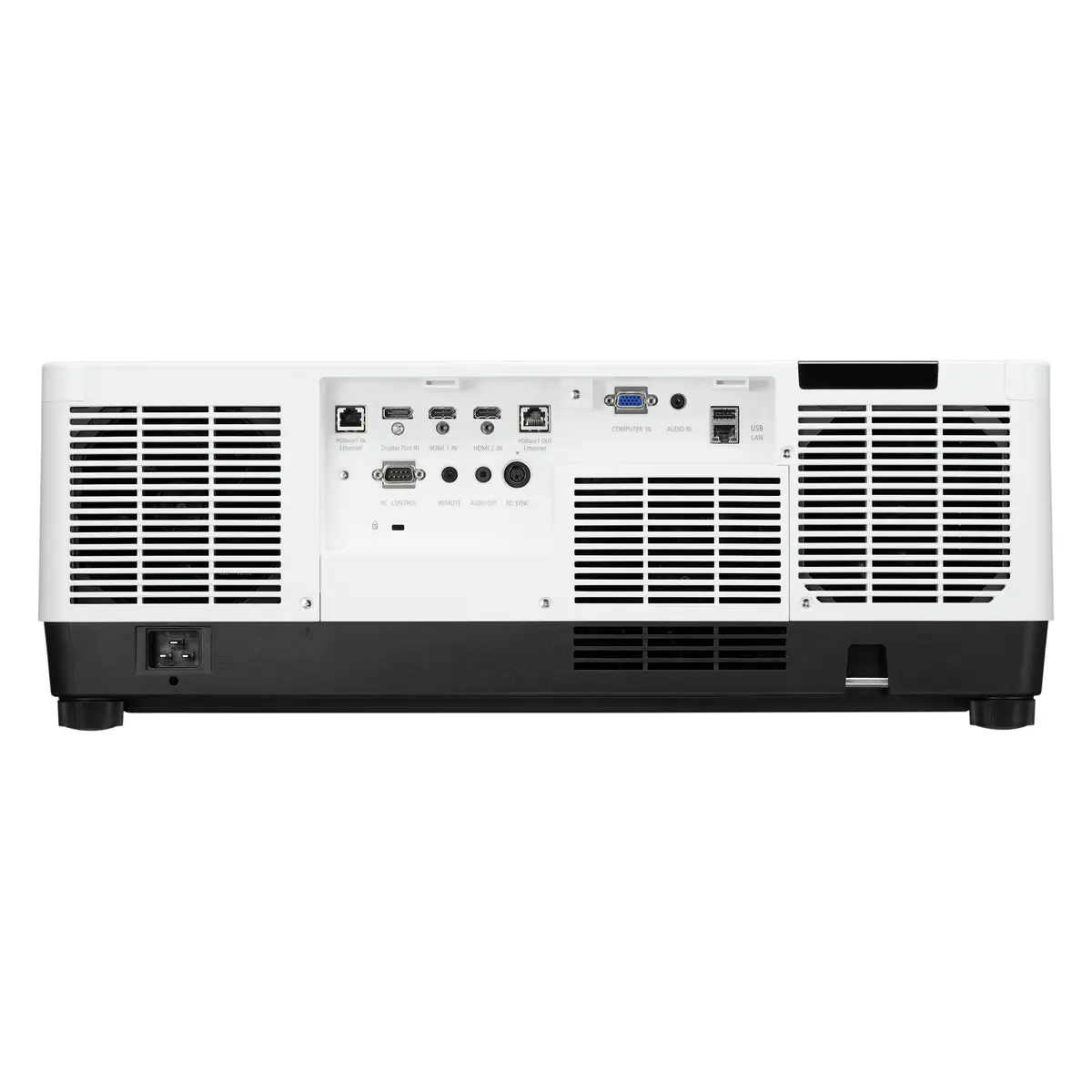

VGA (D-Sub) ports quantity | 1 |
HDMI ports quantity | 2 |
DisplayPorts quantity | 1 |
HDCP | Y |
Serial interface type | RJ-45,RS-232 |
Audio (L/R) in | 1 |
PC Audio in | Y |
Keystone correction, vertical | -40 - 40 |
Keystone correction, horizontal | -40 - 40 |
Projection technology | 3LCD |
Projector native resolution | WUXGA (1920x1200) |
Projector brightness | 8,200 ANSI |
Projector brightness (economic mode) | 7,500 ANSI |
Screen size compatibility | 40 - 500 |
Projection distance | 0.7 - 50.9 |
Light source type | Laser |
3D | Y |
Supported video modes | 480i,480p,576i,576p,720p,1080i,1080p |
Noise level (economic mode) | 28 dB |
Sustainability certificates | ErP |
Remote control type | IR |
Remote control included | Y |
Product type | Large venue projector |
Full HD | Y |
AC input voltage | 100 - 240 |
Cables included | AC |
Power source | AC |
Power consumption (standby) | 0.28 W |
AC input frequency | 50 - 60 |
Operating relative humidity (H-H) | 20 - 80 |
Storage temperature (T-T) | -10 - 50 |
Operating temperature (T-T) | 5 - 40 |
Storage relative humidity (H-H) | 20 - 80 |
USB 2.0 ports quantity | 1 |
Manual | Y |
Zoom capability | Y |
PC Audio out | Y |
Power consumption (typical) | 615 W |
Noise level | 30 dB |
Power consumption (economy mode) | 350 W |
HDBaseT port | Y |
Weight | 24,100 g |
Height | 208 mm |
Width | 599 mm |
Depth | 490 mm |
Harmonized System (HS) code | 85286200 |
Projection technology 3LCD
Projector native resolution WUXGA (1920x1200)
Projector brightness 8,200 ANSI
Contrast ratio (typical) 3000000:1
Now even larger spaces can benefit from NEC’s innovation in super-silent technology with the 8,200 lumens PA804UL laser projector, ensuring all attention is focused on the stunning image delivery.
Featuring unprecedented White Point performance, factory pre-calibrated for the perfect white, 12-bit colour signal processing and wide colour space, the audience will experience extraordinarily vivid colour saturation and contrast levels.
With the newly designed sealed optical engine there is no possibility of dust contaminating the LCD panels for long-term picture stability and brilliant colour brightness. What’s more, with our unique filterless LCD projector design and no lamp replacement, service costs are dramatically reduced for a low cost of ownership and up to 20,000 hours life-time.
Fully compatible with previous generation lamp-based PA Series mechanical lenses, NEC customers can easily make the transition to benefit from the latest laser technology. The PA804UL is a professional installation projector featuring advanced installation capabilities as demanded by higher education, leisure and museum applications.
Product colour | White |
Focus | Auto/Manual |
Zoom type | Auto/Manual |
Horizontal lens shift range | -20 - 20 |
Vertical lens shift range | -50 - 10 |
Supported graphics resolutions | 1920 x 1200 (WUXGA),2048x 1080,2560 x 1600 (WQXGA |
Native aspect ratio | 16:10 |
Contrast ratio (typical) | 3000000:1 |
Horizontal scan range | 15 - 153 |
Vertical scan range | 48 - 120 |
Service life of light source | 20,000 std |
VGA (D-Sub) ports quantity | 1 |
HDMI ports quantity | 2 |
DisplayPorts quantity | 1 |
HDCP | Y |
Serial interface type | RJ-45,RS-232 |
Audio (L/R) in | 1 |
PC Audio in | Y |
Keystone correction, vertical | -40 - 40 |
Keystone correction, horizontal | -40 - 40 |
Projection technology | 3LCD |
Projector native resolution | WUXGA (1920x1200) |
Projector brightness | 8,200 ANSI |
Projector brightness (economic mode) | 7,500 ANSI |
Screen size compatibility | 40 - 500 |
Projection distance | 0.7 - 50.9 |
Light source type | Laser |
3D | Y |
Supported video modes | 480i,480p,576i,576p,720p,1080i,1080p |
Noise level (economic mode) | 28 dB |
Sustainability certificates | ErP |
Remote control type | IR |
Remote control included | Y |
Product type | Large venue projector |
Full HD | Y |
AC input voltage | 100 - 240 |
Cables included | AC |
Power source | AC |
Power consumption (standby) | 0.28 W |
AC input frequency | 50 - 60 |
Operating relative humidity (H-H) | 20 - 80 |
Storage temperature (T-T) | -10 - 50 |
Operating temperature (T-T) | 5 - 40 |
Storage relative humidity (H-H) | 20 - 80 |
USB 2.0 ports quantity | 1 |
Manual | Y |
Zoom capability | Y |
PC Audio out | Y |
Power consumption (typical) | 615 W |
Noise level | 30 dB |
Power consumption (economy mode) | 350 W |
HDBaseT port | Y |
Weight | 24,100 g |
Height | 208 mm |
Width | 599 mm |
Depth | 490 mm |
Harmonized System (HS) code | 85286200 |
