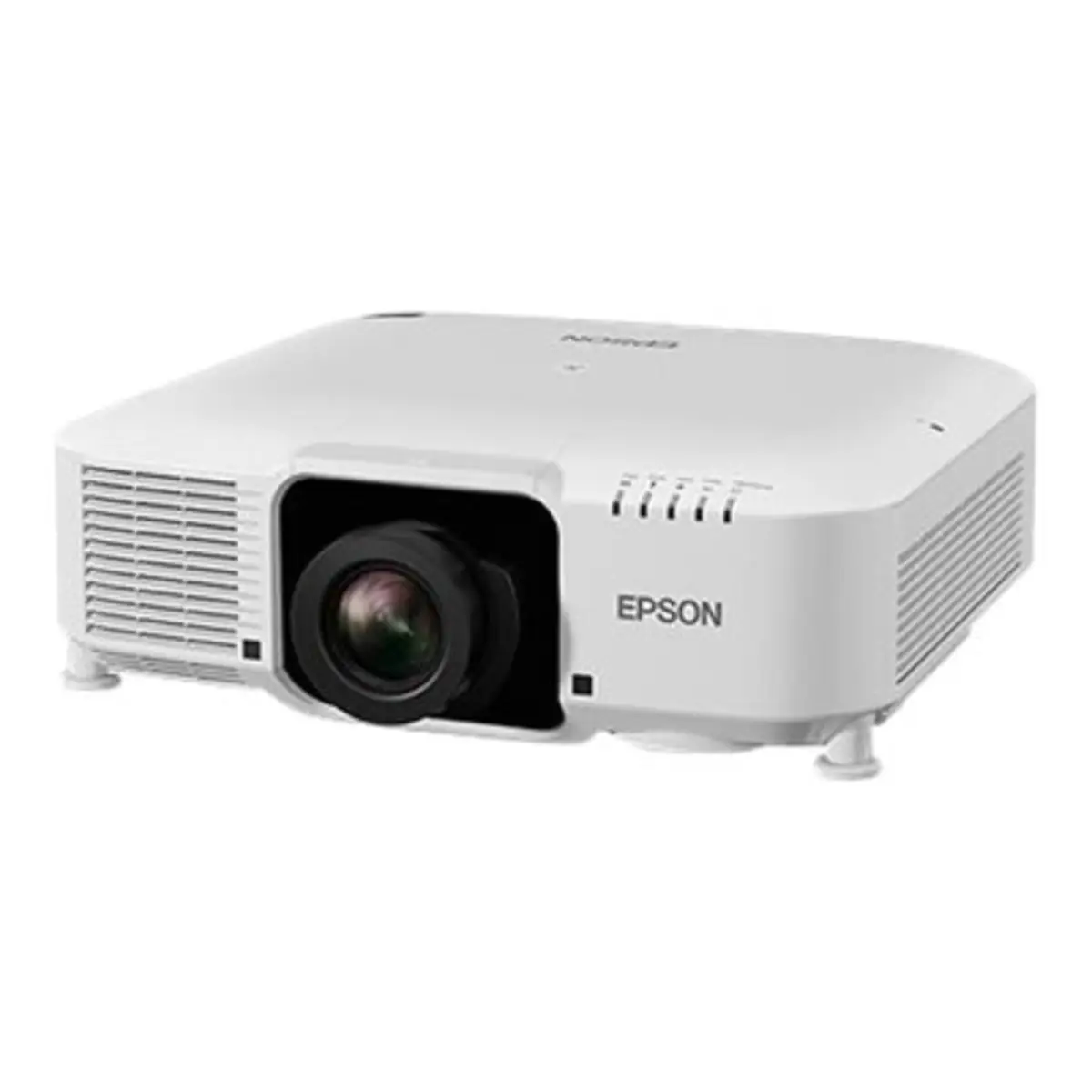

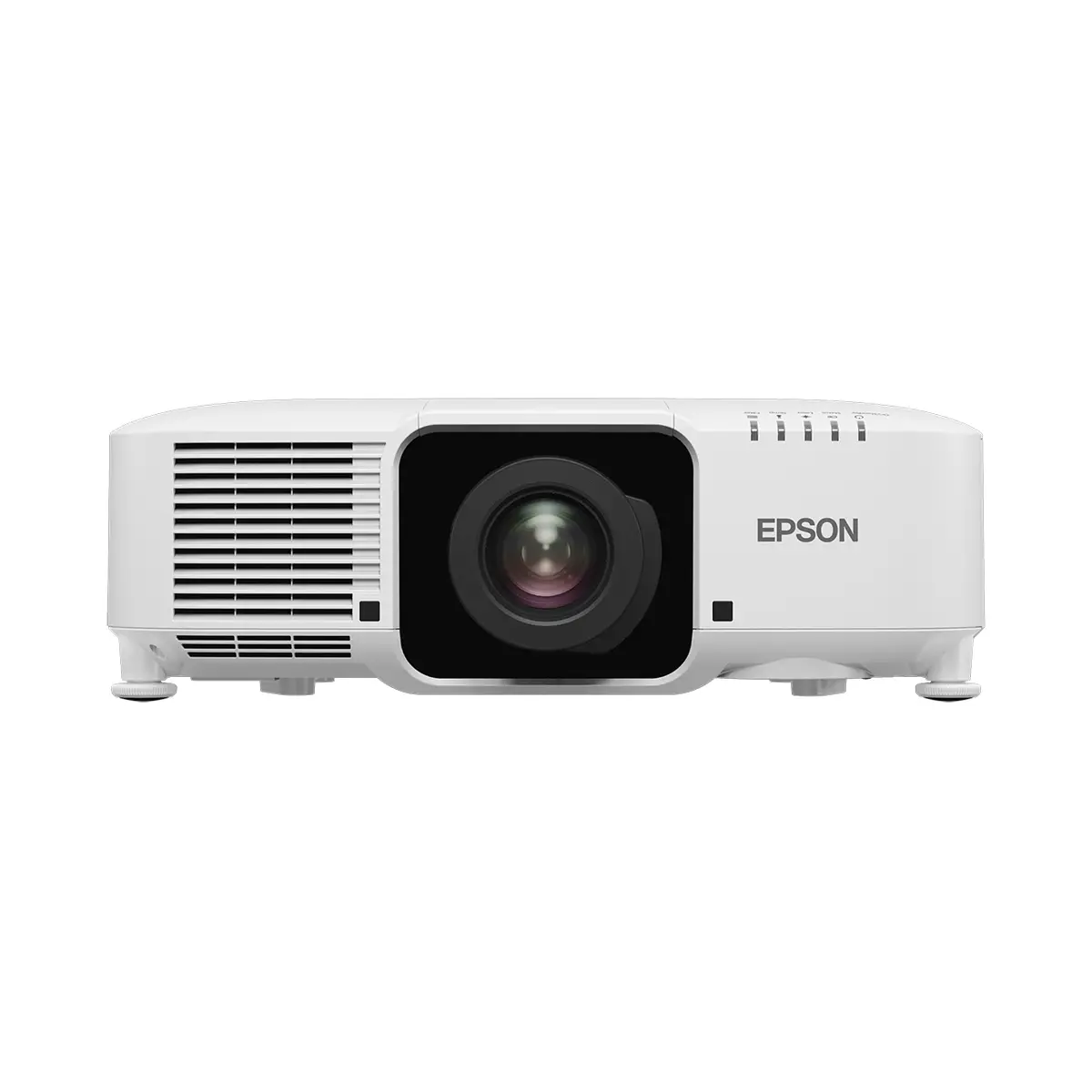

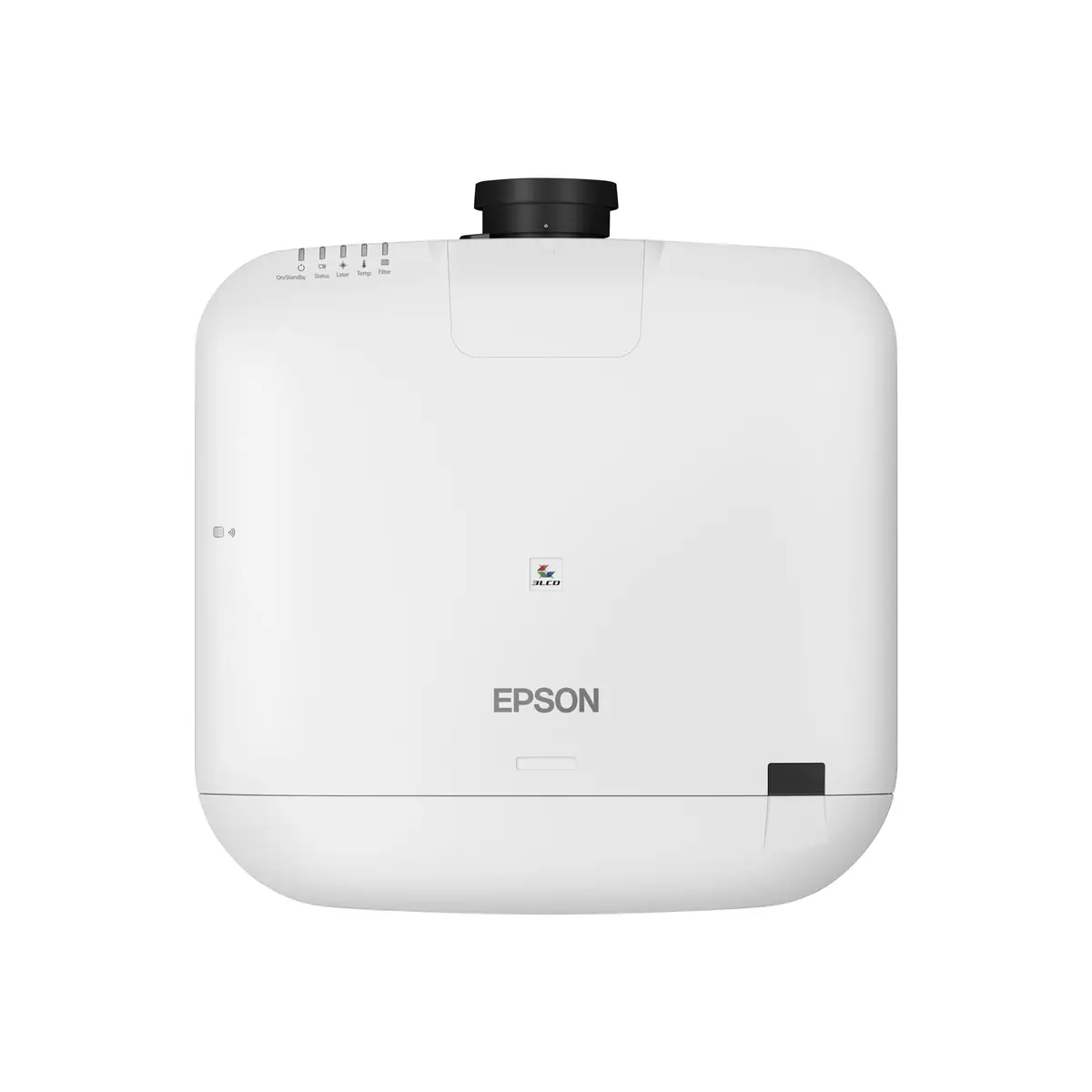

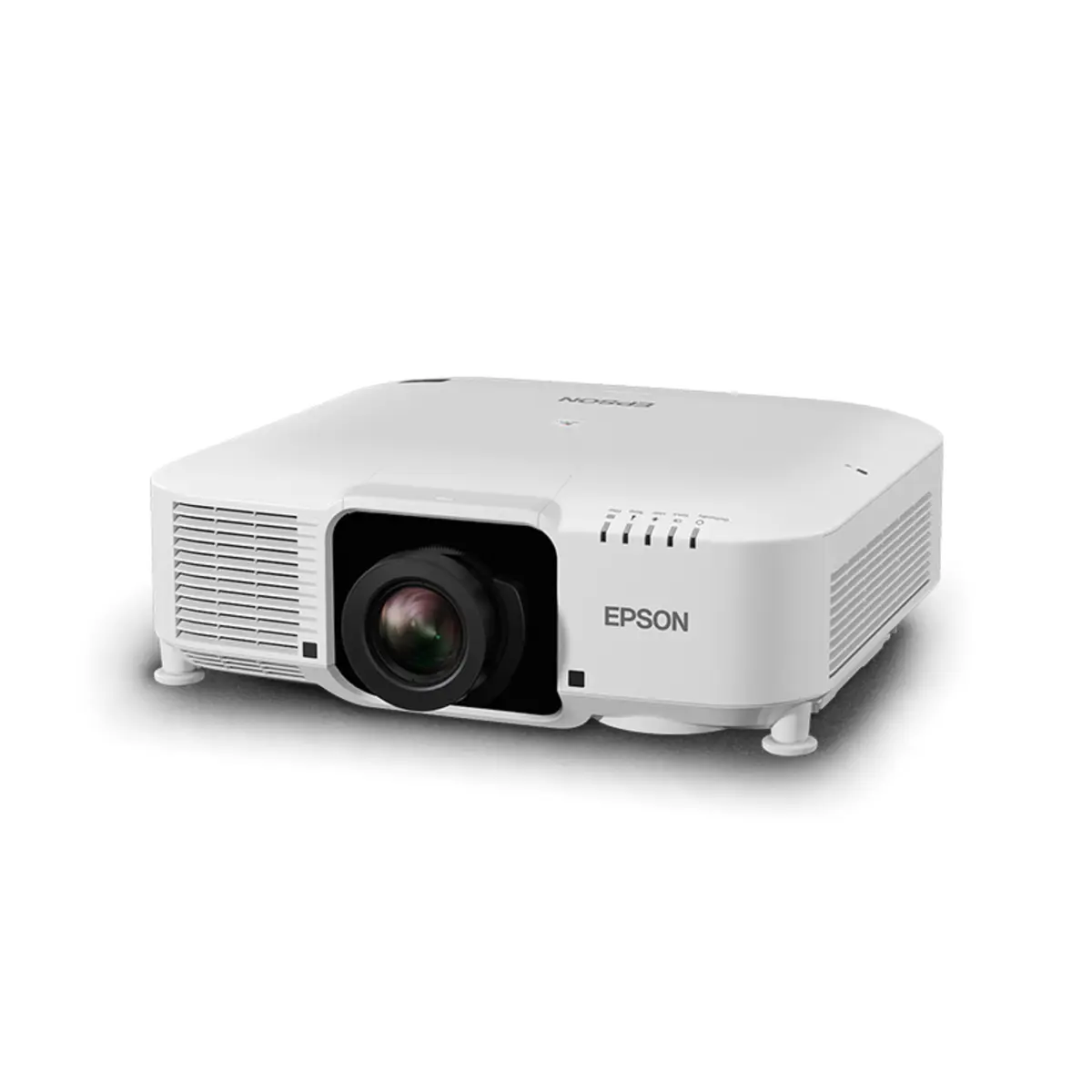

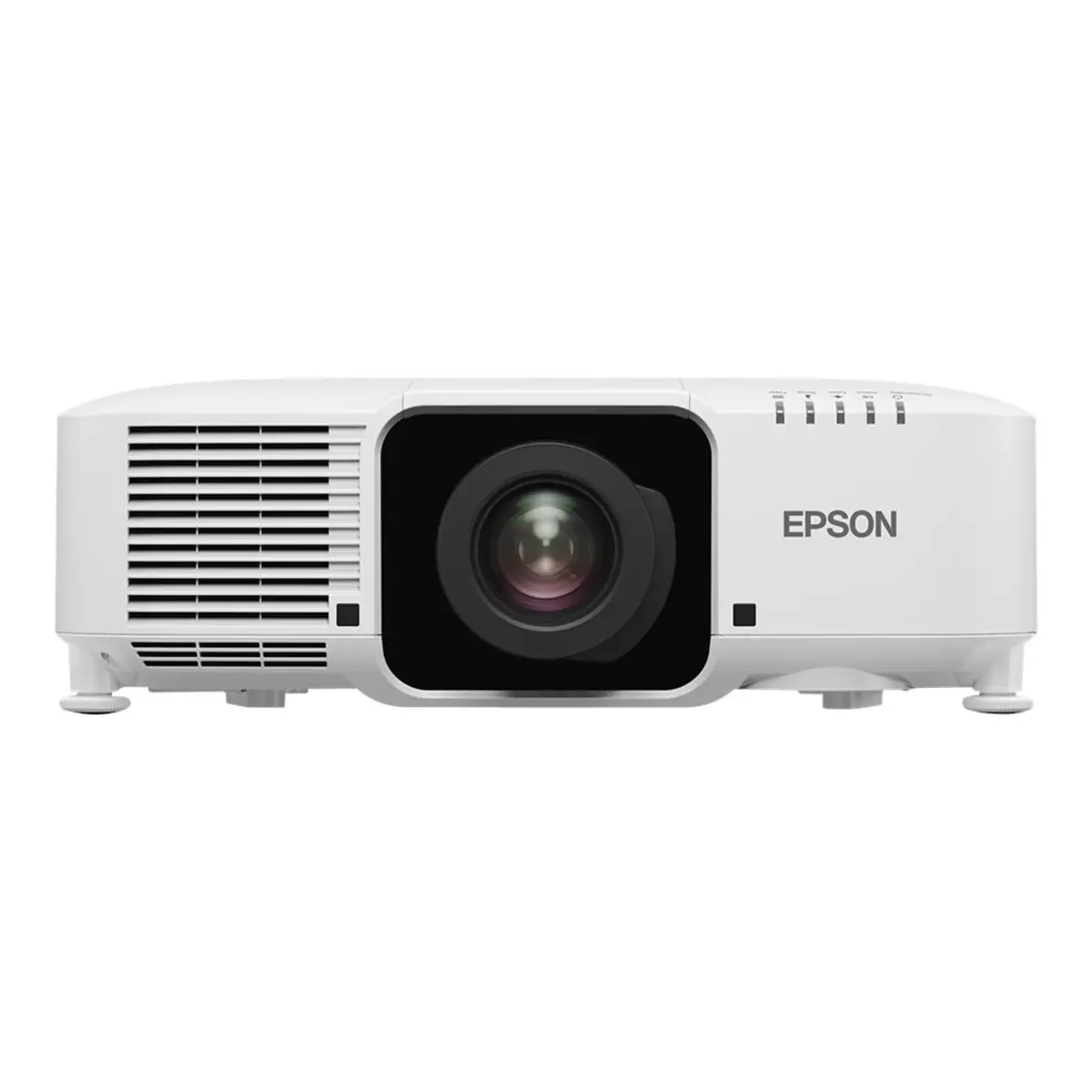

- EB-PU1006W 3-LCD-Projektor 1920x1200 Pixel 6000 ANSI Lumen
This highly versatile 6,000 lumens installation projector is sold as 'body only' and pairs seamlessly with Epson’s existing lens family to deliver bright, true-to-life images in a wide variety of environments: from visitor attractions to lecture theatres, museums to meeting rooms. The high lumens EB-PU1006W offers WUXGA resolution with 4K enhancement, HDR and advanced installation features.

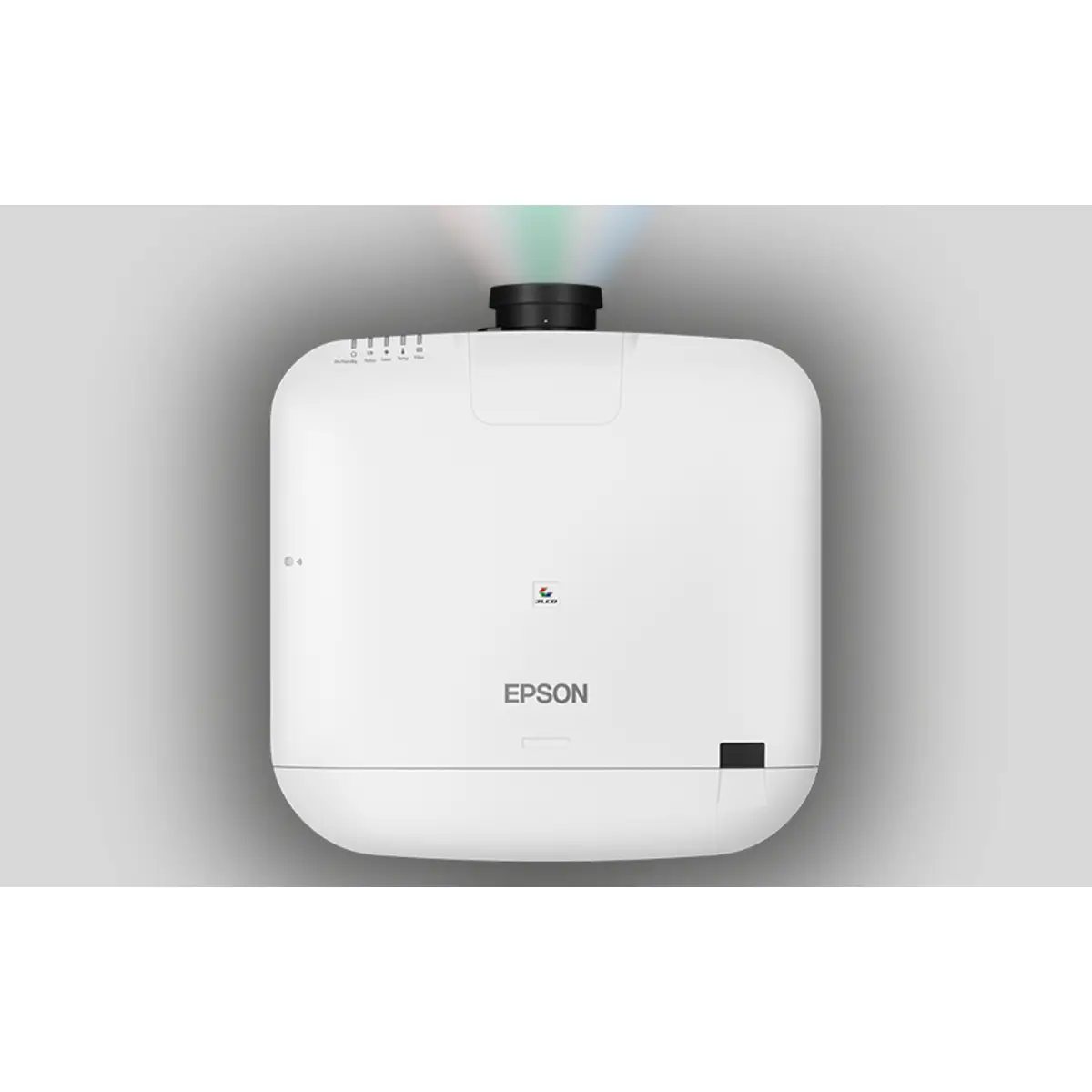

Superior image quality
The 6,000 lumens EB-PU1006W projects clear whites, vivid details, deep blacks, defined shadows and high contrast imagery.

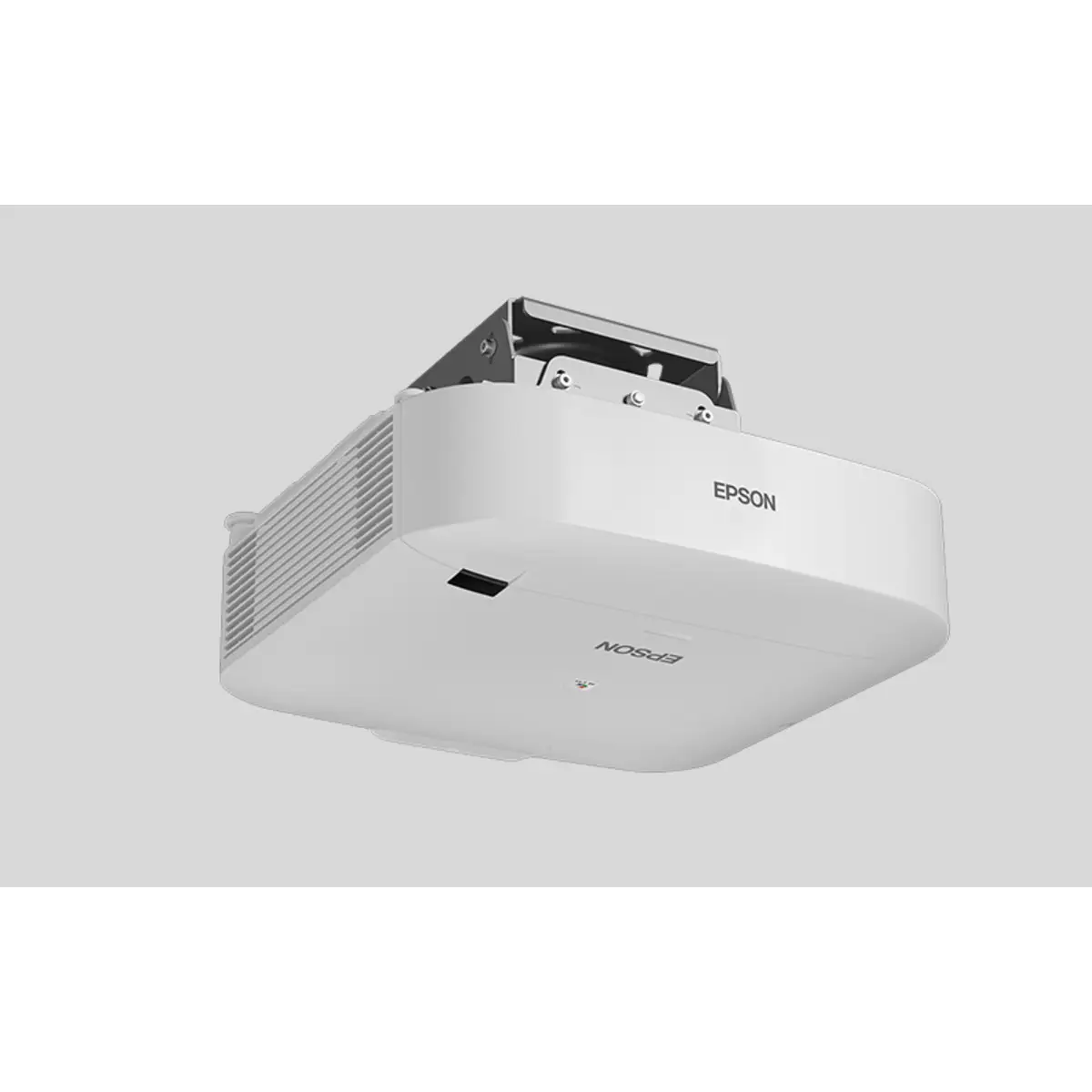

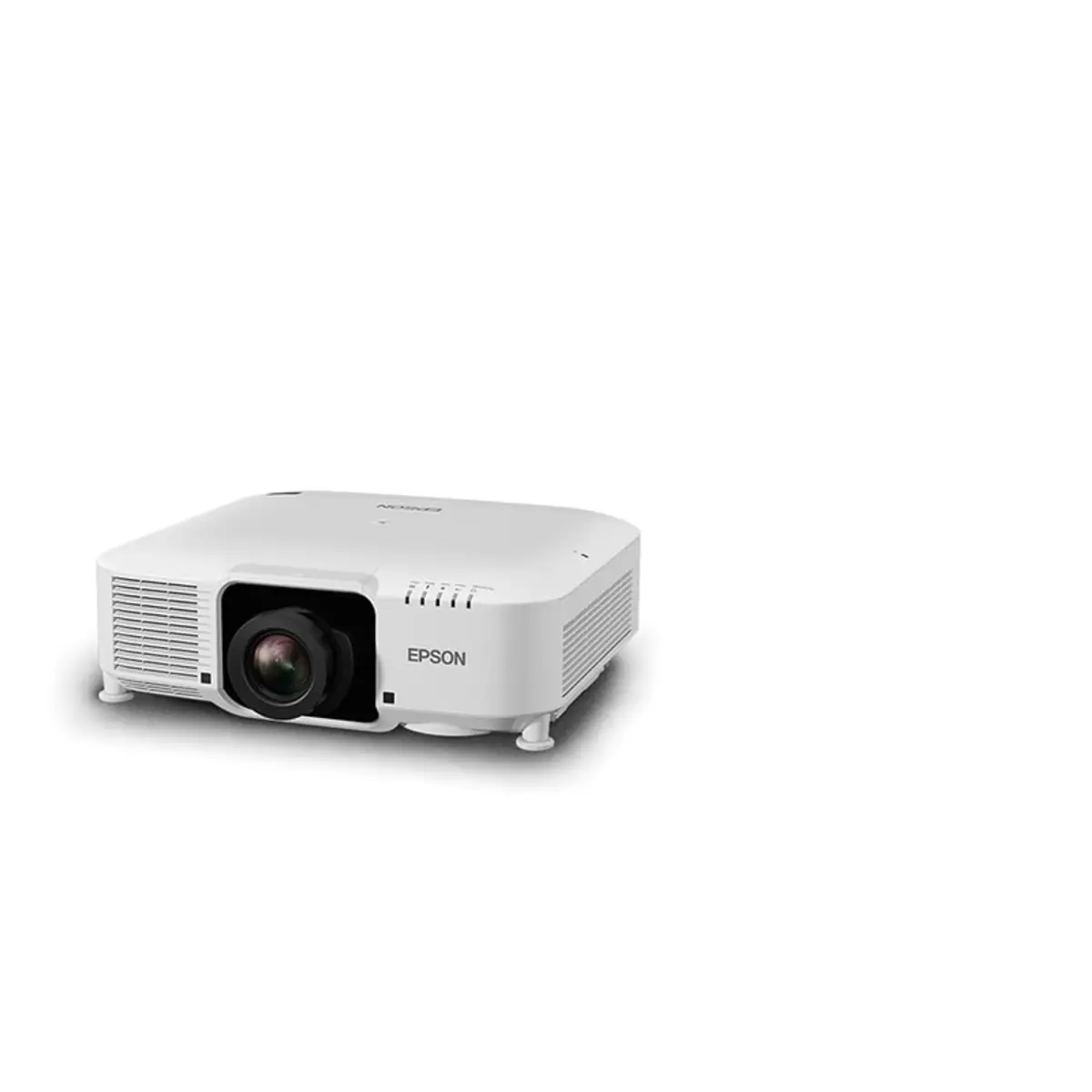

Compact and lightweight
The compact size makes this projector more transportable and saves storage space, providing size and cost advantages to projector fleets. The unobtrusive design allows it to blend seamlessly into most environments.

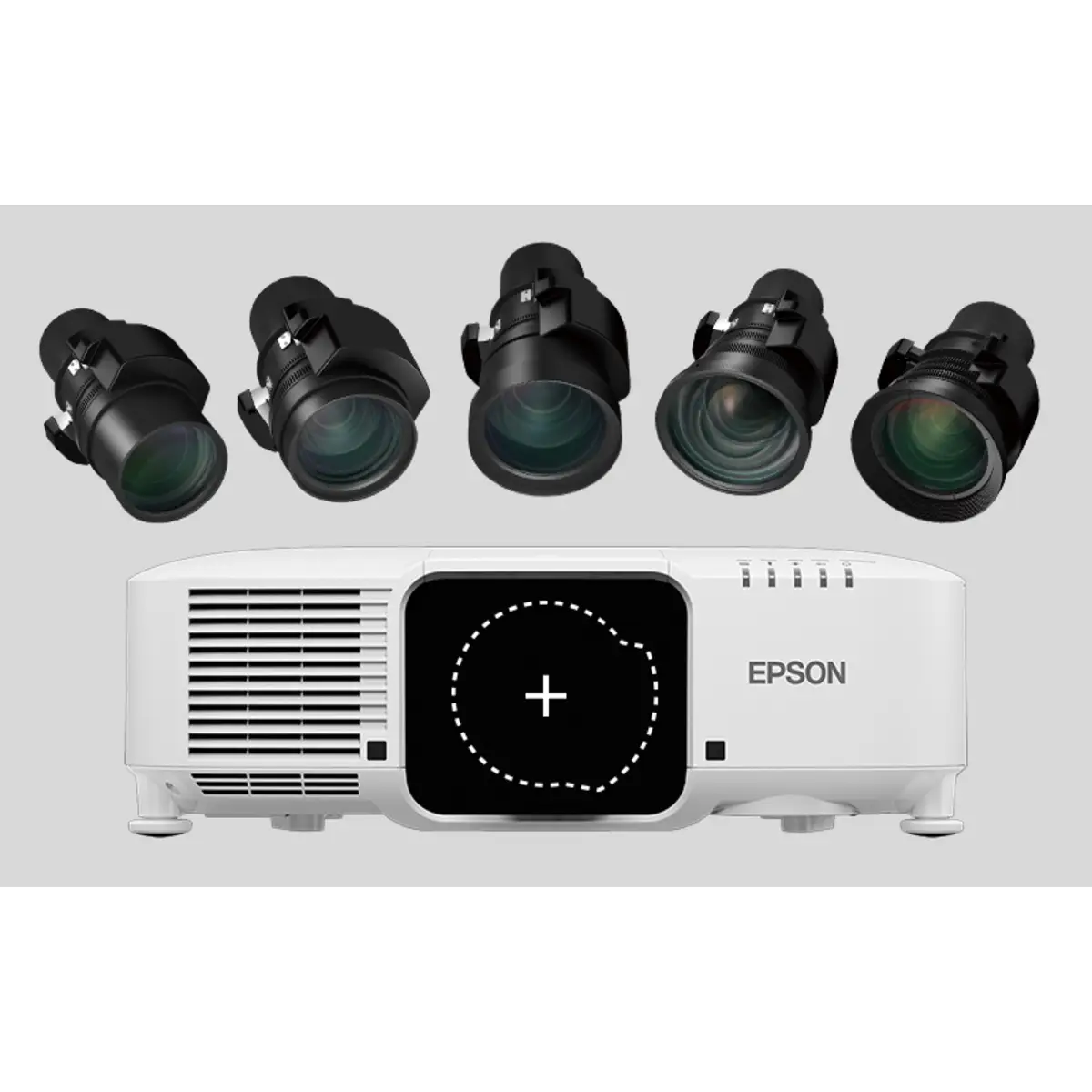

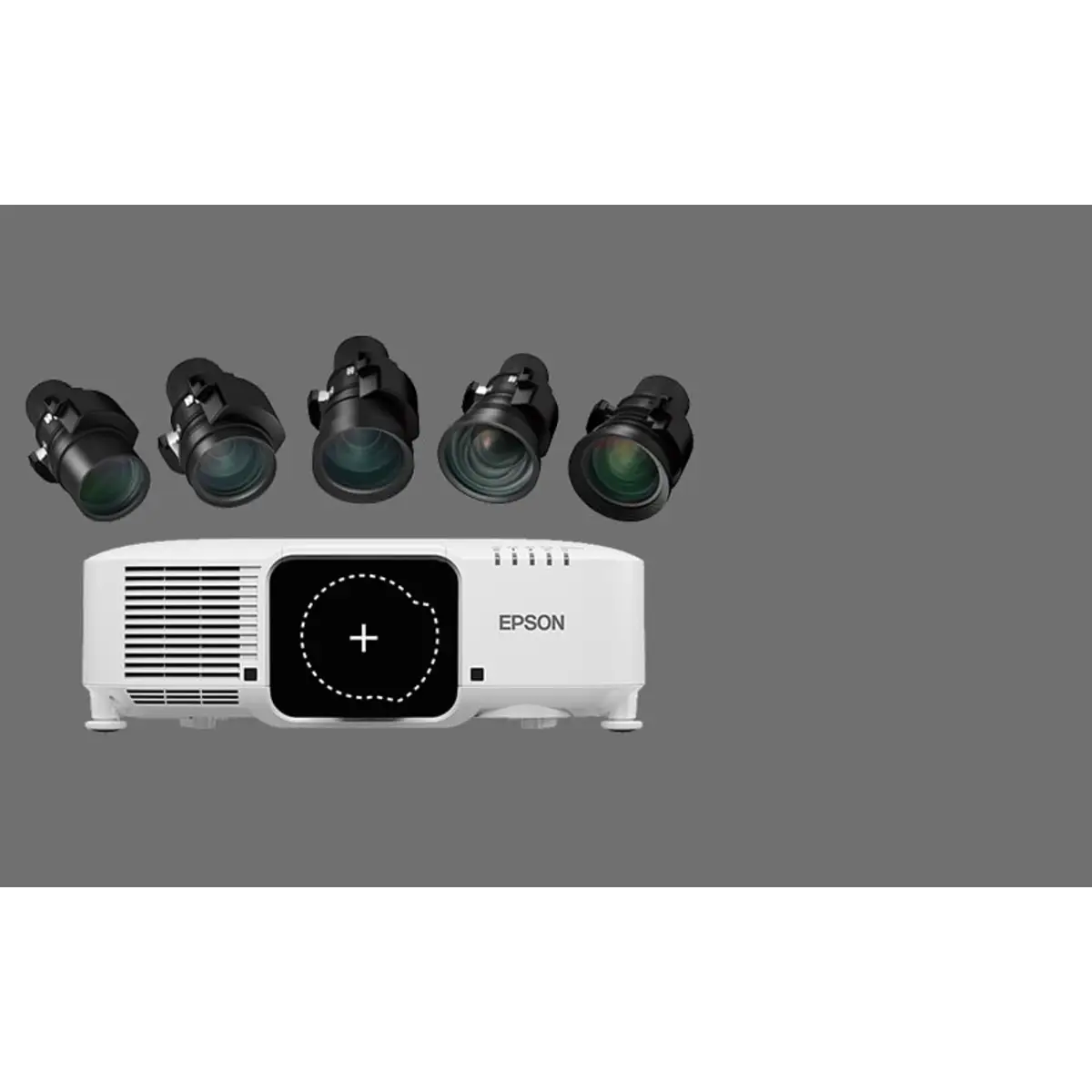

Interchangeable lens support
The EB-PU1006W accommodates different lenses to suit a wide range of projection environments, including a zero-offset ultra-short-throw lens. Epson supplies the projector as ‘body only’, without a lens, which puts the power to build the right projection solution, for the right application, in the hands of the user.
Designed for installation agility

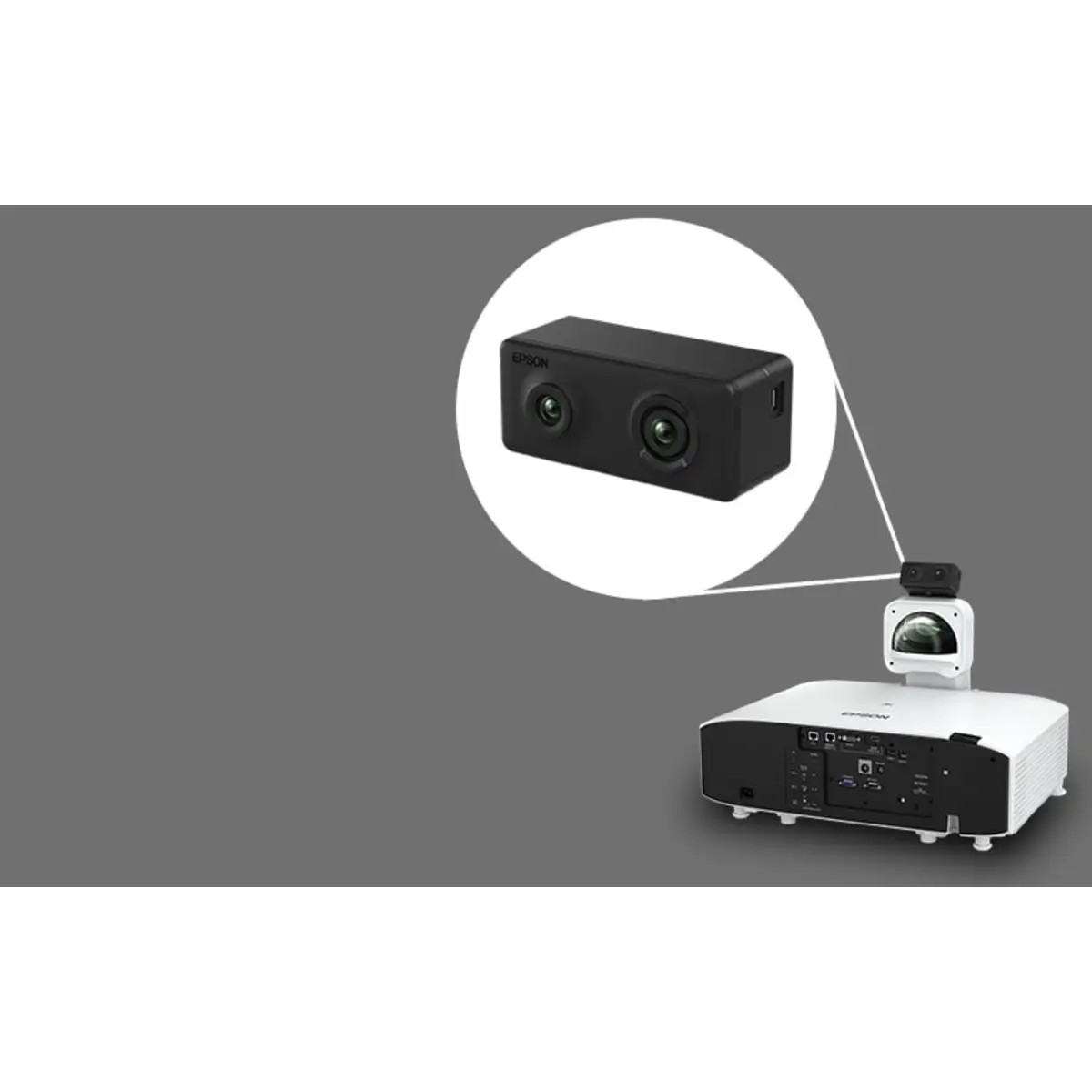

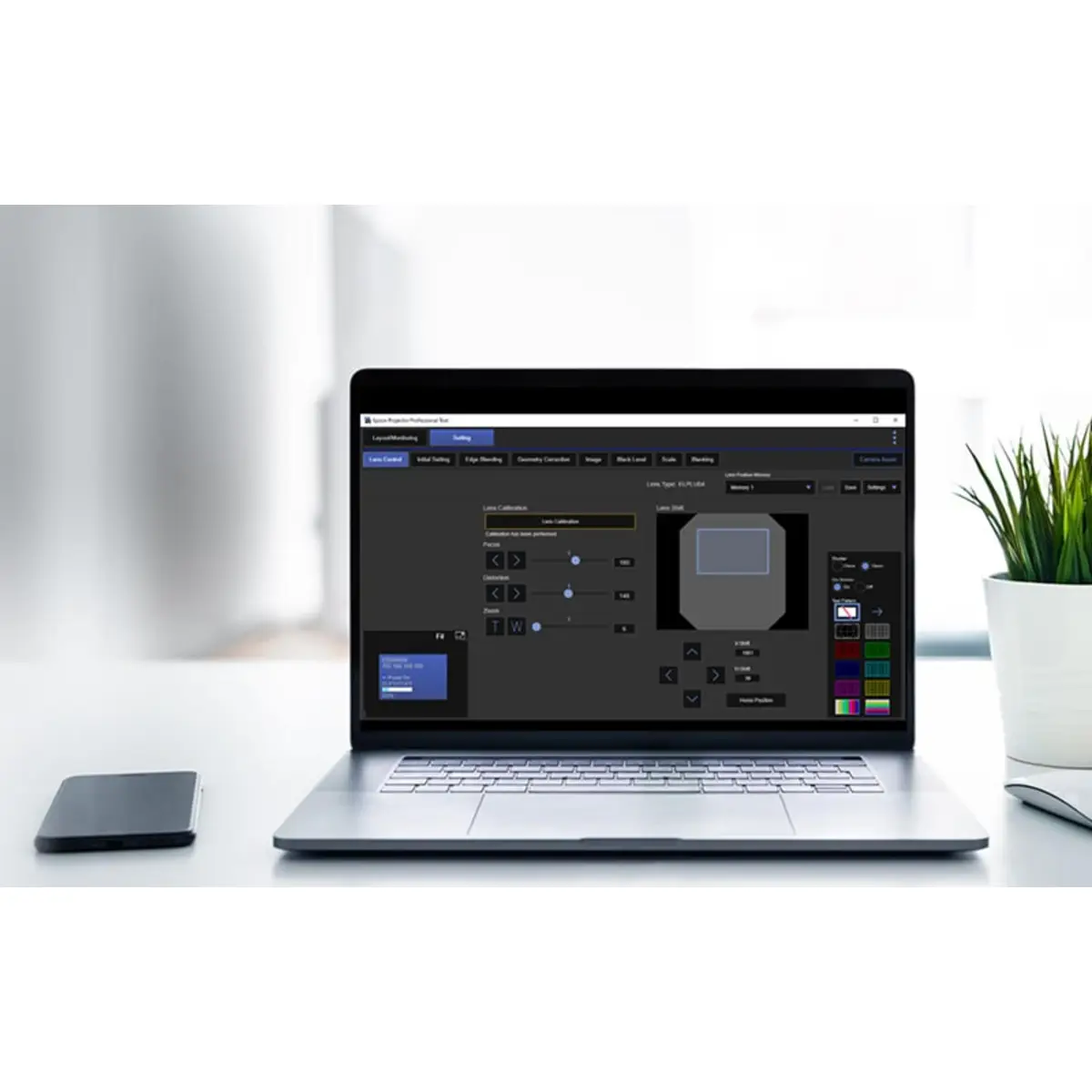

Produce large-scale, extremely bright displays, even as part of multi-projector installations where edge blending, stacking and lens flexibility is key. Epson Projector Professional Tool makes advanced installation techniques easy, such as projection mapping, while the optional external camera module (ELPEC01) uses built-in processing for PC-free geometry correction for stacking. The EB-PU1006W also features NFC for multi-projector set up, making diagnostics and installations easier using the Epson Projector Config Tool.
Product colour | White |
Country of origin | Philippines |
Built-in display | N |
Heat dissipation | 1,247.8 BTU/h |
Throw ratio | 0.35 - 10.11:1 |
Focal length range | varies by lens |
Zoom type | Auto |
Interchangeable lens | Y |
Native aspect ratio | 16:10 |
Contrast ratio (typical) | 2000:1 |
Service life of light source | 20,000 std |
Ethernet LAN (RJ-45) ports | 1 |
VGA (D-Sub) ports quantity | 1 |
HDMI ports quantity | 1 |
DVI port | Y |
HDCP | Y |
Serial interface type | RS-232C |
Audio (L/R) in | 1 |
USB 2.0 Type-B ports quantity | 1 |
Keystone correction, vertical | -45 - 45 |
Keystone correction, horizontal | -30 - 30 |
Projection technology | 3LCD |
Projector native resolution | WUXGA (1920x1200) |
Projector brightness | 6,000 ANSI |
Matrix size | 0.76 " |
Projector brightness (economic mode) | 4,200 ANSI |
Projector brightness (portrait mode) | 6,000 ANSI |
Light source type | Laser |
Service life of light source (economic mode) | 30,000 std |
Ethernet LAN | Y |
Analog signal format system | Not supported |
Video colour modes | Cinema,Dynamic,Natural,Presentation,DICOMsimulati |
Video processing | 10 bit |
3D | N |
Software support | via: Crestron IntegratedPartner, Extron IP Link, |
Noise level (economic mode) | 28 dB |
Cable lock slot type | Kensington |
Supported network protocols | HTTPS, IPv6, SNMP, ESC/VP.net, PJLink |
Card reader integrated | N |
Cable lock slot | Y |
Password protection | Y |
Remote control included | Y |
WLAN adapter included | Y |
Product type | Large venue projector |
Market positioning | Presentation |
Full HD | Y |
Number of colours | 1.07 billion colours |
AC input voltage | 100-240 |
Cables included | AC |
Bundled software | Inhalt DIY-App, EasyMPMulti PC Projection,Epson |
Batteries included | Y |
Warranty card | Y |
Package weight | 20,604 g |
Package depth | 760 mm |
Package width | 561 mm |
Package height | 265 mm |
Quantity per pack | 1 ST |
Power source | AC |
Power consumption (standby) | 0.5 W |
AC input frequency | 50 - 60 |
Operating relative humidity (H-H) | 20 - 80 |
Storage temperature (T-T) | -10 - 60 |
Storage relative humidity (H-H) | 10 - 90 |
USB 2.0 ports quantity | 2 |
Manual | Y |
Power consumption (typical) | 367 W |
Noise level | 30 dB |
Power consumption (economy mode) | 310 W |
HDBaseT port | Y |
Weight | 15,400 g |
Height | 189 mm |
Width | 545 mm |
Depth | 436 mm |
Harmonized System (HS) code | 85286200 |
Products per pallet | 14 ST |
Products per pallet (UK) | 14 ST |
