Name: ZT231, 8 Punkte/mm (203dpi), Peeler, LTU, Display, EPL, ZPL, ZPLII, USB, USB-Host, RS232, BT (BLE), Ethernet
Brand: 60009021
SKU: 311501

text.skipToContent text.skipToNavigation

ID: 311501 Zebra ID: ZT23142-D3E000FZ

ZT231, 8 Punkte/mm (203dpi), Peeler, LTU, Display, EPL, ZPL, ZPLII, USB, USB-Host, RS232, BT (BLE), Ethernet

Detailed product title

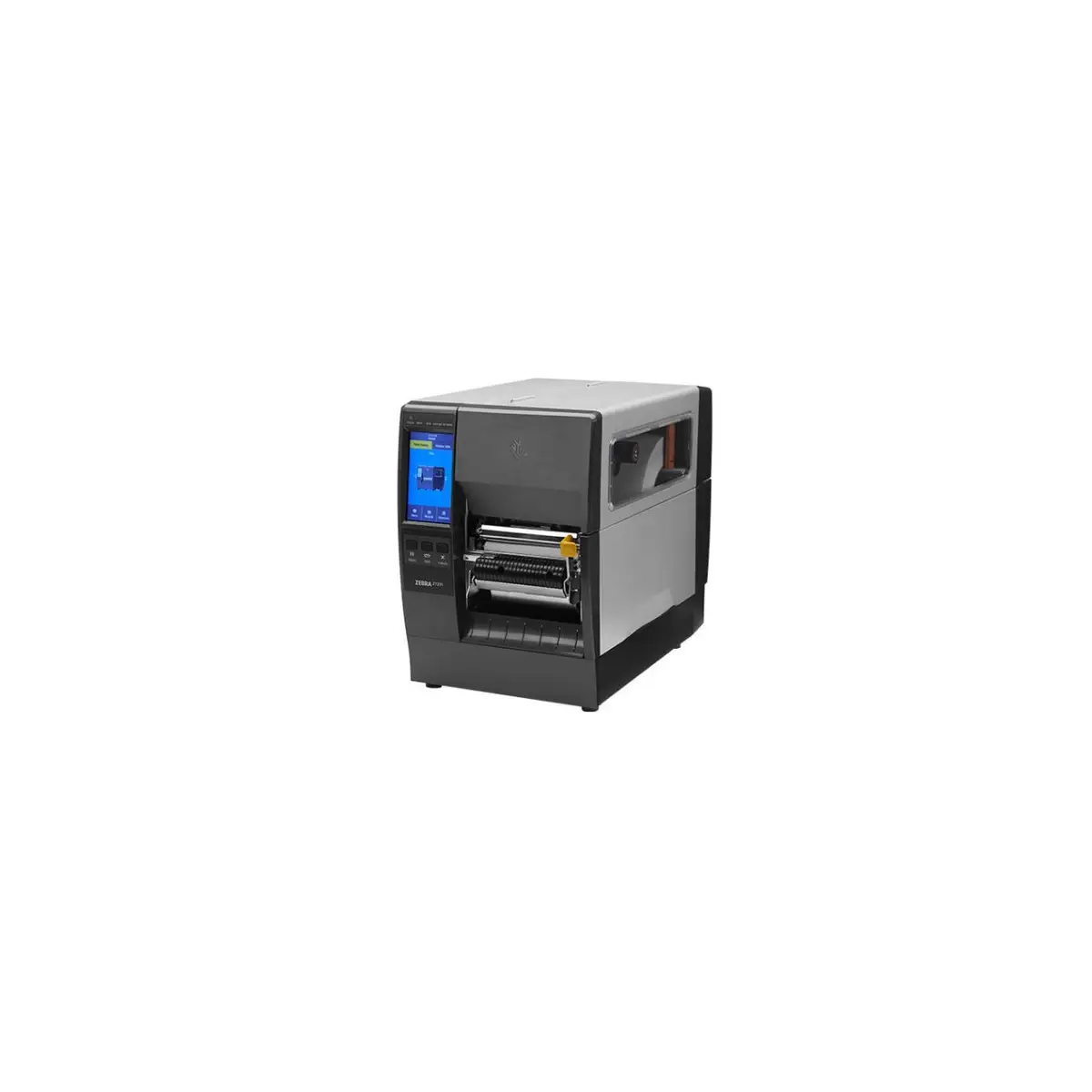

Zebra ZT231, label printer, thermal direct, resolution: 8 dots/mm (203 dpi), media width (max.): 114 mm, print width (max.): 104 mm, roll diameter (max.): 203 mm, speed (max.): 152 mm/s, USB, USB host, RS232, Bluetooth (BLE), Ethernet, EPL, ZPL, ZPLII, RAM: 128 MB, Flash: 128 MB, incl.: peeler, liner take-up spindle, LCD display, power supply, power cable (EU, UK)*

Connectivity technology Verkabelt & Kabellos

Maximum resolution 203 x 203 DPI

Print technology Thermodirekt

Maximum printing width 104 mm

immediately

Added to cart

immediately

Product description

Demands are increasing and deadlines are getting tighter. Can your printers keep up - without interruption? The ZT231 offers the perfect combination of the right features at the right price, combined with the quality and durability you expect from Zebra. Fast print speeds, high-resolution print quality, large color touchscreen, cutting-edge design and much more - all in a space-saving housing. Additional features such as RFID, wireless connectivity and media handling functions are available if required. But that's not all. Rely on integrated intelligence that makes your work easier and unmatched security. That's what Zebra means by real added value.

Technical specifications

Other features

RS-232 ports

Design

Colour display

Features

Page description languages

EPL, EPL2, ZBI, ZPL, ZPL II

Paper handling

Media thickness

0.076 - 0.010

Printing

Colour

System requirements

Mobile operating systems supported

Android,iOS

Operational conditions

Storage relative humidity (H-H)

5 - 85

Power

AC input voltage	100-240
AC input frequency	50-60

Features

Windows operating systems supported	Yes
Mac operating systems supported	Yes

Weight & dimensions

Weight	10,900 g
Height	324 mm
Width	241 mm
Depth	432 mm

Operational conditions

Operating relative humidity (H-H)	20 - 85
Storage temperature (T-T)	-40 - 60
Operating temperature (T-T)	5 - 40

Paper handling

Maximum media length

3,988 mm

Features

Print technology

Thermodirekt

Design

Display

LCD

Ports & interfaces

USB 2.0 ports quantity

Performance

Control type

Touch

Network

Wi-Fi

Ports & interfaces

USB port

Network

Connectivity technology

Verkabelt & Kabellos

Printing

Maximum resolution	203 x 203 DPI
Print speed	305 mm/s
Maximum printing width	104 mm

Network

Ethernet LAN	Yes
Bluetooth	Yes
Bluetooth Low Energy (BLE)	Yes

Weight & dimensions

Ribbon length	450 m
Core diameter	25.4 mm
Ribbon width	110 mm

Performance

Internal memory	256 MB
Flash memory	256 MB

Display

Display diagonal

4.3 "

Design

Product colour

Schwarz
