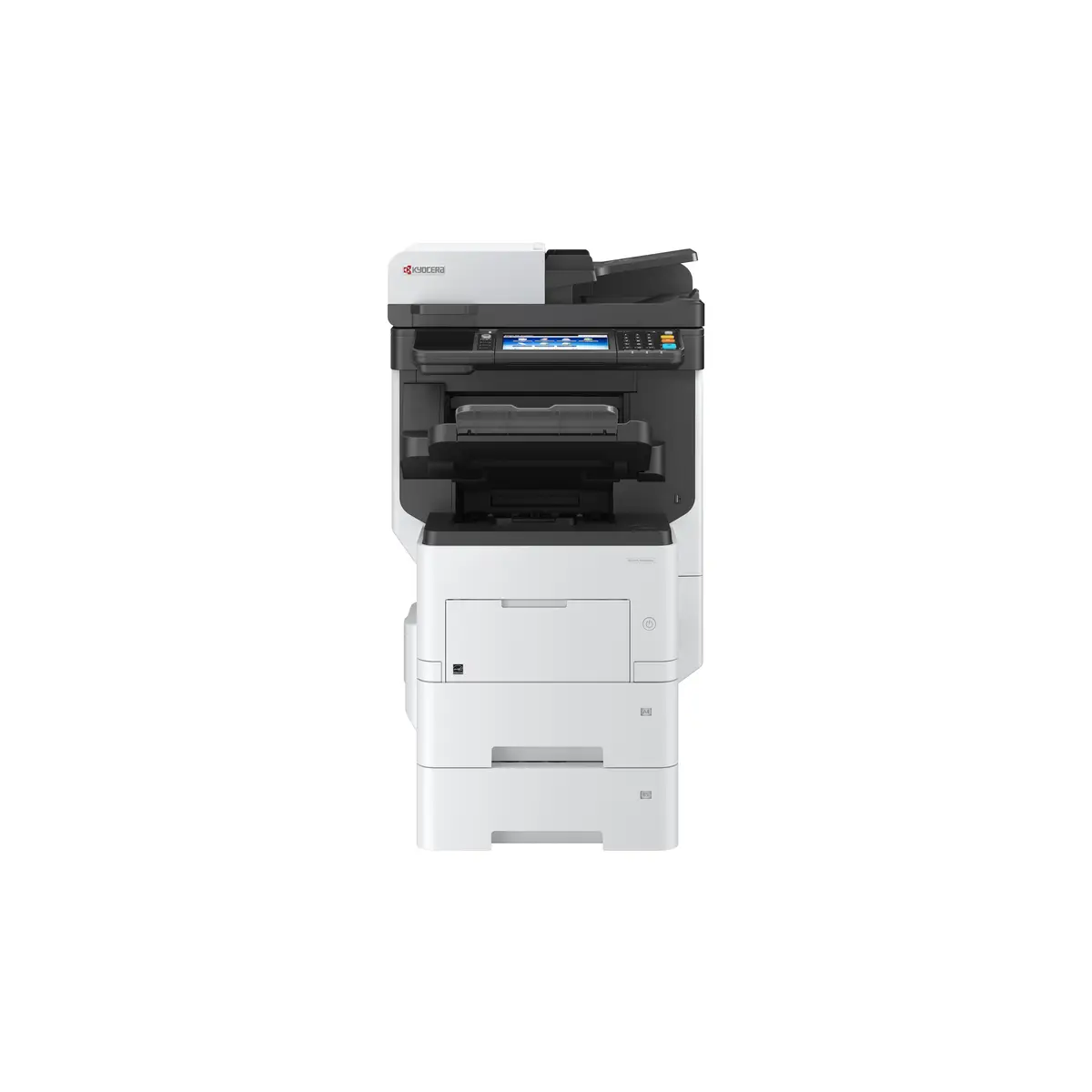

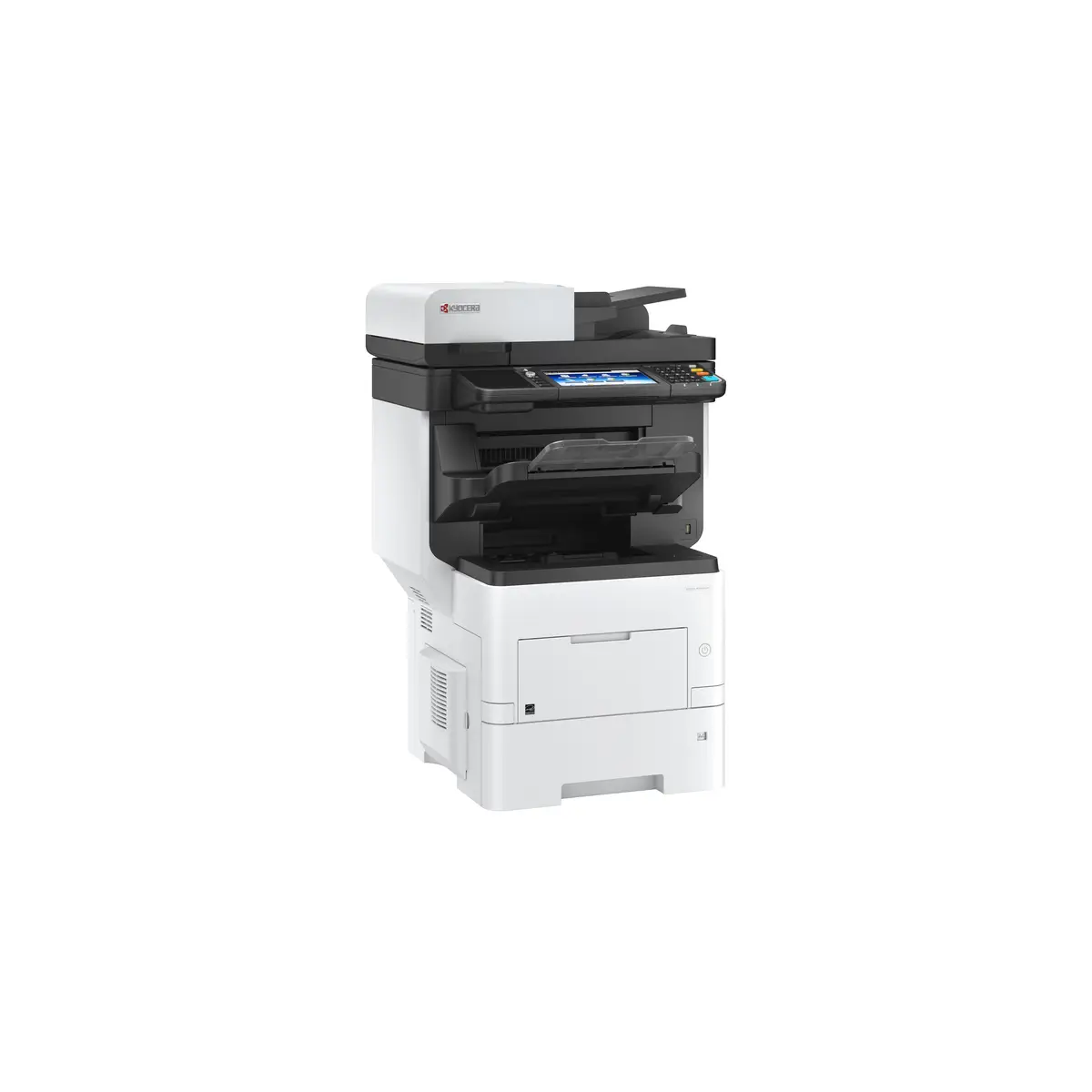

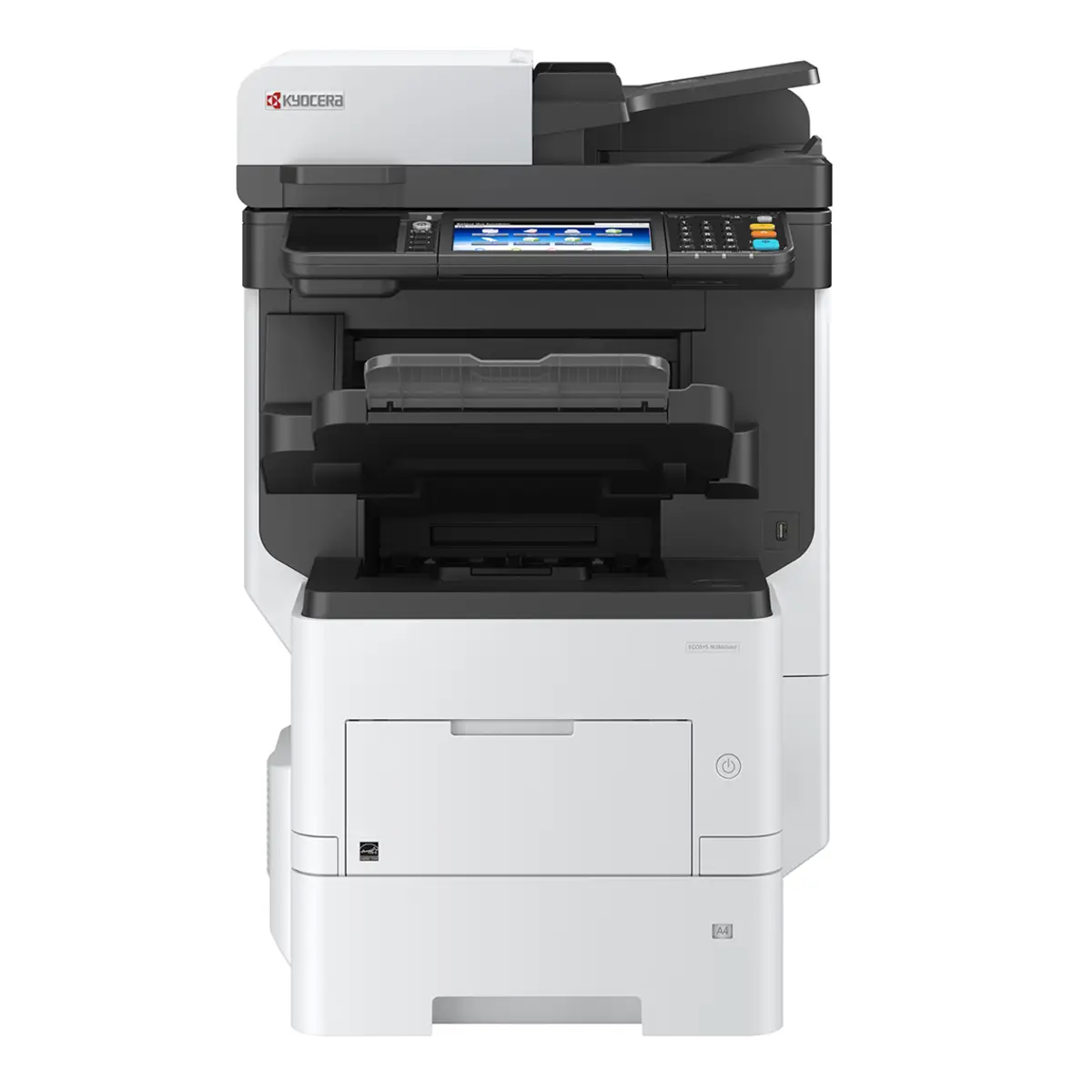

- ECOSYS M3860idnf Multifunktionsdrucker s/w Laser A4 (210 x 297 mm)
5 Images
Product description
ECOSYS M3860idnf
This Multi-Functional Product is for dynamic teams (small to large in size) with high demands of productivity and software efficiency, while offering exceptionally low running costs.
ECOSYS makes your office more sustainable and efficient
Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.
Driving efficiency through sustainability
The ECOSYS range provides new meaning to sustainability & product development, focusing on the environment through its approach.
Powerful, reliable and economical
For a printer that can be trusted to produce the goods whenever required.
ECOSYS: The sustainable solution
Unique to Kyocera, ECOSYS provides long-last and environmentally friendly printers at an economical cost.
This Multi-Functional Product is for dynamic teams (small to large in size) with high demands of productivity and software efficiency, while offering exceptionally low running costs.
ECOSYS makes your office more sustainable and efficient
Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.
Driving efficiency through sustainability
The ECOSYS range provides new meaning to sustainability & product development, focusing on the environment through its approach.
Powerful, reliable and economical
For a printer that can be trusted to produce the goods whenever required.
ECOSYS: The sustainable solution
Unique to Kyocera, ECOSYS provides long-last and environmentally friendly printers at an economical cost.
Technical specifications
Bildschirm
| Touchscreen | Y |
| Display diagonal | 7 " |
Logistics data
| Harmonized System (HS) code | 84433100 |
Software
| Drivers included | Y |
Leistungen
| Compatible memory cards | SD,SDHC |
| Coprocessor | Y |
| Maximum internal memory | 3,072 MB |
| Coprocessor frequency | 0.1 GHz |
| Sound pressure level (printing) | 55.5 dB |
| Sound power level (standby) | 23.5 dB |
| Sound pressure level (copying) | 55.5 dB |
Systemanforderung
| Linux operating systems supported | Y |
| Processor frequency | 1,200 MHz |
Power
| Power consumption (off) | 0.09 W |
| AC input voltage | 220 - 240 |
| AC input frequency | 50 - 60 |
| Power consumption (sleep) | 0.5 W |
| Power consumption (PowerSave) | 23 W |
| Power consumption (max) | 1,415 W |
| Energy Star Typical Electricity Consumption (TEC) | 3 kWh/we |
| Power consumption (printing) | 773 W |
| Power consumption (ready) | 24 W |
| Power consumption (copying) | 798 W |
| Power consumption (average operating) | 773 W |
Lieferumfang
| Cables included | AC |
| Power cord included | Y |
| Cartridge(s) included | Ja |
| Imaging unit included | Y |
Technische Details
| Market positioning | Business |
| Mobile printing technologies | Apple AirPrint,GoogleCloud Print,KyoceraMobile P |
| Finishing option | Standard |
Verpackungsdaten
| Software CD | Y |
| Quick installation guide | Ja |
| Package weight | 49,000 g |
| Package depth | 670 mm |
| Package width | 700 mm |
| Package height | 970 mm |
| Included cartridge capacity (black) | 11,000 pages |
Input & output capacity
| Paper input type | Cassette |
| Total number of input trays | 6 |
| Maximum number of input trays | 6 |
| Multi-Purpose tray | Y |
| Auto document feeder (ADF) | Y |
| Auto document feeder (ADF) input capacity | 100 sheets |
| Multi-Purpose tray input capacity | 100 sheets |
| Total input capacity | 500 sheets |
| Paper tray 1 input capacity | 500 sheets |
| Total output capacity | 500 sheets |
| Maximum output capacity | 500 sheets |
| Maximum input capacity | 2,600 sheets |
Fax
| Faxing | Mono-Faxen |
| Fax coding methods | JBIG,MH,MMR (Fax codingmethod),MR |
| Speed dialling | Y |
| Duplex faxing | Y |
| Modem speed | 33.6 Kbit/s |
| Fax memory | 200 pages |
| Fax transmission speed | 3 sec/pa |
| Fax resolution (black) | 400 x 400 |
Paper handling
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| Maximum print size | 216 x 356 mm |
| ISO B-series sizes (B0...B9) | B5,B6 |
| Maximum ISO A-series paper size | A4 |
| Non-ISO print media sizes | Folio (media size),Legal(media size),Letter (medi |
| Paper tray media types | Normales Papier |
| Multi-purpose tray media types | Envelopes,Labels,Legal,Letter,Plain paper,Recycled |
| Duplex media weight | 60 - 120 |
| Multi-Purpose Tray media weight | 60 - 220 |
| Custom media length | 148 - 356 |
| Auto Document Feeder (ADF) media weight | 50 - 120 |
| Custom media width | 105 - 216 |
| Paper tray media weight | 60 - 120 |
Scanning
| Image formats supported | JPEG,MMR,TIFF |
| Document formats supported | PDF,XPS |
| Scan technology | CIS/CCD |
| Greyscale levels | 256 |
| Scanner type | Flachbett- & ADF-Scanner |
| Scanning | Farbscan |
| Scan to | E-mail,FTP,SMB,TWAIN,USB,WIA |
| Image scaling/enlargement range | 7/5 |
| Scan drivers | TWAIN,WIA |
| Duplex scanning mode | Auto |
| Duplex scanning | Ja |
| Optical scanning resolution | 600 x 600 DPI |
| Maximum scan area | 216 x 915 |
| Duplex scan speed (colour) | 80 ppm |
| Scan speed (colour) | 40 ppm |
| Scan speed (black) | 60 ppm |
| Duplex scan speed (black) | 120 ppm |
| Optical scanning resolution (black) | 600 x 600 |
Copying
| Copying | Monokopie |
| N-in-1 copy function (N=) | 2,4 |
| Duplex copying mode | Auto |
| Book copy function | Y |
| Watermark copying | Y |
| N-in-1 copy function | Y |
| Stamp function | Y |
| Background adjustment function | Y |
| Copy programming function | Y |
| Duplex copying | Ja |
| Copy speed (black, normal quality, A4) | 60 cpm |
| Maximum number of copies | 999 copies |
| Time to first copy (black, normal) | 6 s |
| Copier resize | 25 - 400 |
| Duplex copy speed (black, US Letter) | 43 ppm |
| Maximum copy resolution | 600 x 600 DPI |
Sonstige Funktionen
| Display | TFT |
| Manual | Y |
| Control type | Touch |
| USB port | Ja |
| Documentation CD | Y |
| Energy saving mode | Y |
| Internal memory | 1,024 MB |
| Scan media weight | 50 - 120 |
Sustainability
| Sustainability certificates | Blue Angel,EPEAT Silver,ENERGY STAR |
Operational conditions
| Operating relative humidity (H-H) | 15 - 80 |
| Storage temperature (T-T) | -20 - 40 |
| Operating temperature (T-T) | 10 - 32.5 |
| Operating altitude | 0 - 3500 |
| Storage relative humidity (H-H) | 10 - 90 |
| Non-operating altitude | 0.6 - 15000 |
Printing
| Page description languages | Epson LQ,IBM ProPrinterXL24E,OpenXPS,PCL 5c,PCL6 |
| Economical printing | Y |
| Duplex printing mode | Auto |
| Duplex printing | Ja |
| Printing | Monodruck |
| N-up printing | 2,4,6,8,9,16,25 |
| Watermark printing | Y |
| Secure printing | Y |
| Barcode printing | Y |
| Eco printing function | Y |
| Skip blank page function | Y |
| Secure PDF printing function | Y |
| Poster printing function | Y |
| N-in-1 print function | Y |
| Print speed (black, normal quality, A4/US Letter) | 60 ppm |
| Warm-up time | 25 s |
| Duplex print speed (black, normal quality, A4/US Letter) | 43 ppm |
| Time to first page (black, normal) | 4.5 s |
| Print margins (top, bottom, right, left) | 4 mm |
| Maximum resolution | 1200 x 1200 DPI |
| Print margin right (min) | 4 mm |
| Print margin left (min) | 4 mm |
| Print margin bottom (min) | 4 mm |
| Print margin top (min) | 4 mm |
Gewicht und Abmessungen
| Weight | 37,500 g |
| Height | 740 mm |
| Width | 480 mm |
| Depth | 545 mm |
Features
| Number of print cartridges | 1 |
| Printing colours | Schwarz |
| Print technology | Laser |
| Replacement cartridges | TK-3160 (toner, 12.500afdrukken 5% dekking) TK-3 |
| Duplex functions | Copy,Fax,Print,Scan |
| Maximum duty cycle | 300,000 pages |
| Recommended duty cycle | 5000 - 20000 |
Computer system
| Built-in processor | Y |
| Windows operating systems supported | Y |
| Mac operating systems supported | Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan, |
Messaging
| Email protocols | POP3,SMTP |
Mouse
| Certification | TÜV/GS, CE |
Memory
| Memory slots | 1 |
Network
| Cabling technology | 10/100/1000Base-T(X) |
| Email over SSL | Y |
| Ethernet LAN data rates | 10,100,1000 |
Processor
| Processor family | ARM Cortex-A9 |
| Processor cores | 2 |
Ports & interfaces
| USB 2.0 ports quantity | 2 |
| Ethernet LAN | Ja |
| Wi-Fi | Nein |
| Bluetooth | N |
| Near Field Communication (NFC) | N |
| Optional connectivity | Ethernet,Wireless LAN |
| Direct printing | Ja |
Security
| Security algorithms | IPSec,SNMPv3 |
Design
| Product colour | Schwarz, Weiß |
| Built-in display | Ja |
| Colour display | Y |
Downloads
519964_document_EN_001
PDF Download
ID: 519964
Kyocera ID: 1102WF3NL0
ECOSYS M3860idnf Multifunktionsdrucker s/w Laser A4 (210 x 297 mm)
Detailed product title
Detailed product title
Kyocera ECOSYS M3860idnf Multifunktionsdrucker s/w Laser A4 (210 x 297 mm) Legal (216 x 356 mm) (Original) A4/Legal (Medien) bis zu 60 Seiten/Min. (Kopieren) bis zu 60 Seiten/Min. (Drucken) 600 Blatt 33.6 Kbps USB 2.0 Gigabit LAN USB 2.0-Host
5 Images
Printing Monodruck
Maximum ISO A-series paper size A4
Maximum resolution 1200 x 1200 DPI
Print technology Laser
Gross:
incl.
vat.
please ask for availability
Added to cart
Gross:
incl.
vat.
please ask for availability
Product description
ECOSYS M3860idnf
This Multi-Functional Product is for dynamic teams (small to large in size) with high demands of productivity and software efficiency, while offering exceptionally low running costs.
ECOSYS makes your office more sustainable and efficient
Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.
Driving efficiency through sustainability
The ECOSYS range provides new meaning to sustainability & product development, focusing on the environment through its approach.
Powerful, reliable and economical
For a printer that can be trusted to produce the goods whenever required.
ECOSYS: The sustainable solution
Unique to Kyocera, ECOSYS provides long-last and environmentally friendly printers at an economical cost.
This Multi-Functional Product is for dynamic teams (small to large in size) with high demands of productivity and software efficiency, while offering exceptionally low running costs.
ECOSYS makes your office more sustainable and efficient
Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.
Driving efficiency through sustainability
The ECOSYS range provides new meaning to sustainability & product development, focusing on the environment through its approach.
Powerful, reliable and economical
For a printer that can be trusted to produce the goods whenever required.
ECOSYS: The sustainable solution
Unique to Kyocera, ECOSYS provides long-last and environmentally friendly printers at an economical cost.
Technical specifications
Bildschirm
| Touchscreen | Y |
| Display diagonal | 7 " |
Logistics data
| Harmonized System (HS) code | 84433100 |
Software
| Drivers included | Y |
Leistungen
| Compatible memory cards | SD,SDHC |
| Coprocessor | Y |
| Maximum internal memory | 3,072 MB |
| Coprocessor frequency | 0.1 GHz |
| Sound pressure level (printing) | 55.5 dB |
| Sound power level (standby) | 23.5 dB |
| Sound pressure level (copying) | 55.5 dB |
Systemanforderung
| Linux operating systems supported | Y |
| Processor frequency | 1,200 MHz |
Power
| Power consumption (off) | 0.09 W |
| AC input voltage | 220 - 240 |
| AC input frequency | 50 - 60 |
| Power consumption (sleep) | 0.5 W |
| Power consumption (PowerSave) | 23 W |
| Power consumption (max) | 1,415 W |
| Energy Star Typical Electricity Consumption (TEC) | 3 kWh/we |
| Power consumption (printing) | 773 W |
| Power consumption (ready) | 24 W |
| Power consumption (copying) | 798 W |
| Power consumption (average operating) | 773 W |
Lieferumfang
| Cables included | AC |
| Power cord included | Y |
| Cartridge(s) included | Ja |
| Imaging unit included | Y |
Technische Details
| Market positioning | Business |
| Mobile printing technologies | Apple AirPrint,GoogleCloud Print,KyoceraMobile P |
| Finishing option | Standard |
Verpackungsdaten
| Software CD | Y |
| Quick installation guide | Ja |
| Package weight | 49,000 g |
| Package depth | 670 mm |
| Package width | 700 mm |
| Package height | 970 mm |
| Included cartridge capacity (black) | 11,000 pages |
Input & output capacity
| Paper input type | Cassette |
| Total number of input trays | 6 |
| Maximum number of input trays | 6 |
| Multi-Purpose tray | Y |
| Auto document feeder (ADF) | Y |
| Auto document feeder (ADF) input capacity | 100 sheets |
| Multi-Purpose tray input capacity | 100 sheets |
| Total input capacity | 500 sheets |
| Paper tray 1 input capacity | 500 sheets |
| Total output capacity | 500 sheets |
| Maximum output capacity | 500 sheets |
| Maximum input capacity | 2,600 sheets |
Fax
| Faxing | Mono-Faxen |
| Fax coding methods | JBIG,MH,MMR (Fax codingmethod),MR |
| Speed dialling | Y |
| Duplex faxing | Y |
| Modem speed | 33.6 Kbit/s |
| Fax memory | 200 pages |
| Fax transmission speed | 3 sec/pa |
| Fax resolution (black) | 400 x 400 |
Paper handling
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| Maximum print size | 216 x 356 mm |
| ISO B-series sizes (B0...B9) | B5,B6 |
| Maximum ISO A-series paper size | A4 |
| Non-ISO print media sizes | Folio (media size),Legal(media size),Letter (medi |
| Paper tray media types | Normales Papier |
| Multi-purpose tray media types | Envelopes,Labels,Legal,Letter,Plain paper,Recycled |
| Duplex media weight | 60 - 120 |
| Multi-Purpose Tray media weight | 60 - 220 |
| Custom media length | 148 - 356 |
| Auto Document Feeder (ADF) media weight | 50 - 120 |
| Custom media width | 105 - 216 |
| Paper tray media weight | 60 - 120 |
Scanning
| Image formats supported | JPEG,MMR,TIFF |
| Document formats supported | PDF,XPS |
| Scan technology | CIS/CCD |
| Greyscale levels | 256 |
| Scanner type | Flachbett- & ADF-Scanner |
| Scanning | Farbscan |
| Scan to | E-mail,FTP,SMB,TWAIN,USB,WIA |
| Image scaling/enlargement range | 7/5 |
| Scan drivers | TWAIN,WIA |
| Duplex scanning mode | Auto |
| Duplex scanning | Ja |
| Optical scanning resolution | 600 x 600 DPI |
| Maximum scan area | 216 x 915 |
| Duplex scan speed (colour) | 80 ppm |
| Scan speed (colour) | 40 ppm |
| Scan speed (black) | 60 ppm |
| Duplex scan speed (black) | 120 ppm |
| Optical scanning resolution (black) | 600 x 600 |
Copying
| Copying | Monokopie |
| N-in-1 copy function (N=) | 2,4 |
| Duplex copying mode | Auto |
| Book copy function | Y |
| Watermark copying | Y |
| N-in-1 copy function | Y |
| Stamp function | Y |
| Background adjustment function | Y |
| Copy programming function | Y |
| Duplex copying | Ja |
| Copy speed (black, normal quality, A4) | 60 cpm |
| Maximum number of copies | 999 copies |
| Time to first copy (black, normal) | 6 s |
| Copier resize | 25 - 400 |
| Duplex copy speed (black, US Letter) | 43 ppm |
| Maximum copy resolution | 600 x 600 DPI |
Sonstige Funktionen
| Display | TFT |
| Manual | Y |
| Control type | Touch |
| USB port | Ja |
| Documentation CD | Y |
| Energy saving mode | Y |
| Internal memory | 1,024 MB |
| Scan media weight | 50 - 120 |
Sustainability
| Sustainability certificates | Blue Angel,EPEAT Silver,ENERGY STAR |
Operational conditions
| Operating relative humidity (H-H) | 15 - 80 |
| Storage temperature (T-T) | -20 - 40 |
| Operating temperature (T-T) | 10 - 32.5 |
| Operating altitude | 0 - 3500 |
| Storage relative humidity (H-H) | 10 - 90 |
| Non-operating altitude | 0.6 - 15000 |
Printing
| Page description languages | Epson LQ,IBM ProPrinterXL24E,OpenXPS,PCL 5c,PCL6 |
| Economical printing | Y |
| Duplex printing mode | Auto |
| Duplex printing | Ja |
| Printing | Monodruck |
| N-up printing | 2,4,6,8,9,16,25 |
| Watermark printing | Y |
| Secure printing | Y |
| Barcode printing | Y |
| Eco printing function | Y |
| Skip blank page function | Y |
| Secure PDF printing function | Y |
| Poster printing function | Y |
| N-in-1 print function | Y |
| Print speed (black, normal quality, A4/US Letter) | 60 ppm |
| Warm-up time | 25 s |
| Duplex print speed (black, normal quality, A4/US Letter) | 43 ppm |
| Time to first page (black, normal) | 4.5 s |
| Print margins (top, bottom, right, left) | 4 mm |
| Maximum resolution | 1200 x 1200 DPI |
| Print margin right (min) | 4 mm |
| Print margin left (min) | 4 mm |
| Print margin bottom (min) | 4 mm |
| Print margin top (min) | 4 mm |
Gewicht und Abmessungen
| Weight | 37,500 g |
| Height | 740 mm |
| Width | 480 mm |
| Depth | 545 mm |
Features
| Number of print cartridges | 1 |
| Printing colours | Schwarz |
| Print technology | Laser |
| Replacement cartridges | TK-3160 (toner, 12.500afdrukken 5% dekking) TK-3 |
| Duplex functions | Copy,Fax,Print,Scan |
| Maximum duty cycle | 300,000 pages |
| Recommended duty cycle | 5000 - 20000 |
Computer system
| Built-in processor | Y |
| Windows operating systems supported | Y |
| Mac operating systems supported | Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan, |
Messaging
| Email protocols | POP3,SMTP |
Mouse
| Certification | TÜV/GS, CE |
Memory
| Memory slots | 1 |
Network
| Cabling technology | 10/100/1000Base-T(X) |
| Email over SSL | Y |
| Ethernet LAN data rates | 10,100,1000 |
Processor
| Processor family | ARM Cortex-A9 |
| Processor cores | 2 |
Ports & interfaces
| USB 2.0 ports quantity | 2 |
| Ethernet LAN | Ja |
| Wi-Fi | Nein |
| Bluetooth | N |
| Near Field Communication (NFC) | N |
| Optional connectivity | Ethernet,Wireless LAN |
| Direct printing | Ja |
Security
| Security algorithms | IPSec,SNMPv3 |
Design
| Product colour | Schwarz, Weiß |
| Built-in display | Ja |
| Colour display | Y |
Downloads
519964_document_EN_001
PDF Download
