- ECOSYS MA4500ifx 220-240V50/60HZ
5 Images
Product description
The ECOSYS MA4500ifx meets the high demands of users on versatility and productivity whilst also delivering exceptionally low running costs. This multifunctional product offers paper handling options with up to 2,600 sheets and modern security features.
Technical specifications
Design
| Product colour | Schwarz, Weiß |
| Built-in display | Ja |
| Colour display | Y |
Bildschirm
| Display diagonal | 7 " |
Leistungen
| Compatible memory cards | SD |
| Maximum internal memory | 3,500 MB |
| Sound pressure level (printing) | 54 dB |
| Sound pressure level (duplex printing) | 54 dB |
| Sound pressure level (copying) | 54 dB |
| Sound pressure level (standby) | 30 dB |
Systemanforderung
| Linux operating systems supported | Y |
| Windows operating systems supported | Y |
| Mac operating systems supported | Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan, |
| Processor frequency | 1,400 MHz |
Power
| Power consumption (off) | 0.1 W |
| Power consumption (standby) | 36.3 W |
| AC input voltage | 220 - 240 |
| AC input frequency | 50/60 |
| Power consumption (sleep) | 0.5 W |
| Power consumption (max) | 1,237 W |
| Energy Star Typical Electricity Consumption (TEC) | 0.62 kWh/we |
| Power consumption (printing) | 626.3 W |
| Power consumption (ready) | 56.3 W |
| Power consumption (copying) | 563.8 W |
Lieferumfang
| Cables included | AC |
| Cartridge(s) included | Ja |
| Imaging unit included | Y |
Technische Details
| Market positioning | Business |
| Card reader integrated | Nein |
| Mobile printing technologies | Apple AirPrint,KyoceraMobile Print,Mopria PrintS |
Verpackungsdaten
| Package weight | 30,000 g |
| Package depth | 570 mm |
| Package width | 607 mm |
| Package height | 695 mm |
| Included cartridge capacity (black) | 6,000 pages |
Input & output capacity
| Total number of input trays | 6 |
| Maximum number of input trays | 6 |
| Multi-Purpose tray | Y |
| Auto document feeder (ADF) | Y |
| Auto document feeder (ADF) input capacity | 75 sheets |
| Multi-Purpose tray input capacity | 100 sheets |
| Total input capacity | 600 sheets |
| Paper tray 1 input capacity | 500 sheets |
| Total output capacity | 250 sheets |
| Maximum output capacity | 250 sheets |
| Maximum input capacity | 2,600 sheets |
Fax
| Auto-redialing | Y |
| Faxing | Mono-Faxen |
| Duplex faxing | Y |
| Modem speed | 33.6 Kbit/s |
| Fax memory | 256 pages |
| Fax transmission speed | 3 sec/pa |
| Fax resolution (black) | 400 x 400 |
Paper handling
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| Maximum print size | 216 x 356 mm |
| ISO B-series sizes (B0...B9) | B5,B6 |
| Maximum ISO A-series paper size | A4 |
| Non-ISO print media sizes | Folio (media size),Legal(media size),Letter (medi |
| Paper tray media types | Banner,Labels,Letterhead,Plain paper,Pre-Printed,T |
| Multi-Purpose Tray media weight | 60 - 220 |
| Custom media length | 210 - 356 |
| Custom media width | 140 - 216 |
| Paper tray media weight | 60 - 120 |
Scanning
| Image formats supported | JPEG,TIFF |
| Document formats supported | PDF,XPS |
| Scan technology | CIS/CCD |
| Greyscale levels | 256 |
| Scanner type | Flachbett- & ADF-Scanner |
| Scanning | Farbscan |
| Scan to | E-mail,FTP,File,Image,PC,Print,SMB,TWAIN,USB,WIA |
| Scan drivers | TWAIN,WIA |
| Duplex scanning mode | Auto |
| Duplex scanning | Ja |
| Optical scanning resolution | 600 x 600 DPI |
| Maximum scan resolution | 600 x 600 |
| Maximum scan area | 210 x 297 |
| Duplex scan speed (colour) | 17 ppm |
| Scan speed (colour) | 40 ppm |
| Scan speed (black) | 60 ppm |
| Duplex scan speed (black) | 26 ppm |
| Optical scanning resolution (ADF) | 600 x 600 |
| Optical scanning resolution (black) | 600 x 600 |
| Optical scanning resolution (colour) | 300 x 300 |
Copying
| Copying | Monokopie |
| N-in-1 copy function (N=) | 2,4 |
| Duplex copying mode | Auto |
| Maximum copy size | A4 |
| ID-card copy function | Y |
| N-in-1 copy function | Y |
| Copy programming function | Y |
| Duplex copying | Ja |
| Copy speed (black, normal quality, A4) | 45 cpm |
| Maximum number of copies | 999 copies |
| Time to first copy (black, normal) | 6 s |
| Copier resize | 25 - 400 |
| Maximum copy resolution | 600 x 600 DPI |
Sonstige Funktionen
| Display | LCD |
| Control type | Touch |
| USB port | Ja |
| All-In-One-multitasking | Y |
| Fax delayed sending | Y |
| Fax forwarding | Y |
| Internal memory | 1,500 MB |
Sustainability
| Sustainability certificates | Blue Angel,EPEAT Gold,REACH,RoHS |
| Sustainability compliance | Y |
Operational conditions
| Operating relative humidity (H-H) | 15 - 80 |
| Storage temperature (T-T) | -20 - 40 |
| Operating temperature (T-T) | 10 - 32.5 |
| Operating altitude | 0 - 3500 |
| Storage relative humidity (H-H) | 10 - 90 |
Printing
| Page description languages | PCL 5e, PCL 6, PCL XL, PDF 1.4 |
| Economical printing | Y |
| Duplex printing mode | Auto |
| Duplex printing | Ja |
| Printing | Monodruck |
| N-up printing | 2,4,6,8,9,16,25 |
| Watermark printing | Y |
| Secure printing | Y |
| Cover page printing function | Y |
| Poster printing function | Y |
| N-in-1 print function | Y |
| Print speed (black, normal quality, A4/US Letter) | 45 ppm |
| Warm-up time | 23 s |
| Duplex print speed (black, normal quality, A4/US Letter) | 22.5 ppm |
| Time to first page (black, normal) | 5.3 s |
| Maximum resolution | 1200 x 1200 DPI |
Gewicht und Abmessungen
| Weight | 23,000 g |
| Height | 575 mm |
| Width | 475 mm |
| Depth | 476 mm |
Features
| Country of origin | Vietnam |
| Number of print cartridges | 1 |
| Printing colours | Schwarz |
| Print technology | Laser |
| Printer fonts | Barcode,Bitmap,PCL |
| Replacement cartridges | TK-3300 |
| Duplex functions | Copy,Fax,Print,Scan |
| Digital sender | Y |
| Maximum duty cycle | 150,000 pages |
| Recommended duty cycle | 3000 - 15000 |
Computer system
| Processor cores | 2 |
| Built-in processor | Y |
Memory
| Memory slots | 1 |
Network
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 |
Processor
| Processor family | ARM Cortex |
| Processor model | A53 |
Ports & interfaces
| USB 2.0 ports quantity | 1 |
| Ethernet LAN | Ja |
| Wi-Fi | Nein |
| Optional connectivity | Ethernet,Wireless LAN |
| Direct printing | Ja |
Call management
| Speed dialling | Y |
Downloads
341969_document_EN_001
PDF Download
ID: 341969
Kyocera ID: 110C103NL0
ECOSYS MA4500ifx 220-240V50/60HZ
Detailed product title
Detailed product title
Kyocera ECOSYS MA4500ifx Drucker s/w Duplex Laser A4/Legal 1200 x 1200 dpi bis zu 45 Seiten/Min. Kapazität: 600 Blätter USB 2.0 Giga bit LAN USB-Host
5 Images
Printing Monodruck
Maximum ISO A-series paper size A4
Maximum resolution 1200 x 1200 DPI
Print technology Laser
Gross:
incl.
vat.
ship in 4-7 days
Added to cart
Gross:
incl.
vat.
ship in 4-7 days
Product description
The ECOSYS MA4500ifx meets the high demands of users on versatility and productivity whilst also delivering exceptionally low running costs. This multifunctional product offers paper handling options with up to 2,600 sheets and modern security features.
Technical specifications
Design
| Product colour | Schwarz, Weiß |
| Built-in display | Ja |
| Colour display | Y |
Bildschirm
| Display diagonal | 7 " |
Leistungen
| Compatible memory cards | SD |
| Maximum internal memory | 3,500 MB |
| Sound pressure level (printing) | 54 dB |
| Sound pressure level (duplex printing) | 54 dB |
| Sound pressure level (copying) | 54 dB |
| Sound pressure level (standby) | 30 dB |
Systemanforderung
| Linux operating systems supported | Y |
| Windows operating systems supported | Y |
| Mac operating systems supported | Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan, |
| Processor frequency | 1,400 MHz |
Power
| Power consumption (off) | 0.1 W |
| Power consumption (standby) | 36.3 W |
| AC input voltage | 220 - 240 |
| AC input frequency | 50/60 |
| Power consumption (sleep) | 0.5 W |
| Power consumption (max) | 1,237 W |
| Energy Star Typical Electricity Consumption (TEC) | 0.62 kWh/we |
| Power consumption (printing) | 626.3 W |
| Power consumption (ready) | 56.3 W |
| Power consumption (copying) | 563.8 W |
Lieferumfang
| Cables included | AC |
| Cartridge(s) included | Ja |
| Imaging unit included | Y |
Technische Details
| Market positioning | Business |
| Card reader integrated | Nein |
| Mobile printing technologies | Apple AirPrint,KyoceraMobile Print,Mopria PrintS |
Verpackungsdaten
| Package weight | 30,000 g |
| Package depth | 570 mm |
| Package width | 607 mm |
| Package height | 695 mm |
| Included cartridge capacity (black) | 6,000 pages |
Input & output capacity
| Total number of input trays | 6 |
| Maximum number of input trays | 6 |
| Multi-Purpose tray | Y |
| Auto document feeder (ADF) | Y |
| Auto document feeder (ADF) input capacity | 75 sheets |
| Multi-Purpose tray input capacity | 100 sheets |
| Total input capacity | 600 sheets |
| Paper tray 1 input capacity | 500 sheets |
| Total output capacity | 250 sheets |
| Maximum output capacity | 250 sheets |
| Maximum input capacity | 2,600 sheets |
Fax
| Auto-redialing | Y |
| Faxing | Mono-Faxen |
| Duplex faxing | Y |
| Modem speed | 33.6 Kbit/s |
| Fax memory | 256 pages |
| Fax transmission speed | 3 sec/pa |
| Fax resolution (black) | 400 x 400 |
Paper handling
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| Maximum print size | 216 x 356 mm |
| ISO B-series sizes (B0...B9) | B5,B6 |
| Maximum ISO A-series paper size | A4 |
| Non-ISO print media sizes | Folio (media size),Legal(media size),Letter (medi |
| Paper tray media types | Banner,Labels,Letterhead,Plain paper,Pre-Printed,T |
| Multi-Purpose Tray media weight | 60 - 220 |
| Custom media length | 210 - 356 |
| Custom media width | 140 - 216 |
| Paper tray media weight | 60 - 120 |
Scanning
| Image formats supported | JPEG,TIFF |
| Document formats supported | PDF,XPS |
| Scan technology | CIS/CCD |
| Greyscale levels | 256 |
| Scanner type | Flachbett- & ADF-Scanner |
| Scanning | Farbscan |
| Scan to | E-mail,FTP,File,Image,PC,Print,SMB,TWAIN,USB,WIA |
| Scan drivers | TWAIN,WIA |
| Duplex scanning mode | Auto |
| Duplex scanning | Ja |
| Optical scanning resolution | 600 x 600 DPI |
| Maximum scan resolution | 600 x 600 |
| Maximum scan area | 210 x 297 |
| Duplex scan speed (colour) | 17 ppm |
| Scan speed (colour) | 40 ppm |
| Scan speed (black) | 60 ppm |
| Duplex scan speed (black) | 26 ppm |
| Optical scanning resolution (ADF) | 600 x 600 |
| Optical scanning resolution (black) | 600 x 600 |
| Optical scanning resolution (colour) | 300 x 300 |
Copying
| Copying | Monokopie |
| N-in-1 copy function (N=) | 2,4 |
| Duplex copying mode | Auto |
| Maximum copy size | A4 |
| ID-card copy function | Y |
| N-in-1 copy function | Y |
| Copy programming function | Y |
| Duplex copying | Ja |
| Copy speed (black, normal quality, A4) | 45 cpm |
| Maximum number of copies | 999 copies |
| Time to first copy (black, normal) | 6 s |
| Copier resize | 25 - 400 |
| Maximum copy resolution | 600 x 600 DPI |
Sonstige Funktionen

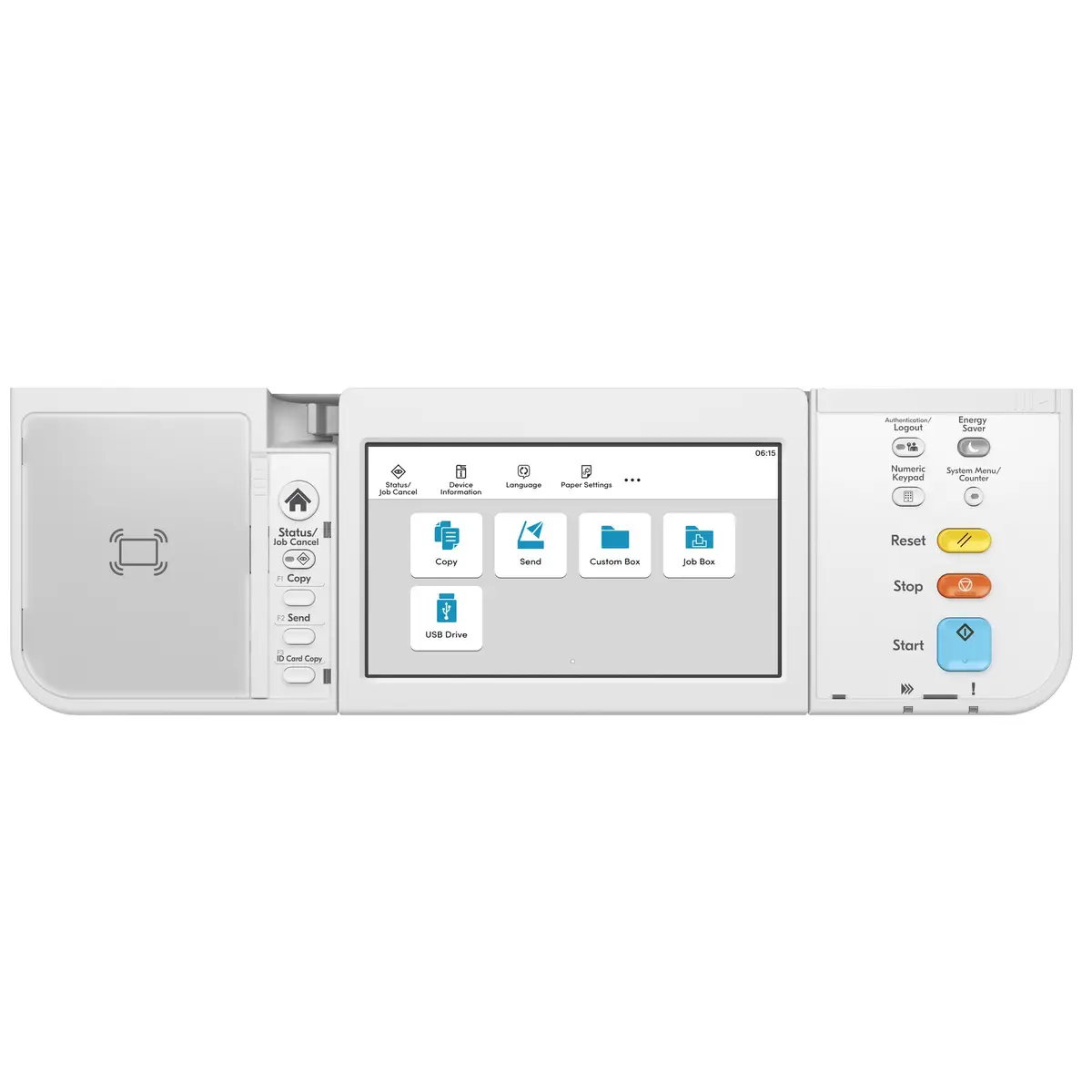

| Display | LCD |
| Control type | Touch |
| USB port | Ja |
| All-In-One-multitasking | Y |
| Fax delayed sending | Y |
| Fax forwarding | Y |
| Internal memory | 1,500 MB |
Sustainability
| Sustainability certificates | Blue Angel,EPEAT Gold,REACH,RoHS |
| Sustainability compliance | Y |
Operational conditions
| Operating relative humidity (H-H) | 15 - 80 |
| Storage temperature (T-T) | -20 - 40 |
| Operating temperature (T-T) | 10 - 32.5 |
| Operating altitude | 0 - 3500 |
| Storage relative humidity (H-H) | 10 - 90 |
Printing
| Page description languages | PCL 5e, PCL 6, PCL XL, PDF 1.4 |
| Economical printing | Y |
| Duplex printing mode | Auto |
| Duplex printing | Ja |
| Printing | Monodruck |
| N-up printing | 2,4,6,8,9,16,25 |
| Watermark printing | Y |
| Secure printing | Y |
| Cover page printing function | Y |
| Poster printing function | Y |
| N-in-1 print function | Y |
| Print speed (black, normal quality, A4/US Letter) | 45 ppm |
| Warm-up time | 23 s |
| Duplex print speed (black, normal quality, A4/US Letter) | 22.5 ppm |
| Time to first page (black, normal) | 5.3 s |
| Maximum resolution | 1200 x 1200 DPI |
Gewicht und Abmessungen
| Weight | 23,000 g |
| Height | 575 mm |
| Width | 475 mm |
| Depth | 476 mm |
Features
| Country of origin | Vietnam |
| Number of print cartridges | 1 |
| Printing colours | Schwarz |
| Print technology | Laser |
| Printer fonts | Barcode,Bitmap,PCL |
| Replacement cartridges | TK-3300 |
| Duplex functions | Copy,Fax,Print,Scan |
| Digital sender | Y |
| Maximum duty cycle | 150,000 pages |
| Recommended duty cycle | 3000 - 15000 |
Computer system
| Processor cores | 2 |
| Built-in processor | Y |
Memory
| Memory slots | 1 |
Network
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 |
Processor
| Processor family | ARM Cortex |
| Processor model | A53 |
Ports & interfaces
| USB 2.0 ports quantity | 1 |
| Ethernet LAN | Ja |
| Wi-Fi | Nein |
| Optional connectivity | Ethernet,Wireless LAN |
| Direct printing | Ja |
Call management
| Speed dialling | Y |
Downloads
341969_document_EN_001
PDF Download
