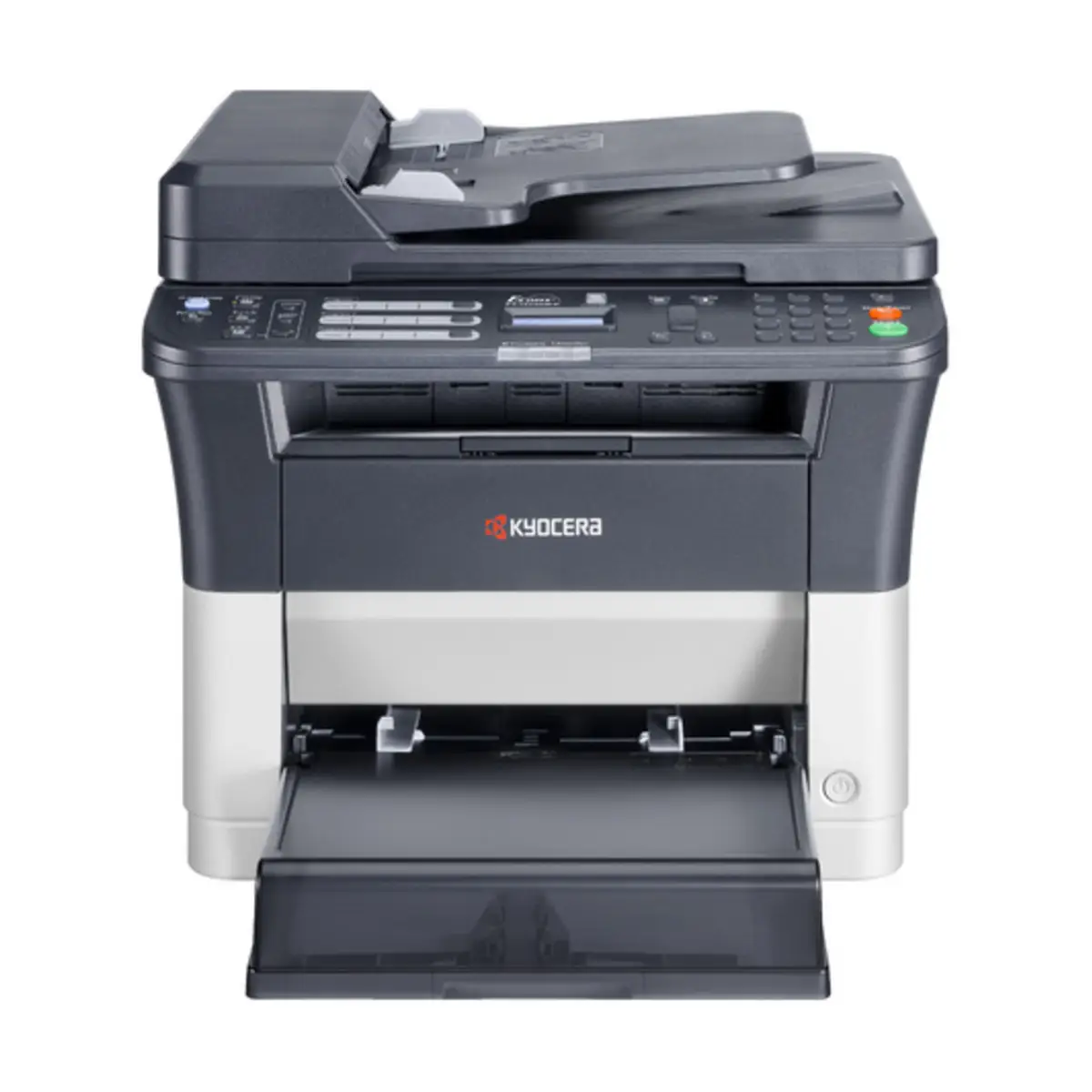

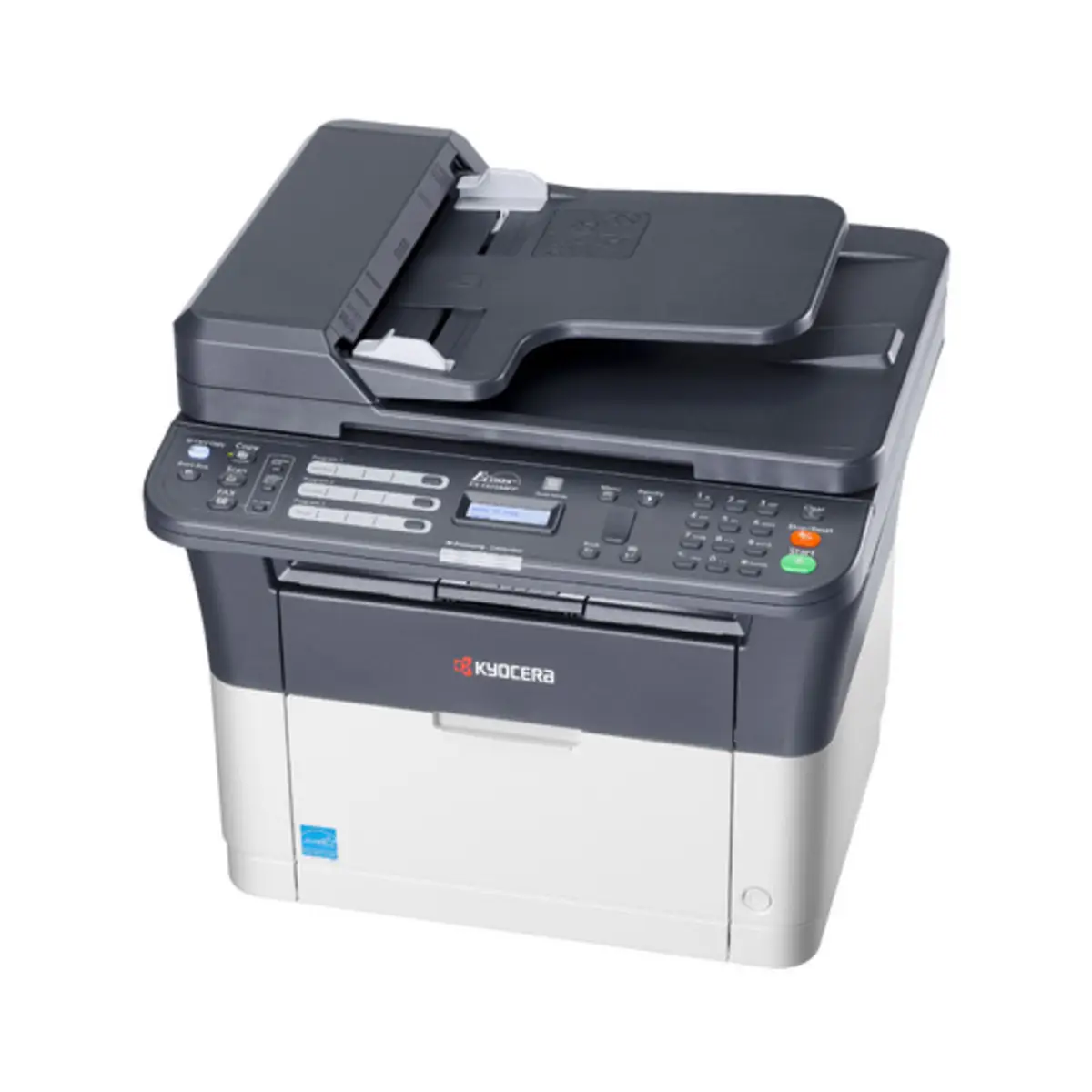

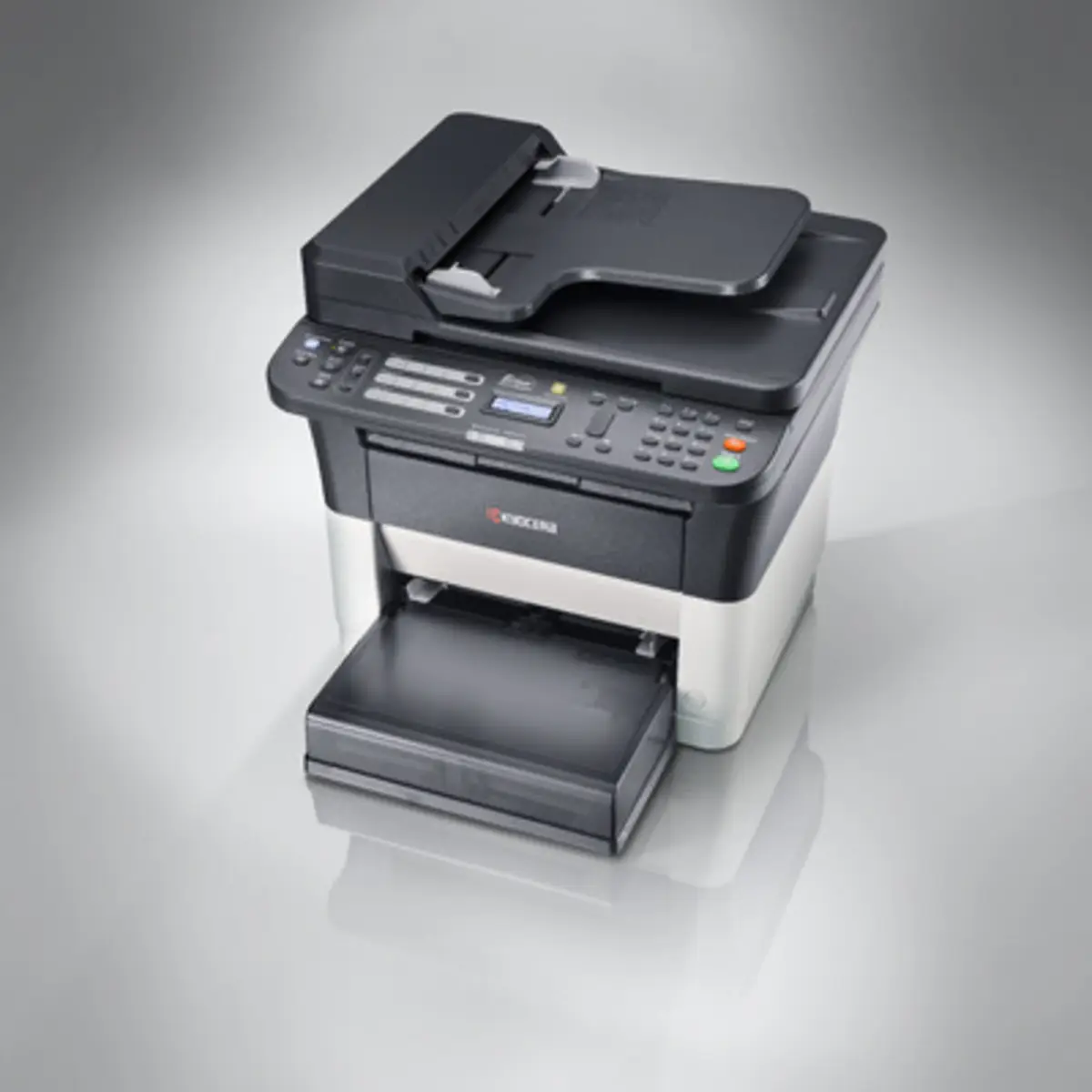

- FS-1325MFP A4 Multifunktionsdrucker 1800x600dpi 25ppm Duplex
+1 Images
6 Images
Product description
The entry-professional top device of the ECOSYS series combines the best reliability with the productivity an office needs, whilst reducing running costs.
Technical specifications
Logistics data
| Harmonized System (HS) code | 84433100 |
Software
| Server operating systems supported | Windows Server 2003,Windows Server 2003 x64,Window |
Leistungen
| Maximum internal memory | 64 MB |
| Sound pressure level (printing) | 49.3 dB |
| Sound pressure level (quiet mode) | 48.7 dB |
| Sound power level (standby) | 29 dB |
| Sound pressure level (copying) | 49.3 dB |
Weight & dimensions
| Weight | 10,100 g |
Systemanforderung
| Processor frequency | 390 MHz |
Power
| Power consumption (standby) | 8 W |
| AC input voltage | 220 - 240 |
| AC input frequency | 50 - 60 |
| Power consumption (PowerSave) | 4 W |
| Energy Star Typical Electricity Consumption (TEC) | 1.26 kWh/we |
| Power consumption (average operating) | 345 W |
Lieferumfang
| Cables included | AC |
| Cartridge(s) included | Y |
| Imaging unit included | Y |
Technische Details
| Market positioning | Zuhause & Büro |
| Card reader integrated | N |
| Mobile printing technologies | Not supported |
Verpackungsdaten
| Package weight | 13,500 g |
| Package depth | 459 mm |
| Package width | 470 mm |
| Package height | 456 mm |
| Included cartridge capacity (black) | 1,000 pages |
Input & output capacity
| Paper input type | Cassette,Paper tray |
| Total number of input trays | 1 |
| Maximum number of input trays | 1 |
| Multi-Purpose tray | Y |
| Auto document feeder (ADF) | Y |
| Auto document feeder (ADF) input capacity | 40 sheets |
| Multi-Purpose tray input capacity | 1 sheets |
| Total input capacity | 250 sheets |
| Paper tray 1 input capacity | 250 sheets |
| Total output capacity | 100 sheets |
| Maximum output capacity | 100 sheets |
Fax
| Faxing | Mono-Faxen |
| Fax coding methods | MH,MMR (Fax coding method),MR |
| Speed dialling | Y |
| Modem speed | 33.6 Kbit/s |
| Fax memory | 150 pages |
| Fax transmission speed | 4 sec/pa |
| Fax memory | 2.2 MB |
Paper handling
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| Maximum print size | 216 x 356 mm |
| ISO B-series sizes (B0...B9) | B5 |
| Maximum ISO A-series paper size | A4 |
| Non-ISO print media sizes | Legal (media size),Letter(media size) |
| Paper tray media types | Normales Papier |
| Duplex media weight | 60 - 120 |
| Multi-Purpose Tray media weight | 60 - 220 |
| Custom media length | 148 - 356 |
| Custom media width | 70 - 216 |
| Paper tray media weight | 60 - 220 |
| Media thickness (min) | 0.11 mm |
Scanning
| Image formats supported | BMP,JPG,PNG,TIF |
| Document formats supported | |
| Scan technology | CIS |
| Greyscale levels | 256 |
| Scanning | Farbscan |
| Scan to | File,Image |
| Scan drivers | TWAIN,WIA |
| Duplex scanning mode | Auto |
| Duplex scanning | Ja |
| Optical scanning resolution | 600 x 600 DPI |
| Maximum scan area | 216 x 356 |
| Scan speed (colour) | 6 ppm |
| Scan speed (black) | 18 ppm |
Copying
| Copying | Monokopie |
| N-in-1 copy function (N=) | 2,4 |
| Duplex copying mode | Auto |
| ID-card copy function | Y |
| N-in-1 copy function | Y |
| Copy programming function | Y |
| Duplex copying | Ja |
| Copy speed (black, normal quality, A4) | 25 cpm |
| Maximum number of copies | 99 copies |
| Time to first copy (black, normal) | 13 s |
| Copier resize | 25 - 400 |
| Maximum copy resolution | 600 x 600 DPI |
Sonstige Funktionen
| Display | LCD |
| USB port | Y |
| All-In-One-multitasking | Y |
| Internal memory | 64 MB |
Sustainability
| Sustainability certificates | Nordic Swan Ecolabel,BlueAngel,RoHS,ENERGY STAR |
| Compliance certificates | RoHS |
Operational conditions
| Operating relative humidity (H-H) | 15 - 80 |
| Storage temperature (T-T) | -20 - 40 |
| Operating temperature (T-T) | 10 - 32.5 |
| Operating altitude | 0 - 3500 |
| Storage relative humidity (H-H) | 10 - 90 |
| Non-operating altitude | 0.6 - 15000 |
Printing
| Page description languages | GDI |
| Duplex printing mode | Auto |
| Duplex printing | Ja |
| Printing | Monodruck |
| N-up printing | 2,4 |
| N-in-1 print function | Y |
| Print speed (black, normal quality, A4/US Letter) | 25 ppm |
| Warm-up time | 28 s |
| Duplex print speed (black, normal quality, A4/US Letter) | 15 ppm |
| Time to first page (black, normal) | 7.5 s |
| Maximum resolution | 1800 x 600 DPI |
Features
| Number of print cartridges | 1 |
| Printing colours | Schwarz |
| Print technology | Laser |
| Replacement cartridges | TK-1125 (2.100 pagina's) |
| Duplex functions | Copy,Print,Scan |
| Digital sender | N |
| Ink tank system | N |
| Height | 362 mm |
| Width | 390 mm |
| Depth | 361 mm |
| Maximum duty cycle | 20,000 pages |
| Recommended duty cycle | 500 - 2000 |
Computer system
| Built-in processor | Y |
| Windows operating systems supported | Windows 7,Windows 8,Windows Vista,Windows XP |
Mouse
| Certification | CE, TÜV/GS |
Network
| Cabling technology | 10/100Base-T(X) |
| Ethernet LAN | Ja |
| Wi-Fi | Nein |
| Bluetooth | N |
| Ethernet LAN data rates | 10,100 |
Processor
| Processor family | ARM |
Ports & interfaces
| USB 2.0 ports quantity | 1 |
| Near Field Communication (NFC) | N |
| Standard interfaces | Ethernet,USB 2.0 |
| Direct printing | N |
Design
| Product colour | Schwarz, Weiß |
| Built-in display | Ja |
| Display number of lines | 2 lines |
