- E3SUPS15K3IB1, Doppelwandler (Online), 15 kVA, 15000 W, 380 V, 415 V, 45/65 Hz
Product description

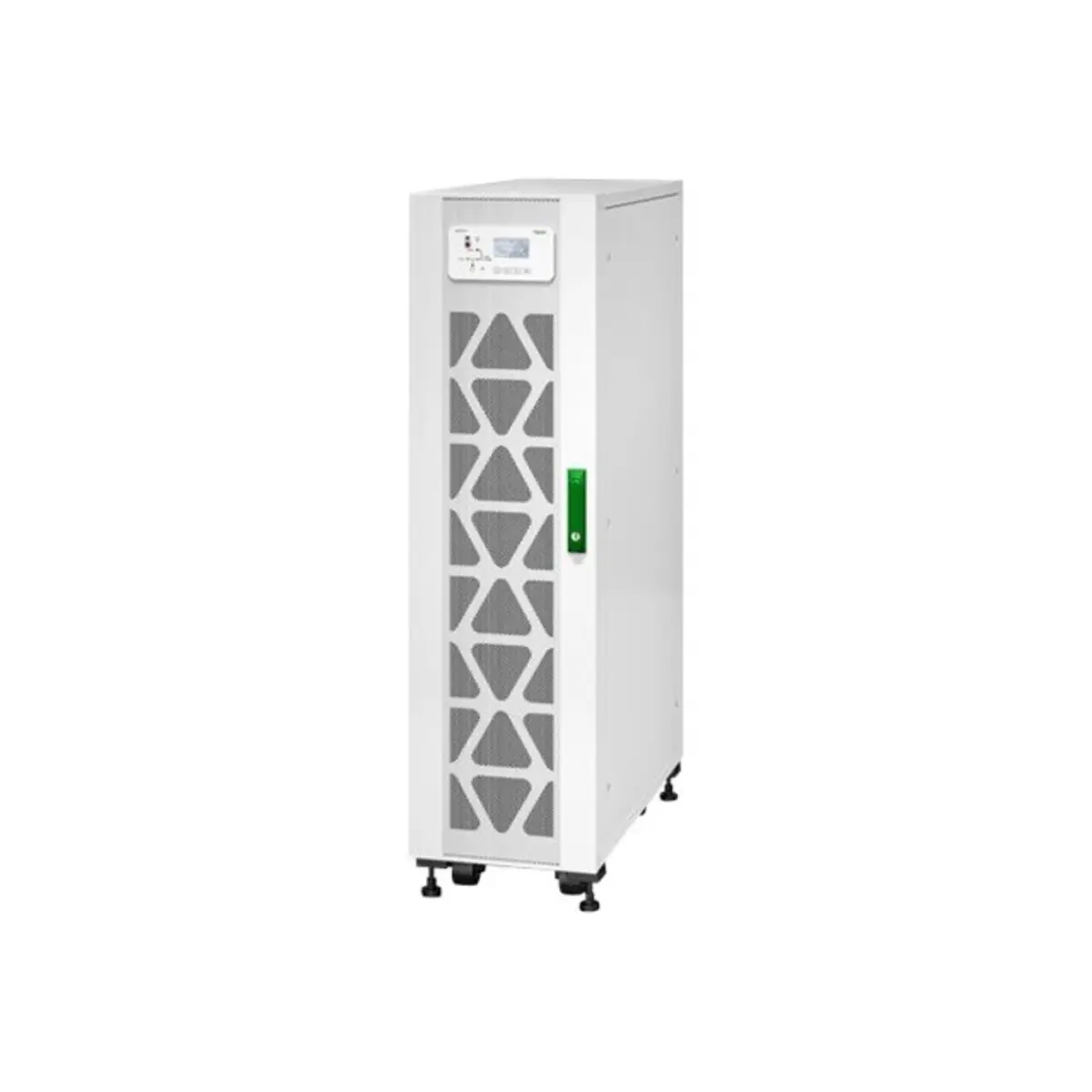

Easy UPS 3S 15 kVA 400 V 3:1 UPS with internal batteries - 9 minutes runtime
High-efficiency 3-phase UPS with internal batteries providing a runtime of 9 minutes. The UPS features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 15 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. For battery runtime details, see the runtime charts published under the Documents tab.
Includes: Dust filter, Installation guide
Wide Input Voltage Window
Saves your battery power for when you really need it - during power cuts!
Replaceable dust filters
protect the UPS in harsh environments.
Parallel capability
Multiple units can be placed in parallel to meet power capacity and redundancy requirements
Optional SNMP Card
When you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS Web interface or through EcoStruxure IT's cloud-based and on-premise software suites. Click here for more information about EcoStruxure IT.
Easy Loop Test
Verifies UPS performance before you connect your load, without the need for a load bank.
Easy to install fast
Quickly roll the compact and lightweight UPS into position.
Straightforward installation
Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.
Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
High-efficiency 3-phase UPS with internal batteries providing a runtime of 9 minutes. The UPS features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 15 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. For battery runtime details, see the runtime charts published under the Documents tab.
Includes: Dust filter, Installation guide
Wide Input Voltage Window
Saves your battery power for when you really need it - during power cuts!
Replaceable dust filters
protect the UPS in harsh environments.
Parallel capability
Multiple units can be placed in parallel to meet power capacity and redundancy requirements
Optional SNMP Card
When you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS Web interface or through EcoStruxure IT's cloud-based and on-premise software suites. Click here for more information about EcoStruxure IT.
Easy Loop Test
Verifies UPS performance before you connect your load, without the need for a load bank.
Easy to install fast
Quickly roll the compact and lightweight UPS into position.
Straightforward installation
Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.
Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Technical specifications
Design
Product colour | White |
Maus
Certification | CE, EAC, IEC 62040-1-1,IEC 62040-2, IEC 62040-3, |
International Protection (IP) code | IP20 |
Merkmale
Power factor | 0.99 |
Crest factor | 3:1 |
UPS topology | Double-conversion (Online) |
Output power capacity | 15 kVA |
Input operation voltage (max) | 415 V |
Input operation voltage (min) | 380 V |
Output operation voltage (min) | 220 V |
Output operation voltage (max) | 240 V |
Output frequency | 50/60 |
Batterie
Battery voltage | 240 V |
Battery capacity | 40 Ah |
Nachhaltigkeit
Sustainability certificates | RoHS |
Verpackungsdaten
Package weight | 173,000 g |
Package depth | 1,014 mm |
Package width | 563 mm |
Package height | 1,640 mm |
Leistung
Battery technology | Sealed Lead Acid (VRLA) |
Number of batteries supported | 1 |
Betriebsbedingungen
Operating relative humidity (H-H) | 0 - 95 |
Storage temperature (T-T) | -15 - 40 |
Operating temperature (T-T) | 0 - 40 |
Storage relative humidity (H-H) | 0 - 95 |
Sonstige Funktionen
Input frequency | 45/65 |
Output power | 15,000 W |
Noise level | 60 dB |
Gewicht und Abmessungen
Weight | 71,210 g |
Height | 1,400 mm |
Width | 380 mm |
Depth | 907 mm |
Downloads
521409_document_EN_001
PDF Download
ID: 521409
APC ID: E3SUPS15K3IB1
E3SUPS15K3IB1, Doppelwandler (Online), 15 kVA, 15000 W, 380 V, 415 V, 45/65 Hz
Detailed product title
Detailed product title
APC E3SUPS15K3IB1. USV-Topologie: Doppelwandler (Online), Ausgangskapazität: 15 kVA, Ausgangsleistung: 15000 W. Akku-/Batterietechno logie: Plombierte Bleisäure (VRLA), Batteriekapazität: 40 Ah, Akku-/Batteriespannung: 240 V. Produktfarbe: Weiß, Internationale Sch tzart (IP-Code): IP20, Zertifizierung: CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE. Breite: 3 0 mm, Tiefe: 907 mm, Höhe: 1400 mm
