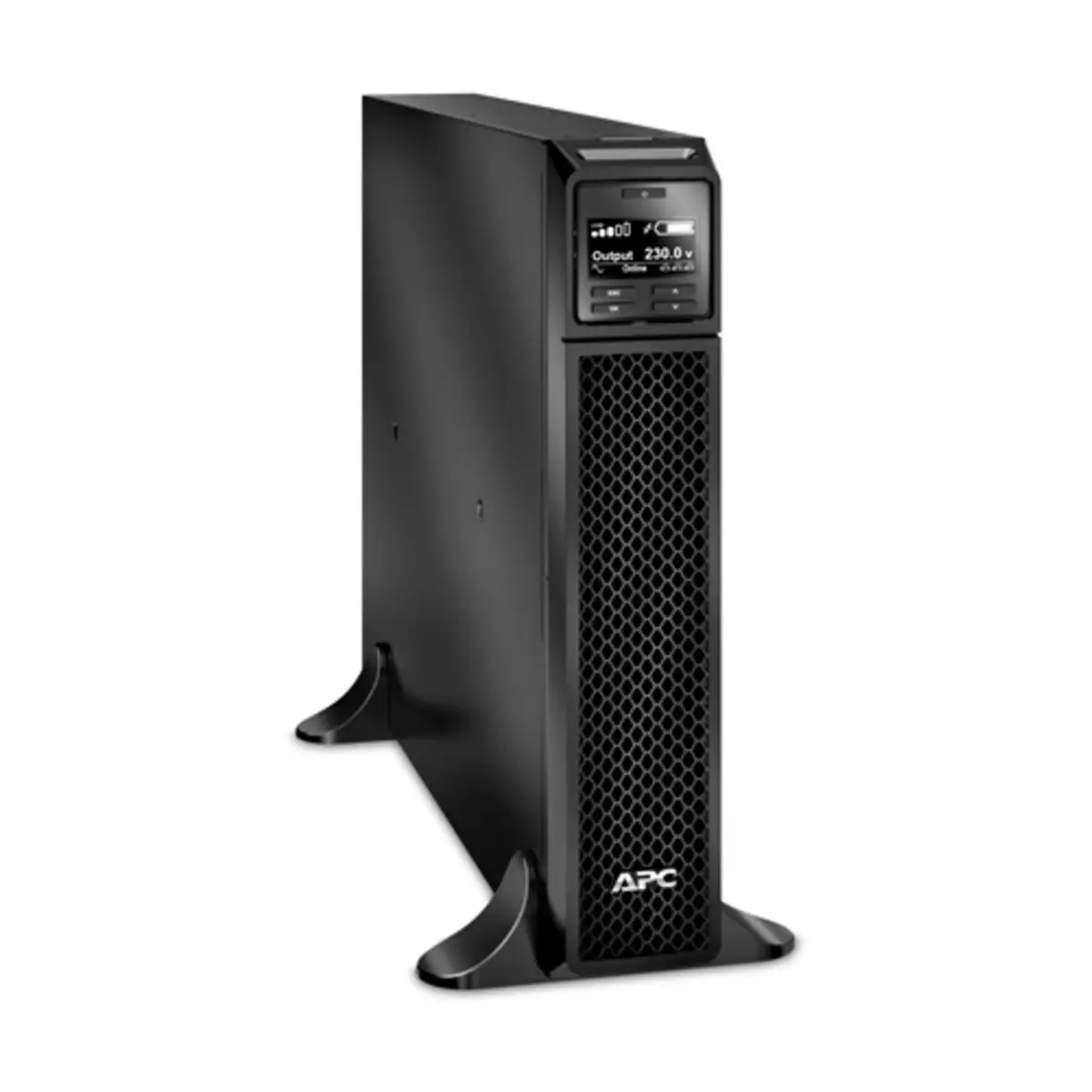

- SRT3000XLI, Doppelwandler (Online), 3 kVA, 2700 W, Sine, 100 V, 275 V
1 Images
Product description
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
High density, double-conversion on-line power protection with scalable runtime
Includes: CD with software, Country-specific detachable power cord, Documentation CD, Installation guide, Removable support feet, USB cable, Warranty card
High density, double-conversion on-line power protection with scalable runtime
Includes: CD with software, Country-specific detachable power cord, Documentation CD, Installation guide, Removable support feet, USB cable, Warranty card
Technical specifications
Design
| Product colour | Black |
| Form factor | Tower |
Anschlüsse und Schnittstellen
| Serial interface type | RJ-45 |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler,C19 coupler |
| Number of output IEC jumpers | 2 |
| Serial interface | Y |
| SmartSlot | Y |
| AC outlets quantity | 10 AC out |
Netzwerk
| Web-based management | Y |
Batterie
| Hot-swap battery | Y |
| Waveform | Sine |
| Cold start | Y |
| Automatic battery test | Y |
| Typical backup time at half load | 11.8 min |
| Battery capacity | 505 Vah |
| Typical backup time at full load | 4 min |
| Battery life (max) | 5 |
Nachhaltigkeit
| Sustainability certificates | ENERGY STAR,Green Premium,RoHS |
Stromversorgung
| Battery technology | Sealed Lead Acid (VRLA) |
Lieferumfang
| Cables included | USB cable |
| Rack mount kit | Y |
Verpackungsdaten
| Warranty card | Y |
| Software CD | Y |
| Quick installation guide | Y |
| Package weight | 36,740 g |
| Package depth | 871 mm |
| Package width | 599 mm |
| Package height | 246 mm |
| Bracket | Y |
Leistung
| Number of batteries supported | 1 |
| Battery recharge time | 3 std |
| Surge protection | Y |
Betriebsbedingungen
| Operating relative humidity (H-H) | 0 - 95 |
| Storage temperature (T-T) | -15 - 45 |
| Operating temperature (T-T) | 0 - 40 |
| Operating altitude | 0 - 3000 |
| Storage relative humidity (H-H) | 0 - 95 |
| Non-operating altitude | 0 - 15000 |
Sonstige Funktionen
| International Protection (IP) code | IP20 |
| USB port | Y |
| Output voltage | 230 |
| Input frequency | 40/70 |
| Output power | 2,700 W |
| Noise level | 55 dB |
Gewicht und Abmessungen
| Weight | 31,300 g |
| Height | 432 mm |
| Width | 85 mm |
| Depth | 635 mm |
Ergonomics
| LED indicators | Y |
Features
| Cable length | 2.44 m |
| Audible alarm(s) | Y |
| Output frequency regulation | 50/60 |
| Crest factor | 3:1 |
| UPS topology | Double-conversion (Online) |
| Auto-restart | Y |
| Emergency Power Off (EPO) | Y |
| Efficiency | 93.5 % |
| Surge energy rating | 340 J |
| Output power capacity | 3 kVA |
| Input operation voltage (max) | 275 V |
| Input operation voltage (min) | 100 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 |
Mouse
| Certification | CE, CE Mark, EAC, EN/IEC62040-1, EN/IEC 62040-2, |
