- SRTG8KXLI, Doppelwandler (Online), 8 kVA, 8000 W, Sine, 100 V, 285 V
1 Images
Product description

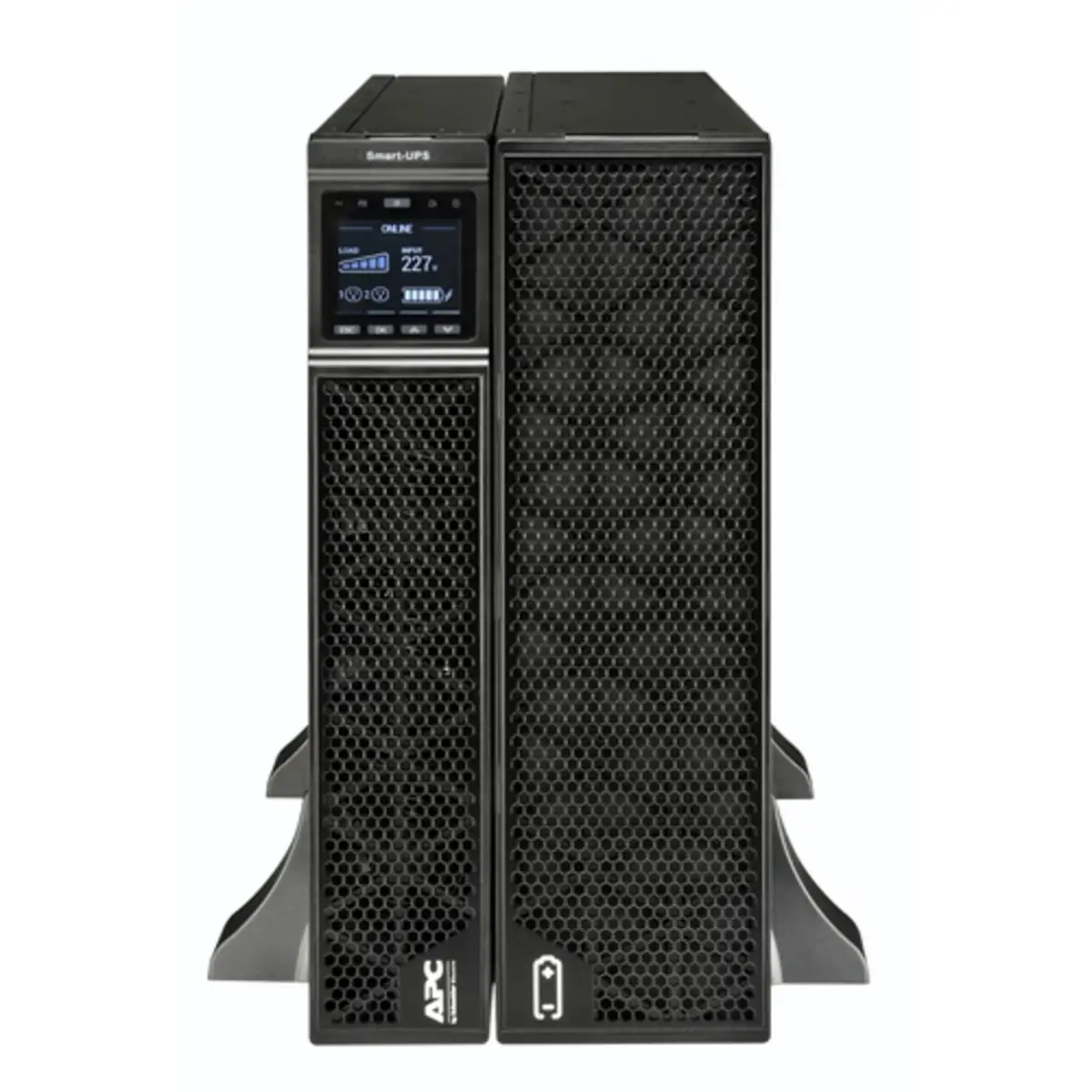

APC Smart-UPS RT 8kVA 230V
- High density, double-conversion on-line power protection with scalable runtime
- Includes: Smart UPS signalling RS-232 cable, User manual
- High density, double-conversion on-line power protection with scalable runtime
- Includes: Smart UPS signalling RS-232 cable, User manual
Technical specifications
Design
| Form factor | Rackmount/Tower |
| LED indicators | Y |
Anschlüsse und Schnittstellen
| Ethernet LAN (RJ-45) ports | 1 |
| Power plug | Hardwire |
| AC outlet types | C13 coupler,C19 coupler |
| Emergency Power Off (EPO) connector | Y |
| Serial interface | Y |
| AC outlets quantity | 3 AC out |
Maus
| Certification | CE, EN/IEC 62040-1 |
| International Protection (IP) code | IP20 |
Leistungen
| ECO mode | Y |
Merkmale
| Audible alarm(s) | Y |
| UPS topology | Double-conversion (Online) |
| Audible alarm modes | Alarm when on battery,Lowbattery alarm,Overload a |
| Auto-restart | Y |
| Output power capacity | 8 kVA |
| Output voltage Total Harmonic Distortion (THD) | 2 % |
| Input operation voltage (max) | 285 V |
| Input operation voltage (min) | 100 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 |
Batterie
| Hot-swap battery | Y |
| Battery voltage | 96 V |
| Waveform | Sine |
| Cold start | Y |
| Automatic battery test | Y |
| Battery life (max) | 5 |
Verpackungsdaten
| Package weight | 83,140 g |
| Package depth | 790 mm |
| Package width | 590 mm |
| Package height | 414 mm |
Leistung
| Battery technology | Sealed Lead Acid (VRLA) |
| Number of batteries supported | 2 |
| Battery recharge time | 4 std |
Betriebsbedingungen
| Operating relative humidity (H-H) | 0 - 95 |
| Storage temperature (T-T) | -15 - 45 |
| Operating temperature (T-T) | 0 - 40 |
| Operating altitude | 0 - 2011.68 |
| Storage relative humidity (H-H) | 0 - 95 |
| Non-operating altitude | 0 - 15240 |
Sonstige Funktionen
| USB port | Y |
| Input frequency | 40/70 |
| Output power | 8,000 W |
| Noise level | 55 dB |
Gewicht und Abmessungen
| Weight | 81,120 g |
| Height | 217 mm |
| Width | 440 mm |
| Depth | 620 mm |
ID: 342973
APC ID: SRTG8KXLI
SRTG8KXLI, Doppelwandler (Online), 8 kVA, 8000 W, Sine, 100 V, 285 V
Detailed product title
Detailed product title
APC SRTG8KXLI. USV-Topologie: Doppelwandler (Online), Ausgangskapazität: 8 kVA, Ausgangsleistung: 8000 W. AC-Steckertypen: C13-Koppl er, C19-Koppler, Stecker: Hardwire, Anzahl der AC-Ausgänge: 3 AC-Ausgänge. Akku-/Batterietechnologie: Plombierte Bleisäure (VRLA), kku-/Batteriespannung: 96 V, Batterielebensdauer (max.): 5 Jahr(e). Formfaktor: Rackmount/Tower, Display-Typ: LCD, Internationale S hutzart (IP-Code): IP20. Breite: 440 mm, Tiefe: 620 mm, Höhe: 217 mm
