- SRV2KIL, Doppelwandler (Online), 2 kVA, 1600 W, Sine, 160 V, 280 V
1 Images
Product description

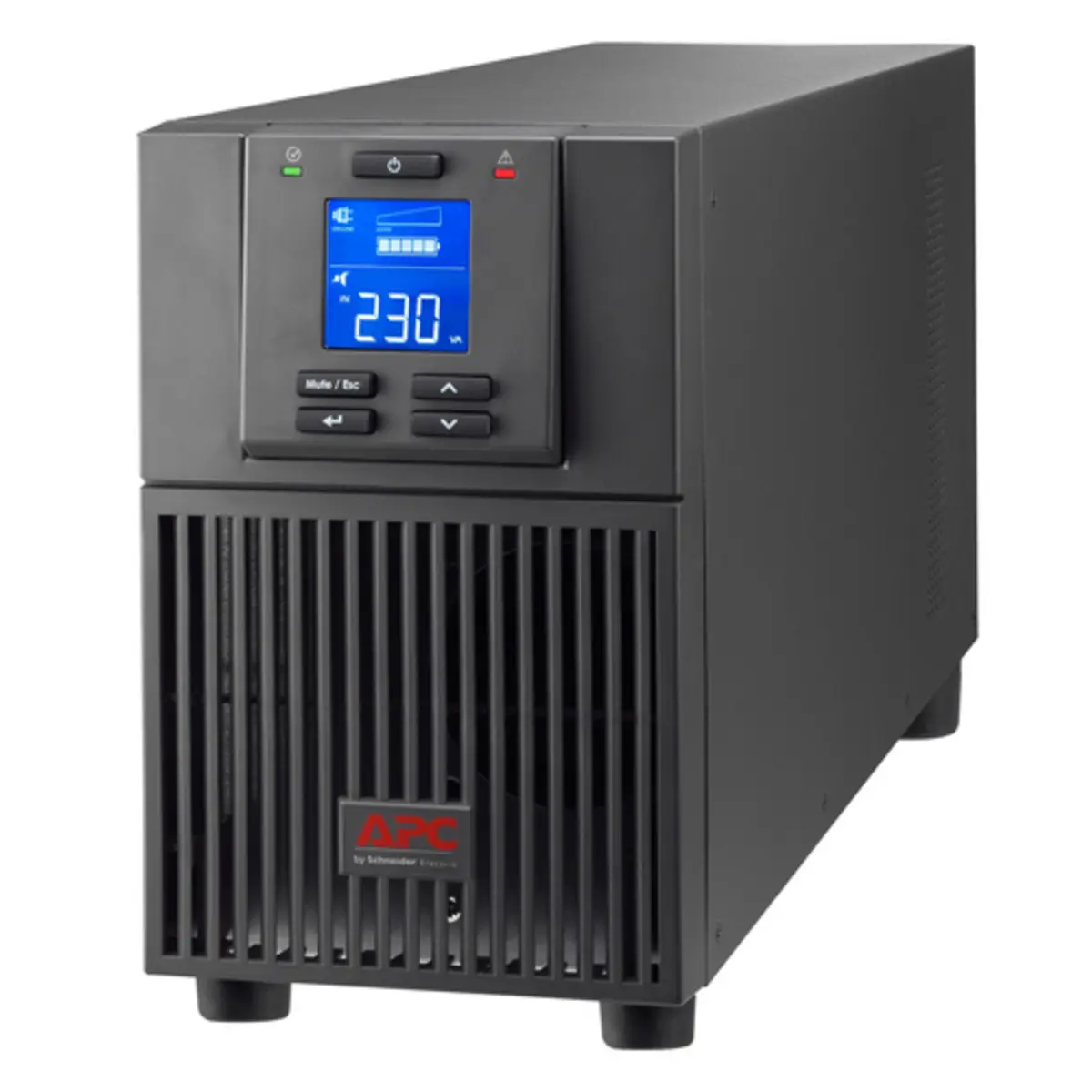

APC Easy UPS On-Line SRV Ext. Runtime 2000VA 230V with External Battery Pack.
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
Includes: CD with software, USB cable, User Manual.
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
Includes: CD with software, USB cable, User Manual.
Technical specifications
Design
| Product colour | Black |
| Form factor | Tower |
| LED indicators | Y |
Anschlüsse und Schnittstellen
| Serial ports quantity | 1 |
| Serial interface type | RS-232 |
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| Serial interface | Y |
| SmartSlot | Y |
| AC outlets quantity | 4 AC out |
Maus
| Certification | CE, IEC 62040-1-1, IEC62040-1-2 REACH |
Leistungen
| ECO mode | Y |
Merkmale
| Audible alarm(s) | Y |
| UPS topology | Double-conversion (Online) |
| Audible alarm modes | Alarm when on battery,Lowbattery alarm |
| Auto-restart | Y |
| Surge energy rating | 600 J |
| Output power capacity | 2 kVA |
| Output voltage Total Harmonic Distortion (THD) | 3 % |
| Input operation voltage (max) | 280 V |
| Input operation voltage (min) | 160 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 |
Batterie
| Waveform | Sine |
Nachhaltigkeit
| Sustainability certificates | RoHS |
Verpackungsdaten
| Cables included | USB cable |
Leistung
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 4 std |
Betriebsbedingungen
| Operating relative humidity (H-H) | 0 - 95 |
| Storage temperature (T-T) | -20 - 50 |
| Operating temperature (T-T) | 0 - 40 |
| Operating altitude | 0 - 3000 |
| Storage relative humidity (H-H) | 0 - 95 |
| Non-operating altitude | 0 - 14763.6 |
Sonstige Funktionen
| USB 2.0 ports quantity | 1 |
| Manual | Y |
| USB port | Y |
| Input frequency | 40/70 |
| Output power | 1,600 W |
| Nominal input voltage | 230 |
| Nominal output voltage | 230 |
Gewicht und Abmessungen
| Weight | 45,400 g |
| Height | 336 mm |
| Width | 335 mm |
| Depth | 425 mm |
| Battery weight | 18,100 g |
| Battery width | 235 mm |
| Battery height | 355 mm |
| Battery depth | 355 mm |
Downloads
521403_document_EN_001
PDF Download
ID: 521403
APC ID: SRV2KIL
SRV2KIL, Doppelwandler (Online), 2 kVA, 1600 W, Sine, 160 V, 280 V
Detailed product title
Detailed product title
APC SRV2KIL. USV-Topologie: Doppelwandler (Online), Ausgangskapazität: 2 kVA, Ausgangsleistung: 1600 W. AC-Steckertypen: C13-Koppler , Stecker: C14-Koppler, Anzahl der AC-Ausgänge: 4 AC-Ausgänge. Akku-/Batterietechnologie: Plombierte Bleisäure (VRLA), Akkuladezeit 4 h. Formfaktor: Tower, Produktfarbe: Schwarz, Display-Typ: LCD. Breite: 335 mm, Tiefe: 425 mm, Höhe: 336 mm
