Product description

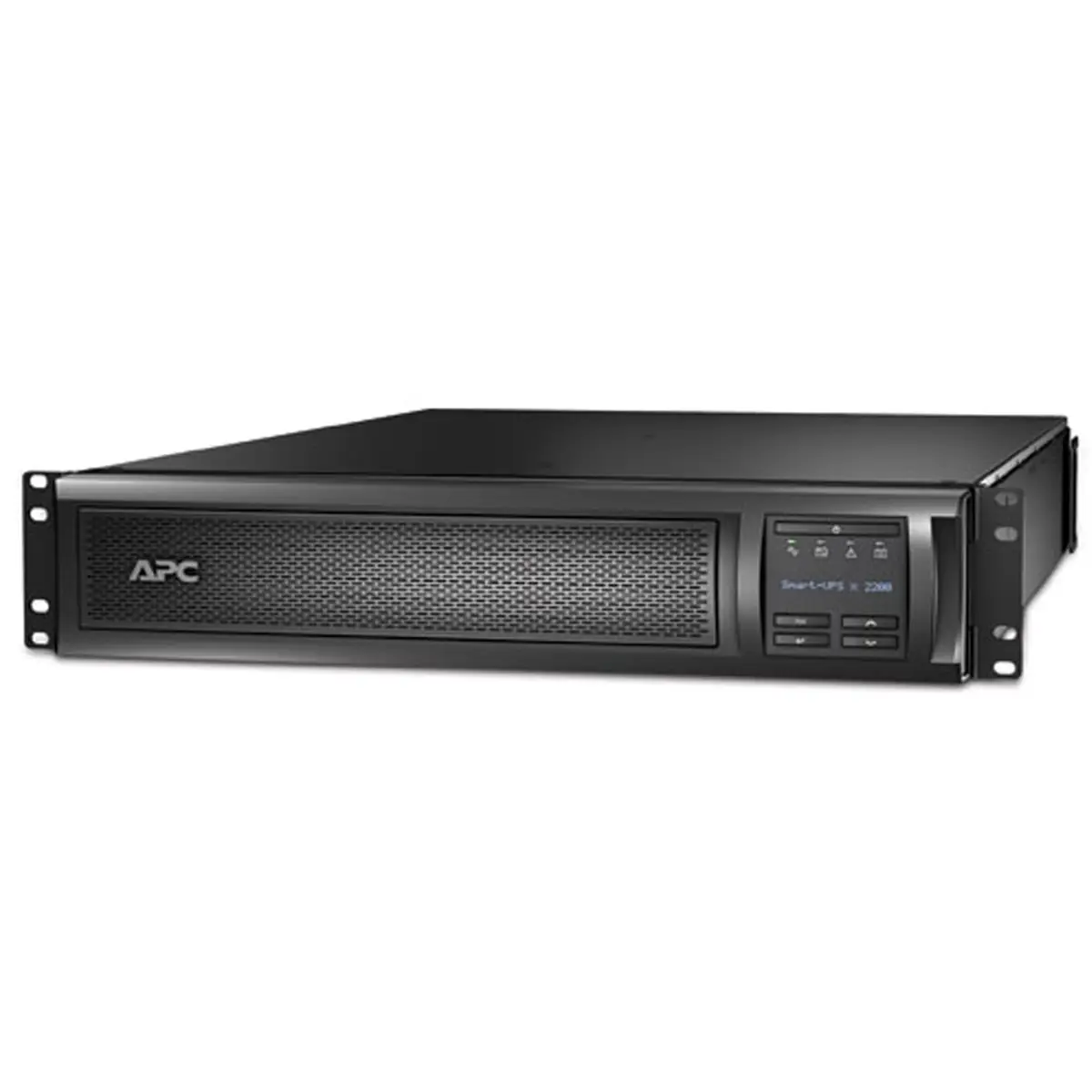

APC Smart-UPS X 2200 VA, Rack/Tower LCD, 200-240 V
- Intelligent and efficient solution for the uninterruptible power supply of network systems, selection from entry-level to models with scalable autonomy time. Ideal UPS for servers, POS systems, routers, switches, hubs and other devices.
- Assures that the product has been tested and approved to operate safely with connected service provider devices and within the specified environment.
- With management function via the network, via serial interface, USB or optional Ethernet connection. Includes Powerchute® Business Edition software for convenient monitoring and control, secure operating system shutdown and innovative energy management features.
- Patented Green mode for an efficiency over 97%. The Smart-UPS was the first network UPS to receive the Energy Star seal. The intelligent battery management from the technology pioneer APC optimizes the performance and service life of the battery through the intelligent precision charging function with temperature compensation. Dynamic date display for battery replacement and automatic self-tests ensure high reliability and provide timely information when a battery replacement is required. The battery modules are convenient, easy to connect and can be replaced during operation. The Smart-UPS developed by APC has been in production for 23 years and, with over 25 million units sold, is the UPS trusted by most customers worldwide.
- Voltage conditioning optimized for network operation provides protection against harmful overvoltages and electrical noise. Automatic electronic voltage regulation increases a low input voltage by up to 30% and reduces excessive voltages by up to 12% without activating the battery. Reliable battery-backed emergency power supply in the event of a mains power failure or for a controlled system shutdown.
- Intuitive LCD interface with precise information and support for on-site configuration of the UPS with convenient navigation buttons. Over 15 programmable settings, including control of groups of switchable outputs, enable application-specific settings, thresholds and notifications.
- Ensures a pure sinusoidal output signal by using power factor corrected power supplies recommended by server manufacturers. The Smart-UPS has been tested and certified to safety standards, so you can be confident that the system meets or exceeds the most stringent industry guidelines.
- Adapts the UPS to the specific power environment or generator application for optimal performance.
Technical specifications
Design
Product colour | Black |
Form factor | Rackmount/Tower |
LED indicators | Battery replacement |
Rack capacity | 2U |
Anschlüsse und Schnittstellen
Power plug | C20 coupler |
AC outlet types | C13 coupler,C19 coupler |
Number of output IEC jumpers | 2 |
SmartSlot | Y |
AC outlets quantity | 9 AC out |
Maus
Certification | CE, CSA, EAC, EN/IEC62040-1, EN/IEC 62040-2,FCC |
Response time | 4 ms |
Merkmale
Audible alarm(s) | Y |
Output frequency regulation | 50/60 |
UPS topology | Line-Interactive |
Automatic Voltage Regulation (AVR) | Y |
Auto-restart | Y |
Emergency Power Off (EPO) | Y |
Efficiency | 98.1 % |
Surge energy rating | 645 J |
Output power capacity | 2.2 kVA |
Output operation voltage (min) | 208 V |
Output operation voltage (max) | 240 V |
Hold time (min) | 2 ms |
Hold time (max) | 10 ms |
Ergonomie
Cable length | 1.83 m |
Batterie
Hot-swap battery | Y |
Waveform | Sine |
Automatic battery test | Y |
Typical backup time at half load | 25.3 min |
Battery capacity | 702 Vah |
Typical backup time at full load | 9.8 min |
Battery life (max) | 5 |
Nachhaltigkeit
Sustainability certificates | RoHS |
Lieferumfang
Rack mount kit | Y |
Verpackungsdaten
Cables included | RS-232,USB cable |
Software CD | Y |
Package weight | 45,360 g |
Package depth | 869 mm |
Package width | 596 mm |
Package height | 243 mm |
Leistung
Battery technology | Sealed Lead Acid (VRLA) |
Battery recharge time | 3 std |
Surge protection | Y |
Betriebsbedingungen
Operating relative humidity (H-H) | 0 - 95 |
Storage temperature (T-T) | -15 - 45 |
Operating temperature (T-T) | 0 - 40 |
Operating altitude | 0 - 3000 |
Storage relative humidity (H-H) | 0 - 95 |
Non-operating altitude | 0 - 15000 |
Sonstige Funktionen
Manual | Y |
USB port | Y |
Input frequency | 50/60 |
Output power | 1,980 W |
Noise level | 55 dB |
Nominal input voltage | 230 |
Nominal output voltage | 230 |
Gewicht und Abmessungen
Weight | 37,320 g |
Height | 85 mm |
Width | 432 mm |
Depth | 667 mm |
Logistische Daten
Products per pallet | 8 ST |
