1 Images
Technical specifications
Weight & dimensions
| Weight | 18,780 g |
Lieferumfang
| Cables included | USB cable |
| Rack mount kit | Y |
Verpackungsdaten
| Quick installation guide | Y |
Certificates
| Waste Electrical and Electronic Equipment (WEEE) compliance | Y |
Sonstige Funktionen
| USB port | Y |
| Input frequency | 47/70 |
| Output power | 1,350 W |
| Noise level | 35 dB |
Sustainability
| Compliance certificates | Low Voltage Directive (LVD),RoHS |
Operational conditions
| Operating relative humidity (H-H) | 0 - 90 |
| Operating temperature (T-T) | 0 - 40 |
| Operating altitude | 0 - 3000 |
Battery
| Battery technology | Sealed Lead Acid (VRLA) |
| Number of battery cells | 6 |
| Hot-swap battery | Y |
| Battery voltage | 6 V |
| Waveform | Sine |
| Battery capacity | 9 Ah |
| Typical backup time at half load | 13.5 min |
Ergonomics
| LED indicators | Y |
Features
| Height | 43.2 mm |
| Width | 438 mm |
| Depth | 555 mm |
| Power factor | 0.9 |
| Number of output phases | 1 |
| UPS topology | Line-Interactive |
| Number of input phases | 1 |
| Automatic Voltage Regulation (AVR) | Y |
| Efficiency | 98.2 % |
| Output power capacity | 1.55 kVA |
| Input operation voltage (max) | 294 V |
| Input operation voltage (min) | 150 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 |
Mouse
| Form factor | Rackmount |
| Certification | EMC IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS |
Ports & interfaces
| Serial ports quantity | 1 |
| Serial interface type | RS-232 |
| USB port type | USB Type-B |
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| Serial interface | Y |
| AC outlets quantity | 6 AC out |
Design
| Product colour | Black,Silver |
| Rack capacity | 1U |
ID: 525236
Eaton ID: 5P1550IRNG2

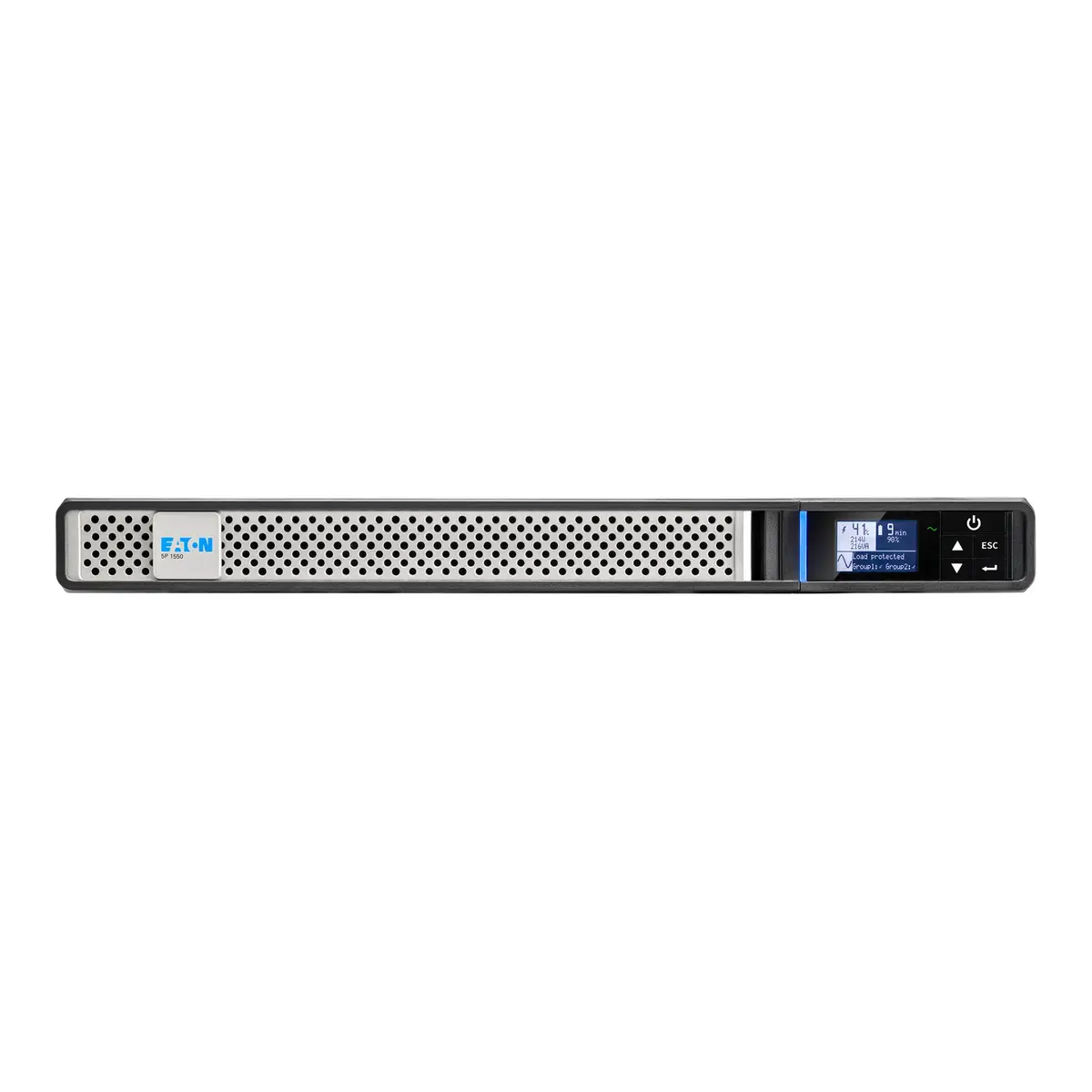

5P 1550i Rack 1U Netpack G2
Detailed product title
Detailed product title
Eaton 5P 1550iR Gen 2 USV 1350Watt 1550VA RS-232 USB 6 Ausgangsanschlüsse
Product colour Black,Silver
Gross:
incl.
vat.
ship in 4-7 days
Added to cart
Gross:
incl.
vat.
ship in 4-7 days
