ID: 550327 HP Enterprise ID: P57685-421

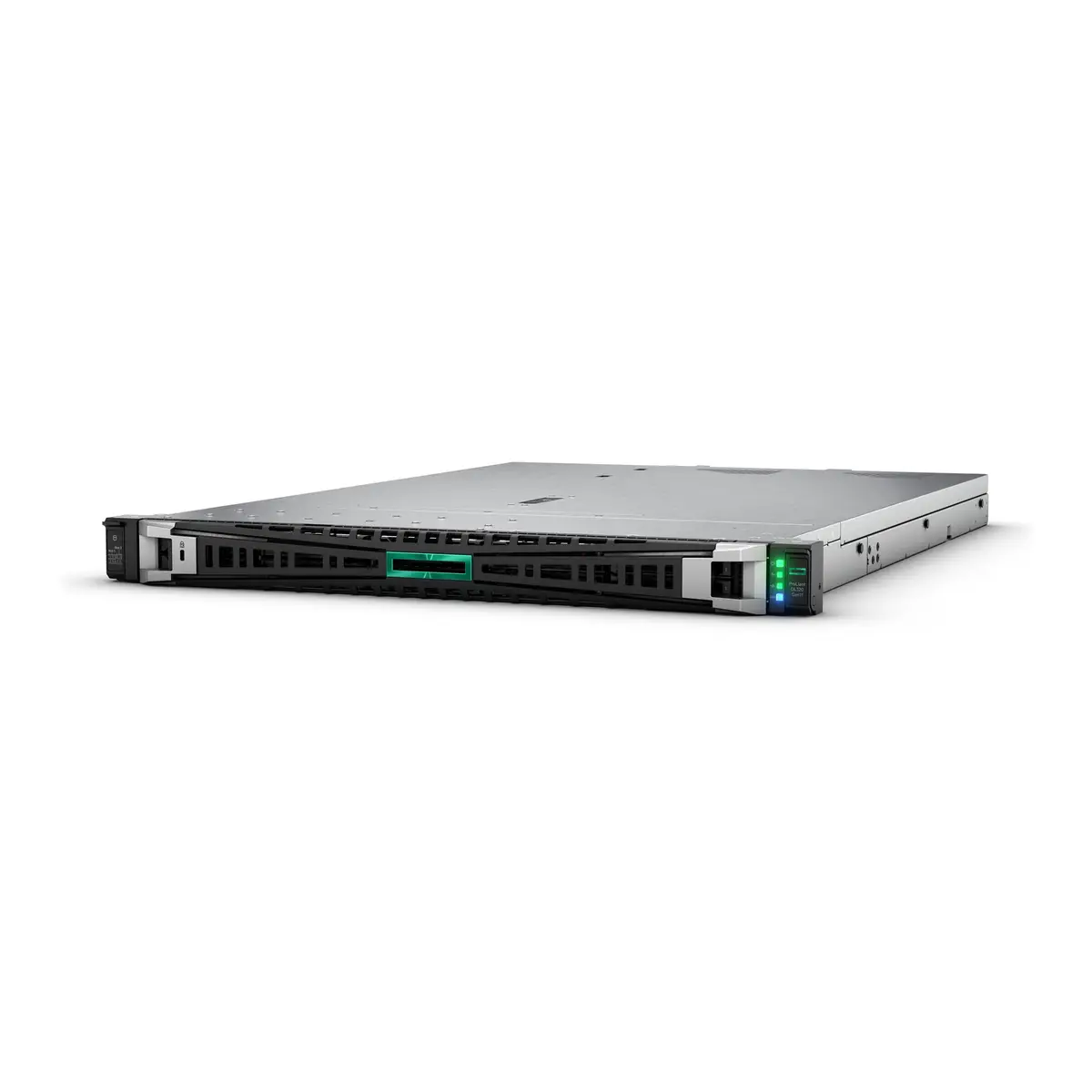

HPE DL320 Gen11 3408U 1P 16G 4LFF Svr

Detailed product title

HPE DL320 Gen11 3408U 1P 16G 4LFF Svr HPE DL320 Gen11 3408U 1P 16G 4LFF Svr

Internal memory 16 GB

Processor family Intel Xeon Bronze

Chassis type Rack (1U)

please ask for availability

Added to cart

please ask for availability

Product description

HPE ProLiant DL320 Gen11 server with one Intel® Xeon® Scalable 3408U processor, 1x 16 GB single rank memory, Intel VROC Software RAID, eight small form factor SAS/SATA/NVMe drive bays, five standard fans, one HPE 1000W Flex Slot Titanium Hot Plug Power Supply, and a 3/3/3 warranty

Technical specifications

Other features

Security features	UEFI Secure Boot and Secure Start support. Intel Software Guard Extensions (SGX) support. Immutable Silicon Root of Trust. Optional Trusted Supply Chain, iLO Security modes, TPM, Chassis Intrusion detection and Bezel Locking kits.
Storage drive type	None ship standard, 4 LFF supported
Number of processors supported	1
Standard fans	5x Standard Fans
Weight (imperial)	56.879 lb
Dimensions (W x D x H) (imperial)	23.62 x 36.06 x 9.49

Power

Number of main power supplies	1
Number of redundant power supplies supported	2
Number of redundant power supplies installed	1
Redundant power supply (RPS) support	Yes

Software

Compatible operating systems

001:Windows Server

Power

Power supply type

1x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit

Performance

Management platform	Included - HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download). Optional - HPE iLO Advanced, and HPE OneView Advanced.
Remote administration	iLO 6 ASIC

Weight & dimensions

Weight	25,800 g
Height	241 mm
Width	600 mm
Depth	916 mm

Design

Rack mounting

Ports & interfaces

Expansion slots	One PCIe Gen5 & One OCP 3.0 PCIe Gen5
VGA (D-Sub) ports quantity	1

Security

Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes

Network

Ethernet interface type

Gigabit Ethernet

Design

Chassis type

Rack (1U)

Power

Power supply

1,000 W

Ports & interfaces

Ethernet LAN (RJ-45) ports

Graphics

Maximum graphics card memory

16 MB

Network

LAN controller

Broadcom BCM5719

Storage

HDD interface	001:SATA,Serial Attached SCSI
RAID support	Yes
RAID levels	0,1,5,6,10,50,60
Number of HDDs supported	4
Supported RAID controllers	Intel VROC SATA for HPE ProLiant Gen11
Supported SSD sizes	3.5"
Number of SSDs supported	4
Hot-Plug support	Yes
Maximum storage capacity	261.12 TB
Supported HDD sizes	3.5

Performance

Motherboard chipset

AMD SoC

Storage

SSD interface

PCI Express 4.0

Memory

Memory slots	16x DIMM
ECC	Yes
Memory layout (slots x size)	1 x 16

Processor

Maximum number of SMP processors

Processor

Number of processors installed

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

Network

Ethernet LAN

Graphics

On-board graphics card

Storage

Optical drive type

Memory

Internal memory type	DDR5-SDRAM
Maximum internal memory	2,040 GB
Memory clock speed	4,800 MHz
Internal memory	16 GB

Processor

Processor manufacturer	Intel
Processor family	Intel Xeon Bronze
Processor model	3408U
Processor cores	8
Processor cache type	L3
Processor cache	22.5 MB
Processor boost frequency	1.9 GHz
Processor frequency	1.8 GHz
