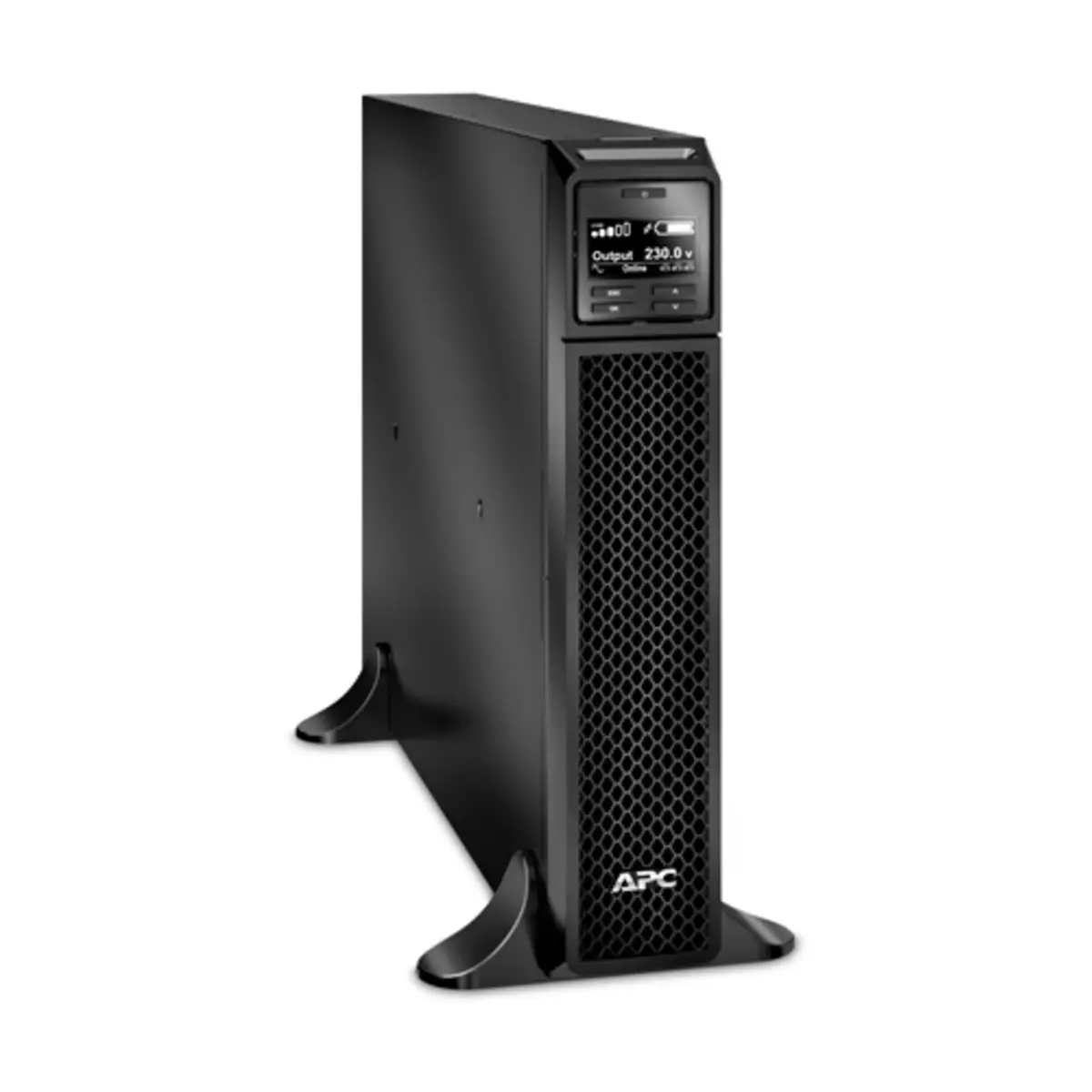

- SRT3000XLW-IEC, Doppelwandler (Online), 3 kVA, 2700 W, Sine, 100 V, 275 V
1 Images
Product description
High density, double-conversion on-line power protection with scalable runtime.
Technical specifications
Logistics data
| Products per pallet | 6 ST |
Weight & dimensions
| Weight | 31,300 g |
Power
| Battery recharge time | 3 std |
| Surge protection | Y |
Lieferumfang
| Cables included | RS-232,USB cable |
Verpackungsdaten
| Software CD | Y |
| Quick installation guide | Y |
| Package weight | 36,740 g |
| Package depth | 871 mm |
| Package width | 599 mm |
| Package height | 246 mm |
Sonstige Funktionen
| International Protection (IP) code | IP20 |
| USB port | Y |
| Input frequency | 40/70 |
| Output power | 2,700 W |
| Noise level | 55 dB |
Sustainability
| Sustainability certificates | ENERGY STAR |
| Compliance certificates | RoHS |
Operational conditions
| Operating relative humidity (H-H) | 0 - 95 |
| Storage temperature (T-T) | -15 - 45 |
| Operating temperature (T-T) | 0 - 40 |
| Operating altitude | 0 - 3000 |
| Storage relative humidity (H-H) | 0 - 95 |
| Non-operating altitude | 0 - 15000 |
Battery
| Battery technology | Sealed Lead Acid (VRLA) |
| Hot-swap battery | Y |
| Waveform | Sine |
| Cold start | Y |
| Automatic battery test | Y |
| Typical backup time at half load | 11.8 min |
| Battery capacity | 505 Vah |
| Typical backup time at full load | 4 min |
| Battery life (max) | 5 |
Ergonomics
| LED indicators | Y |
Features
| Height | 432 mm |
| Width | 85 mm |
| Depth | 635 mm |
| Cable length | 2.44 m |
| Audible alarm(s) | Y |
| Output frequency regulation | 50/60 |
| UPS topology | Double-conversion (Online) |
| Auto-restart | Y |
| Emergency Power Off (EPO) | Y |
| Efficiency | 92.4 % |
| Surge energy rating | 340 J |
| Output power capacity | 3 kVA |
| Input operation voltage (max) | 275 V |
| Input operation voltage (min) | 100 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
Mouse
| Form factor | Tower |
| Certification | CE, CE Mark, CSA C22.2 No.107.3-05, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 Class A, RCM, UL 1778, VDE, REACH |
Ports & interfaces
| Serial interface type | RJ-45 |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler,C19 coupler |
| Serial interface | Y |
| SmartSlot | Y |
| AC outlets quantity | 8 AC out |
Management features
| Web-based management | Y |
Design
| Product colour | Black |
Downloads
142640_document_EN_001
PDF Download
ID: 142640
APC ID: SRT3000XLW-IEC
SRT3000XLW-IEC, Doppelwandler (Online), 3 kVA, 2700 W, Sine, 100 V, 275 V
Detailed product title
Detailed product title
APC SRT3000XLW-IEC. USV-Topologie: Doppelwandler (Online), Ausgangskapazität: 3 kVA, Ausgangsleistung: 2700 W. AC-Steckertypen: C13- Koppler, C19-Koppler, Stecker: C20-Koppler, Anzahl der AC-Ausgänge: 8 AC-Ausgänge. Akku-/Batterietechnologie: Plombierte Bleisäure VRLA), Batteriekapazität: 505 VAh, Typische Backup-Zeit bei voller Belastung: 4 min. Formfaktor: Tower, Produktfarbe: Schwarz, Kabe länge: 2,44 m. Breite: 85 mm, Tiefe: 635 mm, Höhe: 432 mm
