- Smart-UPS On-Line, Doppelwandler (Online), 10 kVA, 10000 W, Sine, 100 V, 476 V
3 Images
ID: 126048
APC ID: SRT10KXLI
Smart-UPS On-Line, Doppelwandler (Online), 10 kVA, 10000 W, Sine, 100 V, 476 V
Detailed product title
Detailed product title
APC Smart-UPS On-Line. USV-Topologie: Doppelwandler (Online), Ausgangskapazität: 10 kVA, Ausgangsleistung: 10000 W. AC-Steckertypen: C13-Koppler, C19-Koppler, Stecker: Terminal, Anzahl der AC-Ausgänge: 10 AC-Ausgänge. Akku-/Batterietechnologie: Plombierte Bleisäu e (VRLA), Batteriekapazität: 1805 VAh, Typische Backup-Zeit bei voller Belastung: 3,8 min. Formfaktor: Rackmount/Tower, Produktfarb : Schwarz, Internationale Schutzart (IP-Code): IP20. Breite: 263 mm, Tiefe: 715 mm, Höhe: 432 mm
3 Images
Product colour Black
Gross:
incl.
taxes.
please ask for availability
Added to cart
Gross:
incl.
taxes.
please ask for availability
Product description

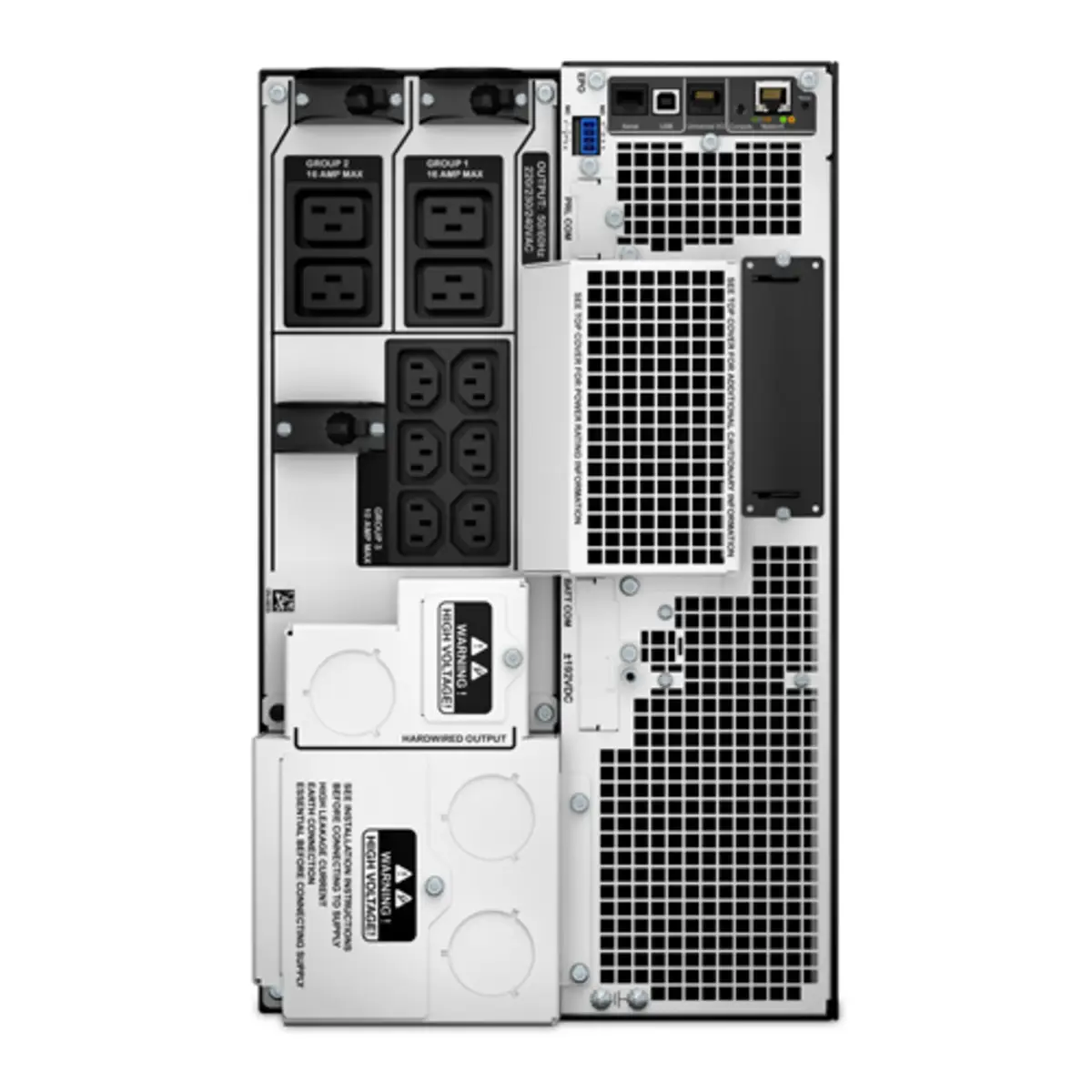

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire(1P+N+E)/5-wire(3P+N+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outlets, and 3x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Technical specifications
Packaging content
| Warranty card | Yes |
| Quick installation guide | Yes |
Operational conditions
| Operating relative humidity (H-H) | 0 - 95 |
| Storage temperature (T-T) | -15 - 45 |
| Operating temperature (T-T) | 0 - 40 |
| Operating altitude | 0 - 3000 |
Other features
| International Protection (IP) code | IP20 |
Verpackungsdaten
| Software CD | Yes |
Certificates
| Sustainability certificates | RoHS,ENERGY STAR |
| Certification | CE, CE Mark, EAC, EN/IEC62040-1, EN/IEC 62040-2, |
Weight & dimensions
| Package weight | 126,820 g |
| Package depth | 1,000 mm |
| Package width | 600 mm |
| Package height | 461 mm |
Packaging content
| Cables included | USB cable |
Sonstige Funktionen
| Nominal input voltage | 230 |
| Nominal output voltage | 230 |
Battery
| Hot-swap battery | Yes |
| Waveform | Sine |
| Cold start | Yes |
| Automatic battery test | Yes |
| Typical backup time at half load | 11.5 min |
| Battery capacity | 1,805 Vah |
| Typical backup time at full load | 3.8 min |
| Battery life (max) | 5 |
Battery
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 1.5 std |
Operational conditions
| Non-operating altitude | 0 - 15000 |
Features
| Audible alarm(s) | Yes |
| Output frequency regulation | 50/60 |
| Crest factor | 3:1 |
| Number of output phases | 1 |
| UPS topology | Double-conversion (Online) |
| Auto-restart | Yes |
| Emergency Power Off (EPO) | Yes |
| Surge energy rating | 480 J |
| Output power capacity | 10 kVA |
| Input operation voltage (max) | 476 V |
| Input operation voltage (min) | 100 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
Weight & dimensions
| Weight | 111,820 g |
| Height | 432 mm |
| Width | 263 mm |
| Depth | 715 mm |
Operational conditions
| Storage relative humidity (H-H) | 0 - 95 |
Design
| Form factor | Rackmount/Tower |
Features
| Noise level | 55 dB |
Features
| Interface | RJ-45 10/100 Base-T |
Ports & interfaces
| Serial interface type | RJ-45 |
Features
| Input frequency | 40/70 |
| Output power | 10,000 W |
| Efficiency | 94.6 % |
Performance
| Temperature sensor | Yes |
Ports & interfaces
| USB port | Yes |
| Power plug | Terminal |
| AC outlet types | C13 coupler,C19 coupler |
| Number of output IEC jumpers | 3 |
| Serial interface | Yes |
| SmartSlot | Yes |
| AC outlets quantity | 10 AC out |
Features
| Product colour | Black |
Design
| LED indicators | Yes |
