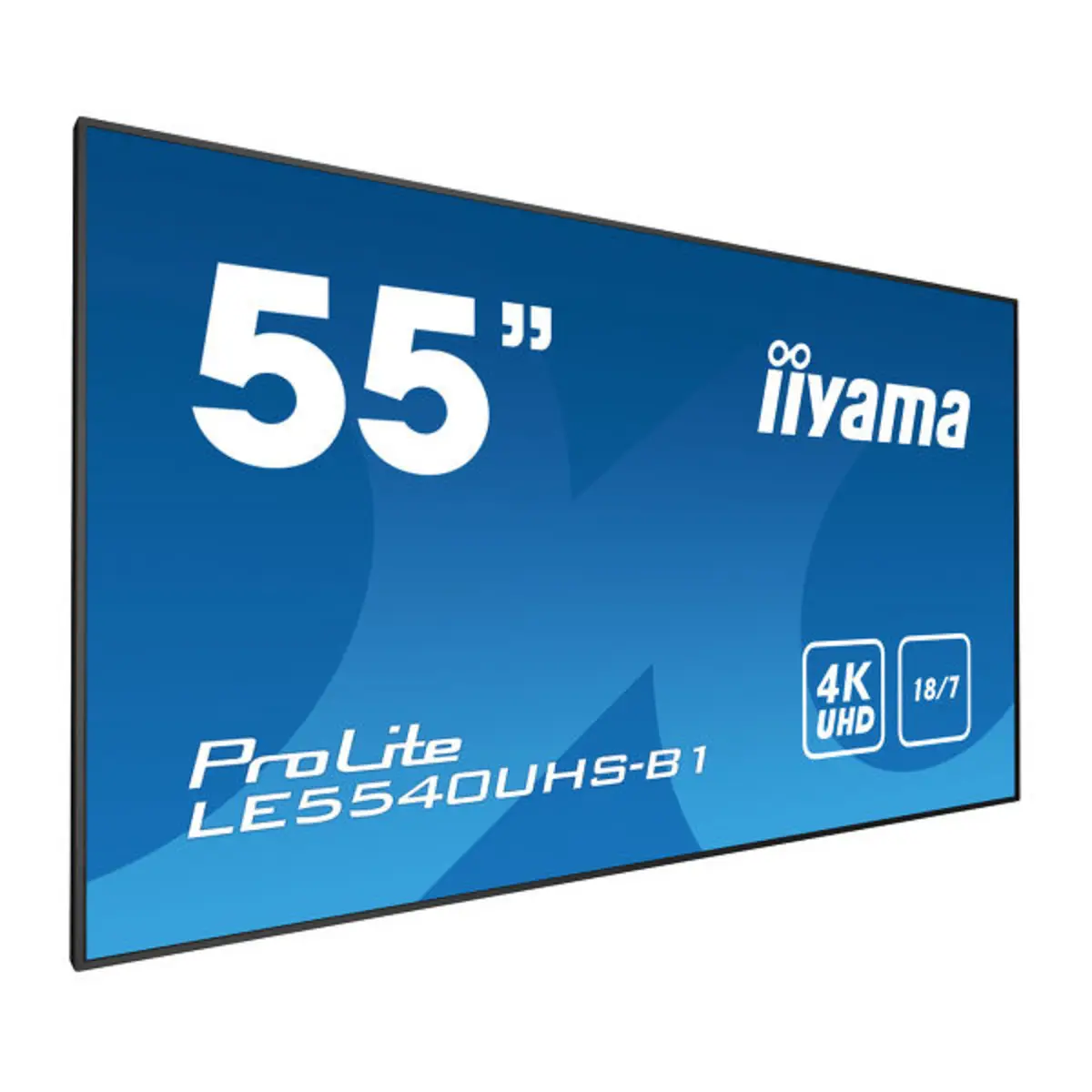

- ProLite LE5540UHS-B1 138.7cm (55") 3840x2180
















See the difference with the ProLite LE5540UHS. A professional digital signage display with 4K graphics, 18/7 operating time and landscape orientation. Featuring a slim bezel, an AMVA3 LED panel for exceptional color and image performance and iiSignage, iiyama's free signage content creation and management software, the LE5540UHS offers businesses an easy and effective solution to help capture their audience's attention.
iiSignage
With iiSignage, you can easily create, publish and manage your own digital signage content on any iiyama 40-series display from a desktop PC in the same network. Use rich content like video’s and widgets to create highly impactful advertising in minutes and schedule your content across multiple displays to best match your customers' behavior.
4K
UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.
AMVA3
AMVA3 technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
LAN Control
LAN control enables making adjustments in the display OSD menu through your network (software not included).
Product colour | Black |
Display technology | LED |
Panel type | AMVA3 |
Display number of colours | 16.78 million colours |
Pixel pitch | 0.315 x 0.315 |
Horizontal scan range | 30 - 83 |
Vertical scan range | 50 - 76 |
Display diagonal | 54.6 " |
Display resolution | 3840 x 2160 |
Viewing angle, horizontal | 178 deg |
Viewing angle, vertical | 178 deg |
Active display area (W x H) | 1209.6 x 680.4 |
Harmonized System (HS) code | 85285210 |
Energy efficiency scale | A to G |
Energy efficiency class (SDR) | G |
AC input voltage | 110 - 240 |
AC input frequency | 50 - 60 |
Energy consumption (SDR) per 1000 hours | 138 kW.h |
Cables included | AC,DVI,HDMI,RS-232 |
Remote control included | Y |
Response time | 8 ms |
Batteries included | Y |
Quick start guide | Y |
Display diagonal (metric) | 138.68 cm |
Storage temperature (T-T) | -20 - 60 |
Operating temperature (T-T) | 0 - 40 |
Weight | 16,000 g |
Height | 711.6 mm |
Width | 1,239.2 mm |
Depth | 61.7 mm |
Bezel width (side) | 12.9 mm |
Bezel width (top) | 12.9 mm |
Bezel width (bottom) | 14.7 mm |
Plug and Play | Y |
VESA mounting | Y |
On Screen Display (OSD) languages | CZE,DEU,DUT,ENG,ESP,FRE,ITA,JPN,POL,RUS |
Number of OSD languages | 11 |
On Screen Display (OSD) | Y |
Panel mounting interface | 400 x 200,400 x 400 |
Built-in speaker(s) | Yes |
RMS rated power | 20 W |
Operating system installed | Android |
Certification | CB, CE, TÜV-Bauart, CU |
HD type | 4K Ultra HD |
Native aspect ratio | 16:9 |
Contrast ratio (typical) | 4000:1 |
Ethernet LAN (RJ-45) ports | 1 |
HDMI ports quantity | 2 |
DVI port | Y |
HDCP | Y |
Ethernet LAN | Y |
USB ports quantity | 1 |
RS-232 interface | Y |
PC Audio in | Y |




Response time 8 ms
Display resolution 3840 x 2160
Contrast ratio (typical) 4000:1
Display diagonal 54.6 "
Product colour Black
Built-in speaker(s) Yes
